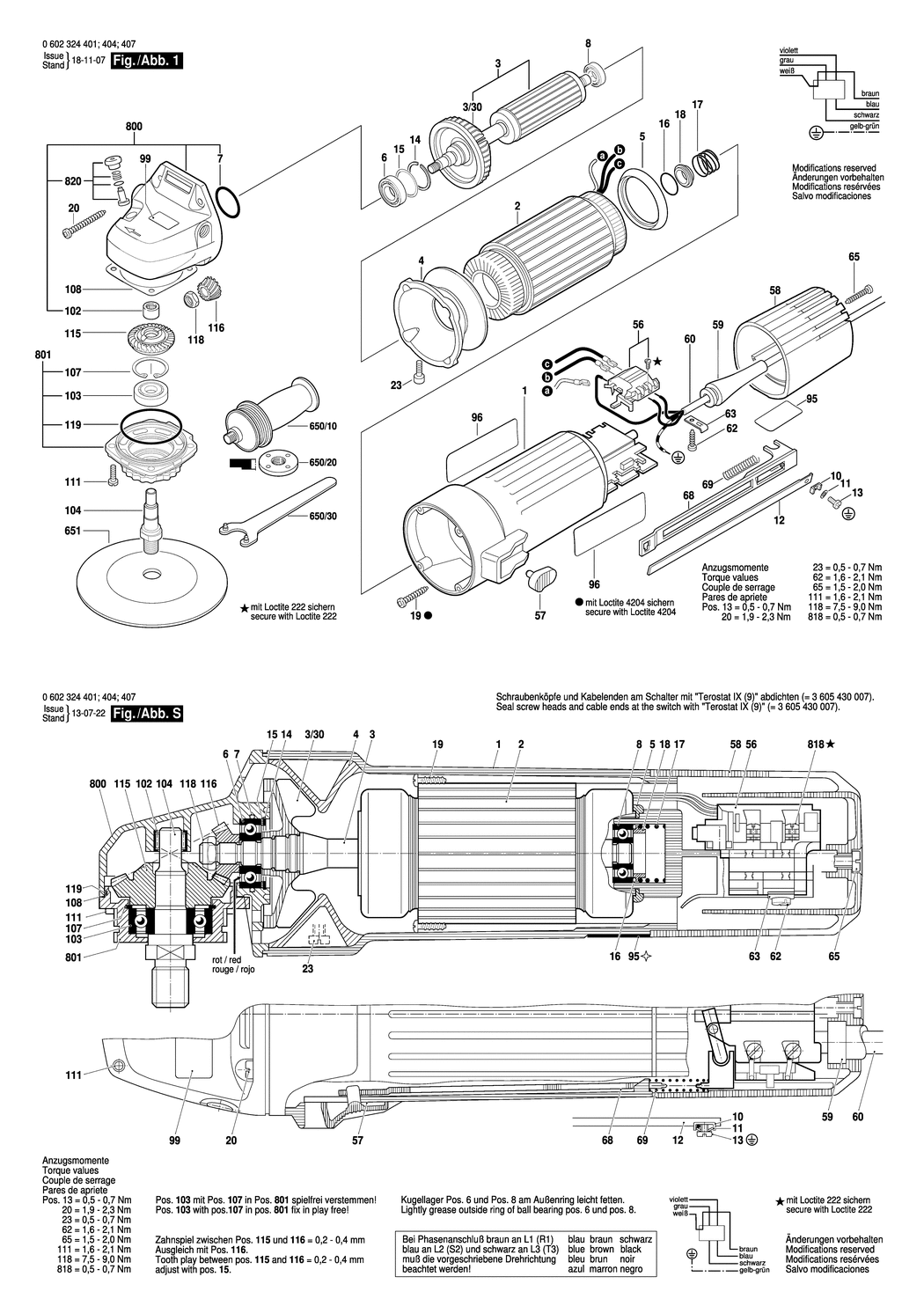

1 - MOTOR HOUSING
BSD-3605102076.A11
3605102076
|
£48.38
|
£58.06
|
|
|
2 - STATOR 72V/200HZ
BSD-3604229115.A3
3604229115
|
£357.27
|
£428.72
|
|
|
3 - ROTOR WITHOUT WINDING
BSD-3604080053.A6
3604080053
|
£156.22
|
£187.46
|
|
|
3/30 - FAN
BSD-3606610010.A31
3606610010
|
£4.26
|
£5.11
|
|
|
4 - AIR-DEFLECTOR RING
BSD-3600209010.A20
3600209010
|
£16.41
|
£19.69
|
|
|
5 - SEAL RING
BSD-1600209006.A113
1600209006
|
£2.80
|
£3.36
|
|
|
6 - GROOVE BALL BEARING
BSD-3600905090.A17
3600905090
|
£21.68
|
£26.01
|
|
|
7 - O-RING 26.0x1.5 MM
BSD-2600210018.A29
2600210018
|
£3.72
|
£4.47
|
|
|
8 - GROOVE BALL BEARING
BSD-3608870327.A8
3608870327
|
£13.12
|
£15.75
|
|
|
10 - CLAMPING SADDLE
BSD-3601321004.A34
3601321004
|
£2.16
|
£2.59
|
|
|
11 - SPRING WASHER
BSD-3600150009.A61
3600150009
|
£2.80
|
£3.36
|
|
|
12 - CONNECTING ROD
BSD-3602300011.A20
3602300011
|
£16.41
|
£19.69
|
|
|
13 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A264
2910110048
|
£1.75
|
£2.10
|
|
|
14 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A223
2916660010
|
£1.75
|
£2.10
|
|
|
15 - SHIM 19.3 X 25.8 X 0.35
BSD-3600119016.A8
3600119016
|
£3.72
|
£4.47
|
|
|
16 - O-RING 18.77x1.78 MM
BSD-3600210082.A13
3600210082
|
£2.16
|
£2.59
|
|
|
17 - COMPRESSION SPRING
BSD-3604610038.A6
3604610038
|
£3.72
|
£4.47
|
|
|
18 - LOCATING RING
BSD-3600203005.A17
3600203005
|
£12.04
|
£14.45
|
|
|
19 - TAPPING SCREW
BSD-3603435002.A19
3603435002
|
£1.75
|
£2.10
|
|
|
20 - LENS HEAD SCREW 4x32
BSD-2603490026.A76
2603490026
|
£1.75
|
£2.10
|
|
|
23 - THREAD-FORMING TAP. SCREW
BSD-2603435042.A209
2603435042
|
£1.75
|
£2.10
|
|
|
56 - SWITCH
BSD-3607200024.A41
3607200024
|
£23.86
|
£28.63
|
|
|
57 - SWITCH HANDLE
BSD-1602026057.A238
1602026057
|
£1.97
|
£2.36
|
|
|
58 - SWITCH COVER
BSD-3600508035.A18
3600508035
|
£14.91
|
£17.89
|
|
|
59 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A120
1600703030
|
£2.61
|
£3.13
|
|
|
60 - ELEC. CABLE W/CONNECTION
BSD-3604422066.A9
3604422066
|
£54.42
|
£65.30
|
|
|
62 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A276
2603490021
|
£1.75
|
£2.10
|
|
|
63 - FASTENING CLAMP
BSD-1601302017.A450
1601302017
|
£1.75
|
£2.10
|
|
|
65 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A866
2603490023
|
£1.75
|
£2.10
|
|
|
68 - ADJUSTING SLIDE
BSD-3602319014.A9
3602319014
|
£5.30
|
£6.36
|
|
|
69 - COMPRESSION SPRING
BSD-1604611026.A475
1604611026
|
£1.75
|
£2.10
|
|
|
95 - NAMEPLATE
BSD-3601106054.A59
3601106054
|
£5.30
|
£6.36
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110246.A18
3601110246
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1080
3601119236
|
£3.72
|
£4.47
|
|
|
102 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A773
1600910018
|
£5.30
|
£6.36
|
|
|
103 - GROOVE BALL BEARING
BSD-3600905069.A22
3600905069
|
£16.41
|
£19.69
|
|
|
104 - GRINDING SPINDLE
BSD-1607000D6A.A254
1607000D6A
|
£7.36
|
£8.83
|
|
|
107 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A284
2916660013
|
£2.16
|
£2.59
|
|
|
108 - SHIM 0.2 MM
BSD-1600136010.A23
1600136010
|
£2.61
|
£3.13
|
|
|
108 - SHIM 0.3 MM
BSD-1600136011.A300
1600136011
|
£2.16
|
£2.59
|
|
|
108 - SHIM 0.1 MM
BSD-1600136012.A23
1600136012
|
£1.75
|
£2.10
|
|
|
111 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12
BSD-2914471401.A18
2914471401
|
£1.75
|
£2.10
|
|
|
115 - CROWN GEAR Z=37
BSD-3606334086.A10
3606334086
|
£102.57
|
£123.08
|
|
|
116 - BEVEL GEAR
BSD-3606333057.A4
3606333057
|
£54.42
|
£65.30
|
|
|
118 - HEX NUT M7. SW10
BSD-1603300016.A12
1603300016
|
£1.75
|
£2.10
|
|
|
119 - O-RING 46.0x1.1 MM
BSD-3600210124.A257
3600210124
|
£2.80
|
£3.36
|
|
|
650/10 - AUXILIARY HANDLE M10. dia37x115 MM
BSD-1602025031.A69
1602025031
|
£18.96
|
£22.75
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A23
1607950052
|
£3.72
|
£4.47
|
|
|
651 - BACKING PAD
BSD-1608601032.A19
1608601032
|
-
|
|
|
|
800 - TRANSMISSION CASE
BSD-3607030251.A5
3607030251
|
£102.57
|
£123.08
|
|
|
801 - BEARING FLANGE
BSD-3607030468.A6
3607030468
|
£93.88
|
£112.65
|
|
|
820 - PUSH-BUTTON
BSD-1607000253.A38
1607000253
|
£2.49
|
£2.99
|
|
