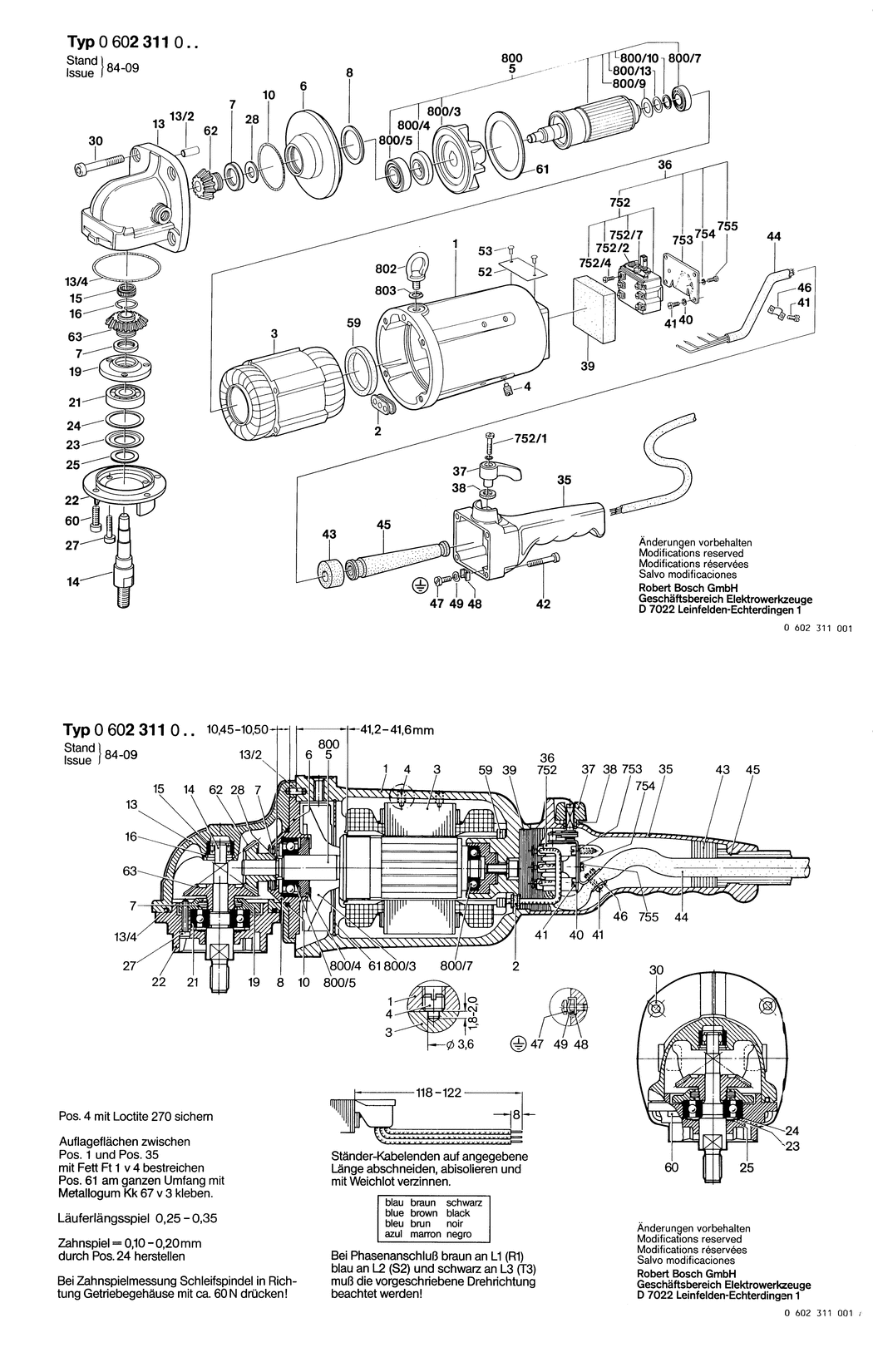

1 - MOTOR HOUSING
BSD-1605102036.A6
1605102036
|
-
|
|
|
|
2 - GROMMET
BSD-1600306000.A171
1600306000
|
£1.95
|
£2.34
|
|
|
3 - STATOR 200V/300HZ
BSD-1604229069.A7
1604229069
|
-
|
|
|
|
4 - SET SCREW
BSD-1603402003.A4
1603402003
|
-
|
|
|
|
6 - BEARING FLANGE
BSD-1605820091.A1
1605820091
|
-
|
|
|
|
7 - SEALING DISK
BSD-1600108048.A138
1600108048
|
£1.75
|
£2.10
|
|
|
8 - SHIM 0.05 MM
BSD-1600102638.A14
1600102638
|
£3.34
|
£4.01
|
|
|
8 - SHIM 0.1 MM
BSD-1600102639.A220
1600102639
|
-
|
|
|
|
8 - SHIM 0.15 MM
BSD-1600102640.A14
1600102640
|
-
|
|
|
|
10 - O-RING 54.0x3.0 MM
BSD-1600210004.A138
1600210004
|
£2.80
|
£3.36
|
|
|
13 - GEAR HOUSING
BSD-1605806180.A6
1605806180
|
-
|
|
|
|
13/2 - STRAIGHT PIN 6 H 8x1 DIN 7
BSD-2917500145.A5
2917500145
|
-
|
|
|
|
13/4 - O-RING 80x3 MM
BSD-1900210166.A6
1900210166
|
£5.30
|
£6.36
|
|
|
14 - GRINDING SPINDLE
BSD-1603523020.A2
1603523020
|
-
|
|
|
|
15 - NEEDLE BEARING dia22x11.3 MM
BSD-1600910010.A399
1600910010
|
£45.67
|
£54.80
|
|
|
16 - RETAINING RING dia22 MM
BSD-2916620011.A22
2916620011
|
£1.75
|
£2.10
|
|
|
19 - CONICAL SPRING WASHER
BSD-1600521007.A2
1600521007
|
-
|
|
|
|
21 - GROOVE BALL BEARING 17x47x14
BSD-1900900352.A136
1900900352
|
£27.23
|
£32.68
|
|
|
22 - BEARING FLANGE
BSD-1605805018.A2
1605805018
|
-
|
|
|
|
23 - PLAIN WASHER
BSD-2100551000.A188
2100551000
|
-
|
|
|
|
24 - SHIM 0.05 MM
BSD-1600102638.A13
1600102638
|
£3.34
|
£4.01
|
|
|
24 - SHIM 0.1 MM
BSD-1600102639.A221
1600102639
|
-
|
|
|
|
24 - SHIM 0.15 MM
BSD-1600102640.A13
1600102640
|
-
|
|
|
|
25 - SEALING DISK
BSD-1600110004.A2
1600110004
|
-
|
|
|
|
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8
BSD-2910141164.A191
2910141164
|
£2.16
|
£2.59
|
|
|
28 - SHIM 0.1 MM
BSD-1600101616.A27
1600101616
|
£2.61
|
£3.13
|
|
|
28 - SHIM 0.2 MM
BSD-1600101617.A169
1600101617
|
£1.75
|
£2.10
|
|
|
28 - SHIM 0.3 MM
BSD-1600101618.A27
1600101618
|
£2.61
|
£3.13
|
|
|
28 - SHIM 0.05 MM
BSD-1600101619.A166
1600101619
|
£2.16
|
£2.59
|
|
|
30 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-8.8
BSD-2910141246.A17
2910141246
|
-
|
|
|
|
35 - HANDLE
BSD-1605132024.A15
1605132024
|
-
|
|
|
|
36 - ON-OFF SWITCH
BSD-1607200017.A46
1607200017
|
£102.57
|
£123.08
|
|
|
36 - FIXING PLATE
BSD-3601023015.A77
3601023015
|
£21.68
|
£26.01
|
|
|
37 - CONTROL LEVER
BSD-1602026015.A8
1602026015
|
-
|
|
|
|
38 - SEALING DISK dia18xdia10x4 MM
BSD-1600108024.A79
1600108024
|
£1.75
|
£2.10
|
|
|
39 - SEALING PLATE
BSD-1600009000.A7
1600009000
|
-
|
|
|
|
40 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1162
2916690003
|
£1.75
|
£2.10
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A315
2910021122
|
£2.16
|
£2.59
|
|
|
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8
BSD-2910141209.A112
2910141209
|
£2.61
|
£3.13
|
|
|
43 - SEALING PLATE
BSD-1600113003.A243
1600113003
|
£2.80
|
£3.36
|
|
|
44 - ELEC. CABLE W/CONNECTION
BSD-3607030236.A133
3607030236
|
£61.98
|
£74.38
|
|
|
45 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A198
1600703009
|
£5.58
|
£6.70
|
|
|
46 - FASTENING CLAMP
BSD-1601303003.A116
1601303003
|
£2.16
|
£2.59
|
|
|
47 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A556
2910110120
|
£1.75
|
£2.10
|
|
|
48 - CLAMPING SADDLE
BSD-3601321001.A42
3601321001
|
£3.72
|
£4.47
|
|
|
49 - SPRING WASHER dia4.2 MM
BSD-3600150006.A30
3600150006
|
£2.61
|
£3.13
|
|
|
52 - NAMEPLATE
BSD-3601106053.A1169
3601106053
|
£5.30
|
£6.36
|
|
|
53 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A312
3603133001
|
£2.61
|
£3.13
|
|
|
59 - SEAL RING
BSD-1600209005.A5
1600209005
|
-
|
|
|
|
60 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8
BSD-2910141201.A380
2910141201
|
£2.61
|
£3.13
|
|
|
61 - AIR-DEFLECTOR RING
BSD-1600151001.A6
1600151001
|
-
|
|
|
|
62 - BEVEL GEAR Z=22
BSD-1606333050.A7
1606333050
|
£410.78
|
£492.94
|
|
|
63 - BEVEL GEAR Z=46
BSD-1606333051.A43
1606333051
|
£93.88
|
£112.65
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A196
3601119236
|
£3.72
|
£4.47
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A103
2607950511
|
£4.26
|
£5.11
|
|
|
652 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A731
1607950061
|
£5.42
|
£6.50
|
|
|
653 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A155
1907950007
|
£5.30
|
£6.36
|
|
|
655 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A19
2600501006
|
£16.43
|
£19.72
|
|
|
656 - ROUND NUT M14
BSD-2603345004.A102
2603345004
|
£6.52
|
£7.83
|
|
|
657 - PROTECTIVE COVER dia230 MM
BSD-1605510198.A51
1605510198
|
-
|
|
|
|
752 - ON-OFF SWITCH
BSD-1607200006.A54
1607200006
|
£81.81
|
£98.17
|
|
|
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A209
2910001052
|
£2.16
|
£2.59
|
|
|
752/2 - EXTENSION SPRING
BSD-1604650009.A103
1604650009
|
£1.75
|
£2.10
|
|
|
752/3 - COMPRESSION SPRING
BSD-1604617001.A92
1604617001
|
£2.80
|
£3.36
|
|
|
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A238
2910091118
|
£1.75
|
£2.10
|
|
|
752/5 - LOCKING WASHER DIN 6799-2.3
BSD-2916080005.A87
2916080005
|
-
|
|
|
|
752/7 - DETENT ROLLER
BSD-1603200007.A111
1603200007
|
-
|
|
|
|
753 - FIXING PLATE
BSD-3601023015.A75
3601023015
|
£21.68
|
£26.01
|
|
|
754 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1160
2916690003
|
£1.75
|
£2.10
|
|
|
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A654
2910021118
|
£1.75
|
£2.10
|
|
|
800 - ROTOR WITHOUT WINDING
BSD-1604081003.A3
1604081003
|
-
|
|
|
|
800/3 - FAN
BSD-1606610013.A8
1606610013
|
-
|
|
|
|
800/4 - COVER DISC
BSD-1600120019.A2
1600120019
|
-
|
|
|
|
800/5 - MAGNETO BALL BEARING E20T DIN 615
BSD-1900900117.A5
1900900117
|
-
|
|
|
|
800/7 - INTERMEDIATE RING
BSD-1600202025.A6
1600202025
|
-
|
|
|
|
800/9 - ANG. CONTACT BALL BEARING E15T DIN 615
BSD-1900900111.A7
1900900111
|
-
|
|
|
|
800/10 - SHIM 0.2 MM
BSD-1610101603.A11
1610101603
|
£1.75
|
£2.10
|
|
|
800/13 - SHIM 0.20 MM
BSD-1200101608.A6
1200101608
|
-
|
|
|
|
802 - LIFTING EYE BOLT DIN 580-M 8
BSD-2912521237.A29
2912521237
|
£11.78
|
£14.13
|
|
|
803 - SPRING LOCK WASHER DIN 127-B12
BSD-2916680011.A3
2916680011
|
-
|
|
|
