Bosch ---- / 0602306013 / --- 120 Volt Spare Parts

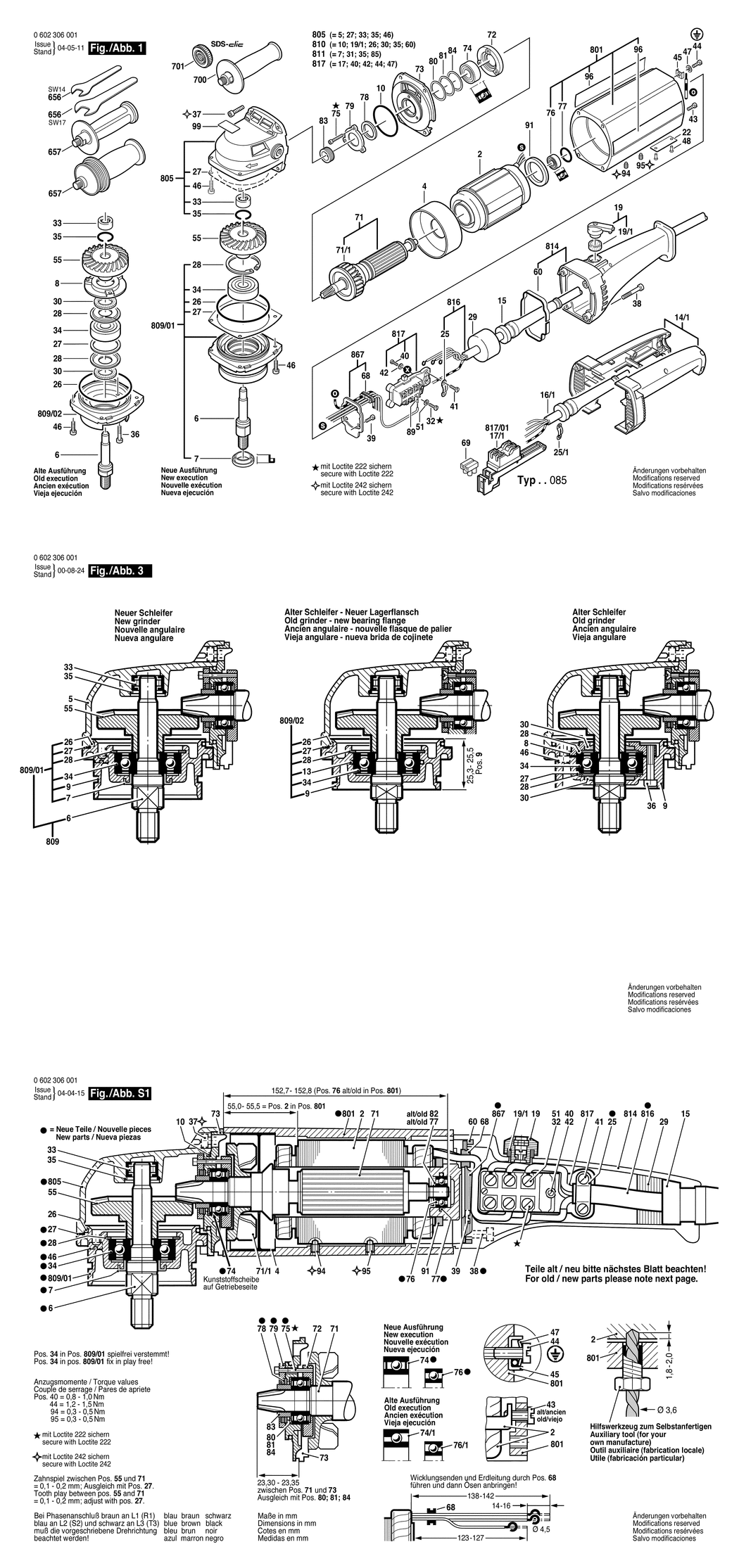

An exploded drawing and listing for the Bosch ---- / 0602306013 / --- 120 Volt

	Ex VAT	Inc VAT
2 - STATOR 220V/360HZ BSD-1604229105.A2 1604229105	-
4 - AIR-DEFLECTOR RING BSD-1600209002.A128 1600209002	£5.30	£6.36
6 - GRINDING SPINDLE BSD-3603523032.A40 3603523032	£54.42	£65.30
7 - SEAL RING BSD-1600290020.A267 1600290020	£1.75	£2.10
8 - CONICAL SPRING WASHER BSD-1600521013.A69 1600521013	-
10 - O-RING 45x3MM BSD-1900210146.A35 1900210146	£4.26	£5.11
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A352 1600703009	£5.58	£6.70
17/1 - SWITCH BSD-1607200020.A76 1607200020	-
19 - CONTROL LEVER BSD-1602026030.A248 1602026030	£10.10	£12.12
19/1 - FELT WASHER BSD-1600205008.A101 1600205008	£1.75	£2.10
22 - NAMEPLATE BSD-3601106053.A98 3601106053	£5.30	£6.36
25 - FASTENING CLAMP BSD-1601303003.A239 1601303003	£2.16	£2.59
26 - O-RING 66.0x3.0 MM BSD-1600210005.A179 1600210005	£2.80	£3.36
27 - SHIM BSD-3600100075.A29 3600100075	£11.30	£13.56
27 - SHIM BSD-3600100076.A19 3600100076	£11.30	£13.56
27 - SHIM BSD-3600100077.A29 3600100077	£12.04	£14.45
27 - SHIM 0.05 MM BSD-1600102638.A124 1600102638	£3.34	£4.01
27 - SHIM 0.1 MM BSD-1600102639.A110 1600102639	-
27 - SHIM 0.15 MM BSD-1600102640.A124 1600102640	-
28 - SPRING RETAINING RING BSD-3603435038.A29 3603435038	£2.61	£3.13
29 - SEALING PLATE BSD-1600113003.A75 1600113003	£2.80	£3.36
30 - SEALING DISK BSD-1600108055.A278 1600108055	£1.75	£2.10
32 - PAN HEAD SCREW DIN 85-M4x10-4.8 BSD-2910091120.A57 2910091120	£1.75	£2.10
33 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A80 1600910010	£45.67	£54.80
34 - GROOVE BALL BEARING BSD-3600905138.A10 3600905138	-
35 - RETAINING RING dia22 MM BSD-2916620011.A193 2916620011	£1.75	£2.10
36 - THREAD-FORMING TAP. SCREW BSD-3603435008.A2 3603435008	£2.16	£2.59
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A68 2910141164	£2.16	£2.59
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A74 2910141162	£2.16	£2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A125 2910141166	£1.75	£2.10
39 - SOCKET HEAD CAP SCREW BSD-3603450008.A110 3603450008	£2.16	£2.59
40 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A480 2910211006	£1.75	£2.10
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1869 2910021118	£1.75	£2.10
42 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A729 2916011005	£1.75	£2.10
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A7 2910021120	£1.75	£2.10
44 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A240 2910110120	£1.75	£2.10
45 - CLAMPING SADDLE BSD-3601321001.A726 3601321001	£3.72	£4.47
46 - THREAD-FORMING TAP. SCREW BSD-3603435004.A61 3603435004	£2.80	£3.36
47 - SPRING WASHER dia4.2 MM BSD-3600150006.A492 3600150006	£2.61	£3.13
48 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A657 3603133001	£2.61	£3.13
51 - SPRING WASHER dia4.2 MM BSD-3600150006.A491 3600150006	£2.61	£3.13
55 - BEVEL GEAR Z=54 BSD-1606333082.A30 1606333082	£120.11	£144.13
60 - SEALING CORD BSD-1601014000.A225 1601014000	£2.80	£3.36
67 - SEALING PLATE BSD-1602388006.A17 1602388006	£5.58	£6.70
68 - GROMMET BSD-1600306001.A156 1600306001	£2.61	£3.13
71 - ROTOR WITHOUT WINDING BSD-1604080034.A5 1604080034	£410.78	£492.94
72 - BEARING COVER BSD-1600501019.A409 1600501019	£23.86	£28.63
73 - BEARING FLANGE BSD-3605820064.A5 3605820064	£68.42	£82.10
74 - GROOVE BALL BEARING BSD-3600905095.A93 3600905095	£21.52	£25.83
75 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x20-8.8 BSD-2910511130.A104 2910511130	-
75 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x16-8.8 BSD-2910141126.A50 2910141126	-
76 - GROOVE BALL BEARING 7x22x7 BSD-3600905147.A42 3600905147	£13.12	£15.75
77 - O-RING 22x2 MM BSD-1900210321.A147 1900210321	£5.30	£6.36
77 - SHIM 0.2 MM BSD-1600100632.A183 1600100632	£1.75	£2.10
78 - FELT DISC BSD-1600108018.A45 1600108018	£2.61	£3.13
79 - COVER DISC BSD-1600501024.A85 1600501024	£16.41	£19.69
80 - SHIM 0.1 MM BSD-1600102633.A23 1600102633	£1.75	£2.10
81 - SHIM 0.15 MM BSD-1600102634.A5 1600102634	£2.61	£3.13
83 - THREADED RING BSD-1603344030.A47 1603344030	£59.53	£71.44
84 - SHIM 0.05 MM BSD-1600102632.A5 1600102632	£2.16	£2.59
89 - END SPLICE BSD-3604477008.A201 3604477008	£1.75	£2.10
91 - SEAL RING BSD-1600209004.A94 1600209004	£2.80	£3.36
94 - SET SCREW BSD-1603402002.A68 1603402002	£1.75	£2.10
95 - SET SCREW BSD-1603402004.A56 1603402004	£2.61	£3.13
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A314 3601110047	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A1673 3601119236	£3.72	£4.47
656 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A380 2607950511	£4.26	£5.11
657 - AUXILIARY HANDLE M14 BSD-1602025022.A742 1602025022	£13.41	£16.09
657 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A222 1602025030	£18.96	£22.75
700/10 - AUXILIARY HANDLE BSD-160202507H.A633 160202507H	£11.30	£13.56
700/20 - ADAPTER M8/M14 BSD-3603523013.A3 3603523013	£16.41	£19.69
801 - MOTOR HOUSING BSD-3605102079.A82 3605102079	£179.37	£215.24
805 - GEAR HOUSING BSD-3607030321.A34 3607030321	£283.50	£340.20
809/01 - BEARING FLANGE BSD-3607030375.A85 3607030375	£195.26	£234.31
809/02 - BEARING FLANGE BSD-3607030376.A14 3607030376	£120.11	£144.13
810 - SEAL KIT BSD-1607000039.A29 1607000039	£13.12	£15.75
811 - SEAL KIT BSD-1607000044.A59 1607000044	£9.49	£11.39
814 - HANDLE BSD-3605132048.A156 3605132048	£63.50	£76.20
816 - ELEC. CABLE W/CONNECTION BSD-3607030236.A16 3607030236	£61.98	£74.38
817 - SWITCH KIT BSD-1607000036.A70 1607000036	-
867 - SEALING PLATE BSD-1602388007.A291 1602388007	£12.04	£14.45
