Bosch ---- / 0602304204 / --- Spare Parts

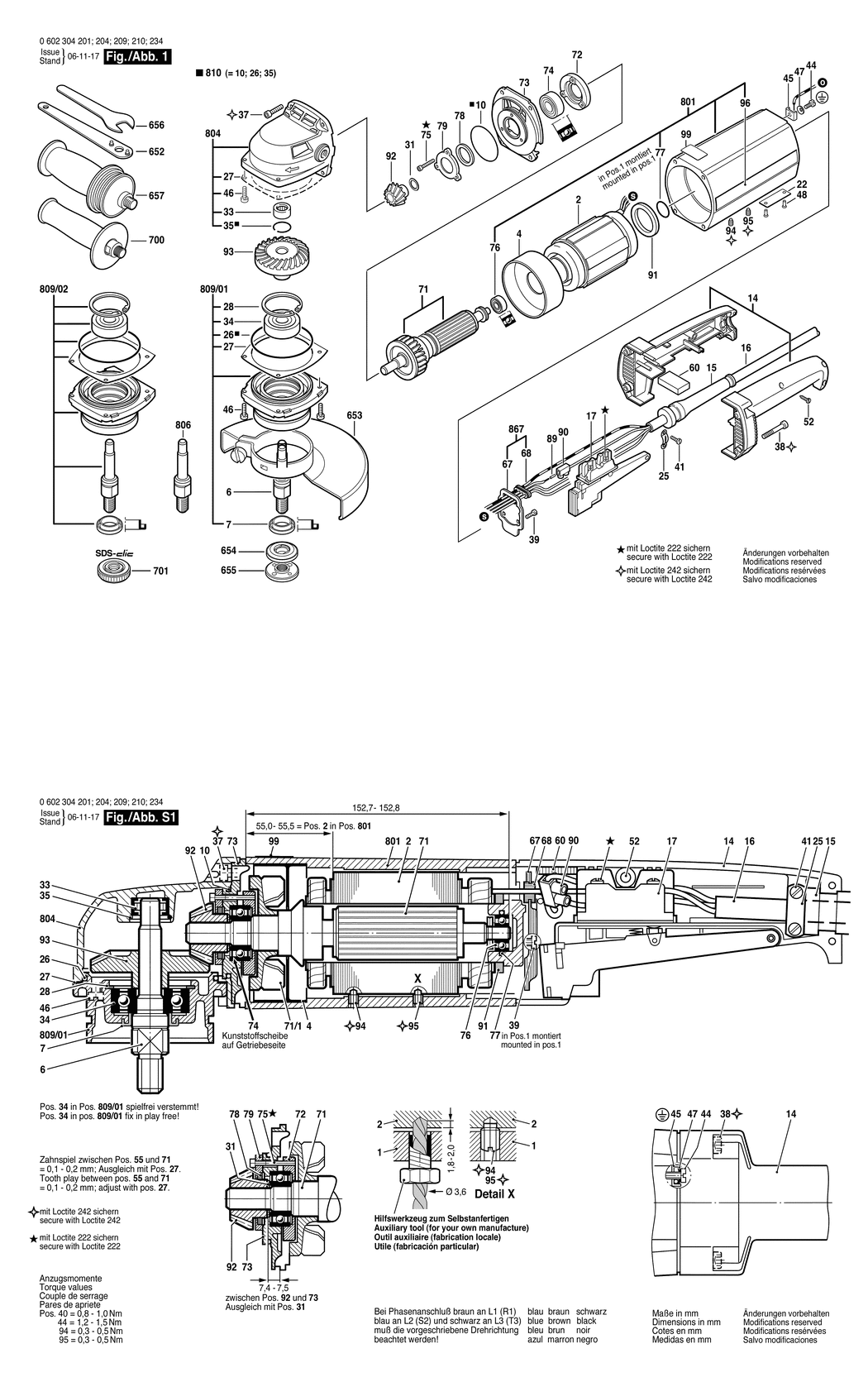

An exploded drawing and listing for the Bosch ---- / 0602304204 / ---

	Ex VAT	Inc VAT
2 - STATOR 200V/300HZ.135V/200HZ BSD-1604229099.A4 1604229099	£410.78	£492.94
4 - AIR-DEFLECTOR RING BSD-1600209002.A24 1600209002	£5.30	£6.36
6 - GRINDING SPINDLE BSD-3603523032.A7 3603523032	£54.42	£65.30
7 - SEAL RING BSD-1600290020.A193 1600290020	£1.75	£2.10
10 - O-RING 45x3MM BSD-1900210146.A74 1900210146	£4.26	£5.11
14 - HANDLE BSD-3605132077.A11 3605132077	£23.86	£28.63
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A567 1600703009	£5.58	£6.70
16 - ELEC. CABLE W/CONNECTION BSD-3604462045.A14 3604462045	£68.42	£82.10
17 - SWITCH BSD-3607200005.A15 3607200005	£120.11	£144.13
22 - NAMEPLATE BSD-3601106053.A475 3601106053	£5.30	£6.36
25 - FASTENING CLAMP BSD-1601303003.A302 1601303003	£2.16	£2.59
26 - O-RING 66.0x3.0 MM BSD-1600210005.A283 1600210005	£2.80	£3.36
27 - SHIM BSD-3600100075.A34 3600100075	£11.30	£13.56
27 - SHIM BSD-3600100076.A14 3600100076	£11.30	£13.56
27 - SHIM BSD-3600100077.A34 3600100077	£12.04	£14.45
28 - SPRING RETAINING RING BSD-3603435038.A39 3603435038	£2.61	£3.13
31 - SHIM 0.1 MM BSD-1600101616.A119 1600101616	£2.61	£3.13
31 - SHIM 0.2 MM BSD-1600101617.A79 1600101617	£1.75	£2.10
31 - SHIM 0.3 MM BSD-1600101618.A175 1600101618	£2.61	£3.13
31 - SHIM 0.05 MM BSD-1600101619.A77 1600101619	£2.16	£2.59
33 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A220 1600910010	£45.67	£54.80
34 - GROOVE BALL BEARING 6303-2RS1 BSD-3608870382.A4 3608870382	£31.64	£37.97
35 - RETAINING RING dia22 MM BSD-2916620011.A309 2916620011	£1.75	£2.10
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A30 2910141162	£2.16	£2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A153 2910141166	£1.75	£2.10
39 - SOCKET HEAD CAP SCREW BSD-3603450008.A8 3603450008	£2.16	£2.59
41 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A275 2603490021	£1.75	£2.10
44 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A12 2910110120	£1.75	£2.10
45 - CLAMPING SADDLE BSD-3601321001.A364 3601321001	£3.72	£4.47
46 - THREAD-FORMING TAP. SCREW BSD-3603435004.A23 3603435004	£2.80	£3.36
47 - SPRING WASHER dia4.2 MM BSD-3600150006.A701 3600150006	£2.61	£3.13
48 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A422 3603133001	£2.61	£3.13
52 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A779 2910211021	£1.75	£2.10
60 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A40 1602381006	£1.75	£2.10
67 - SEALING PLATE BSD-1602388006.A32 1602388006	£5.58	£6.70
68 - GROMMET BSD-1600306001.A254 1600306001	£2.61	£3.13
71 - ROTOR WITHOUT WINDING BSD-1604080032.A43 1604080032	£195.26	£234.31
72 - BEARING COVER BSD-1600501019.A507 1600501019	£23.86	£28.63
73 - BEARING FLANGE BSD-3605820064.A83 3605820064	£68.42	£82.10
74 - GROOVE BALL BEARING BSD-3600905095.A34 3600905095	£21.52	£25.83
75 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A9 3603435051	£1.75	£2.10
76 - GROOVE BALL BEARING 7x22x7 BSD-3600905147.A69 3600905147	£13.12	£15.75
77 - O-RING 22x2 MM BSD-1900210321.A103 1900210321	£5.30	£6.36
78 - FELT DISC BSD-1600108018.A167 1600108018	£2.61	£3.13
79 - COVER DISC BSD-1600501024.A24 1600501024	£16.41	£19.69
89 - END SPLICE BSD-3604477008.A60 3604477008	£1.75	£2.10
90 - STRIP TERMINAL BSD-1901091110.A29 1901091110	£1.75	£2.10
91 - SEAL RING BSD-1600209004.A26 1600209004	£2.80	£3.36
92 - BEVEL GEAR Z=22 BSD-1606333050.A22 1606333050	£410.78	£492.94
93 - BEVEL GEAR Z=46 BSD-1606333051.A28 1606333051	£93.88	£112.65
94 - SET SCREW BSD-1603402002.A113 1603402002	£1.75	£2.10
95 - SET SCREW BSD-1603402004.A132 1603402004	£2.61	£3.13
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A249 3601110047	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A1141 3601119236	£3.72	£4.47
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A100 1607950061	£5.42	£6.50
653 - PROTECTIVE COVER dia180 MM BSD-1600A00XL9.A52 1600A00XL9	£21.52	£25.83
654 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A704 2605703014	£7.36	£8.83
654/20 - O-RING 20.35x1.78 MM BSD-1600210039.A543 1600210039	£2.16	£2.59
655 - ROUND NUT M14 BSD-1603345043.A486 1603345043	£8.67	£10.41
656 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A659 2607950511	£4.26	£5.11
657 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A652 1602025030	£18.96	£22.75
700/10 - AUXILIARY HANDLE BSD-160202507H.A525 160202507H	£11.30	£13.56
700/20 - ADAPTER M8/M14 BSD-3603523013.A114 3603523013	£16.41	£19.69
801 - MOTOR HOUSING BSD-3605102079.A51 3605102079	£179.37	£215.24
804 - GEAR HOUSING BSD-3607030321.A3 3607030321	£283.50	£340.20
806 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A207 1603523032	£37.27	£44.72
809/01 - BEARING FLANGE BSD-3607030376.A32 3607030376	£120.11	£144.13
809/02 - BEARING FLANGE BSD-3607030375.A41 3607030375	£195.26	£234.31
810 - SEAL KIT BSD-1607000039.A9 1607000039	£13.12	£15.75
814 - HOUSING SECTION BSD-3607031661.A11 3607031661	£33.74	£40.49
841 - SET OF SCREWS BSD-3607031663.A1 3607031663	-
867 - SEALING PLATE BSD-1602388007.A234 1602388007	£12.04	£14.45
