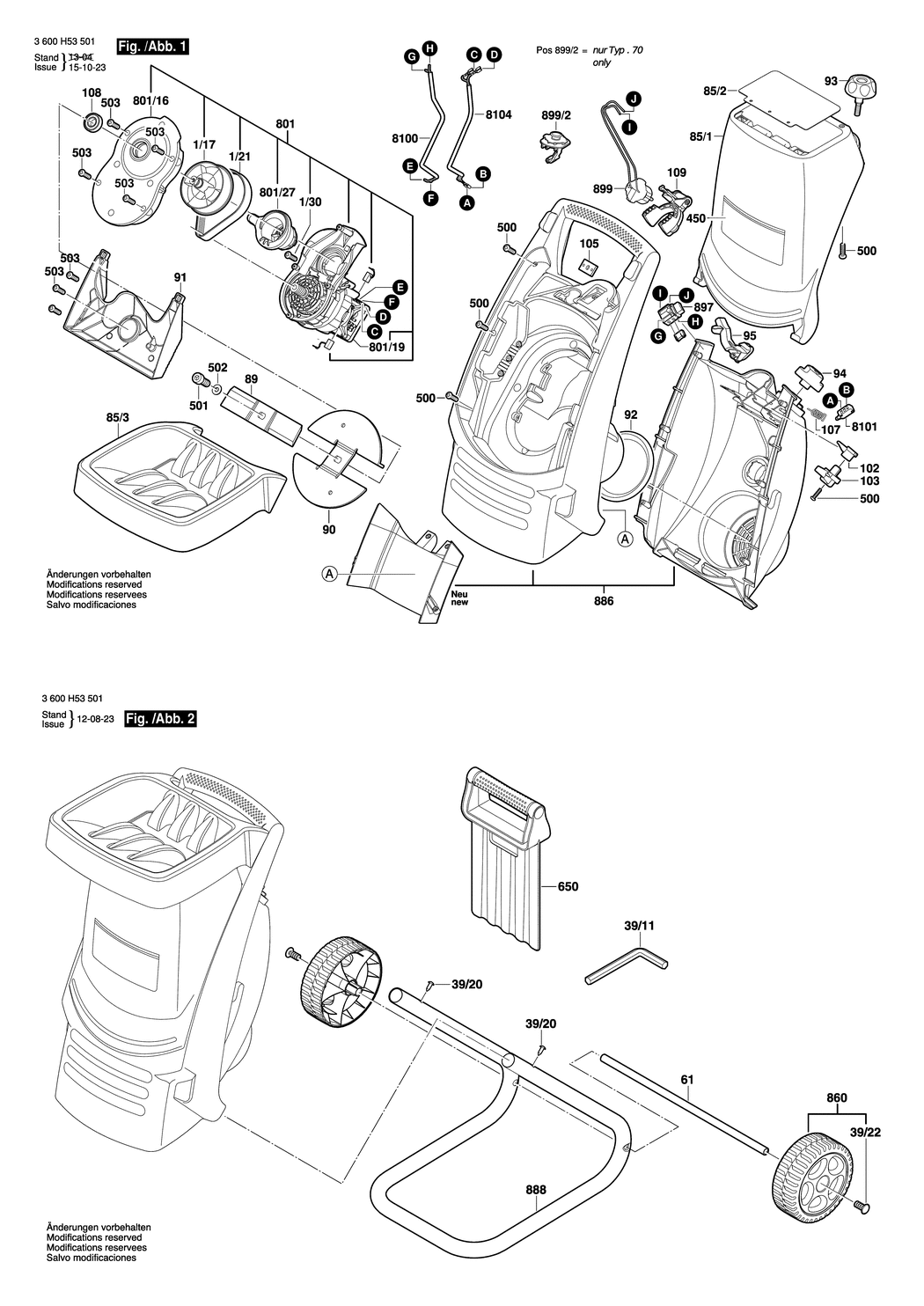

1/17 - DRIVE SHAFT
BSD-F016L64674.A16
F016L64674
|
£13.12
|
£15.75
|
|
|
1/21 - DRIVE BELT
BSD-F016L64673.A6
F016L64673
|
£14.91
|
£17.89
|
|
|
1/30 - SELF-CUTTING SCREW
BSD-F016L37433.A213
F016L37433
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE AXT Easy
BSD-160111C0V3.A0
160111C0V3
|
£2.61
|
£3.13
|
|
|
39/11 - HEXAGON-SOCKET KEY
BSD-F016L64689.A20
F016L64689
|
£1.75
|
£2.10
|
|
|
39/20 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A393
F016L36542
|
£1.63
|
£1.96
|
|
|
39/22 - RETAINING PIN
BSD-F016L64669.A16
F016L64669
|
£1.75
|
£2.10
|
|
|
61 - AXLE
BSD-F016L64656.A15
F016L64656
|
£2.80
|
£3.36
|
|
|
85/1 - CHUTE
BSD-F016L64652.A4
F016L64652
|
£27.23
|
£32.68
|
|
|
85/2 - PARTS SET
BSD-F016L65500.A7
F016L65500
|
£10.10
|
£12.12
|
|
|
85/3 - HOPPER
BSD-F016L64653.A18
F016L64653
|
£13.12
|
£15.75
|
|
|
89 - SHREDDER BLADE
BSD-2608635492.A21
2608635492
|
£23.86
|
£28.63
|
|
|
90 - MOUNTING PLATE
BSD-F016L64663.A13
F016L64663
|
£14.91
|
£17.89
|
|
|
91 - CUTTER PLATE
BSD-F016L64664.A9
F016L64664
|
£16.41
|
£19.69
|
|
|
92 - FILTER ELEMENT
BSD-F016L64665.A13
F016L64665
|
£1.75
|
£2.10
|
|
|
93 - ASSEMBLY KIT
BSD-F016P64666.A2
F016P64666
|
£10.10
|
£12.12
|
|
|
94 - KNOB
BSD-F016L64667.A9
F016L64667
|
£1.75
|
£2.10
|
|
|
95 - SAFETY DEVICE
BSD-F016L64969.A12
F016L64969
|
-
|
|
|
|
102 - SWITCHING CAM
BSD-F016L64687.A10
F016L64687
|
£1.75
|
£2.10
|
|
|
103 - ACTUATOR
BSD-F016L64737.A0
F016L64737
|
£1.75
|
£2.10
|
|
|
105 - BACKING PLATE
BSD-F016L64745.A22
F016L64745
|
£2.16
|
£2.59
|
|
|
107 - SPRING
BSD-2609005435.A15
2609005435
|
£1.75
|
£2.10
|
|
|
108 - SPACER
BSD-F016L65506.A16
F016L65506
|
£2.80
|
£3.36
|
|
|
109 - SET RING
BSD-F016L65228.A2
F016L65228
|
£6.52
|
£7.83
|
|
|
450 - MANUFACTURER'S NAMEPLATE AXT RAPID 2200
BSD-2609001926.A2
2609001926
|
£2.80
|
£3.36
|
|
|
500 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A318
F016T49429
|
£1.75
|
£2.10
|
|
|
501 - TRUNNION
BSD-F016L64679.A8
F016L64679
|
£1.75
|
£2.10
|
|
|
502 - WASHER
BSD-F016L64746.A0
F016L64746
|
£2.16
|
£2.59
|
|
|
503 - SCREW
BSD-F016L64777.A22
F016L64777
|
£1.75
|
£2.10
|
|
|
650 - PUSHER
BSD-F016L64727.A21
F016L64727
|
£7.36
|
£8.83
|
|
|
801 - MOTOR
BSD-F016104210.A9
F016104210
|
£93.88
|
£112.65
|
|
|
801/16 - FRONT HOUSING
BSD-F016104212.A4
F016104212
|
£21.68
|
£26.01
|
|
|
801/19 - SPEED LIMITER
BSD-F016103642.A8
F016103642
|
£72.18
|
£86.62
|
|
|
801/27 - BELT TENSIONER
BSD-F016104211.A1
F016104211
|
£10.10
|
£12.12
|
|
|
808 - NAMEPLATE
BSD-160111A3XR.A0
160111A3XR
|
£2.61
|
£3.13
|
|
|
860 - WHEEL
BSD-F016103218.A12
F016103218
|
£8.67
|
£10.41
|
|
|
886 - HOUSING
BSD-2609006805.A21
2609006805
|
£63.50
|
£76.20
|
|
|
888 - SUPPORTING FRAME
BSD-F016103186.A20
F016103186
|
£40.80
|
£48.96
|
|
|
897 - ON-OFF SWITCH
BSD-F016103192.A2
F016103192
|
£11.30
|
£13.56
|
|
|
899 - POWER SUPPLY CORD
BSD-F016103194.A0
F016103194
|
£10.10
|
£12.12
|
|
|
8100 - WIRING UNIT
BSD-1607000D04.A1
1607000D04
|
£21.68
|
£26.01
|
|
|
8101 - MICROSWITCH
BSD-F016103197.A0
F016103197
|
£7.36
|
£8.83
|
|
|
8104 - CONNECTING CABLE
BSD-F016103198.A22
F016103198
|
£5.87
|
£7.04
|
|
