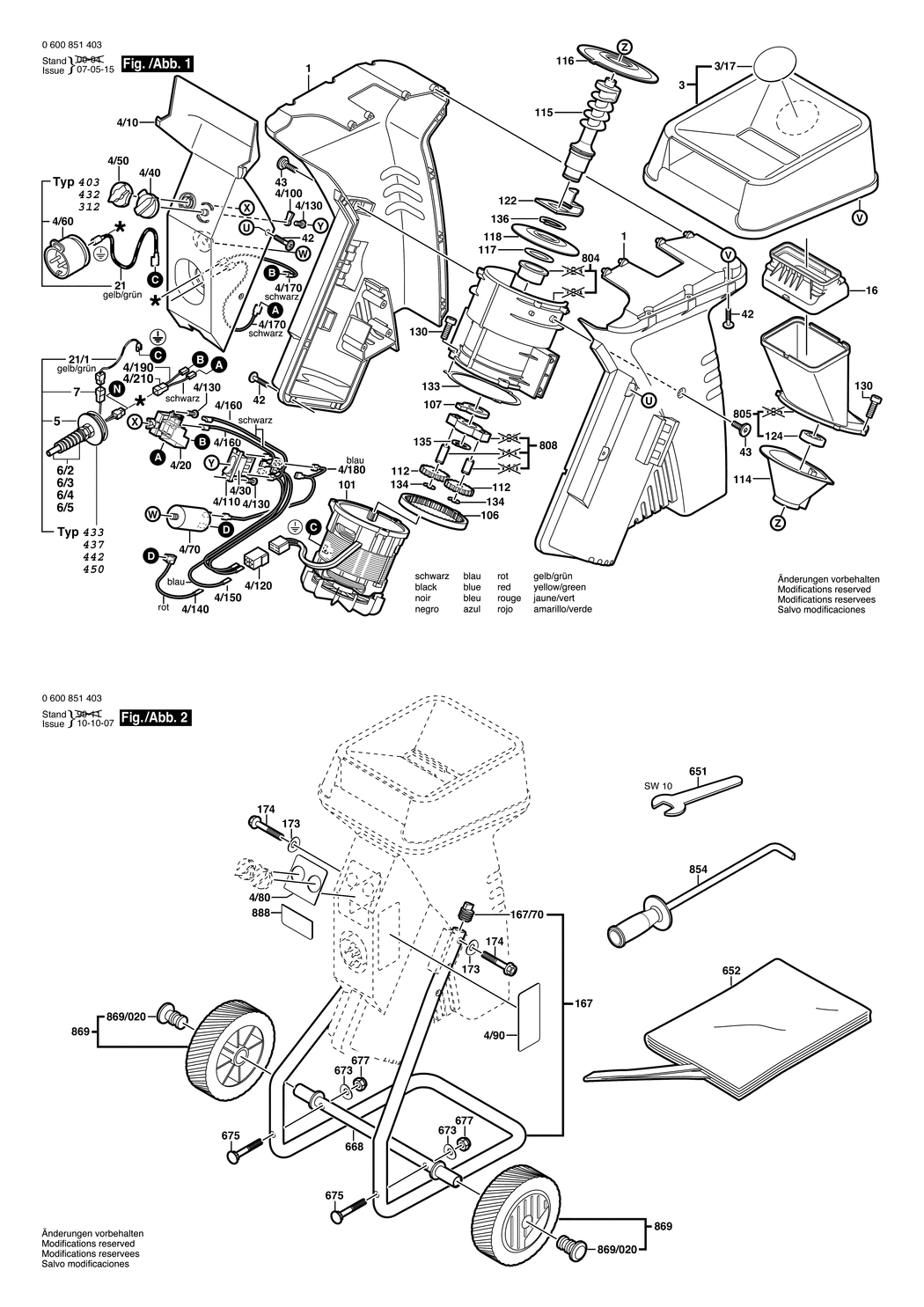

1 - HOUSING SECTION
BSD-1605190106.A18
1605190106
|
-
|
|
|
|
3 - HOUSING COVER
BSD-1605190181.A3
1605190181
|
-
|
|
|
|
3/17 - STICKER
BSD-1601118916.A12
1601118916
|
£3.34
|
£4.01
|
|
|
4/10 - SWITCH PLATE
BSD-1605190109.A18
1605190109
|
-
|
|
|
|
4/20 - ON-OFF SWITCH
BSD-1607200216.A18
1607200216
|
-
|
|
|
|
4/30 - SWITCH
BSD-1607200143.A19
1607200143
|
-
|
|
|
|
4/40 - SWITCH BUTTON
BSD-1602026069.A19
1602026069
|
-
|
|
|
|
4/50 - SWITCH BUTTON
BSD-1602026070.A1
1602026070
|
-
|
|
|
|
4/70 - SUPPRESSION FILTER
BSD-CWESSCP20.A21
CWESSCP20
|
£29.82
|
£35.78
|
|
|
4/80 - MANUFACTURER'S NAMEPLATE
BSD-1601118K73.A0
1601118K73
|
£2.52
|
£3.02
|
|
|
4/90 - REFERENCE PLATE
BSD-1601118A80.A3
1601118A80
|
£3.80
|
£4.56
|
|
|
4/100 - CONTROL LEVER
BSD-1602026071.A19
1602026071
|
£2.33
|
£2.80
|
|
|
4/110 - FRAME
BSD-1605190125.A1
1605190125
|
£2.33
|
£2.80
|
|
|
4/120 - CONNECTOR HOUSING
BSD-1605190124.A19
1605190124
|
£2.52
|
£3.02
|
|
|
4/130 - OVAL-HEAD SCREW
BSD-2914211463.A1
2914211463
|
£1.75
|
£2.10
|
|
|
4/140 - CONNECTING CABLE L=100 MM
BSD-1604438019.A17
1604438019
|
£1.95
|
£2.34
|
|
|
4/150 - CONNECTING CABLE L=200/L=100 MM
BSD-1604438020.A3
1604438020
|
£2.52
|
£3.02
|
|
|
4/160 - CONNECTING CABLE L=200/L=130 MM
BSD-1604438021.A17
1604438021
|
-
|
|
|
|
4/170 - CONNECTING CABLE L=180 MM
BSD-1604438022.A3
1604438022
|
£1.95
|
£2.34
|
|
|
4/180 - CONNECTING CABLE L=160/L=100 MM
BSD-1604438023.A17
1604438023
|
£2.33
|
£2.80
|
|
|
4/190 - CONNECTING CABLE
BSD-1604438028.A0
1604438028
|
-
|
|
|
|
4/210 - CONNECTOR HOUSING
BSD-1604485015.A0
1604485015
|
-
|
|
|
|
5 - SEAL
BSD-1600109012.A1
1600109012
|
£2.33
|
£2.80
|
|
|
6/3 - CONNECTION PART
BSD-1607000962.A6
1607000962
|
£23.86
|
£28.63
|
|
|
7 - INSULATING SLEEVE
BSD-1604485014.A8
1604485014
|
-
|
|
|
|
16 - INSERT
BSD-1605190055.A56
1605190055
|
-
|
|
|
|
21/1 - CONNECTING CABLE
BSD-1604438027.A8
1604438027
|
-
|
|
|
|
42 - THREAD-FORMING TAP. SCREW TORX-T20
BSD-1603435054.A54
1603435054
|
£1.75
|
£2.10
|
|
|
43 - THREAD-FORMING TAP. SCREW
BSD-1603435055.A0
1603435055
|
£1.75
|
£2.10
|
|
|
101 - MOTOR 230V
BSD-1607220041.A19
1607220041
|
£216.12
|
£259.35
|
|
|
106 - RING GEAR
BSD-1606334007.A2
1606334007
|
£11.78
|
£14.13
|
|
|
107 - CARRIER
BSD-1606490037.A1
1606490037
|
£4.75
|
£5.70
|
|
|
112 - TOOTHED GEAR Z=34
BSD-1606318010.A1
1606318010
|
£7.78
|
£9.33
|
|
|
114 - FUNNEL
BSD-1600590007.A2
1600590007
|
-
|
|
|
|
115 - HELIX
BSD-1606122008.A19
1606122008
|
-
|
|
|
|
116 - FERRULE
BSD-1600590008.A18
1600590008
|
-
|
|
|
|
117 - FRICTION WASHER
BSD-1600102021.A1
1600102021
|
£3.34
|
£4.01
|
|
|
118 - EJECTOR
BSD-1600590009.A1
1600590009
|
-
|
|
|
|
122 - SCRAPER
BSD-1601329030.A19
1601329030
|
-
|
|
|
|
124 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A207
1900905227
|
£14.72
|
£17.67
|
|
|
130 - THREAD-FORMING TAP. SCREW M6x25 MM
BSD-1603414010.A100
1603414010
|
£1.75
|
£2.10
|
|
|
133 - SEAL
BSD-1600290035.A56
1600290035
|
-
|
|
|
|
134 - LOCKING WASHER DIN 6799-10-FSt
BSD-2916080013.A1
2916080013
|
£4.75
|
£5.70
|
|
|
135 - SPRING RETAINING RING 28x1.5 DIN 471
BSD-2916650016.A20
2916650016
|
£2.33
|
£2.80
|
|
|
136 - SPRING RETAINING RING DIN 471-42x1.75-FST-ZNC-B
BSD-2916651021.A17
2916651021
|
-
|
|
|
|
167 - SUPPORTING FRAME
BSD-1600795013.A1
1600795013
|
£36.63
|
£43.96
|
|
|
167/70 - PLUG
BSD-1600591030.A19
1600591030
|
-
|
|
|
|
173 - PLAIN WASHER
BSD-1600190030.A22
1600190030
|
£1.75
|
£2.10
|
|
|
174 - THREAD-FORMING TAP. SCREW
BSD-1603435056.A19
1603435056
|
£1.75
|
£2.10
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW10
BSD-1607950527.A10
1607950527
|
-
|
|
|
|
652 - CATCHER CONTAINER
BSD-1605411031.A45
1605411031
|
£11.30
|
£13.56
|
|
|
668 - AXLE
BSD-1607000957.A47
1607000957
|
£14.91
|
£17.89
|
|
|
673 - PLAIN WASHER
BSD-1600190030.A23
1600190030
|
£1.75
|
£2.10
|
|
|
675 - ROUND-HEAD BOLT DIN 603 M6x50
BSD-2910281213.A42
2910281213
|
£1.32
|
£1.58
|
|
|
677 - HEX NUT DIN 985-M6-8
BSD-2915061004.A48
2915061004
|
£1.75
|
£2.10
|
|
|
804 - GEAR HOUSING
BSD-1607000836.A19
1607000836
|
£58.76
|
£70.51
|
|
|
805 - BEARING FLANGE
BSD-1607000837.A1
1607000837
|
-
|
|
|
|
808 - PLANETARY-GEAR CARRIER
BSD-1607000838.A19
1607000838
|
£14.91
|
£17.89
|
|
|
854 - HOOK
BSD-1607959008.A18
1607959008
|
-
|
|
|
|
869 - WHEEL dia200 MM
BSD-1609351088.A65
1609351088
|
£12.04
|
£14.45
|
|
|
869/020 - PLUG
BSD-1609351075.A48
1609351075
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H5.A276
160111A3H5
|
£2.61
|
£3.13
|
|
