Bosch ALB 18 LI / 3600HA0300 / EU 18 Volt Spare Parts

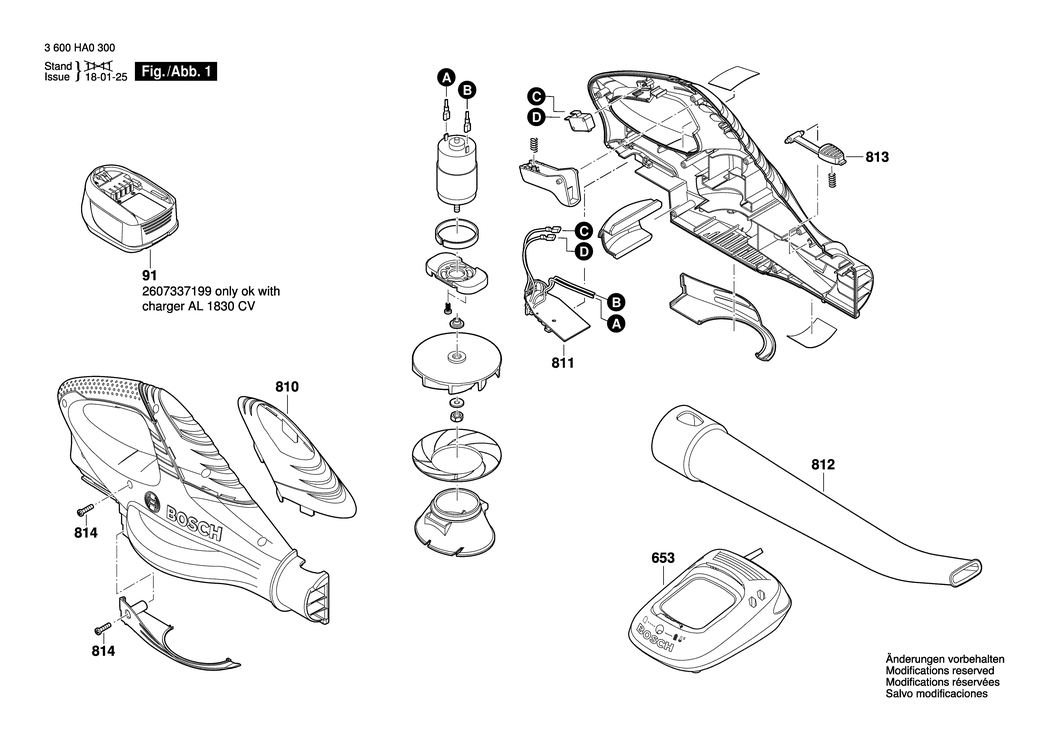

An exploded drawing and listing for the Bosch ALB 18 LI / 3600HA0300 / EU 18 Volt

	Ex VAT	Inc VAT
91 - SLIDE-IN ACCU PACKAGE PBA 18V 1.5Ah V-A BSD-2607337187.A11 2607337187	£63.50	£76.20
91 - SLIDE-IN ACCU PACKAGE PBA 18V 2.0Ah V-A BSD-2607336921.A14 2607336921	£61.98	£74.38
91 - BATTERY PACK PBA 18V 2.5Ah W-B BSD-2607337199.A30 2607337199	£81.81	£98.17
653 - CHARGER GB AL 1830 CV 230/14.4-18V 1h BSD-2607225967.A0 2607225967	£68.42	£82.10
653 - FAST CHARGER EU AL 1830 CV 230/14.4-18V 1h BSD-2607225965.A36 2607225965	£48.38	£58.06
653 - CHARGER AUS AL 1830 CV 230/14.4-18V 1h BSD-2607225969.A18 2607225969	£68.42	£82.10
653 - FAST CHARGER EU AL 2215 CV 230/14.4-18V. 1h BSD-2607225471.A25 2607225471	£41.62	£49.95
653 - CHARGER AUS AL 2215 CV 240/14.4-18V. 1h BSD-2607225475.A16 2607225475	£48.38	£58.06
653 - FAST CHARGER GB AL 2215 CV 230/14.4-18V. 1h BSD-2607225967.A48 2607225967	£68.42	£82.10
810 - COVER BSD-F016F04196.A1 F016F04196	£10.10	£12.12
811 - PRINTED-BOARD ASSEMBLY BSD-F016F04179.A1 F016F04179	£21.68	£26.01
812 - BLOWER TUBE BSD-F016F04197.A0 F016F04197	£21.52	£25.83
813 - BUTTON BSD-F016F04178.A0 F016F04178	£3.72	£4.47
814 - SCREW BSD-F016F04198.A1 F016F04198	£1.75	£2.10
