Bosch P 800 S / 0603231960 / --- Spare Parts

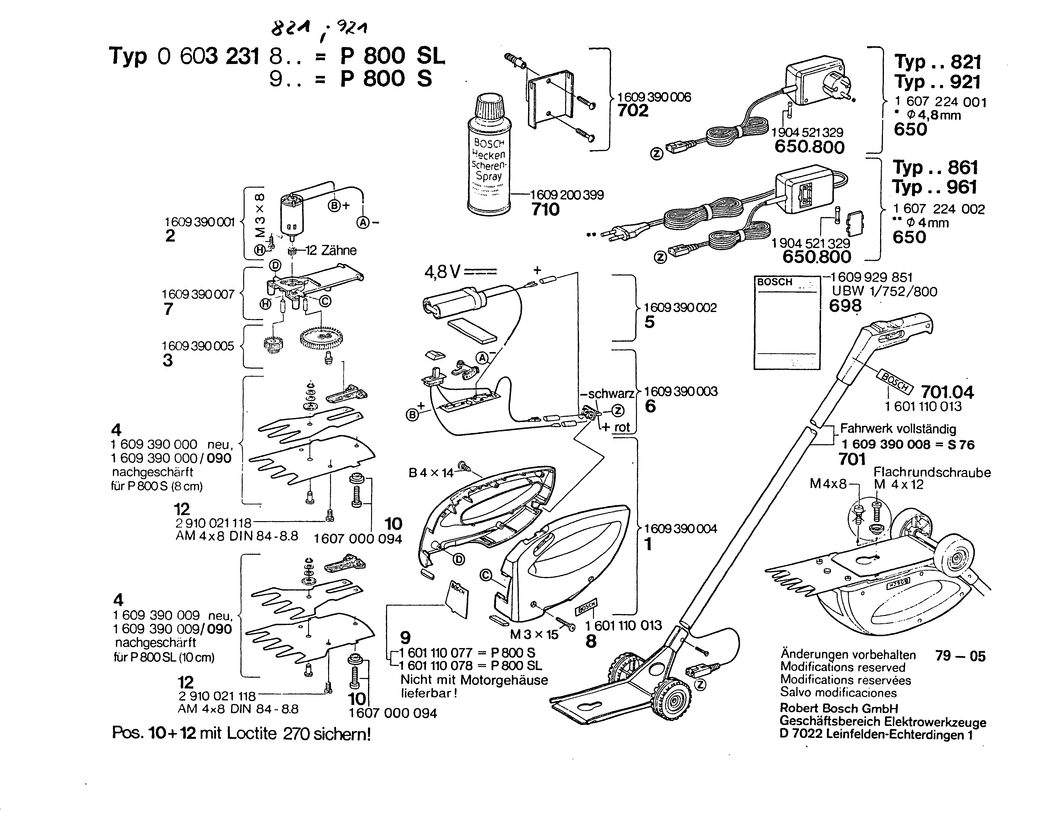

An exploded drawing and listing for the Bosch P 800 S / 0603231960 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609390004.A2 1609390004	-
2 - DC MOTOR BSD-1609390001.A6 1609390001	-
3 - SET OF GEARS BSD-1609390005.A6 1609390005	-
4 - SHEARING BLADE BSD-1609390009.A6 1609390009	-
5 - TRACTION BATTERY BSD-1609390002.A2 1609390002	-
6 - ON-OFF SWITCH BSD-1609390003.A8 1609390003	-
7 - MOTOR PLATE BSD-1609390007.A5 1609390007	-
8 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A152 1601110013	-
9 - NAMEPLATE BSD-1601110077.A2 1601110077	-
10 - FASTENING PARTS KIT BSD-1607000094.A2 1607000094	-
12 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A395 2910021118	£1.75	£2.10
650 - BATTERY CHARGER 220V BSD-1607224001.A0 1607224001	-
650/800 - FUSE BSD-1904521329.A2 1904521329	-
701 - GUIDE BRACKET BSD-1609390008.A2 1609390008	-
701/04 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A153 1601110013	-
702 - TOOLHOLDER BSD-1609390006.A2 1609390006	-
