Bosch PBH 2RE / 0603295603 / EU 230 Volt Spare Parts

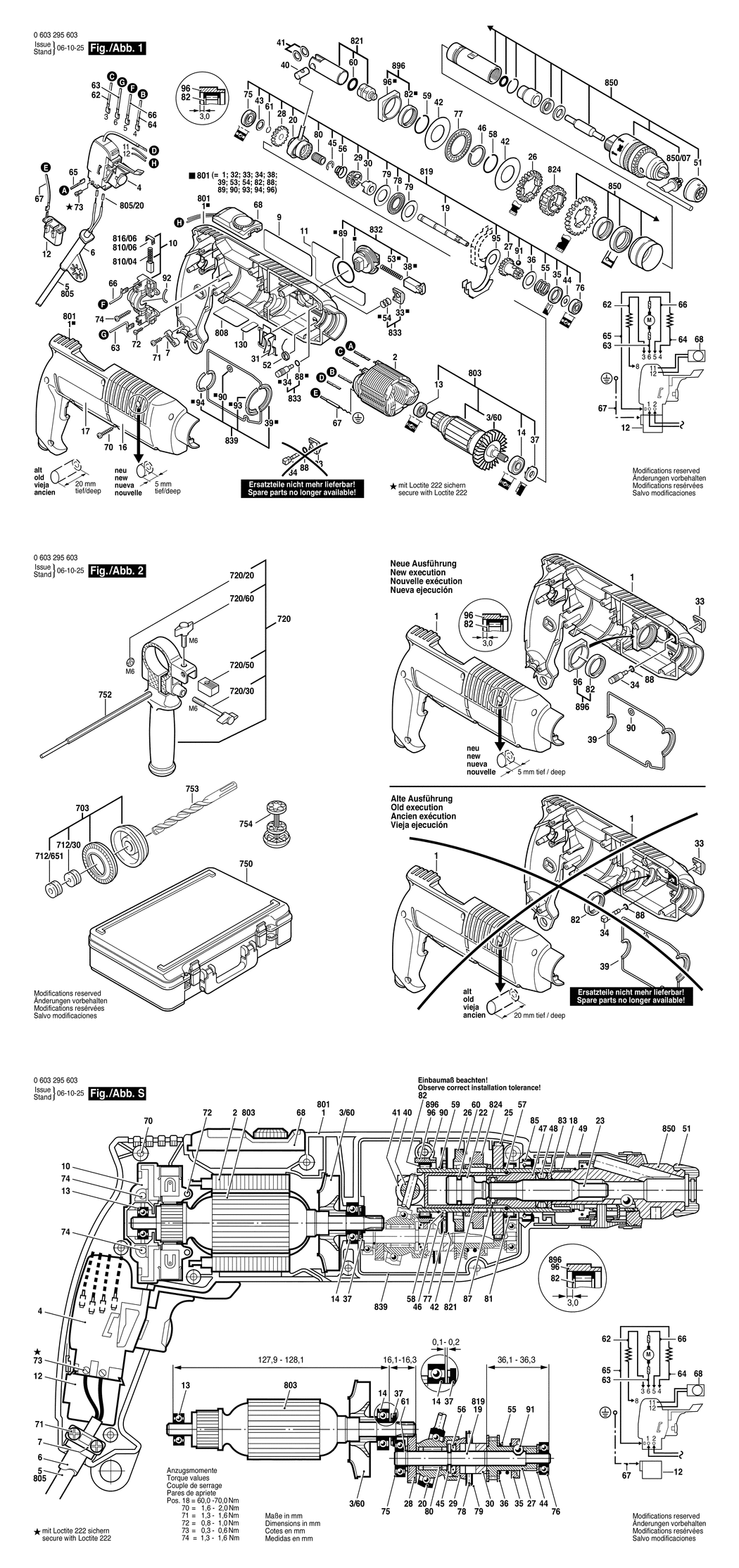

An exploded drawing and listing for the Bosch PBH 2RE / 0603295603 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-1615104006.A1 1615104006	-
2 - FIELD 220-240V BSD-1604220254.A5 1604220254	£21.68	£26.01
3/60 - FAN BSD-2606610029.A168 2606610029	£2.61	£3.13
4 - ON-OFF SWITCH BSD-2607200237.A1 2607200237	-
6 - GROMMET dia8.8 MM BSD-2600707061.A222 2600707061	£2.80	£3.36
6 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A94 2600707060	£2.61	£3.13
6 - GROMMET dia6.9 MM BSD-2600707059.A401 2600707059	£3.72	£4.47
7 - CABLE CLIP BSD-1611035005.A274 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110619.A1 1611110619	-
10 - BRUSH PLATE BSD-2605807060.A213 2605807060	-
11 - REFERENCE PLATE BSD-1611110913.A2 1611110913	-
12 - SUPPRESSION FILTER BSD-1607328040.A45 1607328040	£6.52	£7.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A126 1610905032	£5.30	£6.36
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905017.A8 1610905017	£13.12	£15.75
16 - REFERENCE PLATE BSD-1611110613.A5 1611110613	-
17 - MANUFACTURER'S NAMEPLATE BSD-1611110614.A2 1611110614	-
19 - JACK SHAFT BSD-1613022027.A7 1613022027	-
20 - DRIVE BEARING BSD-1615819019.A5 1615819019	-
26 - CYLINDRICAL GEAR Z=43 BSD-1616317604.A2 1616317604	-
27 - CYLINDRICAL GEAR Z=11/22 BSD-1616317605.A5 1616317605	-
28 - CYLINDRICAL GEAR Z=31 BSD-1616317606.A2 1616317606	-
29 - CLUTCH RING BSD-1616409008.A5 1616409008	-
30 - COLLAR BSD-1616409009.A2 1616409009	-
31 - CONTROL FORK BSD-1611329015.A1 1611329015	-
35 - BACKUP RING BSD-1610250008.A1 1610250008	-
36 - SUPPORTING DISC 1.0 MM BSD-1610101626.A5 1610101626	£1.75	£2.10
37 - SEALING DISK BSD-1610190015.A2 1610190015	-
38 - CATCH SLIDE BSD-1613231004.A7 1613231004	-
40 - PISTON PIN BSD-1613103006.A0 1613103006	-
41 - SHIM WASHER 1.2 MM BSD-1610100608.A59 1610100608	£1.75	£2.10
42 - SUPPORT DISC 1.0 MM BSD-1610102631.A2 1610102631	-
43 - SUPPORTING DISC 1.0 MM BSD-1610100610.A2 1610100610	-
44 - SHIM WASHER 1.0 MM BSD-1610100611.A5 1610100611	-
45 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A295 2916080910	£2.16	£2.59
46 - RETAINING RING BSD-1610116005.A5 1610116005	-
51 - PROTECTIVE CAP BSD-1610508020.A9 1610508020	£2.33	£2.80
52 - COILED SPRING BSD-1614651015.A6 1614651015	-
53 - COMPRESSION SPRING BSD-1614611004.A6 1614611004	-
55 - COMPRESSION SPRING BSD-1614603002.A1 1614603002	-
56 - COMPRESSION SPRING BSD-1614643005.A1 1614643005	-
58 - RETAINING RING BSD-1614601013.A6 1614601013	-
59 - RETAINING RING BSD-1614601014.A1 1614601014	-
60 - O-RING 13.0x2.5 MM BSD-1610210086.A9 1610210086	-
61 - RETAINING RING BSD-1614601015.A6 1614601015	-
62 - CONNECTING CABLE L=136MM BSD-2604448049.A1 2604448049	-
63 - CONNECTING CABLE L=85 MM BSD-2604448147.A1 2604448147	£1.75	£2.10
64 - CONNECTING CABLE L=88 MM BSD-2604448034.A179 2604448034	£1.75	£2.10
65 - CONNECTING CABLE L=184 MM BSD-2604448001.A85 2604448001	£1.95	£2.34
66 - PVC-INSULATED CABLE L=95 MM BSD-1614431025.A78 1614431025	£2.61	£3.13
68 - TORQUE CONTROL 230-240V BSD-2607233005.A3 2607233005	-
70 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z BSD-2912401022.A124 2912401022	£1.75	£2.10
71 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A22 2912401019	£1.75	£2.10
72 - TAPPING SCREW DIN7981-ST2.9x13-C-Z BSD-2912401006.A2 2912401006	£1.75	£2.10
73 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A384 2603410001	£1.75	£2.10
74 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A15 2912401021	£1.75	£2.10
75 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A5 1900900228	£6.61	£7.93
76 - GROOVE BALL BEARING 6x19x6 BSD-1610900024.A5 1610900024	-
77 - ROLLER THRUST BEARING BSD-1610920012.A17 1610920012	£3.34	£4.01
78 - THRUST NEEDLE RIM BSD-1610920001.A2 1610920001	£3.72	£4.47
79 - THRUST BEARING DISC BSD-1610101608.A69 1610101608	£2.16	£2.59
80 - NEEDLE-ROLLER ASSEMBLY BSD-1610913008.A40 1610913008	-
82 - NEEDLE BEARING BSD-1610910075.A2 1610910075	-
88 - O-RING 4.0x1.5 MM BSD-1610210043.A117 1610210043	£1.75	£2.10
89 - O-RING 25.0x2.5 MM BSD-1610210112.A5 1610210112	-
91 - BALL DIN 5401-6 G28 BSD-1903230011.A164 1903230011	£2.61	£3.13
92 - DAMPING RUBBER BSD-1610026001.A45 1610026001	£1.75	£2.10
95 - GUIDE PLATE BSD-1611321013.A5 1611321013	-
96 - BEARING FLANGE BSD-1615719023.A2 1615719023	-
96 - BEARING FLANGE BSD-1615719022.A1 1615719022	-
130 - STICKER BSD-1601110265.A140 1601110265	-
703 - DUST TRAY BSD-1615439003.A13 1615439003	-
712/30 - RUBBER BUSHING dia5-7 MM BSD-1610312001.A100 1610312001	-
712/651 - RUBBER BUSHING dia8-10 MM BSD-1610312002.A39 1610312002	-
720 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A416 1619P10682	£12.49	£14.99
720 - AUXILIARY HANDLE dia 43 MM BSD-1612025034.A13 1612025034	-
720/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1293 2915011007	-
720/30 - WING SCREW M6x(15)55 BSD-1613480007.A206 1613480007	£1.75	£2.10
720/50 - CLAMPING PLATE M6 BSD-2608040014.A200 2608040014	-
720/60 - WING SCREW M6x20 MM BSD-1613480008.A221 1613480008	£1.75	£2.10
750 - CARRYING CASE BSD-2605438291.A5 2605438291	-
752 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A159 1613001005	-
753 - ROTARY HAMMER BIT dia6x50 MM BSD-1618596166.A41 1618596166	-
754 - DRILL HOLDER BSD-2607000122.A134 2607000122	-
801 - MOTOR HOUSING BSD-1617000801.A1 1617000801	-
803 - ARMATURE WITH FAN 230V BSD-1614010119.A4 1614010119	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A10 1607000227	£23.86	£28.63
805/20 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A465 1900452012	£1.75	£2.10
808 - NAMEPLATE BSD-160111A3H5.A339 160111A3H5	£2.61	£3.13
810/04 - CARBON-BRUSH SET BSD-1617014136.A31 1617014136	£12.04	£14.45
810/06 - RATCHET CAP BSD-2601322017.A143 2601322017	£1.75	£2.10
816/06 - RATCHET CAP BSD-2601322013.A25 2601322013	£1.75	£2.10
819 - JACK SHAFT BSD-1617000986.A2 1617000986	-
821 - PARTS SET BSD-1617000187.A5 1617000187	-
824 - CLUTCH SLEEVE BSD-1610290020.A5 1610290020	-
832 - PARTS SET BSD-1617000191.A2 1617000191	-
833 - PARTS SET BSD-1617000268.A2 1617000268	-
839 - SEALING FRAME BSD-1617000267.A5 1617000267	-
850 - KEY CHUCK dia1.5-dia13MM.M22x1MM BSD-1617000961.A5 1617000961	-
850/07 - CHUCK WRENCH SG2 BSD-2607950007.A1550 2607950007	£6.52	£7.83
896 - BEARING FLANGE BSD-1617000802.A2 1617000802	-
