Bosch PBH 200 RE / 0603245741 / GB 110 Volt Spare Parts

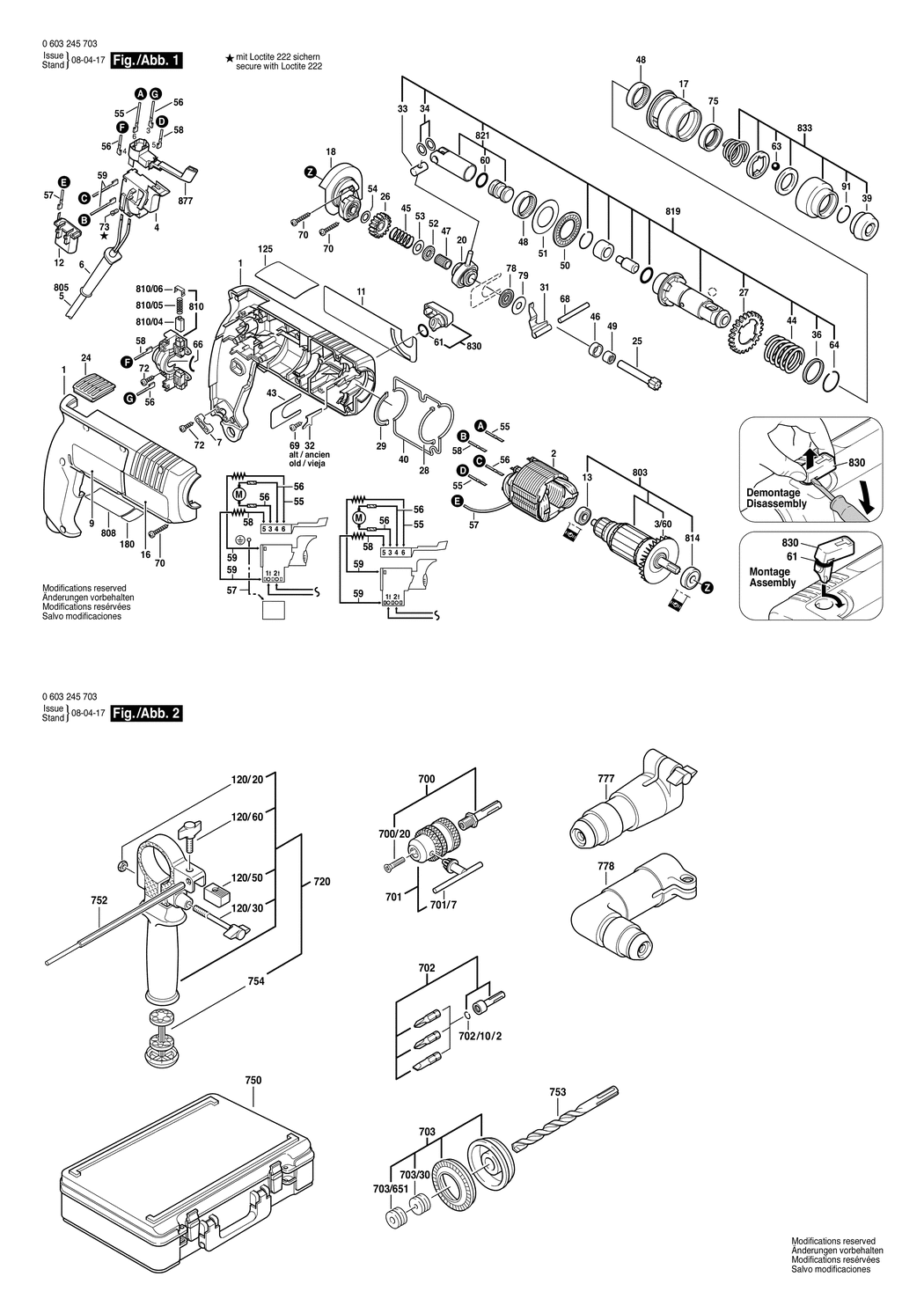

An exploded drawing and listing for the Bosch PBH 200 RE / 0603245741 / GB 110 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-1615104002.A6 1615104002	-
2 - FIELD 110-115V BSD-2604220422.A5 2604220422	-
3/60 - FAN BSD-2606610022.A160 2606610022	£4.26	£5.11
4 - SWITCH BSD-2607200210.A10 2607200210	£48.38	£58.06
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A399 2600703011	£2.80	£3.36
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A956 2600703012	£2.80	£3.36
7 - CABLE CLIP BSD-1611035005.A285 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110390.A2 1611110390	-
11 - MANUFACTURER'S NAMEPLATE BSD-1611110370.A2 1611110370	-
12 - SUPPRESSION FILTER BSD-1607328040.A54 1607328040	£6.52	£7.83
13 - BALL BEARING BSD-1610900037.A2 1610900037	£2.61	£3.13
16 - REFERENCE PLATE BSD-1611110391.A2 1611110391	£3.72	£4.47
17 - GUIDE SLEEVE BSD-1615819013.A11 1615819013	£6.61	£7.93
18 - FLANGED BEARING BSD-1615700027.A18 1615700027	-
20 - DRIVE BEARING BSD-1615819012.A37 1615819012	-
24 - PROTECTIVE GRILLE BSD-1612388019.A2 1612388019	-
25 - TOOTHED SHAFT Z=9 BSD-1613160008.A33 1613160008	-
26 - CYLINDRICAL GEAR Z=31 BSD-1616317600.A16 1616317600	£2.52	£3.02
27 - CYLINDRICAL GEAR Z=48 BSD-1616317034.A35 1616317034	-
28 - SEAL RING BSD-1611015034.A8 1611015034	-
29 - SEAL RING BSD-1611015035.A45 1611015035	-
31 - PRESSURE LEVER BSD-1611329009.A39 1611329009	-
33 - PISTON PIN BSD-1613103006.A14 1613103006	-
34 - SHIM WASHER 1.2 MM BSD-1610100608.A51 1610100608	£1.75	£2.10
36 - SUPPORTING DISC BSD-1610102024.A14 1610102024	-
39 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A347 1610508008	£2.16	£2.59
40 - SEALING FRAME BSD-1611015033.A45 1611015033	-
43 - HOLDING PLATE BSD-1611031005.A10 1611031005	-
44 - COMPRESSION SPRING BSD-1614634002.A41 1614634002	-
45 - COMPRESSION SPRING BSD-1614610005.A6 1614610005	-
46 - RETAINING SNAP RING BSD-1610200014.A16 1610200014	-
47 - NEEDLE-ROLLER ASSEMBLY BSD-1610913008.A51 1610913008	-
48 - NEEDLE BEARING BSD-1610910071.A2 1610910071	£6.52	£7.83
49 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A575 2600917003	£2.80	£3.36
50 - ROLLER-CAGE ASSEMBLY BSD-1610920002.A47 1610920002	£3.72	£4.47
51 - SUPPORT DISC 1.0 MM BSD-1610102617.A41 1610102617	£2.16	£2.59
52 - THRUST NEEDLE RIM BSD-1610920005.A22 1610920005	-
53 - SUPPORT DISC BSD-1610100602.A2 1610100602	-
54 - SHIM 0.6 MM BSD-1610100604.A51 1610100604	-
54 - SHIM 0.8 MM BSD-1610100605.A2 1610100605	-
54 - SHIM 1.0 MM BSD-1610100606.A51 1610100606	-
54 - SHIM 1.2 MM BSD-1610100607.A2 1610100607	-
55 - CONNECTING CABLE L=115MM BSD-2604448096.A7 2604448096	-
56 - CONNECTING CABLE L=80 MM BSD-1614448014.A12 1614448014	£2.61	£3.13
58 - CONNECTING CABLE L=88 MM BSD-2604448034.A227 2604448034	£1.75	£2.10
59 - CABLE L=173 MM BSD-2604448060.A24 2604448060	-
60 - O-RING 13.0x2.5 MM BSD-1610210086.A24 1610210086	-
61 - O-RING 10.5x2.7 MM BSD-1610210046.A390 1610210046	£2.16	£2.59
63 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A170 1903230013	£2.16	£2.59
64 - RETAINING RING BSD-1614601007.A34 1614601007	-
66 - DAMPING RUBBER BSD-1610026001.A40 1610026001	£1.75	£2.10
68 - STRAIGHT PIN DIN 6325-5M6x45 BSD-2917550133.A43 2917550133	£2.33	£2.80
70 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z BSD-2912401022.A133 2912401022	£1.75	£2.10
72 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A25 2912401019	£1.75	£2.10
73 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A472 2603410001	£1.75	£2.10
75 - SHAFT SEAL BSD-1610283019.A162 1610283019	£7.36	£8.83
78 - ROLLER-CAGE ASSEMBLY BSD-1610920006.A31 1610920006	£2.52	£3.02
79 - SUPPORT DISC BSD-1610100609.A3 1610100609	-
91 - RETAINING RING DIN 7993-A22 BSD-2916540012.A29 2916540012	-
120/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1284 2915011007	-
120/30 - WING SCREW M6x(15)55 BSD-1613480007.A216 1613480007	£1.75	£2.10
120/50 - CLAMPING PLATE M6 BSD-2608040014.A180 2608040014	-
120/60 - WING SCREW M6x20 MM BSD-1613480008.A206 1613480008	£1.75	£2.10
125 - MANUFACTURER'S NAMEPLATE BSD-1611110345.A25 1611110345	-
150 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A461 1900452012	£1.75	£2.10
700 - DRILL CHUCK SHANK BSD-1617000132.A159 1617000132	£16.84	£20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A75 2603421226	£1.75	£2.10
701 - KEY CHUCK R/L dia13 MM. 1/2-20 UNF BSD-1608571062.A52 1608571062	£17.49	£20.99
701/7 - CHUCK WRENCH SG2. SW4 BSD-1607950044.A8 1607950044	£6.12	£7.34
702 - PARTS SET BSD-1617000133.A33 1617000133	-
702/10/2 - RETAINING RING BSD-2604601004.A591 2604601004	£1.75	£2.10
703 - DUST TRAY BSD-1615439003.A1 1615439003	-
703/30 - RUBBER BUSHING dia5-7 MM BSD-1610312001.A114 1610312001	-
703/651 - RUBBER BUSHING dia8-10 MM BSD-1610312002.A25 1610312002	-
720 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A427 1619P10682	£12.49	£14.99
750 - CARRYING CASE BSD-1615438293.A9 1615438293	-
752 - DEPTH-GAUGE SW 6x210 MM BSD-1613001006.A27 1613001006	-
753 - ROTARY HAMMER BIT dia6x50 MM BSD-1618596166.A30 1618596166	-
754 - DRILL HOLDER BSD-2607000122.A123 2607000122	-
777 - CHISEL ATTACHMENT BSD-2607018296.A28 2607018296	£52.49	£62.99
778 - ANGLE DRILL HEAD BSD-1618580000.A14 1618580000	£239.08	£286.90
803 - ARMATURE WITH FAN 110-115V BSD-1614010078.A1 1614010078	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A6 1607000227	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3H3.A1434 160111A3H3	£2.61	£3.13
810 - BRUSH PLATE BSD-2609992600.A28 2609992600	-
810/04 - CARBON-BRUSH SET BSD-2604321905.A684 2604321905	£11.30	£13.56
810/05 - COMPRESSION SPRING BSD-2604611026.A342 2604611026	-
810/06 - RATCHET CAP BSD-2601322013.A46 2601322013	£1.75	£2.10
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A89 1610905048	£8.67	£10.41
819 - RATCHET SLEEVE BSD-1617000936.A10 1617000936	-
821 - PARTS SET BSD-1617000215.A15 1617000215	-
830 - CLAMP HANDLE BSD-1617000177.A52 1617000177	-
833 - PROTECTION SLEEVE BSD-1617000163.A277 1617000163	£7.36	£8.83
877 - CHANGE-OVER SWITCH BSD-2607200231.A231 2607200231	£16.41	£19.69
