Bosch PEX 270 A / 0603369003 / EU 230 Volt Spare Parts

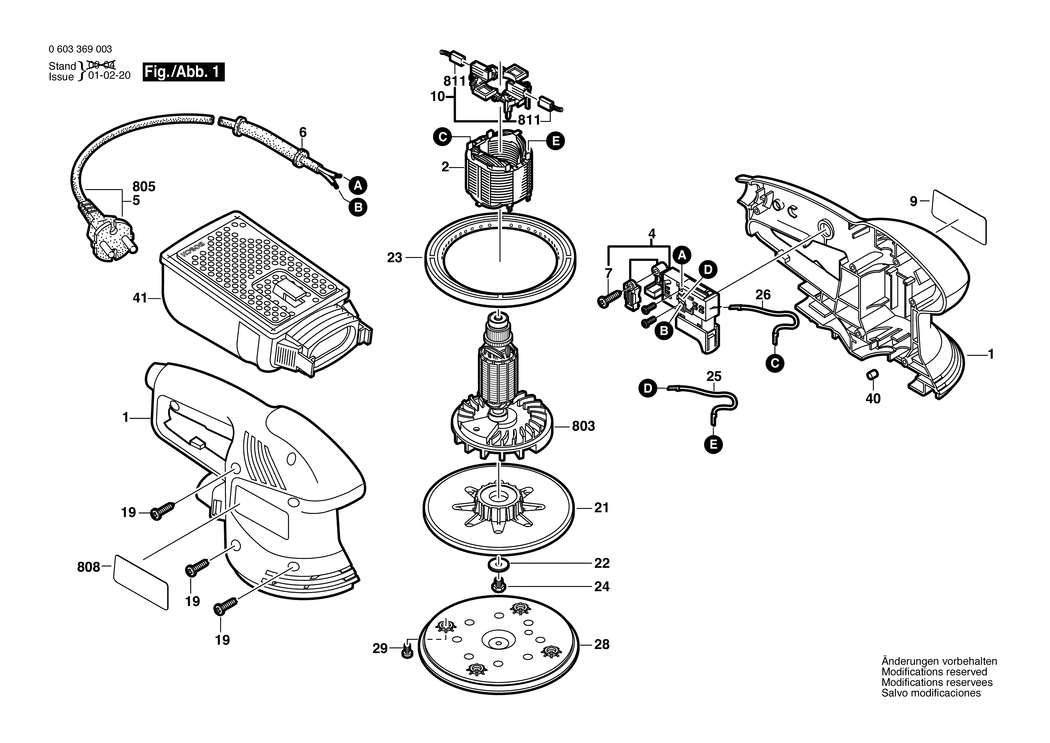

An exploded drawing and listing for the Bosch PEX 270 A / 0603369003 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104672.A0 2605104672	£21.42	£25.71
2 - FIELD 220-240V BSD-2609005423.A0 2609005423	£18.96	£22.75
4 - SWITCH BSD-2607200526.A39 2607200526	-
5 - POWER SUPPLY CORD EU 230V 2.7m 2 x 0.75mm H05 VV-F BSD-2604460259.A127 2604460259	£13.12	£15.75
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A479 2600703017	£2.61	£3.13
7 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A167 2603490017	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-2601119763.A3 2601119763	£3.34	£4.01
10 - BRUSH PLATE BSD-2604337088.A17 2604337088	£11.30	£13.56
19 - SCREW 4x16 BSD-2603490022.A2522 2603490022	£1.75	£2.10
21 - TOOL HOLDING FIXTURE BSD-2608601161.A9 2608601161	-
22 - PLAIN WASHER DIN 9021-B 8.4-ST BSD-2916011895.A3 2916011895	£1.75	£2.10
23 - FRICTION RING BSD-2600206021.A6 2600206021	£3.34	£4.01
24 - HEX SCREW M8x10-8.8-A M31A BSD-2911061232.A6 2911061232	-
25 - CONNECTING CABLE L=180MM BSD-2604448113.A13 2604448113	£1.75	£2.10
26 - CONNECTING CABLE L=63 MM BSD-3604440527.A11 3604440527	£1.75	£2.10
28 - BACKING PAD BSD-2608601159.A0 2608601159	£16.41	£19.69
29 - OVAL-HEAD SCREW M4x8 BSD-2603413035.A5 2603413035	£1.75	£2.10
40 - RUBBER BUFFER BSD-2609000549.A8 2609000549	£1.75	£2.10
41 - DUST CONTAINER BSD-2605411121.A49 2605411121	-
803 - ARMATURE 230-240V BSD-2604010985.A2 2604010985	-
808 - NAMEPLATE BSD-2601117553.A0 2601117553	-
811 - CARBON-BRUSH SET BSD-2604321925.A75 2604321925	£8.67	£10.41
