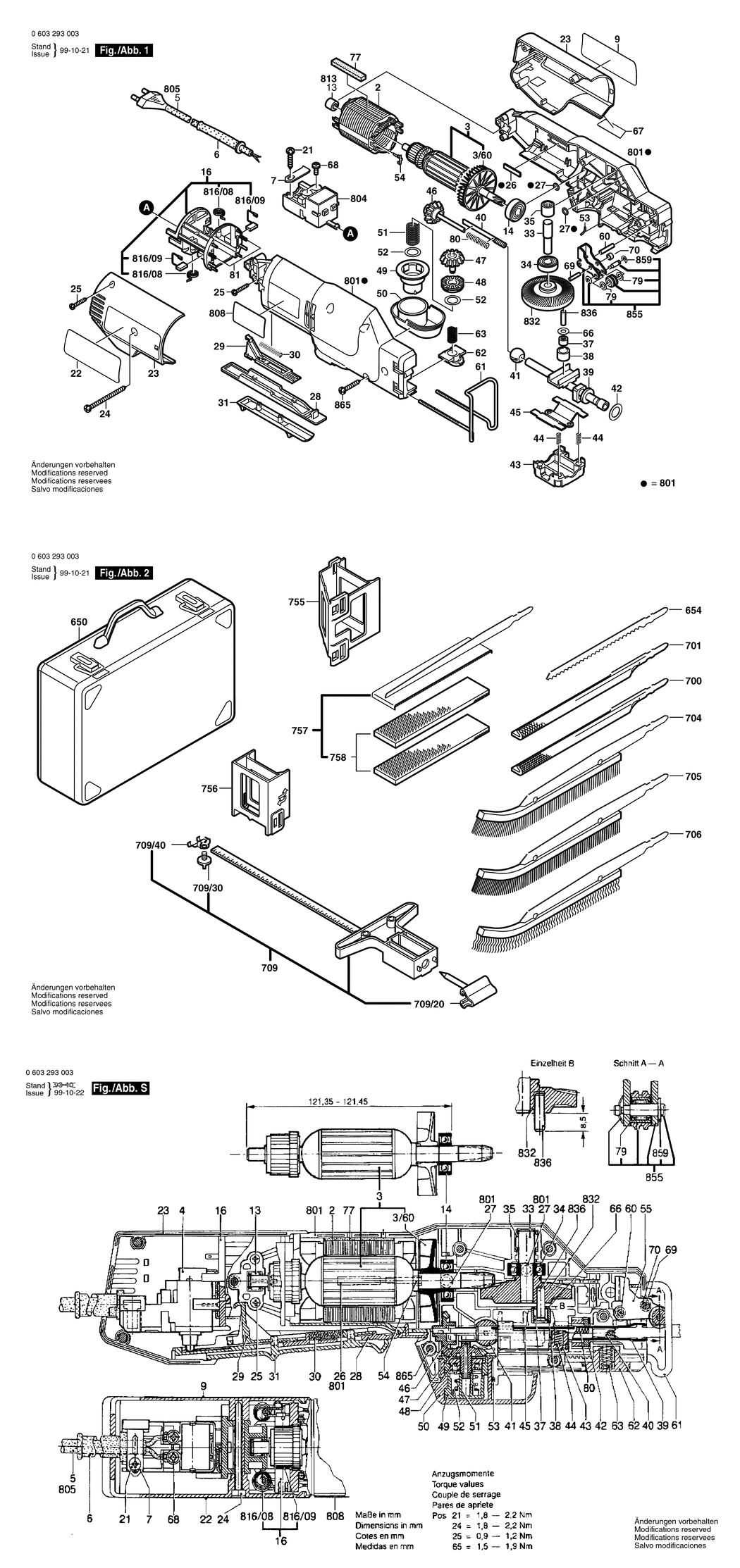

2 - FIELD 230V
BSD-2604220541.A8
2604220541
|
£31.64
|
£37.97
|
|
|
3 - ARMATURE 230V
BSD-2604010872.A5
2604010872
|
-
|
|
|
|
3/60 - FAN
BSD-2606610084.A10
2606610084
|
-
|
|
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05VV-F
BSD-2604460281.A3
2604460281
|
£18.96
|
£22.75
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A93
2600703007
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A409
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118221.A0
2601118221
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A521
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-2604337054.A3
2604337054
|
-
|
|
|
|
21 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A245
2603490021
|
£1.75
|
£2.10
|
|
|
22 - REFERENCE PLATE
BSD-2601118220.A10
2601118220
|
-
|
|
|
|
23 - HOUSING SECTION
BSD-2605104375.A5
2605104375
|
-
|
|
|
|
24 - TORX OVAL-HEAD SCREW 4x40
BSD-2603490027.A65
2603490027
|
£1.75
|
£2.10
|
|
|
25 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A276
2603490018
|
£1.75
|
£2.10
|
|
|
26 - RUBBER STRIP
BSD-2601006003.A11
2601006003
|
-
|
|
|
|
27 - O-RING 5.0x1.5 MM
BSD-1900210000.A442
1900210000
|
£1.75
|
£2.10
|
|
|
28 - SWITCH ROCKER
BSD-2608001012.A8
2608001012
|
-
|
|
|
|
29 - SWITCH SLIDE
BSD-2608001006.A19
2608001006
|
£2.16
|
£2.59
|
|
|
30 - COMPRESSION SPRING
BSD-2604611033.A25
2604611033
|
£2.16
|
£2.59
|
|
|
31 - SWITCH HANDLE
BSD-2608001010.A32
2608001010
|
£2.80
|
£3.36
|
|
|
33 - BEARING BOLT
BSD-2603105044.A7
2603105044
|
-
|
|
|
|
34 - GROOVE BALL BEARING DIN 625 608-2 Z
BSD-2600905057.A3
2600905057
|
-
|
|
|
|
35 - NEEDLE BEARING
BSD-2600917006.A52
2600917006
|
£3.72
|
£4.47
|
|
|
37 - NEEDLE BEARING
BSD-2600910005.A101
2600910005
|
-
|
|
|
|
38 - BEARING SLEEVE
BSD-2600400028.A7
2600400028
|
-
|
|
|
|
39 - LIFTING ROD
BSD-2600780058.A5
2600780058
|
-
|
|
|
|
40 - CLAMP SCREW
BSD-2603490005.A6
2603490005
|
-
|
|
|
|
41 - SINTERED-METAL BUSHING
BSD-2600302009.A16
2600302009
|
-
|
|
|
|
42 - SHIM 0.5 MM
BSD-2600101612.A76
2600101612
|
£1.75
|
£2.10
|
|
|
42 - SHIM 0.3 MM
BSD-2600116012.A14
2600116012
|
-
|
|
|
|
43 - SUPPORT PLATE
BSD-2602316007.A6
2602316007
|
£1.75
|
£2.10
|
|
|
44 - COMPRESSION SPRING
BSD-2604613000.A154
2604613000
|
£1.75
|
£2.10
|
|
|
45 - GUIDE BRACKET
BSD-2601322014.A40
2601322014
|
-
|
|
|
|
46 - BEVEL GEAR Z=16
BSD-2606333024.A4
2606333024
|
-
|
|
|
|
47 - BEVEL GEAR Z=16
BSD-2606333025.A8
2606333025
|
-
|
|
|
|
48 - CLUTCH SLEEVE
BSD-2606491007.A8
2606491007
|
-
|
|
|
|
49 - COUPLING
BSD-2606491008.A4
2606491008
|
-
|
|
|
|
50 - ROTARY HANDLE
BSD-2608040061.A7
2608040061
|
-
|
|
|
|
51 - COMPRESSION SPRING
BSD-2604617005.A6
2604617005
|
-
|
|
|
|
52 - SHIM
BSD-2600101016.A5
2600101016
|
-
|
|
|
|
53 - ROUND RUBBER dia 2 MM
BSD-2603100066.A5
2603100066
|
-
|
|
|
|
54 - CONTACT SPRING
BSD-2601329037.A13
2601329037
|
£1.75
|
£2.10
|
|
|
60 - STRAIGHT PIN DIN 6325-4m6x28
BSD-2917530104.A3
2917530104
|
-
|
|
|
|
61 - TRANSPORT BRACKET
BSD-2601329045.A8
2601329045
|
-
|
|
|
|
62 - PUSH-BUTTON
BSD-2600591007.A6
2600591007
|
-
|
|
|
|
63 - COMPRESSION SPRING
BSD-2604610033.A6
2604610033
|
-
|
|
|
|
66 - SHIM 0.50 MM
BSD-2600100613.A187
2600100613
|
£1.75
|
£2.10
|
|
|
67 - REFERENCE PLATE
BSD-3601110216.A23
3601110216
|
£3.72
|
£4.47
|
|
|
68 - SOCKET HEAD CAP SCREW M3.5x7 MM
BSD-1603429002.A3
1603429002
|
£1.75
|
£2.10
|
|
|
69 - STRAIGHT PIN
BSD-2603100057.A8
2603100057
|
-
|
|
|
|
70 - PRESS-IN SOCKET
BSD-2600506008.A28
2600506008
|
-
|
|
|
|
77 - FOAM PANEL
BSD-2601010056.A0
2601010056
|
-
|
|
|
|
79 - SHIM 0.2 MM
BSD-2600100032.A92
2600100032
|
£1.75
|
£2.10
|
|
|
80 - COMPRESSION SPRING
BSD-2604610039.A4
2604610039
|
-
|
|
|
|
81 - HOLDING-DOWN-APPLIANCE
BSD-2602099009.A6
2602099009
|
-
|
|
|
|
700 - MACHINE FILE
BSD-2608609028.A7
2608609028
|
-
|
|
|
|
701 - WOOD RASP
BSD-2608609030.A5
2608609030
|
-
|
|
|
|
704 - BRUSH
BSD-2608622040.A4
2608622040
|
-
|
|
|
|
705 - BRUSH
BSD-2608622041.A8
2608622041
|
-
|
|
|
|
706 - BRUSH
BSD-2608622042.A4
2608622042
|
-
|
|
|
|
709 - PARALLEL-GUIDE
BSD-2607001182.A6
2607001182
|
-
|
|
|
|
709/30 - LOCK SCREW M5x12-8.8
BSD-2603490001.A9
2603490001
|
£2.61
|
£3.13
|
|
|
709/40 - SUPPORT CLAMP
BSD-2601314004.A10
2601314004
|
£1.75
|
£2.10
|
|
|
755 - BASE PLATE
BSD-2608045009.A4
2608045009
|
-
|
|
|
|
756 - BASE PLATE
BSD-2608045010.A7
2608045010
|
-
|
|
|
|
757 - ADAPTER
BSD-2608609302.A7
2608609302
|
-
|
|
|
|
758 - ABRASIVE WEB
BSD-2608604458.A3
2608604458
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104856.A1
2605104856
|
-
|
|
|
|
804 - SWITCH
BSD-1607200113.A1
1607200113
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1316
160111A3H3
|
£2.61
|
£3.13
|
|
|
813 - NEEDLE BEARING
BSD-2600917002.A6
2600917002
|
£3.72
|
£4.47
|
|
|
816/08 - SPIRAL SPRING
BSD-1604652013.A580
1604652013
|
£1.75
|
£2.10
|
|
|
816/09 - CARBON-BRUSH SET
BSD-2607014007.A5
2607014007
|
-
|
|
|
|
832 - ECCENTRIC COG WHEEL Z=42
BSD-2606333901.A4
2606333901
|
-
|
|
|
|
836 - BEARING BOLT
BSD-2603105045.A2
2603105045
|
-
|
|
|
|
855 - ROLLER LEVER
BSD-2601321903.A2
2601321903
|
-
|
|
|
|
859 - LOCKING WASHER DIN 6799-2.3
BSD-2916080005.A261
2916080005
|
-
|
|
|
|
865 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A371
2910611020
|
£1.75
|
£2.10
|
|
