Bosch PBS 60 E / 0603275748 / F 220 Volt Spare Parts

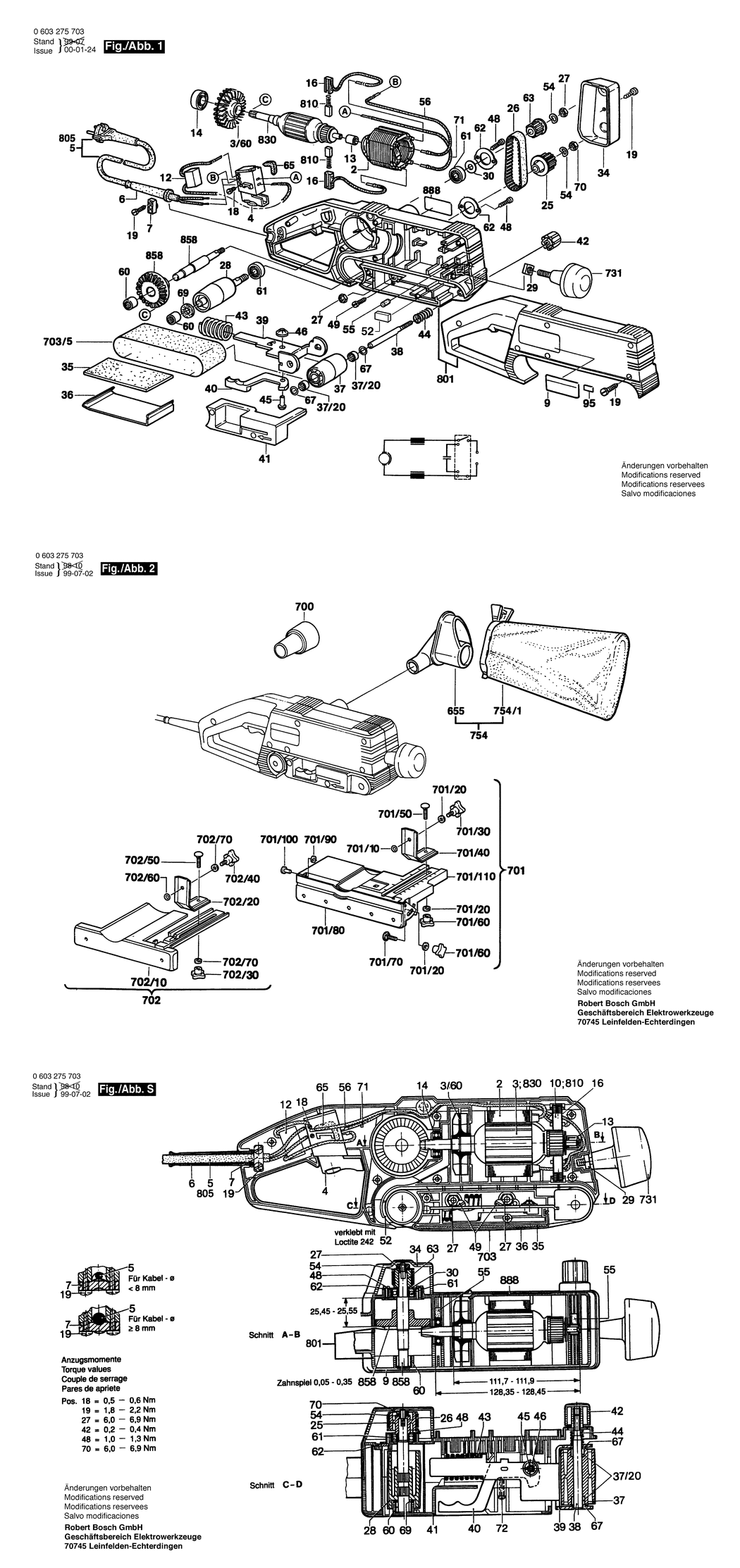

An exploded drawing and listing for the Bosch PBS 60 E / 0603275748 / F 220 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-240V BSD-2604220456.A42 2604220456	£18.96	£22.75
3/60 - FAN BSD-2606610024.A6 2606610024	-
4 - ON-OFF SWITCH BSD-2607200358.A17 2607200358	-
6 - GROMMET dia7 MM BSD-2600703007.A143 2600703007	-
7 - CABLE CLIP BSD-2601035001.A557 2601035001	£1.75	£2.10
9 - STICKER BSD-2601119325.A1 2601119325	-
12 - SUPPRESSION FILTER BSD-1607328028.A692 1607328028	£5.30	£6.36
13 - NEEDLE BEARING BSD-2600910005.A94 2600910005	-
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A26 1610905011	£14.91	£17.89
16 - CARB BRUSH HOLD W-SUPR BSD-2604465085.A26 2604465085	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A501 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A1328 2603490022	£1.75	£2.10
25 - TOOTHED BELT WHEEL Z=27 BSD-1606625030.A17 1606625030	-
26 - TOOTHED BELT Z=59 BSD-1604736006.A6 1604736006	£10.10	£12.12
27 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1217 2915011007	-
28 - ROLLER BSD-1606625032.A17 1606625032	-
29 - SQUARE NUT M6 BSD-2603320004.A12 2603320004	£1.75	£2.10
30 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A67 2916011013	£1.75	£2.10
34 - COVERING HOOD BSD-1605510159.A3 1605510159	-
35 - FELT STRIP BSD-1601005005.A7 1601005005	-
36 - SLIDE PLATE BSD-1601098007.A13 1601098007	-
37 - ROLLER BSD-1606625031.A3 1606625031	-
37/20 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A538 2600917003	£2.80	£3.36
38 - AXLE BSD-1603521028.A19 1603521028	-
39 - BEARING BRACKET BSD-1605807014.A17 1605807014	-
40 - TENSIONING LEVER BSD-1602098007.A6 1602098007	-
41 - BASE BSD-1608005005.A0 1608005005	-
42 - WING NUT BSD-2603339005.A59 2603339005	£2.80	£3.36
43 - COMPRESSION SPRING BSD-1604619018.A14 1604619018	-
44 - COMPRESSION SPRING BSD-1604612006.A7 1604612006	-
45 - BUTTON-HEAD RIVET DIN 660-5x10-Ms BSD-2917030709.A15 2917030709	-
46 - LOCKING WASHER BSD-1600146001.A74 1600146001	£1.75	£2.10
48 - TORX OVAL-HEAD SCREW 3x8 BSD-2603490016.A6 2603490016	£1.75	£2.10
49 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A306 2910211017	-
52 - CERAMIC PLATE BSD-2601010059.A34 2601010059	£5.58	£6.70
54 - SPRING WASHER DIN 137-A6-FST BSD-2916061007.A12 2916061007	-
55 - RUBBER BUFFER BSD-1603100036.A86 1603100036	£1.75	£2.10
56 - CONNECTING CABLE L = 298 MM BSD-2604448032.A16 2604448032	-
60 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A888 2600910001	£4.26	£5.11
61 - GROOVE BALL BEARING 8x22x7 BSD-1900905041.A16 1900905041	£13.12	£15.75
62 - TAB WASHER BSD-1600190016.A1 1600190016	-
63 - TOOTHED BELT WHEEL Z=19 BSD-1606625026.A51 1606625026	-
65 - DAMPING PLATE BSD-2601022000.A516 2601022000	£1.75	£2.10
67 - SHIM 0.2 MM BSD-2600100621.A24 2600100621	£1.75	£2.10
69 - FELT DISC BSD-2600108008.A2 2600108008	-
70 - HEX NUT M 6 BSD-2603300003.A21 2603300003	-
71 - CONNECTING CABLE BSD-2604448150.A19 2604448150	-
95 - STICKER BSD-1601110265.A134 1601110265	-
655 - FITTING BSD-2605702012.A36 2605702012	-
700 - FITTING dia 25x35 MM BSD-1600499005.A103 1600499005	£3.49	£4.19
701 - WIDTH STOP 45Â° BSD-2607001079.A21 2607001079	£21.87	£26.24
701/10 - O-RING 4.0x1.5 MM BSD-1610210043.A145 1610210043	£1.75	£2.10
701/20 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A80 2916011014	£1.75	£2.10
701/30 - WING SCREW M 6x16 MM BSD-2603480003.A123 2603480003	£2.61	£3.13
701/40 - STOP BRACKET BSD-1601332018.A77 1601332018	£3.72	£4.47
701/50 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A43 2910281203	£2.61	£3.13
701/60 - WING NUT M6 BSD-1603339006.A85 1603339006	£2.52	£3.02
701/70 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A202 2910281196	-
701/80 - STOP PLATE BSD-1608000092.A0 1608000092	-
701/90 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A97 2916011010	£1.75	£2.10
701/100 - TUBULAR RIVET B 4x0.5x15 DIN 734 BSD-2917190492.A4 2917190492	-
701/110 - STOP BRACKET BSD-1608000093.A49 1608000093	-
702 - PARALLEL-GUIDE BSD-2607000102.A12 2607000102	£20.99	£25.19
702/10 - STOP BRACKET BSD-2608005015.A13 2608005015	£11.30	£13.56
702/20 - STOP BRACKET BSD-1601332018.A78 1601332018	£3.72	£4.47
702/30 - WING NUT M6 BSD-1603339006.A84 1603339006	£2.52	£3.02
702/40 - WING SCREW M 6x16 MM BSD-2603480003.A124 2603480003	£2.61	£3.13
702/50 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A201 2910281196	-
702/60 - O-RING 4.0x1.5 MM BSD-1610210043.A144 1610210043	£1.75	£2.10
702/70 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A81 2916011014	£1.75	£2.10
703 - SANDING BELT SET KORN 40 BSD-1608604198.A10 1608604198	-
709 - ADJUSTABLE SCREW CLAMP BSD-1607960006.A4 1607960006	-
731 - HANDLE M6x15 MM BSD-2602026046.A7 2602026046	-
754 - DUST BAG BSD-1605411026.A8 1605411026	£15.74	£18.89
754/1 - DUST BAG BSD-2605411009.A17 2605411009	£8.74	£10.49
801 - MOTOR HOUSING BSD-2605104804.A16 2605104804	-
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F BSD-1607000388.A21 1607000388	£12.04	£14.45
810 - CARBON BRUSH BSD-1607014117.A0 1607014117	£10.10	£12.12
830 - ARMATURE 220-230V BSD-1604010306.A1 1604010306	-
858 - CROWN GEAR Z=45 BSD-2606333900.A0 2606333900	£21.52	£25.83
888 - NAMEPLATE BSD-160111A3H3.A2557 160111A3H3	£2.61	£3.13
