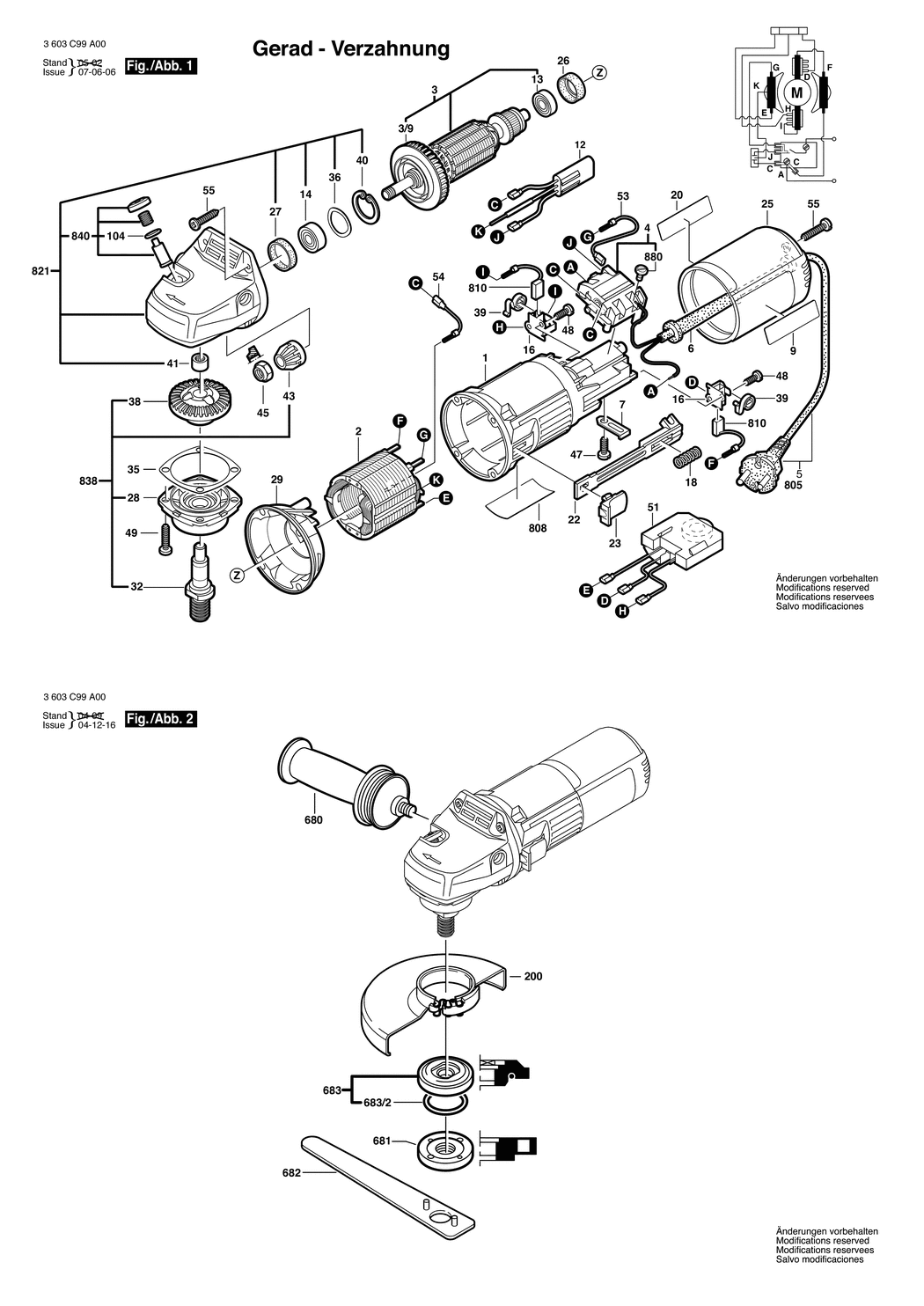

1 - MOTOR HOUSING
BSD-1605108189.A31
1605108189
|
£5.87
|
£7.04
|
|
|
2 - FIELD 220-230V
BSD-2609000764.A3
2609000764
|
£14.91
|
£17.89
|
|
|
3 - ARMATURE WITH FAN 220-230V
BSD-1604010248.A29
1604010248
|
£40.80
|
£48.96
|
|
|
3/9 - FAN
BSD-1606610121.A206
1606610121
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A397
1607200086
|
£11.30
|
£13.56
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460148.A38
1604460148
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A924
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A781
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE PWS Edition
BSD-1601118M31.A0
1601118M31
|
£2.33
|
£2.80
|
|
|
12 - SUPPRESSION FILTER
BSD-2609001564.A10
2609001564
|
£5.58
|
£6.70
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A699
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905080.A12
2600905080
|
£4.26
|
£5.11
|
|
|
16 - BRUSH HOLDER
BSD-1600A003G4.A314
1600A003G4
|
£3.72
|
£4.47
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A415
1604611026
|
£1.75
|
£2.10
|
|
|
20 - MANUFACTURER'S NAMEPLATE PWS Edition
BSD-2609001887.A0
2609001887
|
£2.33
|
£2.80
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A189
1602319002
|
£2.61
|
£3.13
|
|
|
23 - SWITCH BUTTON
BSD-2609002368.A1
2609002368
|
£1.75
|
£2.10
|
|
|
25 - HOUSING COVER
BSD-2609000250.A3
2609000250
|
£4.26
|
£5.11
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A297
1600502020
|
£2.61
|
£3.13
|
|
|
27 - RUBBER RING
BSD-1600206025.A800
1600206025
|
£2.16
|
£2.59
|
|
|
28 - BEARING FLANGE
BSD-2609000320.A15
2609000320
|
-
|
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A278
1601328005
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A195
1607000D6A
|
£7.36
|
£8.83
|
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A246
1600136011
|
£2.16
|
£2.59
|
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A77
1600136012
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A77
1600136010
|
£2.61
|
£3.13
|
|
|
36 - SPRING WASHER
BSD-1600150011.A147
1600150011
|
£1.75
|
£2.10
|
|
|
38 - CROWN GEAR Z=36
BSD-1606333606.A62
1606333606
|
£11.30
|
£13.56
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A771
1604652013
|
£1.75
|
£2.10
|
|
|
40 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A192
2916660009
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A114
1600200029
|
£4.26
|
£5.11
|
|
|
43 - BEVEL GEAR Z=11
BSD-1606333605.A36
1606333605
|
£3.72
|
£4.47
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A290
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A310
2603490021
|
£1.75
|
£2.10
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A932
2603490017
|
£2.16
|
£2.59
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A232
2914491410
|
£1.75
|
£2.10
|
|
|
51 - SPEED GOVERNOR 230V
BSD-1607233020.A15
1607233020
|
£46.82
|
£56.18
|
|
|
53 - CONNECTING CABLE
BSD-1604448015.A24
1604448015
|
£1.75
|
£2.10
|
|
|
54 - CONNECTING CABLE
BSD-1604448016.A125
1604448016
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A923
2603490023
|
£1.75
|
£2.10
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A2
1600210044
|
£1.75
|
£2.10
|
|
|
200 - PROTECTIVE GUARD
BSD-2609000391.A6
2609000391
|
£18.96
|
£22.75
|
|
|
680 - HANDLE
BSD-2609002198.A5
2609002198
|
£10.10
|
£12.12
|
|
|
681 - ROUND NUT M14
BSD-1603345043.A1046
1603345043
|
£8.67
|
£10.41
|
|
|
682 - PIN-TYPE FACE-WRENCH
BSD-1619P08927.A84
1619P08927
|
£4.26
|
£5.11
|
|
|
683 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1288
2605703014
|
£7.36
|
£8.83
|
|
|
683/2 - O-RING 20.35x1.78 MM
BSD-1600210039.A426
1600210039
|
£2.16
|
£2.59
|
|
|
808 - NAMEPLATE
BSD-2609002026.A0
2609002026
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2609004138.A5
2609004138
|
£11.78
|
£14.13
|
|
|
821 - GEAR HOUSING
BSD-2609000768.A6
2609000768
|
£21.68
|
£26.01
|
|
|
838 - CROWN GEAR
BSD-2609000769.A14
2609000769
|
-
|
|
|
|
840 - PUSH-BUTTON
BSD-1607000253.A91
1607000253
|
£2.49
|
£2.99
|
|
|
880 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A432
2910110048
|
£1.75
|
£2.10
|
|
