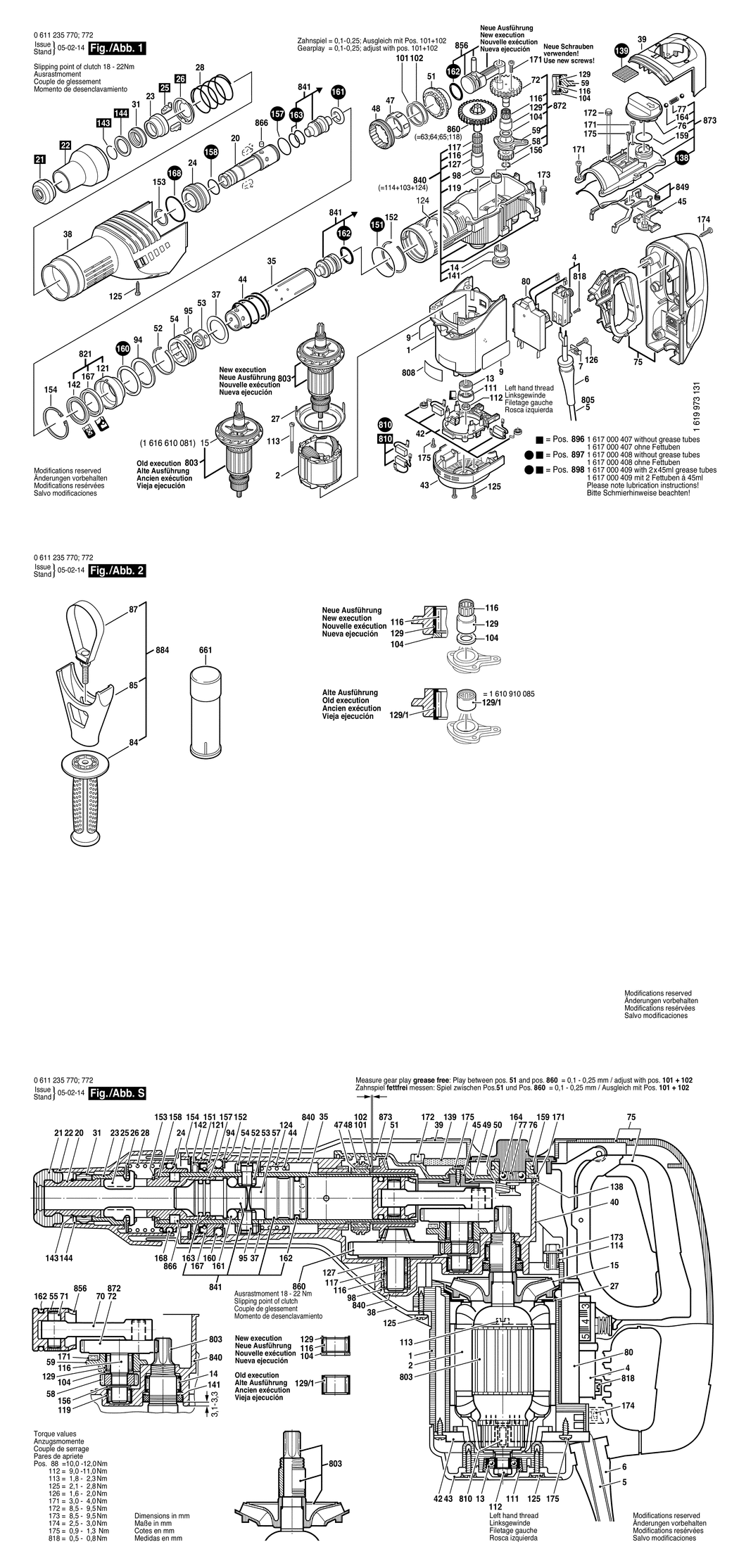

1 - MOTOR HOUSING
BSD-1615108098.A0
1615108098
|
£21.52
|
£25.83
|
|
|
2 - FIELD 220-240V
BSD-1614220124.A20
1614220124
|
£31.64
|
£37.97
|
|
|
4 - SWITCH
BSD-1617200048.A16
1617200048
|
£18.96
|
£22.75
|
|
|
6 - GROMMET dia9.7-dia12x89 MM
BSD-1610703053.A60
1610703053
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A692
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110E93.A0
1611110E93
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x24x8
BSD-1610900026.A52
1610900026
|
£12.04
|
£14.45
|
|
|
14 - NEEDLE-ROLLER BEARING
BSD-1610910089.A60
1610910089
|
-
|
|
|
|
20 - TOOLHOLDER
BSD-1618597072.A3
1618597072
|
£103.14
|
£123.77
|
|
|
21 - PROTECTIVE CAP
BSD-1610508035.A8
1610508035
|
£5.30
|
£6.36
|
|
|
22 - PROTECTION SLEEVE
BSD-1610591021.A12
1610591021
|
-
|
|
|
|
23 - STOP SLEEVE
BSD-1610520001.A30
1610520001
|
£12.04
|
£14.45
|
|
|
24 - HEADED BUSH
BSD-1610500021.A13
1610500021
|
£10.10
|
£12.12
|
|
|
25 - STOPPING DEVICE
BSD-1612300027.A66
1612300027
|
£11.30
|
£13.56
|
|
|
26 - INDEXING DISK
BSD-1610290025.A34
1610290025
|
£6.52
|
£7.83
|
|
|
27 - AIR-DEFLECTOR RING
BSD-1610591023.A12
1610591023
|
£1.75
|
£2.10
|
|
|
28 - COMPRESSION SPRING
BSD-1614621004.A13
1614621004
|
£2.61
|
£3.13
|
|
|
31 - DAMPING RING
BSD-1610290049.A1
1610290049
|
£2.80
|
£3.36
|
|
|
35 - HAMMER PIPE
BSD-1615806156.A6
1615806156
|
£88.07
|
£105.68
|
|
|
37 - SUPPORT DISC
BSD-1610102047.A9
1610102047
|
£2.80
|
£3.36
|
|
|
38 - COVERING HOOD
BSD-1615190102.A0
1615190102
|
-
|
|
|
|
39 - COVERING HOOD
BSD-1615190109.A1
1615190109
|
-
|
|
|
|
42 - BRUSH HOLDER
BSD-1614336026.A8
1614336026
|
£33.74
|
£40.49
|
|
|
43 - FAN COVER
BSD-1615500308.A0
1615500308
|
£2.80
|
£3.36
|
|
|
44 - COMPRESSION SPRING
BSD-1614621005.A7
1614621005
|
£2.61
|
£3.13
|
|
|
45 - SEALING PLATE
BSD-1610591022.A0
1610591022
|
-
|
|
|
|
47 - SPACER RING
BSD-1619990149.A9
1619990149
|
£33.74
|
£40.49
|
|
|
48 - CLUTCH SLEEVE
BSD-1619990151.A11
1619990151
|
£27.23
|
£32.68
|
|
|
51 - CROWN GEAR Z=45
BSD-1616333035.A10
1616333035
|
£51.22
|
£61.47
|
|
|
52 - RETAINING RING
BSD-1614601056.A16
1614601056
|
£1.66
|
£1.99
|
|
|
53 - GUIDE BUSHING
BSD-1610231000.A6
1610231000
|
£11.30
|
£13.56
|
|
|
54 - SPACER TUBE
BSD-1610190033.A3
1610190033
|
£6.52
|
£7.83
|
|
|
58 - CYLINDRICAL GEAR Z=17
BSD-1616317056.A16
1616317056
|
£11.30
|
£13.56
|
|
|
59 - BEARING PEDESTAL
BSD-1615805067.A16
1615805067
|
£8.49
|
£10.19
|
|
|
72 - ECCENTRIC COG WHEEL
BSD-1616317067.A5
1616317067
|
£68.42
|
£82.10
|
|
|
75 - HANDLE
BSD-1615132080.A0
1615132080
|
£45.67
|
£54.80
|
|
|
76 - SHIFT-LEVER KNOB
BSD-1612026083.A0
1612026083
|
£10.82
|
£12.99
|
|
|
77 - COMPRESSION SPRING
BSD-1614610010.A3
1614610010
|
£1.75
|
£2.10
|
|
|
80 - SPEED GOVERNOR 220-240V
BSD-1617233042.A13
1617233042
|
£63.50
|
£76.20
|
|
|
84 - AUXILIARY HANDLE
BSD-160202507H.A162
160202507H
|
£11.30
|
£13.56
|
|
|
85 - SUPPORT CLAMP
BSD-1618040071.A16
1618040071
|
£5.58
|
£6.70
|
|
|
87 - CLAMPING BAND dia77 MM. M8
BSD-1617000834.A10
1617000834
|
£16.41
|
£19.69
|
|
|
94 - SUPPORT DISC
BSD-1610290052.A18
1610290052
|
£2.61
|
£3.13
|
|
|
95 - DRIVING PIN
BSD-1613120018.A2
1613120018
|
£2.61
|
£3.13
|
|
|
98 - SHIM RING 1.0 MM
BSD-1610101015.A16
1610101015
|
£1.75
|
£2.10
|
|
|
101 - SHIM 0.45 MM
BSD-1610102049.A9
1610102049
|
£2.61
|
£3.13
|
|
|
102 - SHIM 0.3 MM
BSD-1610102048.A11
1610102048
|
£2.61
|
£3.13
|
|
|
104 - STOP DISC
BSD-1610190027.A10
1610190027
|
£5.58
|
£6.70
|
|
|
111 - BUSHING
BSD-1610290046.A35
1610290046
|
£2.80
|
£3.36
|
|
|
112 - HEX NUT
BSD-1613300007.A30
1613300007
|
£1.75
|
£2.10
|
|
|
113 - TAPPING SCREW B 4.8x68 MM
BSD-1613412001.A20
1613412001
|
£1.75
|
£2.10
|
|
|
116 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913029.A80
1610913029
|
£4.26
|
£5.11
|
|
|
117 - NEEDLE-ROLLER ASSEMBLY dia10 MM
BSD-1610913011.A39
1610913011
|
£6.52
|
£7.83
|
|
|
119 - NEEDLE-ROLLER BEARING
BSD-1610910081.A32
1610910081
|
£14.91
|
£17.89
|
|
|
121 - BUSHING
BSD-1610328016.A17
1610328016
|
£3.72
|
£4.47
|
|
|
125 - TORX OVAL-HEAD SCREW 4.8x19
BSD-1613435011.A10
1613435011
|
£1.75
|
£2.10
|
|
|
126 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A551
2910211019
|
£1.75
|
£2.10
|
|
|
127 - BUSHING
BSD-1610300060.A2
1610300060
|
£7.36
|
£8.83
|
|
|
129 - BUSHING
BSD-1610300067.A18
1610300067
|
£12.04
|
£14.45
|
|
|
129/1 - NEEDLE-ROLLER BEARING
BSD-1610910085.A12
1610910085
|
£14.91
|
£17.89
|
|
|
138 - SEALING FRAME
BSD-1611015047.A13
1611015047
|
£6.52
|
£7.83
|
|
|
139 - SEALING PLATE
BSD-1612380010.A12
1612380010
|
-
|
|
|
|
141 - ROTARY SHAFT LIP SEAL
BSD-1610290028.A44
1610290028
|
£3.72
|
£4.47
|
|
|
142 - ROTARY SHAFT LIP SEAL
BSD-1610290050.A19
1610290050
|
£5.30
|
£6.36
|
|
|
143 - RETAINING RING DIN 7993-28x2
BSD-1614601021.A34
1614601021
|
£7.36
|
£8.83
|
|
|
144 - SUPPORTING DISC
BSD-1610103021.A4
1610103021
|
£2.80
|
£3.36
|
|
|
151 - O-RING 60.0x2.0 MM
BSD-1610210148.A15
1610210148
|
£2.61
|
£3.13
|
|
|
152 - RETAINING RING
BSD-1614601029.A3
1614601029
|
£1.75
|
£2.10
|
|
|
153 - RETAINING RING
BSD-1614601028.A17
1614601028
|
£1.75
|
£2.10
|
|
|
154 - SPRING RETAINING RING
BSD-1610119011.A16
1610119011
|
£2.80
|
£3.36
|
|
|
156 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A101
2916650003
|
£1.75
|
£2.10
|
|
|
157 - O-RING 31.0x1.5 MM
BSD-1610210142.A13
1610210142
|
£2.61
|
£3.13
|
|
|
158 - O-RING 30.0x2.5 MM
BSD-1610210139.A16
1610210139
|
£2.61
|
£3.13
|
|
|
159 - O-RING 27.0x2.5 MM
BSD-1610210141.A7
1610210141
|
£1.75
|
£2.10
|
|
|
160 - O-RING 46.0x7.0 MM
BSD-1610210140.A13
1610210140
|
£2.16
|
£2.59
|
|
|
161 - O-RING 18.0x8.0 MM
BSD-1610210145.A12
1610210145
|
£7.36
|
£8.83
|
|
|
162 - O-RING 26.0x4.0 MM
BSD-1610210109.A28
1610210109
|
£4.26
|
£5.11
|
|
|
163 - O-RING 22.0x3.0 MM
BSD-1610210144.A8
1610210144
|
£5.30
|
£6.36
|
|
|
164 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A531
1903230013
|
£2.16
|
£2.59
|
|
|
167 - ROTARY SHAFT LIP SEAL
BSD-1610290051.A1
1610290051
|
£4.26
|
£5.11
|
|
|
168 - O-RING 46.0x5.0 MM
BSD-1610210149.A5
1610210149
|
£2.61
|
£3.13
|
|
|
171 - MICROENCAPSULATED SCREW
BSD-1613414021.A30
1613414021
|
£2.16
|
£2.59
|
|
|
172 - SCREW AND WASHER ASSEMBLY
BSD-1613435008.A6
1613435008
|
-
|
|
|
|
173 - SCREW AND WASHER ASSEMBLY 6.3x32
BSD-1613433001.A5
1613433001
|
£1.75
|
£2.10
|
|
|
174 - TORX OVAL-HEAD SCREW 5.5x25
BSD-1613435010.A79
1613435010
|
£2.16
|
£2.59
|
|
|
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A72
2912401018
|
£1.75
|
£2.10
|
|
|
661 - GREASE TUBE 30 ML
BSD-1615430009.A41
1615430009
|
£13.12
|
£15.75
|
|
|
803 - ARMATURE 220-240V
BSD-1614010213.A7
1614010213
|
£156.22
|
£187.46
|
|
|
805 - POWER SUPPLY CORD
BSD-1617000723.A44
1617000723
|
£27.23
|
£32.68
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A111
160111A3HC
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1617014135.A10
1617014135
|
£18.96
|
£22.75
|
|
|
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8
BSD-2910011088.A54
2910011088
|
£1.75
|
£2.10
|
|
|
821 - BUSHING
BSD-1617000824.A10
1617000824
|
£27.23
|
£32.68
|
|
|
840 - IMPACT MECHANISM HOUSING
BSD-1617000825.A3
1617000825
|
-
|
|
|
|
841 - STRIKER PIN
BSD-1617000474.A1
1617000474
|
£37.27
|
£44.72
|
|
|
849 - CONTROL FORK
BSD-1617000826.A9
1617000826
|
£48.38
|
£58.06
|
|
|
856 - HAMMER PISTON
BSD-1617000873.A8
1617000873
|
£33.74
|
£40.49
|
|
|
860 - SPUR WHEEL CLUTCH Z=13/47
BSD-1617000828.A11
1617000828
|
£179.37
|
£215.24
|
|
|
866 - ROLLER SET
BSD-1617000406.A6
1617000406
|
£5.30
|
£6.36
|
|
|
872 - ECCENTRIC COG WHEEL
BSD-1617000874.A12
1617000874
|
£102.57
|
£123.08
|
|
|
873 - HOUSING COVER
BSD-1617000830.A8
1617000830
|
-
|
|
|
|
884 - AUXILIARY HANDLE dia77 MM. M8
BSD-1612025051.A14
1612025051
|
£40.80
|
£48.96
|
|
|
896 - WEAR AND TEAR PART SET
BSD-1617000407.A7
1617000407
|
-
|
|
|
|
897 - WEAR AND TEAR PART SET
BSD-1617000408.A5
1617000408
|
-
|
|
|
|
898 - WEAR AND TEAR PART SET
BSD-1617000409.A7
1617000409
|
-
|
|
|
