Bosch SP 21 / 0611234771 / GB 230 Volt Spare Parts

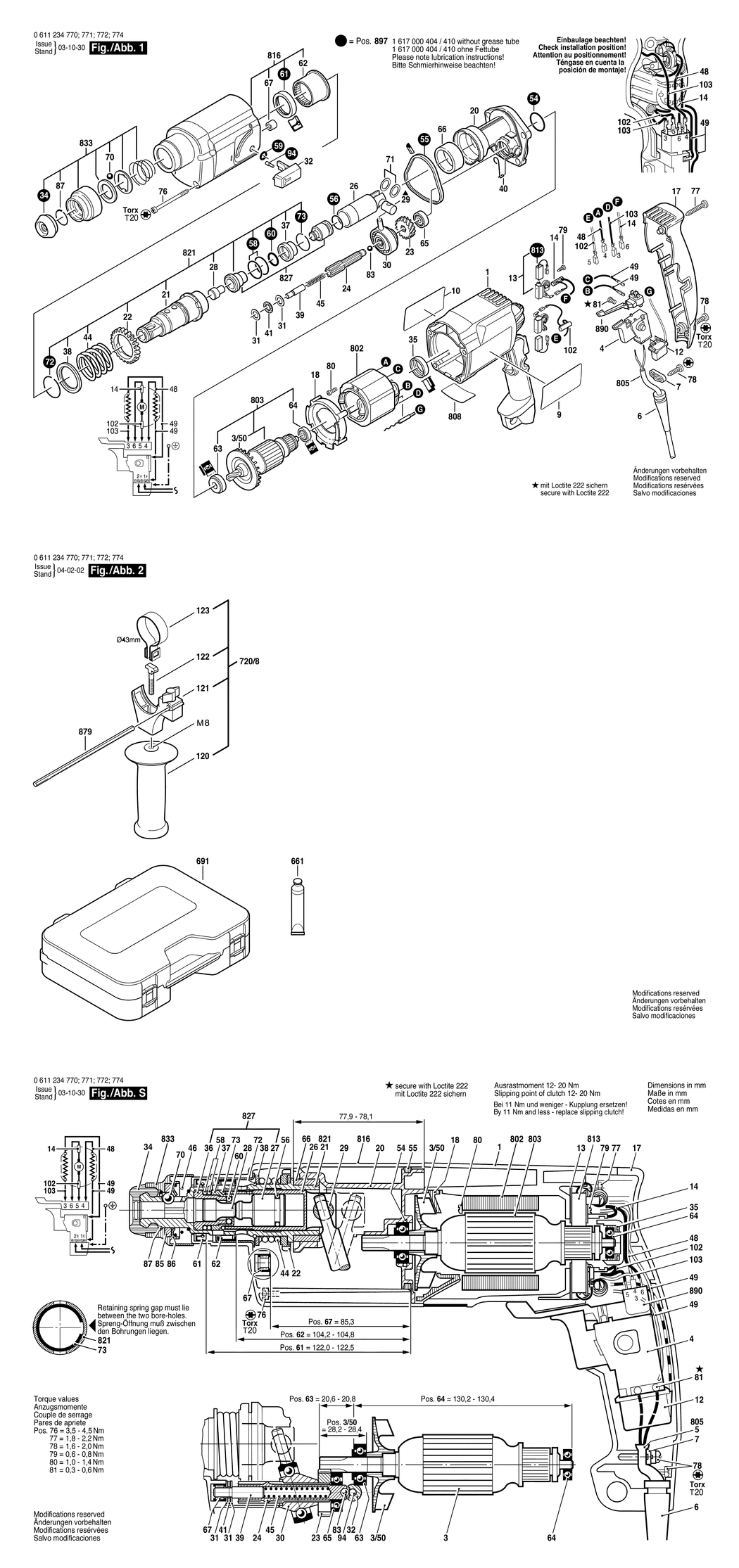

An exploded drawing and listing for the Bosch SP 21 / 0611234771 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108086.A2 1615108086	-
3/50 - FAN BSD-1616610072.A48 1616610072	£2.27	£2.72
4 - SWITCH BSD-1617200083.A4 1617200083	-
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A197 2600703018	£2.74	£3.29
7 - CABLE CLIP BSD-1611035005.A86 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110854.A4 1611110854	-
10 - MANUFACTURER'S NAMEPLATE BSD-1611110854.A5 1611110854	-
12 - SUPPRESSION FILTER BSD-1607328040.A104 1607328040	£6.52	£7.83
13 - BRUSH HOLDER BSD-1617000343.A9 1617000343	£11.87	£14.24
14 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A180 2604465086	£5.58	£6.70
17 - HOUSING COVER BSD-1615132071.A3 1615132071	-
18 - AIR-DEFLECTOR RING BSD-1610522008.A92 1610522008	£1.84	£2.21
20 - INTERMEDIATE FLANGE BSD-1615700037.A17 1615700037	£40.80	£48.96
21 - RATCHET SLEEVE SDS-PLUS BSD-1616490058.A4 1616490058	£218.41	£262.09
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A13 1616320007	£7.36	£8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A24 1616320002	£24.45	£29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A132 1613060010	£54.42	£65.30
26 - HAMMER PISTON BSD-1618700052.A117 1618700052	£13.78	£16.54
28 - STRIKER PIN BSD-1613124026.A130 1613124026	£2.80	£3.36
29 - PISTON PIN BSD-1613105012.A384 1613105012	£3.91	£4.69
30 - DRIVE BEARING BSD-1615819005.A132 1615819005	£31.64	£37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A22 1610100003	£1.84	£2.21
32 - CLAMP HANDLE BSD-1612026023.A14 1612026023	£2.74	£3.29
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A273 1610508008	£2.27	£2.72
35 - RUBBER RING BSD-1610206021.A139 1610206021	£1.84	£2.21
37 - DAMPING BUSHING BSD-1610390011.A112 1610390011	£3.72	£4.47
38 - SUPPORTING DISC BSD-1610102022.A124 1610102022	£2.16	£2.59
39 - STRAIGHT PIN BSD-1613100013.A54 1613100013	£2.16	£2.59
40 - HOLDING SPRING BSD-1614690001.A15 1614690001	£1.84	£2.21
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A37 1610920003	£4.26	£5.11
44 - COMPRESSION SPRING BSD-1614633001.A134 1614633001	£2.64	£3.17
45 - COMPRESSION SPRING BSD-1614614001.A19 1614614001	£1.84	£2.21
48 - CONNECTING CABLE L=78 MM BSD-2604448137.A75 2604448137	-
49 - CABLE L=130 MM BSD-2604448005.A184 2604448005	£1.84	£2.21
54 - O-RING 24.0x2.5 MM BSD-1610210068.A223 1610210068	£1.75	£2.10
55 - SEAL RING BSD-1610206023.A45 1610206023	£2.94	£3.53
56 - O-RING 14.0x3.0 MM BSD-1610210070.A116 1610210070	£2.74	£3.29
58 - O-RING 18.0x3.0 MM BSD-1610210058.A151 1610210058	£2.74	£3.29
59 - O-RING 6.0x2.5 MM BSD-1610210069.A46 1610210069	£1.84	£2.21
60 - O-RING 10.0x3.5 MM BSD-1610210073.A21 1610210073	£2.16	£2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A172 1610283017	£7.36	£8.83
62 - PLAIN BEARING BSD-1610202026.A65 1610202026	£5.57	£6.68
63 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A208 1610905048	£8.67	£10.41
64 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A63 1610905025	£6.85	£8.22
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A175 1900900228	£6.61	£7.93
66 - BUSHING dia30xdia37x15.7 MM BSD-1610301000.A20 1610301000	£3.34	£4.01
67 - NEEDLE BEARING BSD-1610910064.A123 1610910064	£2.64	£3.17
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A537 1903230013	£2.27	£2.72
71 - SHIM WASHER 1.2 MM BSD-1610101011.A244 1610101011	£1.75	£2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A120 2916540018	£3.91	£4.69
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A61 1614601009	£2.05	£2.46
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A11 1613435009	£1.75	£2.10
77 - TAPPING SCREW ST3.9x32 BSD-1603435051.A32 1603435051	£2.05	£2.46
78 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A63 1603435050	£2.33	£2.80
79 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A586 2910211005	£1.84	£2.21
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A462 2603435015	£2.27	£2.72
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2881 2603410001	£1.84	£2.21
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A155 1903230309	£1.84	£2.21
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A303 2916540012	-
94 - DETENT PIN BSD-1613120017.A24 1613120017	£1.84	£2.21
102 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A65 2604465097	£5.58	£6.70
103 - CONNECTING CABLE L=55 MM BSD-1614448017.A49 1614448017	£2.16	£2.59
120 - AUXILIARY HANDLE M8 BSD-1612025041.A25 1612025041	£21.42	£25.71
121 - SUPPORT CLAMP dia43 MM BSD-1618040064.A7 1618040064	£8.92	£10.70
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A233 1613490002	£4.48	£5.37
123 - CLAMPING BAND dia43 MM BSD-1611316006.A72 1611316006	£2.61	£3.13
661 - GREASE TUBE 30 ML BSD-1615430010.A25 1615430010	£6.85	£8.22
691 - CARRYING CASE BSD-1615438285.A3 1615438285	-
720/8 - AUXILIARY HANDLE dia43 MM BSD-1612025047.A8 1612025047	-
802 - FIELD 240V BSD-2604220430.A29 2604220430	£27.23	£32.68
803 - ARMATURE WITH FAN 240V BSD-1614010042.A8 1614010042	-
805 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-3604460084.A27 3604460084	£22.76	£27.31
808 - NAMEPLATE BSD-160111A3HD.A80 160111A3HD	£2.74	£3.29
813 - CARBON-BRUSH SET BSD-1617014134.A44 1617014134	£9.11	£10.93
816 - GEAR HOUSING BSD-1615806081.A19 1615806081	£33.45	£40.14
821 - RATCHET SLEEVE BSD-1617000812.A13 1617000812	-
827 - STRIKER BSD-1617000338.A31 1617000338	£28.59	£34.31
833 - PROTECTION SLEEVE BSD-1617000163.A201 1617000163	£7.72	£9.27
879 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A84 1613001009	£3.91	£4.69
890 - CHANGE-OVER SWITCH BSD-2607200231.A165 2607200231	£17.22	£20.67
897 - WEAR AND TEAR PART SET BSD-1617000404.A1 1617000404	£25.68	£30.81
