Bosch SDI 105 / 3601J92S00 / EU 10.8 Volt Spare Parts

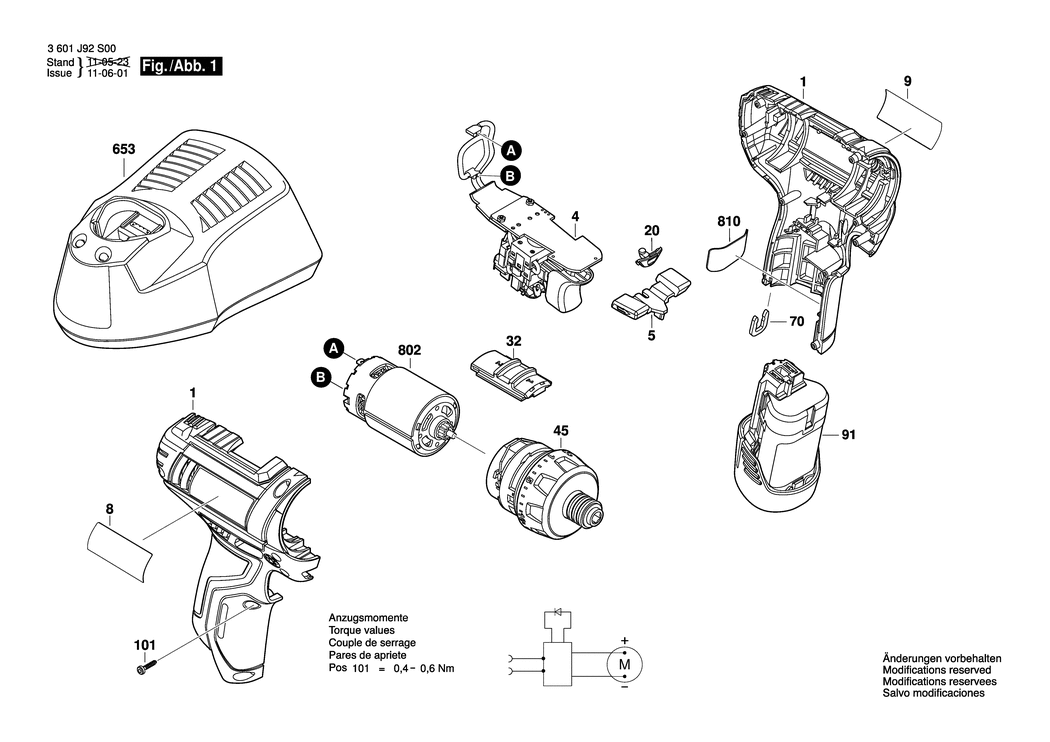

An exploded drawing and listing for the Bosch SDI 105 / 3601J92S00 / EU 10.8 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100973.A1 2609100973	£21.52	£25.83
4 - ELECTRONICS MODULE BSD-1607233490.A2 1607233490	£54.42	£65.30
5 - CHANGEOVER LEVER BSD-2609100975.A4 2609100975	£2.16	£2.59
8 - MANUFACTURER'S NAMEPLATE SDI 105 BSD-2609133210.A0 2609133210	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE SDI 105 BSD-2609133211.A0 2609133211	£3.72	£4.47
20 - LENS BSD-2609100826.A13 2609100826	£2.61	£3.13
32 - SWITCHOVER UNIT BSD-2609199353.A8 2609199353	£1.75	£2.10
45 - GEAR BOX BSD-2606200259.A2 2606200259	£45.67	£54.80
70 - CLIP BSD-2609110537.A15 2609110537	£1.75	£2.10
91 - ACCUMULATOR BATTERY 10.8V 1.3Ah. Li BSD-2607336213.A0 2607336213	£58.76	£70.51
91 - BATTERY PACK 10.8V. 1.5Ah. LI BSD-2607336981.A1 2607336981	£58.76	£70.51
101 - SCREW BSD-2609110883.A23 2609110883	£2.16	£2.59
653 - FAST CHARGER EU 230/10.8V.30 MIN. BSD-2607225403.A1 2607225403	-
802 - DC MOTOR 10.8V - 12V BSD-2609199258.A2 2609199258	£21.52	£25.83
810 - MANUFACTURER'S NAMEPLATE BSD-2609133218.A0 2609133218	£2.33	£2.80
