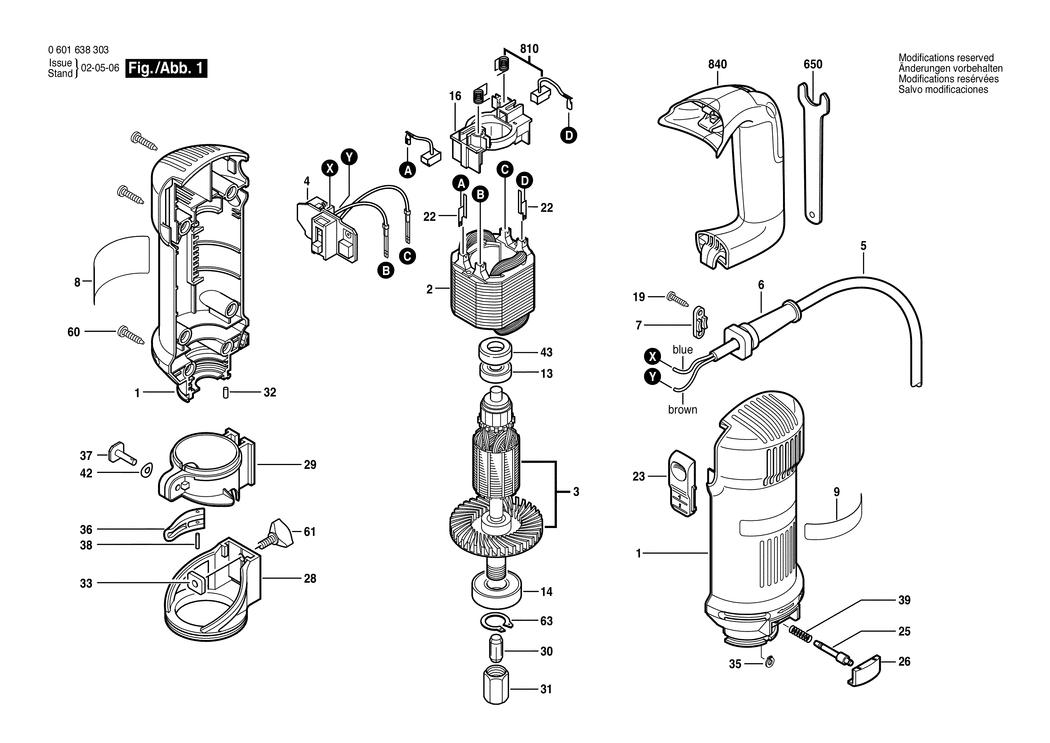

1 - HOUSING
BSD-2610914402.A4
2610914402
|
-
|
|
|
|
2 - FIELD 230V
BSD-2610914403.A0
2610914403
|
-
|
|
|
|
3 - ARMATURE 230V
BSD-2610914405.A3
2610914405
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2610914408.A3
2610914408
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A372
1607000386
|
£21.52
|
£25.83
|
|
|
6 - GROMMET
BSD-2610907639.A31
2610907639
|
-
|
|
|
|
7 - CABLE GRIP
BSD-2610064973.A85
2610064973
|
£1.75
|
£2.10
|
|
|
8 - NAMEPLATE
BSD-2610914422.A0
2610914422
|
-
|
|
|
|
9 - REFERENCE PLATE
BSD-2610914424.A0
2610914424
|
-
|
|
|
|
13 - BALL BEARING
BSD-2610351861.A40
2610351861
|
-
|
|
|
|
14 - BALL BEARING
BSD-2610968044.A15
2610968044
|
£11.30
|
£13.56
|
|
|
16 - BRUSH HOLDER
BSD-2610910144.A3
2610910144
|
£13.12
|
£15.75
|
|
|
19 - SCREW
BSD-2610323769.A11
2610323769
|
-
|
|
|
|
22 - CONNECTING TERMINAL
BSD-2610911982.A5
2610911982
|
£1.75
|
£2.10
|
|
|
23 - REFERENCE PLATE
BSD-2610914425.A4
2610914425
|
-
|
|
|
|
25 - DETENT PIN
BSD-2610909200.A5
2610909200
|
£3.72
|
£4.47
|
|
|
26 - PUSH-BUTTON
BSD-2610909249.A5
2610909249
|
£2.80
|
£3.36
|
|
|
28 - BASE PLATE
BSD-2610914426.A0
2610914426
|
£13.12
|
£15.75
|
|
|
29 - COLLAR SLEEVE
BSD-2610914427.A4
2610914427
|
-
|
|
|
|
30 - COLLET 1/8
BSD-2615295093.A1
2615295093
|
£4.26
|
£5.11
|
|
|
30 - COLLET 1/4
BSD-2615295091.A8
2615295091
|
£11.30
|
£13.56
|
|
|
31 - NUT
BSD-2610909214.A4
2610909214
|
-
|
|
|
|
32 - PIN
BSD-2610350103.A56
2610350103
|
£1.75
|
£2.10
|
|
|
33 - ADJUSTING WRENCH
BSD-2610913184.A4
2610913184
|
£4.26
|
£5.11
|
|
|
35 - LOCATING RING
BSD-2610909201.A3
2610909201
|
£1.75
|
£2.10
|
|
|
36 - LEVER
BSD-2610913177.A0
2610913177
|
-
|
|
|
|
37 - CLAMP
BSD-2610913649.A0
2610913649
|
£5.30
|
£6.36
|
|
|
38 - PIVOT PIN
BSD-2610907951.A4
2610907951
|
-
|
|
|
|
39 - COMPRESSION SPRING
BSD-2610909202.A5
2610909202
|
-
|
|
|
|
42 - SPRING WASHER
BSD-2610907954.A0
2610907954
|
-
|
|
|
|
43 - SLEEVE
BSD-2610968477.A3
2610968477
|
£3.72
|
£4.47
|
|
|
60 - SCREW
BSD-1619X00504.A126
1619X00504
|
£1.75
|
£2.10
|
|
|
61 - KNOB
BSD-2610914431.A0
2610914431
|
-
|
|
|
|
63 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A222
2916650006
|
£1.75
|
£2.10
|
|
|
650 - CHUCK WRENCH
BSD-2610914428.A0
2610914428
|
£4.48
|
£5.37
|
|
|
810 - CARBON-BRUSH SET
BSD-2610995905.A5
2610995905
|
-
|
|
|
|
840 - HANDLE
BSD-2610914429.A4
2610914429
|
-
|
|
|
