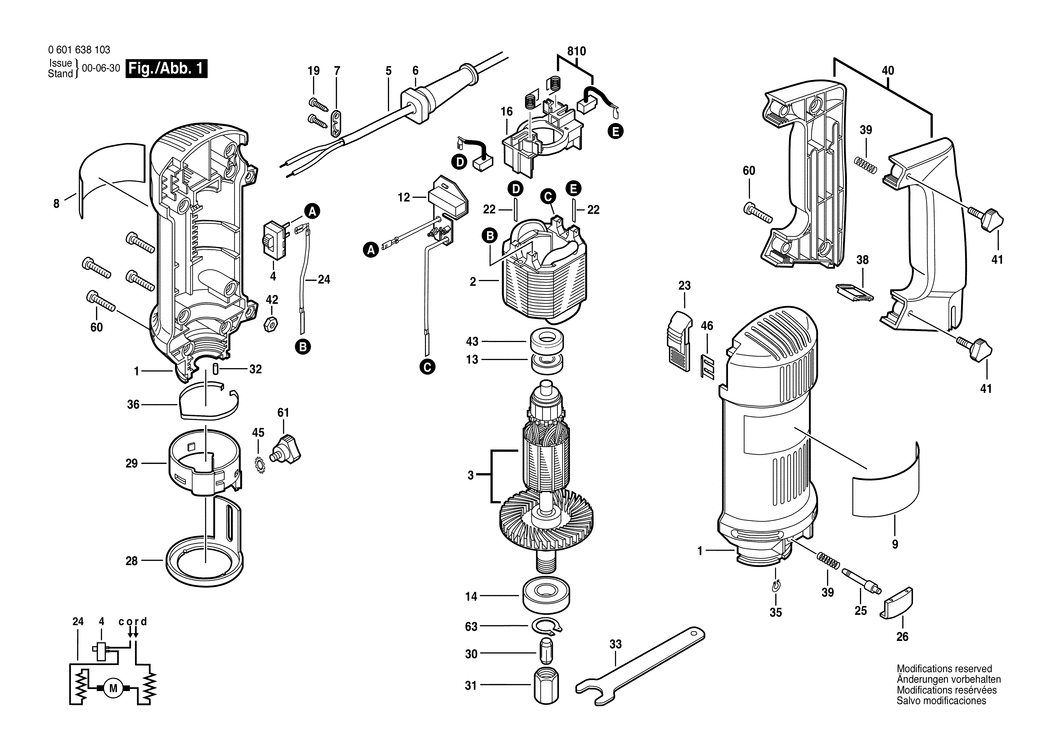

1 - HOUSING
BSD-2610907409.A0
2610907409
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2610907410.A2
2610907410
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2610907411.A0
2610907411
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2610996245.A1
2610996245
|
£21.52
|
£25.83
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460185.A10
1604460185
|
£21.52
|
£25.83
|
|
|
6 - GROMMET
BSD-2610313327.A14
2610313327
|
£2.52
|
£3.02
|
|
|
7 - CABLE GRIP
BSD-2610064973.A84
2610064973
|
£1.75
|
£2.10
|
|
|
8 - NAMEPLATE
BSD-2610907609.A0
2610907609
|
-
|
|
|
|
9 - REFERENCE PLATE
BSD-2610907414.A3
2610907414
|
-
|
|
|
|
12 - PRINTED CIRCUIT BOARD
BSD-2610907415.A0
2610907415
|
£16.74
|
£20.09
|
|
|
13 - BALL BEARING
BSD-2610351861.A36
2610351861
|
-
|
|
|
|
14 - BALL BEARING
BSD-2610968044.A11
2610968044
|
£11.30
|
£13.56
|
|
|
16 - BRUSH HOLDER
BSD-2610910144.A8
2610910144
|
£13.12
|
£15.75
|
|
|
19 - SCREW
BSD-2610323769.A7
2610323769
|
-
|
|
|
|
22 - CONNECTING TERMINAL
BSD-2610911982.A0
2610911982
|
£1.75
|
£2.10
|
|
|
23 - SWITCH BUTTON
BSD-2610909204.A3
2610909204
|
£4.26
|
£5.11
|
|
|
24 - LEAD WIRE
BSD-2610907753.A0
2610907753
|
£2.80
|
£3.36
|
|
|
25 - DETENT PIN
BSD-2610909200.A1
2610909200
|
£3.72
|
£4.47
|
|
|
26 - PUSH-BUTTON
BSD-2610909249.A0
2610909249
|
£2.80
|
£3.36
|
|
|
28 - PLATE
BSD-2610905506.A0
2610905506
|
-
|
|
|
|
29 - BRACKET HOLDER
BSD-2610905507.A3
2610905507
|
£6.52
|
£7.83
|
|
|
30 - COLLET 1/8
BSD-2615295093.A5
2615295093
|
£4.26
|
£5.11
|
|
|
31 - NUT
BSD-2610909214.A0
2610909214
|
-
|
|
|
|
32 - PIN
BSD-2610350103.A60
2610350103
|
£1.75
|
£2.10
|
|
|
33 - ADJUSTING WRENCH
BSD-2610909215.A3
2610909215
|
£3.80
|
£4.56
|
|
|
35 - LOCATING RING
BSD-2610909201.A7
2610909201
|
£1.75
|
£2.10
|
|
|
36 - SPRING
BSD-2610909219.A3
2610909219
|
£2.33
|
£2.80
|
|
|
38 - COVER
BSD-2610996695.A3
2610996695
|
£2.61
|
£3.13
|
|
|
39 - COMPRESSION SPRING
BSD-2610909202.A1
2610909202
|
-
|
|
|
|
40 - AUXILIARY HANDLE
BSD-2610907416.A3
2610907416
|
-
|
|
|
|
41 - KNOB
BSD-2610909237.A0
2610909237
|
£3.72
|
£4.47
|
|
|
42 - NUT
BSD-2610909248.A3
2610909248
|
-
|
|
|
|
43 - SLEEVE
BSD-2610968477.A7
2610968477
|
£3.72
|
£4.47
|
|
|
45 - LOCKING WASHER
BSD-2615308007.A3
2615308007
|
-
|
|
|
|
46 - SUPPORT
BSD-2610907758.A3
2610907758
|
-
|
|
|
|
60 - SCREW
BSD-1619X00504.A127
1619X00504
|
£1.75
|
£2.10
|
|
|
61 - KNOB
BSD-2610909218.A0
2610909218
|
£3.72
|
£4.47
|
|
|
63 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A224
2916650006
|
£1.75
|
£2.10
|
|
|
810 - CARBON-BRUSH SET
BSD-2610995905.A1
2610995905
|
-
|
|
|
