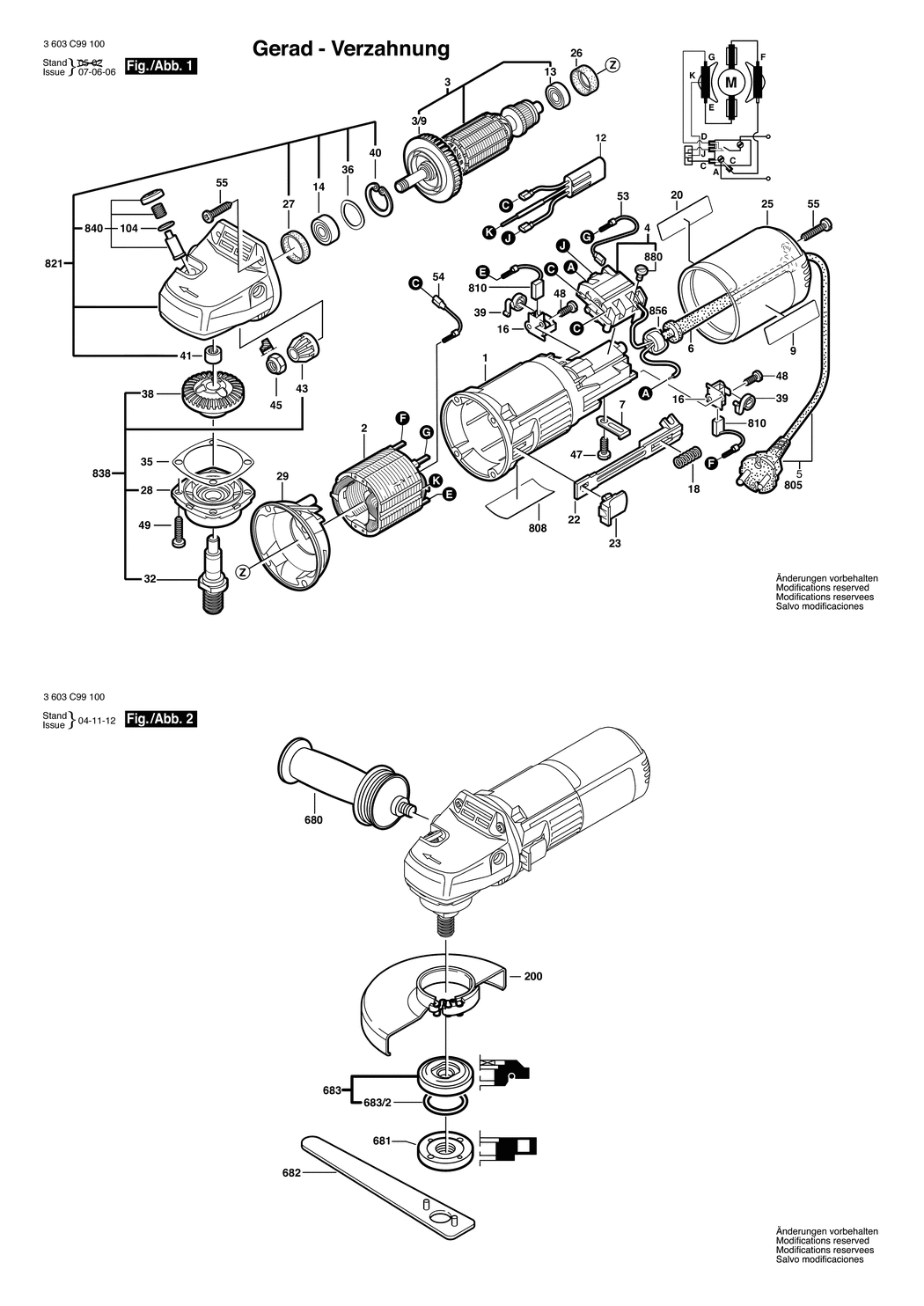

1 - MOTOR HOUSING
BSD-1605108189.A39
1605108189
|
£5.87
|
£7.04
|
|
|
2 - FIELD 230V
BSD-2609000762.A9
2609000762
|
£21.52
|
£25.83
|
|
|
3 - ARMATURE 230V
BSD-2609000761.A6
2609000761
|
£27.23
|
£32.68
|
|
|
3/9 - FAN
BSD-1606610121.A222
1606610121
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A411
1607200086
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A916
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A769
1601302017
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE PWS 6-115
BSD-2609000582.A2
2609000582
|
£3.34
|
£4.01
|
|
|
12 - SUPPRESSION FILTER
BSD-2609001564.A8
2609001564
|
£5.58
|
£6.70
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A671
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905080.A27
2600905080
|
£4.26
|
£5.11
|
|
|
16 - BRUSH HOLDER
BSD-1601323019.A7
1601323019
|
£1.75
|
£2.10
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A395
1604611026
|
£1.75
|
£2.10
|
|
|
20 - MANUFACTURER'S NAMEPLATE PWS 6-115
BSD-2609000569.A1
2609000569
|
£3.34
|
£4.01
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A182
1602319002
|
£2.61
|
£3.13
|
|
|
23 - SWITCH BUTTON
BSD-2609002368.A21
2609002368
|
£1.75
|
£2.10
|
|
|
25 - HOUSING COVER
BSD-2609000331.A7
2609000331
|
£3.34
|
£4.01
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A285
1600502020
|
£2.61
|
£3.13
|
|
|
27 - RUBBER RING
BSD-1600206025.A779
1600206025
|
£2.16
|
£2.59
|
|
|
28 - BEARING FLANGE
BSD-2609000320.A5
2609000320
|
-
|
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A261
1601328005
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A166
1607000D6A
|
£7.36
|
£8.83
|
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A256
1600136011
|
£2.16
|
£2.59
|
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A67
1600136012
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A67
1600136010
|
£2.61
|
£3.13
|
|
|
36 - SPRING WASHER
BSD-1600150011.A134
1600150011
|
£1.75
|
£2.10
|
|
|
38 - CROWN GEAR Z=36
BSD-1606333606.A47
1606333606
|
£11.30
|
£13.56
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A743
1604652013
|
£1.75
|
£2.10
|
|
|
40 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A175
2916660009
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A100
1600200029
|
£4.26
|
£5.11
|
|
|
43 - BEVEL GEAR Z=11
BSD-1606333605.A50
1606333605
|
£3.72
|
£4.47
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A272
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A342
2603490021
|
£1.75
|
£2.10
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A896
2603490017
|
£2.16
|
£2.59
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A255
2914491410
|
£1.84
|
£2.21
|
|
|
53 - CONNECTING CABLE
BSD-1604448015.A38
1604448015
|
£1.75
|
£2.10
|
|
|
54 - CONNECTING CABLE
BSD-1604448016.A111
1604448016
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A936
2603490023
|
£1.75
|
£2.10
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A15
1600210044
|
£1.84
|
£2.21
|
|
|
200 - PROTECTIVE GUARD
BSD-2609000390.A5
2609000390
|
£13.12
|
£15.75
|
|
|
680 - HANDLE
BSD-2609002198.A33
2609002198
|
£10.61
|
£12.73
|
|
|
681 - ROUND NUT M14
BSD-1603345043.A1081
1603345043
|
£9.11
|
£10.93
|
|
|
682 - PIN-TYPE FACE-WRENCH
BSD-1619P08927.A93
1619P08927
|
£4.26
|
£5.11
|
|
|
683 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1252
2605703014
|
£7.72
|
£9.27
|
|
|
683/2 - O-RING 20.35x1.78 MM
BSD-1600210039.A454
1600210039
|
£2.16
|
£2.59
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A327
1607000386
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-2609000500.A0
2609000500
|
£3.34
|
£4.01
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014162.A9
1607014162
|
£10.82
|
£12.99
|
|
|
821 - GEAR HOUSING
BSD-2609000768.A13
2609000768
|
£21.68
|
£26.01
|
|
|
838 - CROWN GEAR
BSD-2609000769.A7
2609000769
|
-
|
|
|
|
840 - PUSH-BUTTON
BSD-1607000253.A104
1607000253
|
£2.49
|
£2.99
|
|
|
856 - RUBBER BUSHING
BSD-2609000912.A3
2609000912
|
-
|
|
|
|
880 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A444
2910110048
|
£1.75
|
£2.10
|
|
