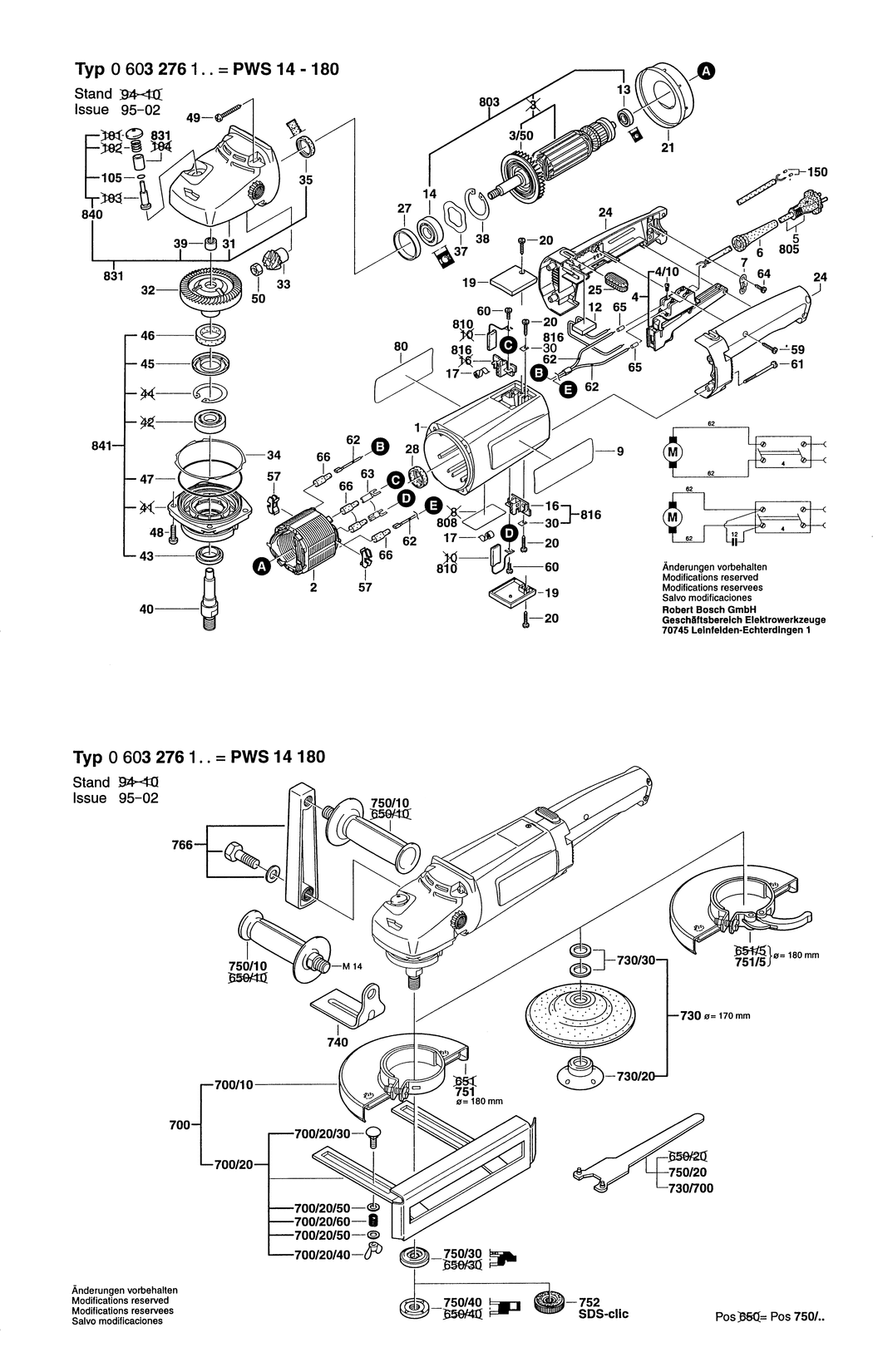

1 - MOTOR HOUSING
BSD-3605108138.A2
3605108138
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-3604220092.A0
3604220092
|
£35.42
|
£42.51
|
|
|
3/50 - FAN
BSD-1606610126.A15
1606610126
|
£7.72
|
£9.27
|
|
|
4 - SWITCH
BSD-1607200080.A1
1607200080
|
£37.27
|
£44.72
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1288
3600703011
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A656
1601302014
|
£2.74
|
£3.29
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-3601110230.A2
3601110230
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328034.A363
1607328034
|
£4.48
|
£5.37
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1200
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 9x26x8
BSD-3600905131.A86
3600905131
|
£11.87
|
£14.24
|
|
|
17 - SPIRAL SPRING
BSD-1604652006.A5
1604652006
|
£1.84
|
£2.21
|
|
|
19 - SEALING CAP
BSD-1605500109.A19
1605500109
|
-
|
|
|
|
20 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2181
2910211019
|
£1.84
|
£2.21
|
|
|
21 - AIR-DEFLECTOR RING
BSD-3600421002.A2
3600421002
|
£2.64
|
£3.17
|
|
|
24 - HANDLE
BSD-1605132126.A2
1605132126
|
-
|
|
|
|
25 - STORAGE LEDGE
BSD-1602388028.A14
1602388028
|
-
|
|
|
|
27 - INTERMEDIATE RING
BSD-1600206026.A22
1600206026
|
£1.84
|
£2.21
|
|
|
28 - INTERMEDIATE RING
BSD-1600502011.A138
1600502011
|
£2.74
|
£3.29
|
|
|
30 - TAB WASHER
BSD-1601030022.A124
1601030022
|
£1.84
|
£2.21
|
|
|
32 - CROWN GEAR Z=53
BSD-3606333054.A2
3606333054
|
-
|
|
|
|
33 - BEVEL GEAR Z=12
BSD-3606333055.A2
3606333055
|
-
|
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A690
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A137
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A690
1600190022
|
£1.84
|
£2.21
|
|
|
35 - ROTARY SHAFT LIP SEAL
BSD-1600290018.A3
1600290018
|
£4.48
|
£5.37
|
|
|
37 - SPRING WASHER
BSD-1600150026.A15
1600150026
|
£2.80
|
£3.36
|
|
|
38 - SPRING RETAINING RING
BSD-1600119009.A20
1600119009
|
£1.75
|
£2.10
|
|
|
39 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A688
2600910001
|
£4.48
|
£5.37
|
|
|
40 - GRINDING SPINDLE M14. SW17
BSD-1603523100.A89
1603523100
|
£15.65
|
£18.78
|
|
|
43 - SEAL RING
BSD-1600290036.A47
1600290036
|
£2.27
|
£2.72
|
|
|
45 - RETAINING SNAP RING
BSD-1600290019.A2
1600290019
|
£1.84
|
£2.21
|
|
|
46 - FELT WASHER
BSD-1600205034.A626
1600205034
|
£1.75
|
£2.10
|
|
|
47 - O-RING 79.0x1.78 MM
BSD-1600210033.A169
1600210033
|
£1.84
|
£2.21
|
|
|
48 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A214
1603435023
|
£2.16
|
£2.59
|
|
|
49 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A578
2912401038
|
£1.84
|
£2.21
|
|
|
50 - HEX NUT
BSD-1603300017.A23
1603300017
|
-
|
|
|
|
57 - WIRE GUIDE
BSD-1601025001.A53
1601025001
|
£1.75
|
£2.10
|
|
|
59 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A957
2910211021
|
£1.75
|
£2.10
|
|
|
60 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1682
2910021118
|
£1.84
|
£2.21
|
|
|
61 - TAPPING SCREW DIN 7971-ST4.8x38-F
BSD-2910211038.A113
2910211038
|
£1.84
|
£2.21
|
|
|
62 - CONNECTING CABLE L=235 MM
BSD-3604438000.A9
3604438000
|
-
|
|
|
|
63 - BLADE TERMINAL
BSD-1604477001.A119
1604477001
|
£1.75
|
£2.10
|
|
|
64 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A144
2910211018
|
£1.75
|
£2.10
|
|
|
65 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A153
1900452003
|
£2.61
|
£3.13
|
|
|
66 - SHRINKABLE TUBE
BSD-3600707005.A12
3600707005
|
£3.91
|
£4.69
|
|
|
80 - REFERENCE PLATE
BSD-3601110232.A2
3601110232
|
-
|
|
|
|
105 - O-RING 4.0x1.0 MM
BSD-1600210034.A145
1600210034
|
£1.84
|
£2.21
|
|
|
650/30/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A975
1600210039
|
£2.27
|
£2.72
|
|
|
700 - PARTS SET dia180 MM
BSD-1607000250.A35
1607000250
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia180 MM
BSD-1605510222.A91
1605510222
|
-
|
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135003.A195
1608135003
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25
BSD-2910281244.A231
2910281244
|
-
|
|
|
|
700/20/40 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A137
2915191007
|
£3.72
|
£4.47
|
|
|
700/20/50 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A32
2600100041
|
£1.84
|
£2.21
|
|
|
700/20/60 - COMPRESSION SPRING
BSD-1604643003.A121
1604643003
|
£6.52
|
£7.83
|
|
|
730 - BACKING PAD dia180 MM
BSD-1608601006.A85
1608601006
|
-
|
|
|
|
730/20 - ROUND NUT M14
BSD-1603345004.A144
1603345004
|
£8.26
|
£9.91
|
|
|
730/30 - PLAIN WASHER DIN 125-A15-ST
BSD-2916011022.A132
2916011022
|
£1.84
|
£2.21
|
|
|
730/700 - PIN-TYPE FACE-WRENCH
BSD-1607950048.A123
1607950048
|
£5.12
|
£6.15
|
|
|
740 - PROTECTING COVER
BSD-1601329013.A208
1601329013
|
£11.37
|
£13.64
|
|
|
750/10 - AUXILIARY HANDLE M14x1.5 MM
BSD-2602025075.A22
2602025075
|
£10.82
|
£12.98
|
|
|
750/20 - PIN-TYPE FACE-WRENCH
BSD-1607950048.A122
1607950048
|
£5.12
|
£6.15
|
|
|
750/30 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A300
1605703099
|
£7.82
|
£9.39
|
|
|
750/40 - CLAMPING NUT M14
BSD-1603340040.A9
1603340040
|
£6.51
|
£7.81
|
|
|
751 - PROTECTIVE COVER dia180 MM
BSD-1605510176.A28
1605510176
|
-
|
|
|
|
751 - PROTECTIVE COVER dia180 MM
BSD-1605510222.A90
1605510222
|
-
|
|
|
|
752 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A869
1603340027
|
£49.16
|
£58.99
|
|
|
766 - PARTS SET
BSD-2607001190.A9
2607001190
|
-
|
|
|
|
803 - ASSEMBLY OF SERVICE PARTS 230V
BSD-3607031326.A1
3607031326
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A315
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2550
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014106.A2
1607014106
|
£19.91
|
£23.89
|
|
|
816 - BRUSH HOLDER
BSD-3604336012.A16
3604336012
|
£5.58
|
£6.70
|
|
|
831 - PARTS SET
BSD-3607000077.A2
3607000077
|
-
|
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A119
1607000206
|
£11.30
|
£13.56
|
|
|
841 - BEARING FLANGE dia180 MM
BSD-1607000986.A54
1607000986
|
-
|
|
|
|
842 - GROOVE BALL BEARING
BSD-3600905134.A83
3600905134
|
£11.87
|
£14.24
|
|
|
844 - RETAINING CLIP
BSD-1600119010.A4
1600119010
|
£1.84
|
£2.21
|
|
