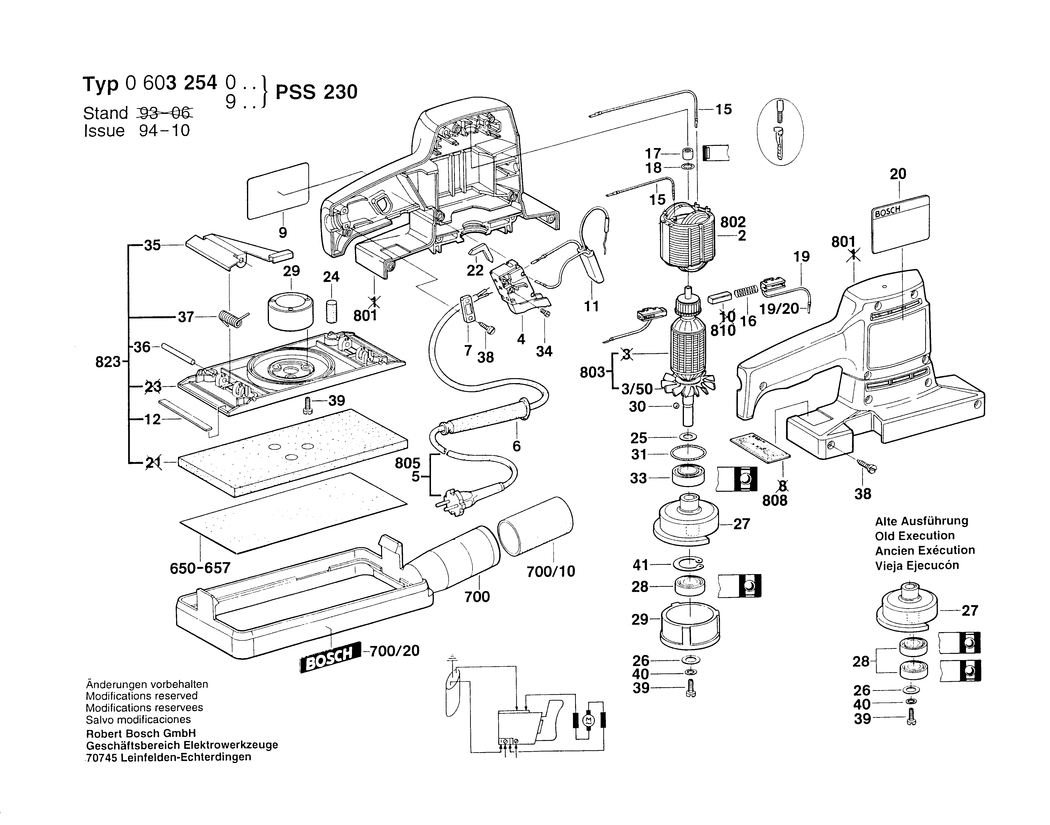

1 - MOTOR HOUSING
BSD-1605104067.A1
1605104067
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A222
2604220423
|
£25.68
|
£30.81
|
|
|
3/50 - FAN
BSD-2606610027.A115
2606610027
|
£2.80
|
£3.36
|
|
|
4 - ON-OFF SWITCH
BSD-2607200131.A1
2607200131
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A121
1607000388
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A46
2600703006
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2130
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601110602.A2
2601110602
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328028.A282
1607328028
|
£5.57
|
£6.68
|
|
|
12 - PRESSURE BAR
BSD-2605510008.A28
2605510008
|
-
|
|
|
|
15 - CONNECTING CABLE L=184 MM
BSD-2604448001.A2
2604448001
|
£2.05
|
£2.46
|
|
|
16 - COMPRESSION SPRING
BSD-2604610009.A24
2604610009
|
-
|
|
|
|
17 - NEEDLE BEARING
BSD-2600910005.A34
2600910005
|
-
|
|
|
|
18 - O-RING 8.0x2.5 MM
BSD-1610210014.A200
1610210014
|
-
|
|
|
|
19 - BRUSH HOLDER
BSD-1604449002.A26
1604449002
|
£1.84
|
£2.21
|
|
|
19 - CARB BRUSH HOLD W-SUPR
BSD-2604465081.A32
2604465081
|
-
|
|
|
|
20 - STICKER
BSD-2601110981.A14
2601110981
|
-
|
|
|
|
22 - DAMPING PLATE
BSD-2601022000.A306
2601022000
|
£1.75
|
£2.10
|
|
|
24 - ROUND RUBBER dia 11.3x23.5 MM
BSD-1603101018.A39
1603101018
|
-
|
|
|
|
25 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A158
2600100041
|
£1.84
|
£2.21
|
|
|
26 - PLAIN WASHER
BSD-1600100020.A3
1600100020
|
-
|
|
|
|
27 - ECCENTRIC DISC
BSD-2602210009.A3
2602210009
|
-
|
|
|
|
28 - GROOVE BALL BEARING 12x28x8
BSD-2600905013.A63
2600905013
|
-
|
|
|
|
29 - BEARING FLANGE
BSD-2600501004.A20
2600501004
|
-
|
|
|
|
30 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A381
1903230004
|
£2.27
|
£2.72
|
|
|
31 - O-RING 28x2.5 MM
BSD-1900210128.A31
1900210128
|
£2.61
|
£3.13
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A100
1900905122
|
£10.61
|
£12.73
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905162.A80
1900905162
|
£18.96
|
£22.75
|
|
|
34 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1641
2603410001
|
£1.84
|
£2.21
|
|
|
35 - CLAMPING SADDLE
BSD-1601329009.A5
1601329009
|
-
|
|
|
|
36 - STRAIGHT PIN
BSD-1603201023.A4
1603201023
|
-
|
|
|
|
37 - COMPRESSION SPRING
BSD-1604651004.A12
1604651004
|
-
|
|
|
|
38 - SCREW 4x16
BSD-2603490022.A1776
2603490022
|
£1.84
|
£2.21
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A295
2910021154
|
£1.75
|
£2.10
|
|
|
40 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A319
2916060006
|
£1.38
|
£1.66
|
|
|
41 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A131
2916660011
|
£1.75
|
£2.10
|
|
|
653 - SET OF SANDING PAPERS KORN 80
BSD-1608604139.A2
1608604139
|
-
|
|
|
|
654 - SANDING SHEET KORN 120
BSD-1608604140.A15
1608604140
|
-
|
|
|
|
655 - SET OF SANDING PAPERS KORN 180
BSD-1608604141.A2
1608604141
|
-
|
|
|
|
656 - SET OF SANDING PAPERS KORN 240
BSD-1608604142.A11
1608604142
|
-
|
|
|
|
657 - SET OF SANDING PAPERS KORN 320
BSD-1608604143.A2
1608604143
|
-
|
|
|
|
700 - SUCTION FRAME
BSD-1605190018.A2
1605190018
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104997.A4
2605104997
|
-
|
|
|
|
803 - ARMATURE 100-110V
BSD-1604010229.A0
1604010229
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4522
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A200
2604321904
|
£10.61
|
£12.73
|
|
|
823 - PARTS SET
BSD-1607000902.A2
1607000902
|
-
|
|
|
