Bosch PSS 180 A / 0603367086 / I 230 Volt Spare Parts

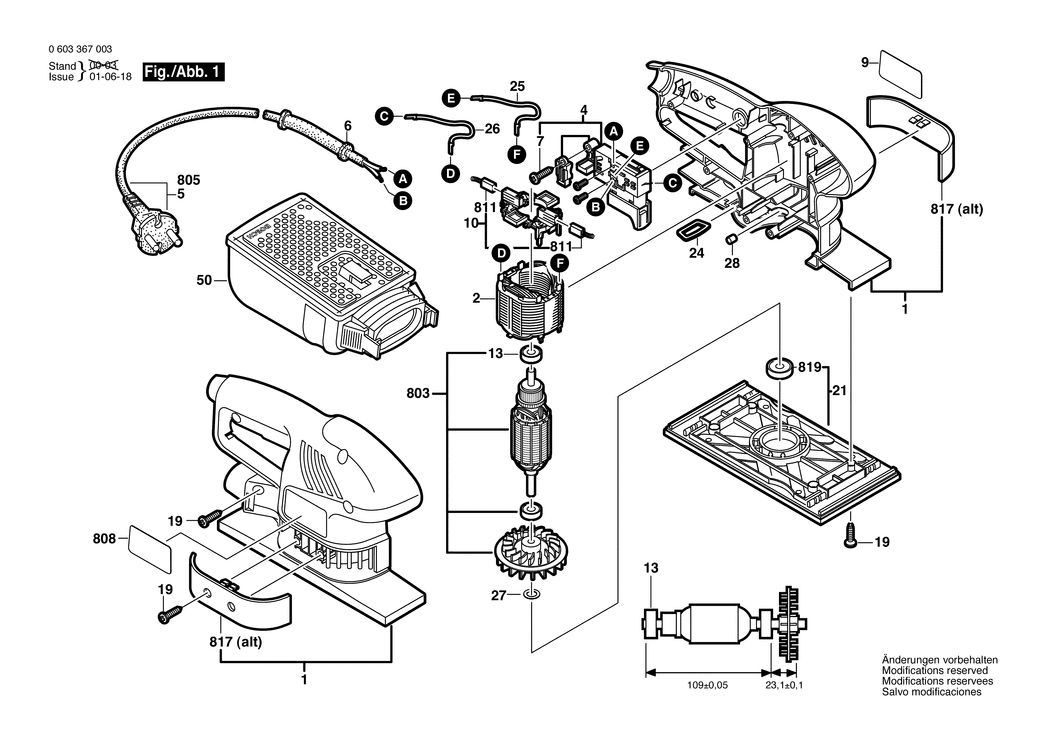

An exploded drawing and listing for the Bosch PSS 180 A / 0603367086 / I 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104643.A4 2605104643	-
2 - FIELD 230-240V BSD-2604220673.A12 2604220673	£14.75	£17.70
4 - SWITCH BSD-2607200526.A25 2607200526	-
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F BSD-2604460283.A36 2604460283	£12.04	£14.45
6 - GROMMET BSD-2609002019.A41 2609002019	£2.61	£3.13
7 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A178 2603490017	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-2601117037.A1 2601117037	-
10 - BRUSH PLATE BSD-2604337088.A13 2604337088	£11.30	£13.56
13 - GROOVE BALL BEARING BSD-2600905078.A56 2600905078	£6.52	£7.83
19 - SCREW 4x16 BSD-2603490022.A2511 2603490022	£1.75	£2.10
21 - SANDER PLATE BSD-2608000240.A3 2608000240	-
24 - SEAL RING BSD-2600290039.A11 2600290039	£1.75	£2.10
25 - CONNECTING CABLE L=160 MM BSD-2604448247.A23 2604448247	-
26 - CONNECTING CABLE L=63 MM BSD-3604440527.A37 3604440527	£1.75	£2.10
27 - SHIM BSD-2600105001.A19 2600105001	£1.95	£2.34
28 - RUBBER BUFFER BSD-2609000549.A29 2609000549	£1.75	£2.10
50 - DUST CONTAINER BSD-2605411121.A28 2605411121	-
803 - ARMATURE 230-240V BSD-2604010980.A10 2604010980	-
808 - NAMEPLATE BSD-2601116606.A0 2601116606	-
811 - CARBON-BRUSH SET BSD-2604321925.A84 2604321925	£8.67	£10.41
817 - COVER PANEL BSD-2605500910.A16 2605500910	£5.01	£6.01
819 - GROOVE BALL BEARING 12x28x8 BSD-2600905045.A19 2600905045	£16.41	£19.69

Attribute Name	Value
Brand	Bosch
