Bosch PSS 180 A / 0603367080 / EU 230 Volt Spare Parts

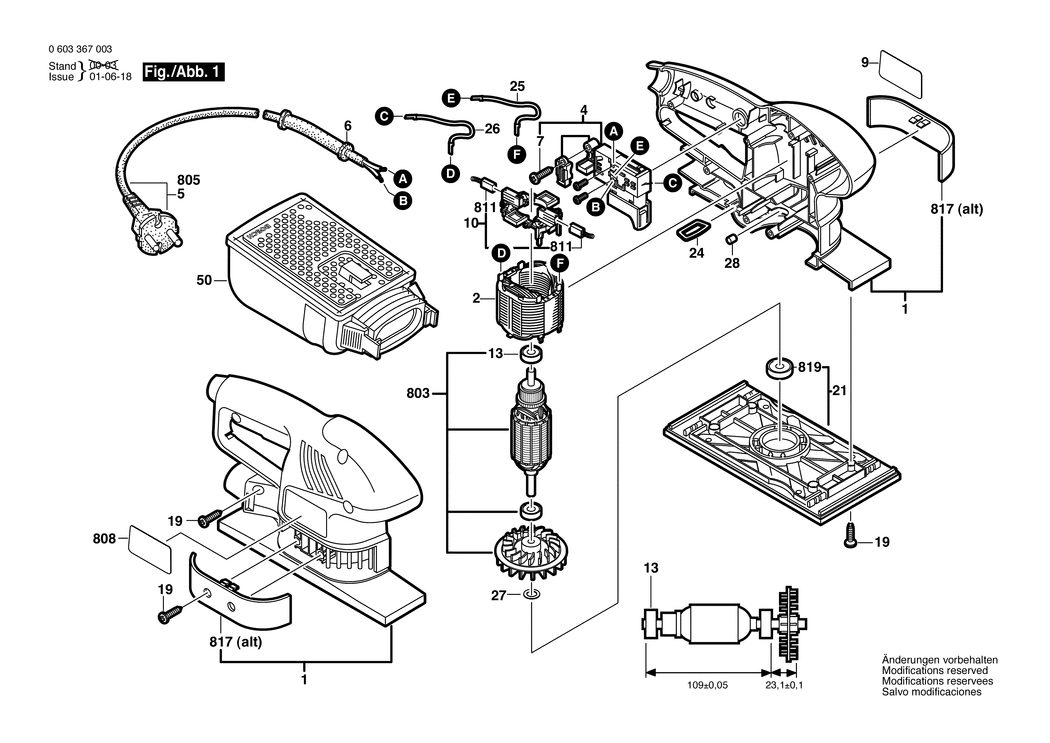

An exploded drawing and listing for the Bosch PSS 180 A / 0603367080 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104643.A6 2605104643	-
2 - FIELD 230-240V BSD-2604220673.A14 2604220673	£14.75	£17.70
4 - SWITCH BSD-2607200526.A23 2607200526	-
6 - GROMMET BSD-2609002019.A43 2609002019	£2.61	£3.13
7 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A177 2603490017	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-2601117037.A2 2601117037	-
10 - BRUSH PLATE BSD-2604337088.A14 2604337088	£11.30	£13.56
13 - GROOVE BALL BEARING BSD-2600905078.A55 2600905078	£6.52	£7.83
19 - SCREW 4x16 BSD-2603490022.A2513 2603490022	£1.75	£2.10
21 - SANDER PLATE BSD-2608000240.A6 2608000240	-
24 - SEAL RING BSD-2600290039.A14 2600290039	£1.75	£2.10
25 - CONNECTING CABLE L=160 MM BSD-2604448247.A22 2604448247	-
26 - CONNECTING CABLE L=63 MM BSD-3604440527.A35 3604440527	£1.75	£2.10
27 - SHIM BSD-2600105001.A16 2600105001	£1.95	£2.34
28 - RUBBER BUFFER BSD-2609000549.A27 2609000549	£1.75	£2.10
50 - DUST CONTAINER BSD-2605411121.A32 2605411121	-
803 - ARMATURE 230-240V BSD-2604010980.A5 2604010980	-
805 - POWER SUPPLY CORD CN 2.65m 2 x 0.75mm H05 W-F BSD-1607000387.A3 1607000387	£11.30	£13.56
808 - NAMEPLATE BSD-2601116605.A0 2601116605	-
811 - CARBON-BRUSH SET BSD-2604321925.A79 2604321925	£8.67	£10.41
817 - COVER PANEL BSD-2605500910.A12 2605500910	£5.01	£6.01
819 - GROOVE BALL BEARING 12x28x8 BSD-2600905045.A22 2600905045	£16.41	£19.69
