Bosch PSR 9.6 VE / 0603937603 / EU 9.6 Volt Spare Parts

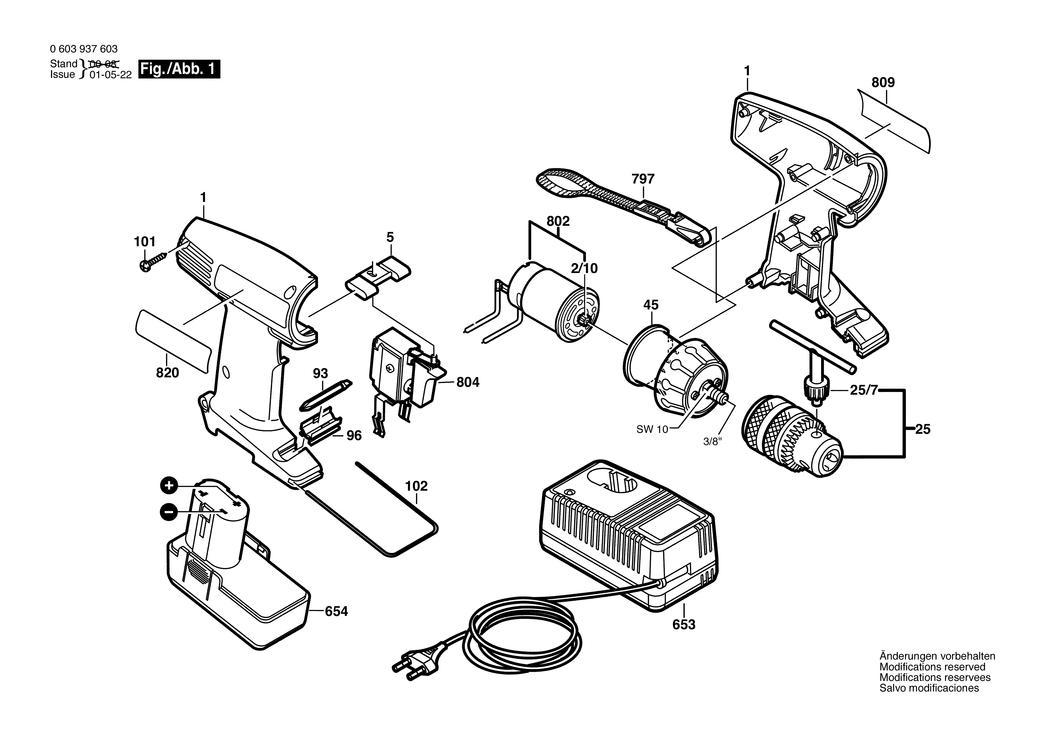

An exploded drawing and listing for the Bosch PSR 9.6 VE / 0603937603 / EU 9.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104565.A3 2605104565	-
2/10 - PINION Z=9 BSD-2606316164.A24 2606316164	£4.48	£5.37
5 - ADJUSTING SLIDE BSD-2601099055.A80 2601099055	-
25 - KEY CHUCK dia 1-10 MM. 3/8 BSD-1608571047.A14 1608571047	-
25/7 - CHUCK WRENCH SG1. 80 MM BSD-1607950055.A25 1607950055	-
45 - PLANETARY GEAR TRAIN BSD-2606200054.A18 2606200054	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A334 1609200147	£3.72	£4.47
96 - SUPPORT BSD-2608040079.A33 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A710 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A129 2601329041	£2.33	£2.80
653 - FAST CHARGER EU 230/14.4V. 3-5h BSD-2607225011.A18 2607225011	-
654 - SLIDE-IN ACCU PACKAGE 9.6V. 1.5 Ah. NiCd BSD-2607336143.A41 2607336143	-
797 - CARRYING LOOP BSD-2601398009.A144 2601398009	-
802 - DC MOTOR 9.6V BSD-2607022949.A5 2607022949	-
804 - ON-OFF SWITCH BSD-2607200351.A35 2607200351	-
809 - MANUFACTURER'S NAMEPLATE BSD-2601119106.A1 2601119106	-
820 - REFERENCE PLATE BSD-2601119107.A2 2601119107	-
899 - CORDLESS SCREW DRIVER BSD-0603937627.A0 0603937627	-
