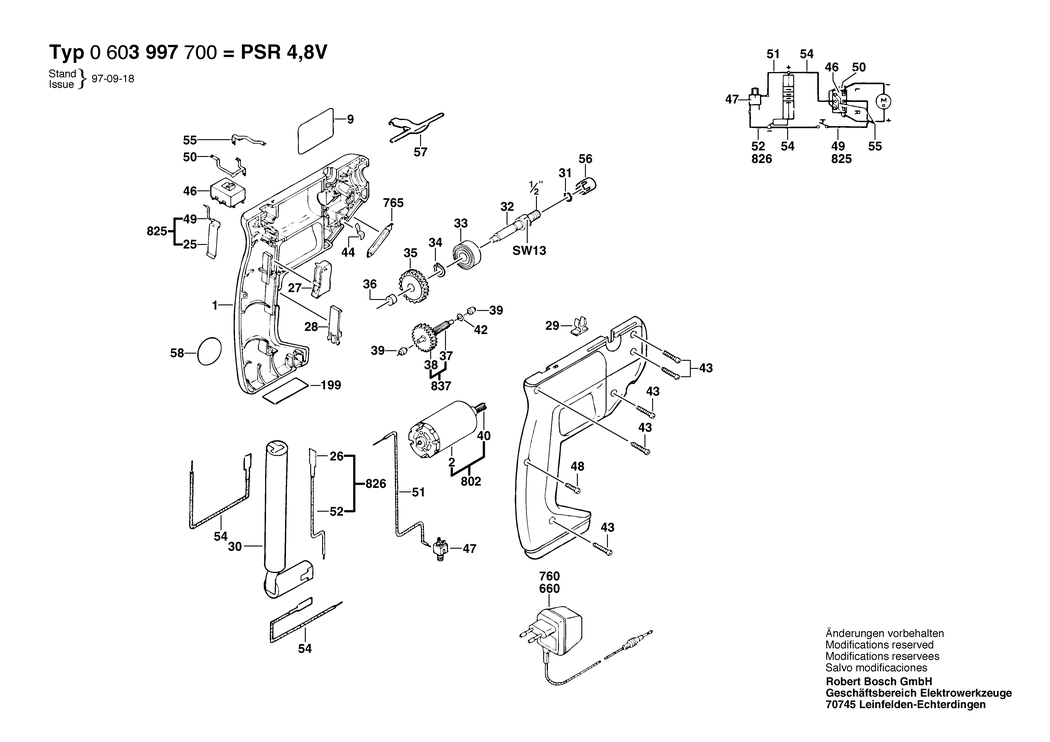

1 - HOUSING SECTION
BSD-2605104253.A11
2605104253
|
-
|
|
|
|
9 - NAMEPLATE
BSD-2601110992.A1
2601110992
|
-
|
|
|
|
27 - CONTROL LEVER
BSD-2603231012.A1
2603231012
|
-
|
|
|
|
28 - REJECTION SLIDE
BSD-2601099010.A1
2601099010
|
-
|
|
|
|
29 - KEY HOLDER
BSD-2608040029.A1
2608040029
|
-
|
|
|
|
30 - ACCUMULATOR BATTERY 4.8V. 1.2Ah. NiCd
BSD-2607335006.A8
2607335006
|
-
|
|
|
|
31 - RETAINING RING
BSD-2604601004.A84
2604601004
|
£1.75
|
£2.10
|
|
|
32 - DRILLING SPINDLE 1/2.SW13.1/4
BSD-2606135023.A4
2606135023
|
-
|
|
|
|
33 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A372
1900905120
|
-
|
|
|
|
34 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A163
2916650001
|
£2.74
|
£3.29
|
|
|
35 - CYLINDRICAL GEAR Z=64
BSD-2606316114.A0
2606316114
|
-
|
|
|
|
36 - SINTERED-METAL BUSHING
BSD-2600301011.A215
2600301011
|
£1.84
|
£2.21
|
|
|
39 - SINTERED-METAL BUSHING
BSD-2600302002.A2
2600302002
|
£1.75
|
£2.10
|
|
|
40 - PINION Z=11
BSD-2606316112.A198
2606316112
|
£4.48
|
£5.37
|
|
|
42 - SHIM 0.3 MM
BSD-2600100636.A43
2600100636
|
-
|
|
|
|
43 - CROSS RECESSED-HEAD SCREW 3x17 MM
BSD-2603435023.A1
2603435023
|
-
|
|
|
|
44 - HOLDING SPRING
BSD-2601250002.A52
2601250002
|
£1.32
|
£1.58
|
|
|
46 - CHANGE-OVER SWITCH
BSD-2607200214.A12
2607200214
|
-
|
|
|
|
47 - SOCKET
BSD-2604483001.A11
2604483001
|
-
|
|
|
|
48 - TAPPING SCREW DIN7981-ST2.9x13-C-Z
BSD-2912401006.A0
2912401006
|
£1.84
|
£2.21
|
|
|
50 - BUS BAR
BSD-2601390000.A1
2601390000
|
-
|
|
|
|
51 - CABLE L=173 MM
BSD-2604413014.A30
2604413014
|
-
|
|
|
|
54 - CONNECTING CABLE L = 85 MM
BSD-2604448179.A0
2604448179
|
-
|
|
|
|
55 - BUS BAR
BSD-2601390001.A11
2601390001
|
-
|
|
|
|
56 - PROTECTION SLEEVE
BSD-2600499016.A4
2600499016
|
-
|
|
|
|
57 - FILLER PIECE
BSD-2605510043.A0
2605510043
|
-
|
|
|
|
58 - STICKER
BSD-2601110999.A23
2601110999
|
£1.84
|
£2.21
|
|
|
199 - STICKER
BSD-1601110265.A378
1601110265
|
-
|
|
|
|
760 - CHARGER EU 230/4.8V. 3h
BSD-2607224316.A3
2607224316
|
-
|
|
|
|
765 - SCREWDRIVER BLADE 6 MM
BSD-1609200147.A271
1609200147
|
£3.72
|
£4.47
|
|
|
802 - DC MOTOR 3.6-4.8V
BSD-2607022906.A4
2607022906
|
-
|
|
|
|
825 - CONNECTING CABLE
BSD-2604449037.A25
2604449037
|
-
|
|
|
|
826 - CONNECTING CABLE
BSD-2604449049.A0
2604449049
|
-
|
|
|
|
837 - TOOTHED SHAFT Z=58/11
BSD-2606100913.A12
2606100913
|
-
|
|
|
