Bosch PSR 14.4 VES-2 / 0603936403 / EU 14.4 Volt Spare Parts

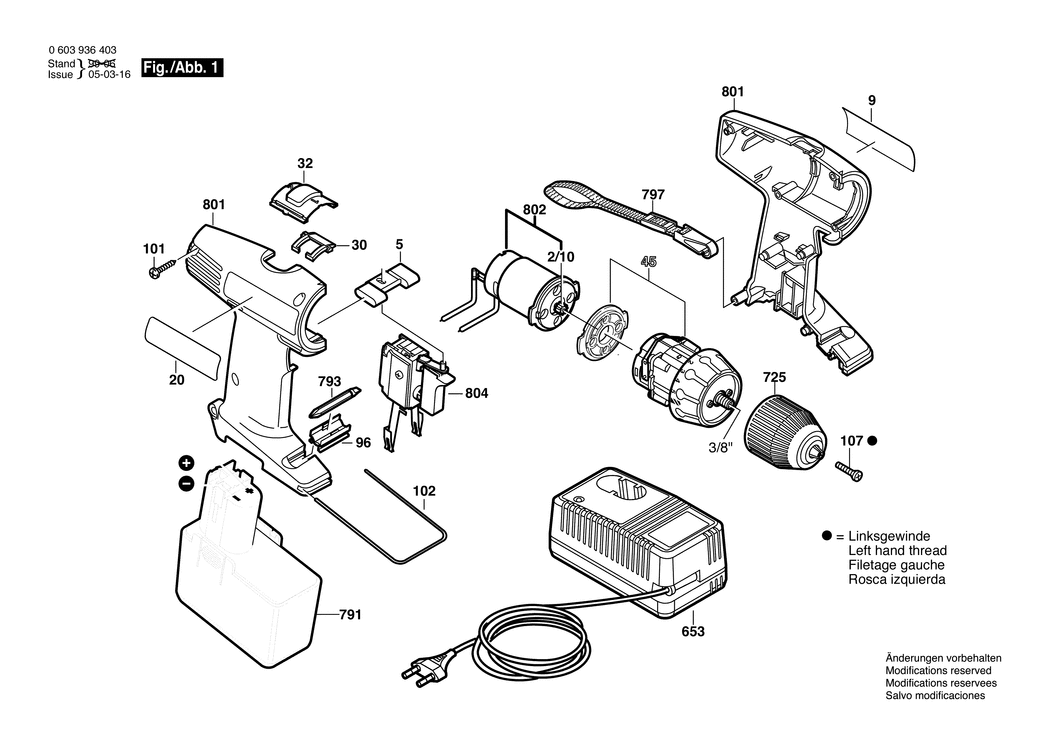

An exploded drawing and listing for the Bosch PSR 14.4 VES-2 / 0603936403 / EU 14.4 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2606316161.A4 2606316161	-
5 - ADJUSTING SLIDE BSD-2601099055.A97 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601119156.A1 2601119156	-
20 - REFERENCE PLATE BSD-2601119157.A3 2601119157	-
30 - CONTROL LEVER BSD-2602033008.A20 2602033008	-
32 - ADJUSTING SLIDE BSD-2601099060.A3 2601099060	£1.84	£2.21
45 - PLANETARY GEAR TRAIN BSD-2606200047.A7 2606200047	-
96 - SUPPORT BSD-2608040079.A17 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A645 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A85 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A41 2609110721	£2.16	£2.59
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A35 2607224425	£88.07	£105.68
653 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A169 2607224701	£92.47	£110.96
725 - KEYLESS CHUCK BSD-2608572214.A2 2608572214	£45.67	£54.80
791 - SLIDE-IN ACCU PACKAGE 14.4V.1.4Ah.NiCd BSD-2607335160.A2 2607335160	-
793 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A311 1609200147	£3.72	£4.47
797 - CARRYING LOOP BSD-2601398009.A190 2601398009	-
801 - HOUSING SECTION BSD-2605104577.A2 2605104577	-
802 - DC MOTOR 14.4V BSD-2607022953.A3 2607022953	-
804 - ON-OFF SWITCH BSD-2607200353.A5 2607200353	-
899 - CORDLESS SCREW DRIVER BSD-0603936420.A0 0603936420	-
