Bosch PSR 12 VE-2 / 0603940520 / EU 12 Volt Spare Parts

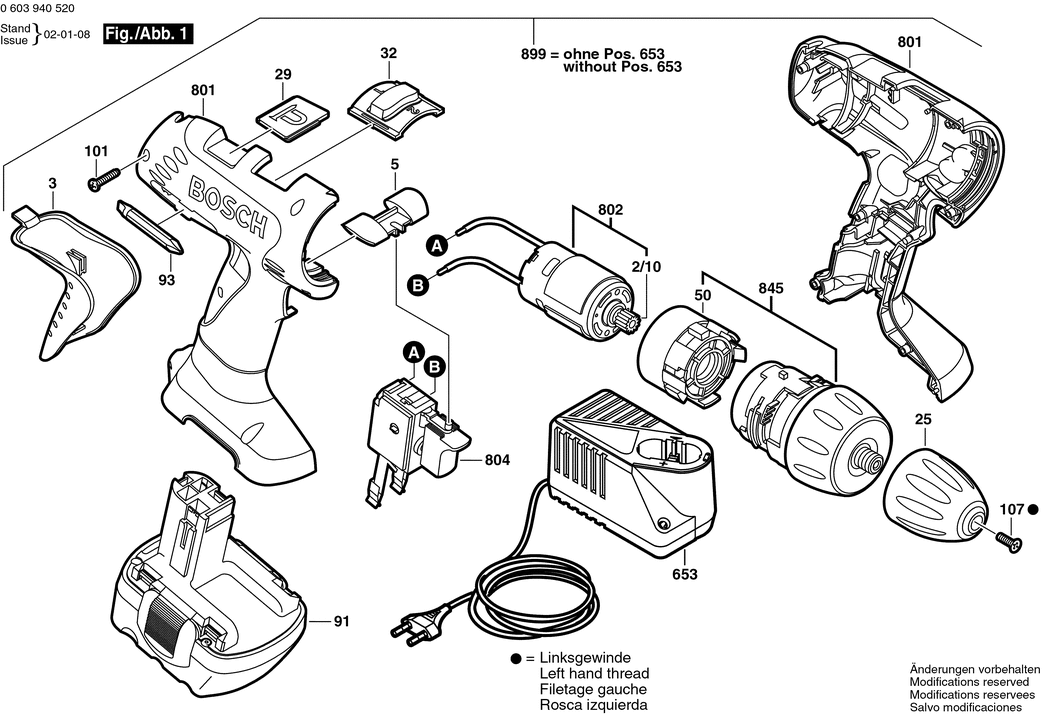

An exploded drawing and listing for the Bosch PSR 12 VE-2 / 0603940520 / EU 12 Volt

	Ex VAT	Inc VAT
2/10 - PINION BSD-2606316190.A0 2606316190	£2.33	£2.80
3 - HANDLE COVER BSD-2608040154.A8 2608040154	£3.34	£4.01
5 - ADJUSTING SLIDE BSD-2601099096.A15 2601099096	£2.16	£2.59
25 - KEYLESS CHUCK BSD-2608572225.A1 2608572225	£37.72	£45.27
29 - MAGNET DISK BSD-2600290043.A12 2600290043	-
32 - ADJUSTING SLIDE BSD-2601099098.A9 2601099098	£1.75	£2.10
50 - INTERMEDIATE FLANGE BSD-2605719031.A0 2605719031	-
91 - SLIDE-IN ACCU PACKAGE 12V. 1.2Ah. NiCd BSD-2607335273.A7 2607335273	£46.82	£56.18
91 - SLIDE-IN ACCU PACKAGE 12V.2.0Ah.NiMh BSD-2607335697.A16 2607335697	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A358 1609200147	£3.72	£4.47
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A672 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A308 2603421229	£1.75	£2.10
653 - FAST CHARGER GB 230/7.2-14.4V. 1h BSD-2607224393.A3 2607224393	-
653 - FAST CHARGER AUS 240/7.2-14.4V. 1h BSD-2607224395.A11 2607224395	£70.24	£84.29
653 - FAST CHARGER USA 120/7.2-14.4V. 1h BSD-2607224397.A1 2607224397	£61.98	£74.38
653 - FAST CHARGER ROK 220/7.2-14.4V. 1h BSD-2607224401.A2 2607224401	£58.76	£70.51
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A14 2607224425	£88.07	£105.68
653 - FAST CHARGER J 100/7.2-24V. 1h BSD-2607224435.A126 2607224435	£120.11	£144.13
653 - FAST CHARGER AR 230/7.2-14.4V. 1h BSD-2607224687.A1 2607224687	-
801 - HOUSING SECTION BSD-2605104815.A0 2605104815	-
802 - DC MOTOR 12V BSD-2607022986.A0 2607022986	-
804 - ON-OFF SWITCH BSD-2607200353.A20 2607200353	-
845 - PLANETARY GEAR TRAIN BSD-2606200919.A0 2606200919	-
899 - CORDLESS SCREW DRIVER 12V BSD-2607020350.A0 2607020350	-

Attribute Name	Value
Brand	Bosch
