Bosch PSP 250 / 0603260042 / GB 240 Volt Spare Parts

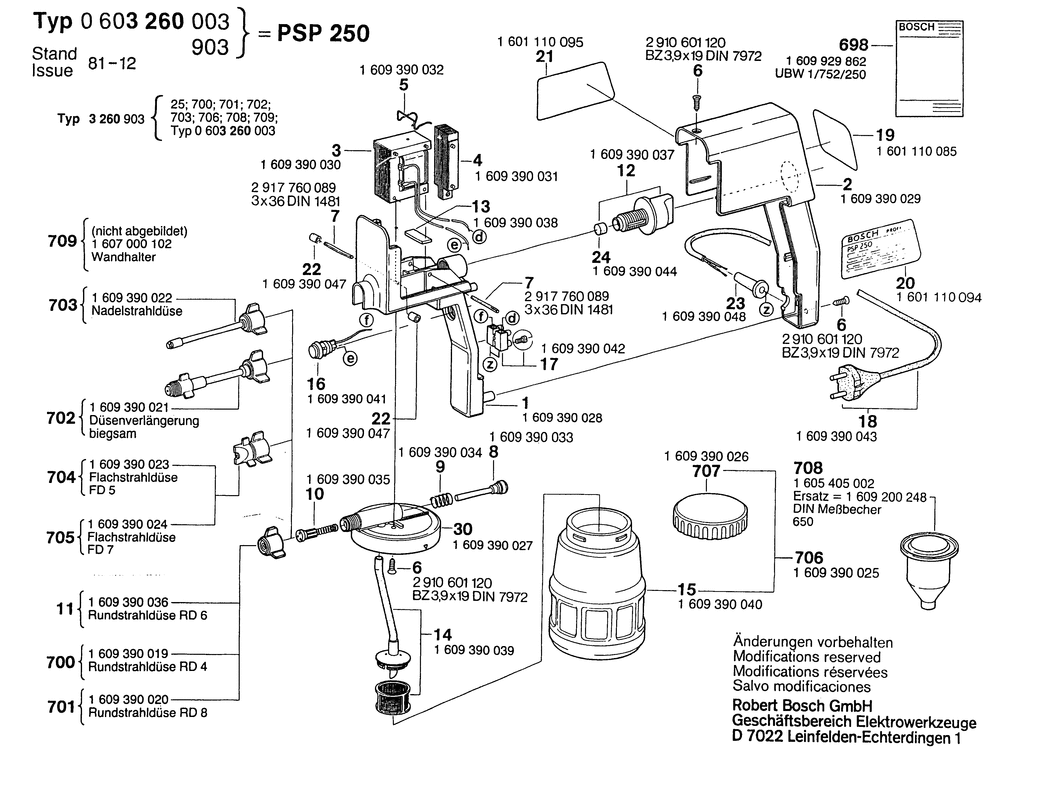

An exploded drawing and listing for the Bosch PSP 250 / 0603260042 / GB 240 Volt

	Ex VAT	Inc VAT
1 - HANDLE BSD-1609390210.A4 1609390210	-
2 - HOUSING COVER BSD-1609390029.A5 1609390029	-
2 - HOUSING COVER BSD-1609390204.A5 1609390204	-
3 - OSCILL. ARMATURE MAGNET BSD-1609390212.A2 1609390212	-
4 - OSCILLATING ARMATURE BSD-1609390031.A5 1609390031	-
5 - HOLDING SPRING BSD-1609390032.A0 1609390032	-
6 - TAPPING SCREW BZ 3.9x19 DIN 7972 BSD-2910601120.A44 2910601120	-
7 - COILED SPRING PIN 3x36 DIN 1481 BSD-2917760089.A8 2917760089	-
8 - PUMP PISTON BSD-1609390033.A5 1609390033	-
9 - COMPRESSION SPRING BSD-1609390034.A0 1609390034	-
10 - VACUUM/PRESSURE VALVE BSD-1609390035.A10 1609390035	-
11 - CYLINDRICAL-SPRAY NOZZLE dia 0.6 MM BSD-1609390541.A9 1609390541	-
12 - ADJUSTING SCREW BSD-1609390037.A0 1609390037	-
13 - RUBBER BUFFER BSD-1609390038.A5 1609390038	-
14 - SUCTION PIPE BSD-1609390209.A0 1609390209	£13.41	£16.09
15 - PAINT BEAKER BSD-1609390040.A1 1609390040	-
16 - ON-OFF SWITCH BSD-1609390205.A0 1609390205	-
17 - CONNECTING TERMINAL BSD-1609390042.A13 1609390042	£3.34	£4.01
18 - POWER SUPPLY CORD BSD-1609390562.A5 1609390562	£24.45	£29.34
20 - REFERENCE PLATE BSD-1601110094.A3 1601110094	-
21 - REFERENCE PLATE BSD-1601110095.A2 1601110095	-
22 - PROTECTIVE CAP BSD-1609390047.A4 1609390047	-
23 - GROMMET BSD-1609390048.A2 1609390048	£3.34	£4.01
24 - RUBBER BUFFER BSD-1609390044.A6 1609390044	-
30 - PUMP HOUSING BSD-1609390211.A0 1609390211	-
650 - PAINT CONTAINER BSD-1609200248.A2 1609200248	-
700 - CYLINDRICAL-SPRAY NOZZLE dia 0.4 MM BSD-1609390206.A4 1609390206	-
701 - CYLINDRICAL-SPRAY NOZZLE dia 0.8 MM BSD-1609390542.A2 1609390542	-
702 - NOZZLE EXTENSION BSD-1609390021.A12 1609390021	-
703 - PENCIL-SPRAY NOZZLE BSD-1609390022.A0 1609390022	-
704 - FLAT-SPRAY NOZZLE FD 5 BSD-1609390358.A11 1609390358	-
705 - FLAT-SPRAY NOZZLE FD 7 BSD-1609390359.A0 1609390359	-
706 - PAINT BEAKER BSD-1609390025.A4 1609390025	-
707 - RESERVOIR CAP BSD-1609390026.A1 1609390026	-
708 - STRAINER BSD-1609390045.A7 1609390045	-
709 - MOUNTING PIECE BSD-1607000167.A1 1607000167	-
888 - NAMEPLATE BSD-160111A3H3.A1373 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
