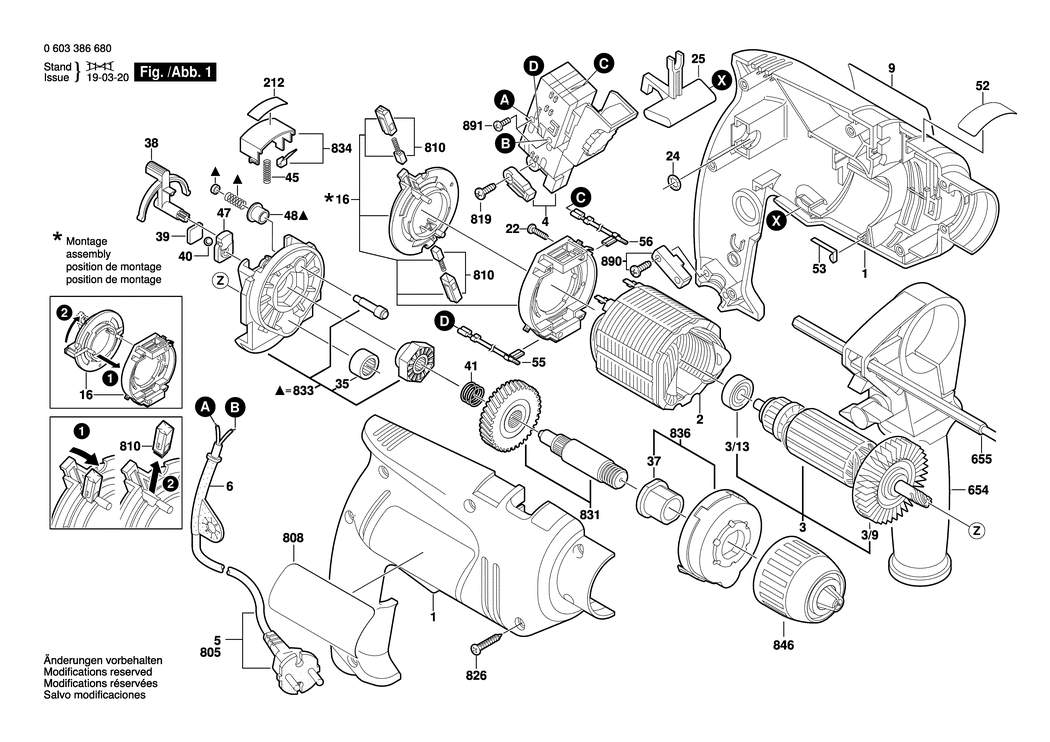

1 - HOUSING SECTION
BSD-2605104560.A43
2605104560
|
£14.72
|
£17.67
|
|
|
2 - FIELD 220-240V
BSD-2604220688.A56
2604220688
|
£28.59
|
£34.31
|
|
|
3 - ARMATURE 220-240V
BSD-2604011154.A0
2604011154
|
£30.28
|
£36.33
|
|
|
3/9 - FAN
BSD-2606610029.A93
2606610029
|
£2.74
|
£3.29
|
|
|
3/13 - BALL BEARING 7x19x6
BSD-2600905032.A1128
2600905032
|
£5.57
|
£6.68
|
|
|
4 - SWITCH
BSD-2607200601.A2
2607200601
|
£20.42
|
£24.51
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460243.A76
2604460243
|
£13.12
|
£15.75
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A61
2600707066
|
£2.60
|
£3.12
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 650 RES
BSD-2601116010.A1
2601116010
|
£3.34
|
£4.01
|
|
|
16 - BRUSH PLATE
BSD-2604337059.A28
2604337059
|
£11.87
|
£14.24
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A162
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A561
1900210000
|
£1.84
|
£2.21
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A155
2602098008
|
£1.84
|
£2.21
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A89
2600914019
|
£5.57
|
£6.68
|
|
|
37 - POROUS BEARING
BSD-2600301052.A9
2600301052
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A42
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A146
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A76
1903230009
|
£1.84
|
£2.21
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A112
2604616006
|
£1.84
|
£2.21
|
|
|
45 - COMPRESSION SPRING
BSD-2604610047.A121
2604610047
|
£1.75
|
£2.10
|
|
|
47 - FRAME
BSD-2608040120.A72
2608040120
|
£2.61
|
£3.13
|
|
|
48 - SLEEVE
BSD-2600390031.A11
2600390031
|
-
|
|
|
|
52 - REFERENCE PLATE
BSD-2601119419.A51
2601119419
|
£3.72
|
£4.47
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A86
2601329043
|
£1.38
|
£1.66
|
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A30
1614431025
|
£2.61
|
£3.13
|
|
|
56 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A168
2604448228
|
£2.16
|
£2.59
|
|
|
212 - REFERENCE PLATE
BSD-2601119602.A130
2601119602
|
£3.91
|
£4.69
|
|
|
654 - AUXILIARY HANDLE
BSD-2602025125.A136
2602025125
|
£10.61
|
£12.73
|
|
|
655 - DEPTH-GAUGE
BSD-2609005615.A181
2609005615
|
£4.26
|
£5.11
|
|
|
808 - NAMEPLATE
BSD-2609000621.A0
2609000621
|
£2.45
|
£2.94
|
|
|
810 - CARBON-BRUSH SET
BSD-2607014017.A4
2607014017
|
-
|
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A220
2910611006
|
£1.75
|
£2.10
|
|
|
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A409
2910611020
|
£1.84
|
£2.21
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135929.A79
2606135929
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807932.A101
2605807932
|
-
|
|
|
|
834 - PUSH-BUTTON
BSD-2603231040.A26
2603231040
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808922.A8
2605808922
|
£11.37
|
£13.64
|
|
|
846 - KEYLESS CHUCK
BSD-2608572173.A58
2608572173
|
-
|
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A152
2607001305
|
£4.48
|
£5.37
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A232
2603410046
|
£2.27
|
£2.72
|
|
