Bosch PSA 700 E / 3603CA7030 / CH 230 Volt Spare Parts

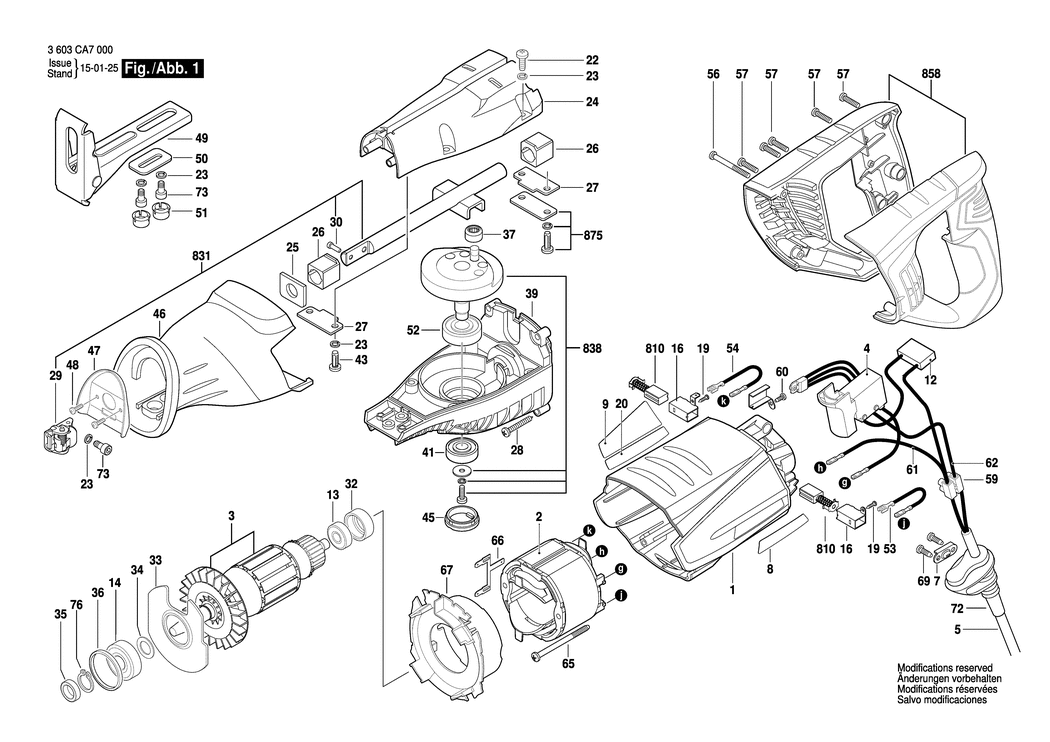

An exploded drawing and listing for the Bosch PSA 700 E / 3603CA7030 / CH 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-1619PA3959.A2 1619PA3959	£14.91	£17.89
2 - FIELD 230V BSD-1619PA3960.A1 1619PA3960	£18.96	£22.75
3 - ARMATURE 230V BSD-1619PA3961.A2 1619PA3961	£33.74	£40.49
4 - SWITCH BSD-1619PA3962.A1 1619PA3962	£18.96	£22.75
5 - POWER SUPPLY CORD CH 230V BSD-1619PA3964.A0 1619PA3964	£11.30	£13.56
7 - CABLE CLIP BSD-2610956868.A3 2610956868	£1.75	£2.10
8 - NAMEPLATE BSD-1619PA3968.A0 1619PA3968	£2.61	£3.13
9 - BOSCH LABEL BOSCH BSD-1619PA3971.A1 1619PA3971	£2.61	£3.13
12 - SUPPRESSION CAPACITOR BSD-1619PA1318.A6 1619PA1318	£5.30	£6.36
13 - GROOVE BALL BEARING BSD-1619PA3973.A2 1619PA3973	£3.72	£4.47
14 - GROOVE BALL BEARING BSD-1619PA3974.A1 1619PA3974	£3.72	£4.47
16 - BRUSH HOLDER BSD-1619PA3975.A2 1619PA3975	£1.75	£2.10
19 - TAPPING SCREW BSD-1619PA3976.A1 1619PA3976	£1.75	£2.10
20 - MANUFACTURER'S NAMEPLATE PSA 700 E BSD-1619PA3977.A1 1619PA3977	£2.61	£3.13
22 - THREAD-FORMING SCREW BSD-2610956894.A3 2610956894	£1.75	£2.10
23 - SPRING WASHER BSD-1619P04820.A6 1619P04820	£1.75	£2.10
24 - GEAR COVER BSD-1619PA3978.A1 1619PA3978	£11.30	£13.56
25 - FELT SEAL BSD-1619PA3979.A2 1619PA3979	£1.75	£2.10
26 - BUSHING BSD-2610956896.A4 2610956896	£6.52	£7.83
27 - SEALING PLATE BSD-1619PA3980.A1 1619PA3980	£1.75	£2.10
28 - SELF-CUTTING SCREW BSD-2610956899.A4 2610956899	£1.75	£2.10
29 - BLADE HOLDER BSD-1619PA4168.A4 1619PA4168	£16.41	£19.69
30 - PIN BSD-1619P04839.A8 1619P04839	£1.75	£2.10
32 - BEARING HOLDER BSD-1619PA3983.A2 1619PA3983	£1.75	£2.10
33 - SEALING PLATE BSD-1619PA3984.A1 1619PA3984	£3.72	£4.47
34 - WASHER BSD-1619PA3985.A2 1619PA3985	£1.75	£2.10
35 - BUSHING BSD-1619PA3986.A1 1619PA3986	£1.75	£2.10
36 - RUBBER RING BSD-1619PA3987.A2 1619PA3987	£2.16	£2.59
37 - NEEDLE-ROLLER BEARING BSD-1619P04823.A5 1619P04823	£10.10	£12.12
39 - GEAR COVER BSD-1619PA3989.A1 1619PA3989	£21.68	£26.01
41 - GROOVE BALL BEARING BSD-1619PA3990.A2 1619PA3990	£4.26	£5.11
43 - THREAD-FORMING SCREW BSD-1619PA3992.A1 1619PA3992	£1.75	£2.10
45 - COVER BSD-1619PA3994.A2 1619PA3994	£1.75	£2.10
46 - INSULATING SLEEVE BSD-1619PA3995.A1 1619PA3995	£16.41	£19.69
47 - SEALING PLATE BSD-1619PA3996.A2 1619PA3996	£1.75	£2.10
48 - THREAD-FORMING SCREW BSD-1619P04827.A10 1619P04827	£1.75	£2.10
49 - SUPPORTING FOOT BSD-2610956898.A6 2610956898	£12.04	£14.45
50 - CLAMP BSD-1619P04828.A0 1619P04828	£2.61	£3.13
51 - COVER BSD-2610956900.A6 2610956900	£2.16	£2.59
52 - GROOVE BALL BEARING BSD-1619PA9518.A1 1619PA9518	£3.72	£4.47
53 - CONNECTING CABLE BSD-1619PA3997.A1 1619PA3997	£1.75	£2.10
54 - CONNECTING CABLE BSD-1619PA3998.A2 1619PA3998	£1.75	£2.10
56 - TAPPING SCREW BSD-2610956864.A12 2610956864	£2.16	£2.59
57 - TAPPING SCREW BSD-2610956865.A2 2610956865	£2.16	£2.59
59 - TERMINAL BLOCK BSD-2610956870.A4 2610956870	£2.61	£3.13
60 - SCREW BSD-2610956869.A6 2610956869	£1.75	£2.10
61 - CONNECTING CABLE BSD-1619PA4000.A1 1619PA4000	£1.75	£2.10
62 - CONNECTING CABLE BSD-1619PA4001.A2 1619PA4001	£1.75	£2.10
65 - TAPPING SCREW BSD-1619PA4002.A1 1619PA4002	£1.75	£2.10
66 - BLADE TERMINAL BSD-1619PA4003.A2 1619PA4003	£1.75	£2.10
67 - AIR-DEFLECTOR RING BSD-1619PA4004.A1 1619PA4004	£3.72	£4.47
69 - TAPPING SCREW BSD-1619PA4005.A2 1619PA4005	£1.75	£2.10
72 - CORD GUARD BSD-1619PA1319.A1 1619PA1319	£2.16	£2.59
73 - HEX SOCKET HEAD CAP SCREW BSD-1619PA1331.A5 1619PA1331	£2.80	£3.36
76 - CLIP BSD-1619PA4007.A1 1619PA4007	£1.75	£2.10
77 - WASHER BSD-1619PA4008.A2 1619PA4008	£1.75	£2.10
810 - CARBON-BRUSH SET BSD-1619PA4010.A1 1619PA4010	£6.52	£7.83
831 - SPINDLE ASSEMBLY BSD-1619PA4011.A2 1619PA4011	£18.96	£22.75
838 - BEVEL GEAR BSD-1619PA4012.A1 1619PA4012	£21.68	£26.01
858 - SET OF HANDLES BSD-1619PA4013.A2 1619PA4013	£16.41	£19.69
875 - PLATE BSD-1619PA4014.A1 1619PA4014	£2.80	£3.36
