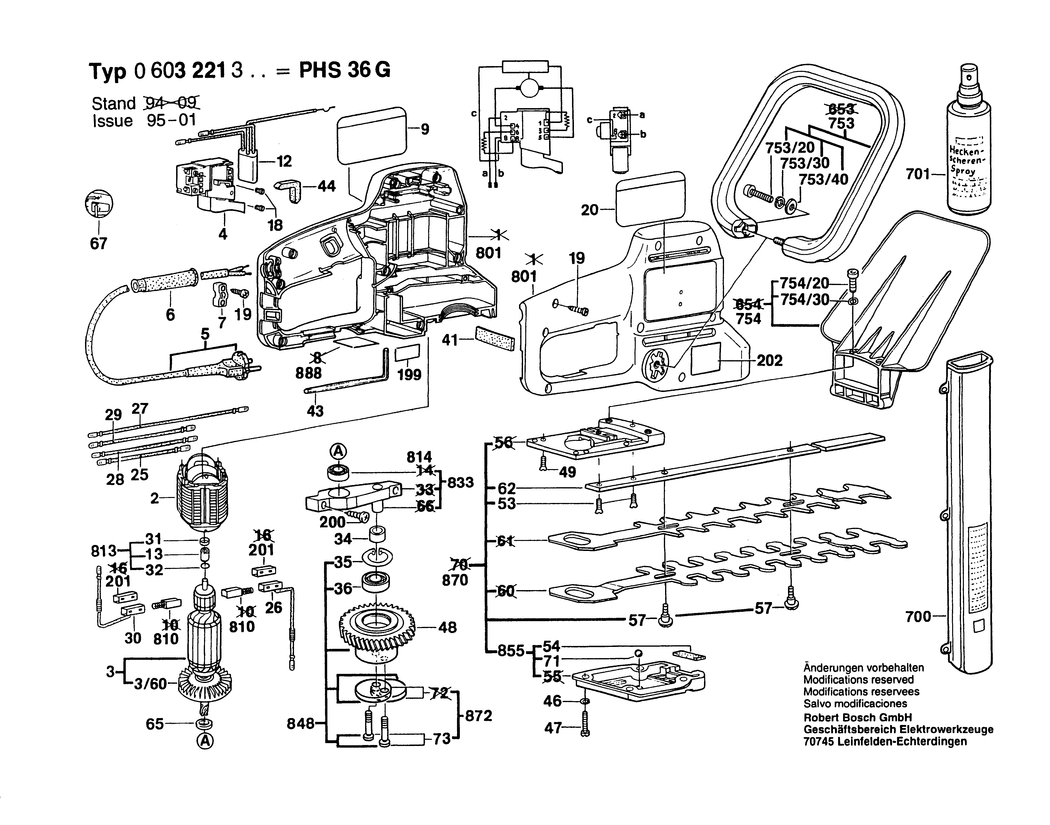

2 - FIELD 220-240V
BSD-2604220423.A126
2604220423
|
£25.68
|
£30.81
|
|
|
3 - ARMATURE 220-230V
BSD-2604010604.A8
2604010604
|
-
|
|
|
|
3/60 - FAN
BSD-2606610027.A7
2606610027
|
£2.80
|
£3.36
|
|
|
4 - ON-OFF SWITCH
BSD-2607200147.A17
2607200147
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F
BSD-2604460255.A17
2604460255
|
£8.67
|
£10.41
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A180
2600703007
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A82
1600703016
|
£1.75
|
£2.10
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2895
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110679.A3
2601110679
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329108.A21
2607329108
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A160
1607328028
|
£5.57
|
£6.68
|
|
|
13 - SINTERED-METAL BUSHING
BSD-1600301900.A130
1600301900
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2281
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2700
2603490022
|
£1.84
|
£2.21
|
|
|
20 - STICKER
BSD-2601110637.A16
2601110637
|
-
|
|
|
|
25 - CONNECTING CABLE L=154 MM
BSD-2604448000.A160
2604448000
|
-
|
|
|
|
26 - CARB BRUSH HOLD W-SUPR
BSD-2604465075.A17
2604465075
|
-
|
|
|
|
27 - CABLE L=249 MM
BSD-2604448057.A43
2604448057
|
£1.38
|
£1.66
|
|
|
28 - CONNECTING CABLE L=213 MM
BSD-2604448118.A132
2604448118
|
£1.75
|
£2.10
|
|
|
29 - CABLE L=98 MM
BSD-2604448045.A282
2604448045
|
-
|
|
|
|
30 - CARB BRUSH HOLD W-SUPR
BSD-2604465076.A20
2604465076
|
-
|
|
|
|
31 - FELT WASHER
BSD-1600205023.A153
1600205023
|
£1.38
|
£1.66
|
|
|
32 - O-RING 8.0x2.5 MM
BSD-1610210014.A65
1610210014
|
-
|
|
|
|
34 - SPACER RING
BSD-2600200023.A33
2600200023
|
-
|
|
|
|
35 - SPRING RETAINING RING 30x1.2MM. DIN 472
BSD-2916660012.A17
2916660012
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING
BSD-2600905028.A20
2600905028
|
-
|
|
|
|
41 - FELT STRIP
BSD-2601005008.A21
2601005008
|
-
|
|
|
|
43 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A669
1907950006
|
£4.48
|
£5.37
|
|
|
44 - DAMPING PLATE
BSD-2601022000.A27
2601022000
|
£1.75
|
£2.10
|
|
|
46 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A832
2916690003
|
£1.75
|
£2.10
|
|
|
47 - PAN HEAD SCREW M4x22 MM
BSD-2603410018.A4
2603410018
|
£1.75
|
£2.10
|
|
|
48 - CLUTCH ELEMENT
BSD-2606320039.A6
2606320039
|
-
|
|
|
|
49 - COUNTERSUNK-HEAD SCREW DIN 965-M4x12-8.8
BSD-2910871122.A69
2910871122
|
-
|
|
|
|
53 - COUNTERSUNK-HEAD SCREW
BSD-2603421006.A6
2603421006
|
-
|
|
|
|
54 - FELT STRIP
BSD-2601005002.A23
2601005002
|
-
|
|
|
|
57 - THREAD-FORMING TAP. SCREW
BSD-2603413031.A3
2603413031
|
-
|
|
|
|
57 - PAN HEAD SCREW
BSD-2603413004.A16
2603413004
|
-
|
|
|
|
58 - SHIM 1.0 MM
BSD-2600100647.A21
2600100647
|
£1.32
|
£1.58
|
|
|
59 - HEX NUT DIN 985-M6-8
BSD-2915061004.A80
2915061004
|
£1.75
|
£2.10
|
|
|
62 - GUIDE
BSD-2601038032.A5
2601038032
|
£8.92
|
£10.70
|
|
|
62 - GUIDE
BSD-2601038025.A3
2601038025
|
-
|
|
|
|
65 - SPACER RING
BSD-2600209003.A40
2600209003
|
£2.16
|
£2.59
|
|
|
67 - BRUSH HOLDER
BSD-2604330016.A0
2604330016
|
-
|
|
|
|
71 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A413
1903230007
|
£1.84
|
£2.21
|
|
|
73 - DRIVING PIN
BSD-2603123018.A17
2603123018
|
-
|
|
|
|
199 - STICKER
BSD-1601110265.A300
1601110265
|
-
|
|
|
|
700 - DUST BAG
BSD-1605411023.A44
1605411023
|
-
|
|
|
|
701 - OIL SPRAY TIN
BSD-1609200399.A49
1609200399
|
£9.18
|
£11.01
|
|
|
753 - AUXILIARY HANDLE
BSD-2602025059.A18
2602025059
|
-
|
|
|
|
753/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8
BSD-2910141201.A276
2910141201
|
£2.74
|
£3.29
|
|
|
753/30 - SPRING LOCK WASHER M6
BSD-2916690005.A117
2916690005
|
-
|
|
|
|
753/40 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A320
2916011014
|
£1.84
|
£2.21
|
|
|
754 - PROTECTIVE SHIELD
BSD-2607001111.A21
2607001111
|
-
|
|
|
|
754/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A382
2910141197
|
£1.84
|
£2.21
|
|
|
754/30 - SPRING WASHER DIN 137-A6-FST
BSD-2916061007.A40
2916061007
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104180.A15
2605104180
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321909.A14
2604321909
|
£8.92
|
£10.70
|
|
|
813 - SINTERED-METAL BUSHING
BSD-1600301900.A131
1600301900
|
-
|
|
|
|
814 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A320
2600905039
|
£12.64
|
£15.17
|
|
|
833 - BEARING BRACKET
BSD-2605807910.A9
2605807910
|
-
|
|
|
|
848 - OVERLOAD CLUTCH
BSD-2606320900.A32
2606320900
|
-
|
|
|
|
855 - GEAR COVER
BSD-2605500904.A26
2605500904
|
-
|
|
|
|
855 - GEAR COVER
BSD-2605500904.A27
2605500904
|
-
|
|
|
|
857 - PARTS SET
BSD-2607010136.A6
2607010136
|
-
|
|
|
|
870 - SET OF KNIVES
BSD-2607001117.A2
2607001117
|
-
|
|
|
|
870 - SET OF KNIVES
BSD-2607001117.A3
2607001117
|
-
|
|
|
|
872 - ECCENTRIC DISC
BSD-2600030900.A20
2600030900
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3584
160111A3H3
|
£2.74
|
£3.29
|
|
