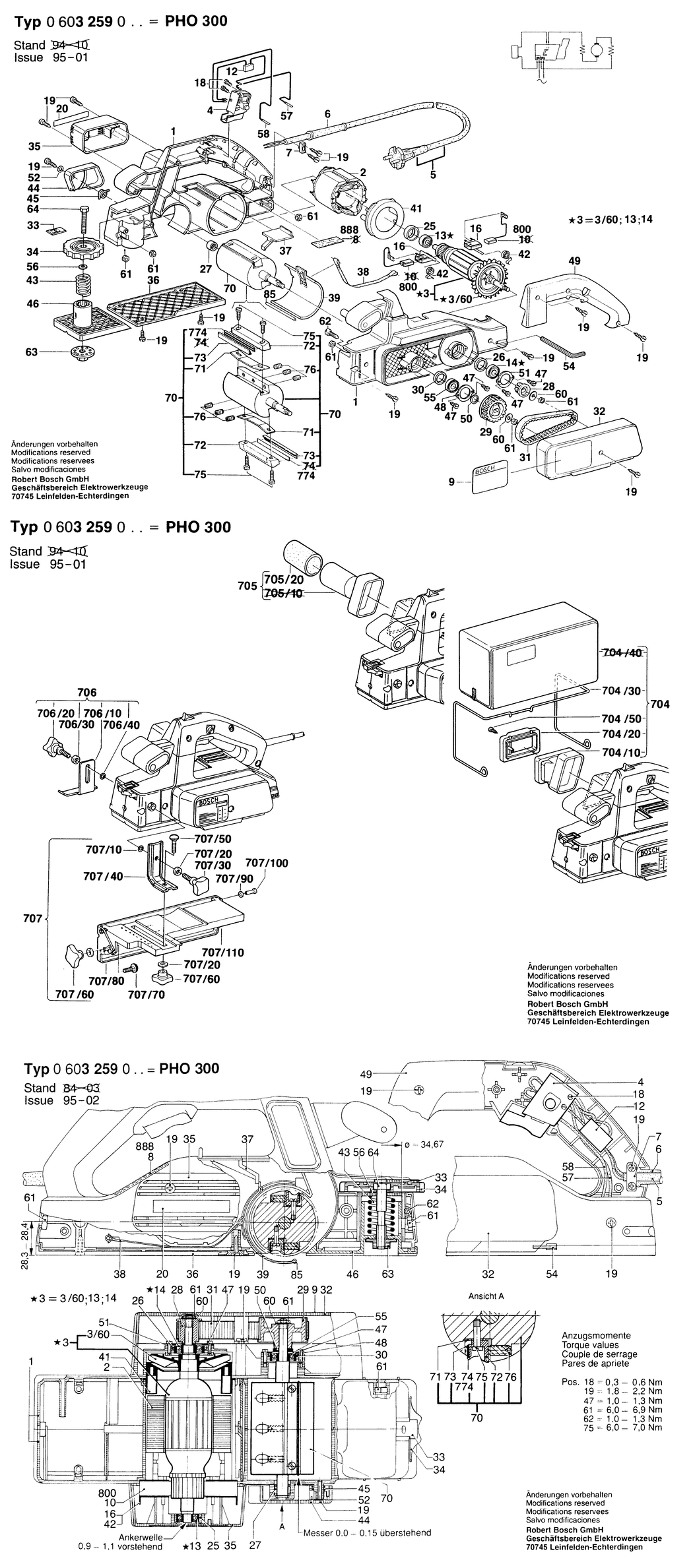

1 - HOUSING SECTION
BSD-2605104978.A0
2605104978
|
-
|
|
|
|
2 - FIELD 220V
BSD-1604220231.A4
1604220231
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1604010286.A1
1604010286
|
-
|
|
|
|
3/60 - FAN
BSD-1606610122.A113
1606610122
|
£2.80
|
£3.36
|
|
|
4 - ON-OFF SWITCH
BSD-2607200109.A7
2607200109
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A400
1607000227
|
£23.86
|
£28.63
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A793
2600703012
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A478
2600703011
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A412
2600703013
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2828
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110403.A5
2601110403
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A94
1607328028
|
£5.30
|
£6.36
|
|
|
13 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A604
1610905025
|
£6.52
|
£7.83
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A273
2600905052
|
£7.36
|
£8.83
|
|
|
16 - BRUSH HOLDER
BSD-2604337002.A14
2604337002
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2125
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A561
2910611019
|
£2.80
|
£3.36
|
|
|
20 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A474
1601110481
|
£2.16
|
£2.59
|
|
|
25 - INTERMEDIATE RING
BSD-1600502011.A424
1600502011
|
£2.61
|
£3.13
|
|
|
26 - INTERMEDIATE RING
BSD-1600206026.A82
1600206026
|
£1.75
|
£2.10
|
|
|
27 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A91
2600910001
|
£4.26
|
£5.11
|
|
|
28 - TOOTHED BELT WHEEL Z=19
BSD-1606625026.A0
1606625026
|
-
|
|
|
|
29 - TOOTHED BELT WHEEL Z=43
BSD-1606625025.A36
1606625025
|
-
|
|
|
|
30 - RUBBER RING
BSD-1600206025.A253
1600206025
|
£2.16
|
£2.59
|
|
|
31 - TOOTHED BELT 14 MM. Z=85
BSD-2604736002.A8
2604736002
|
£10.10
|
£12.12
|
|
|
32 - GEAR COVER
BSD-3605500024.A2
3605500024
|
-
|
|
|
|
33 - SCALE WINDOW
BSD-1601099010.A8
1601099010
|
-
|
|
|
|
34 - GRADUATED DIAL
BSD-2606621001.A13
2606621001
|
-
|
|
|
|
35 - COVERING HOOD
BSD-3605510012.A22
3605510012
|
£3.80
|
£4.56
|
|
|
36 - BASE PLATE
BSD-3608000001.A1
3608000001
|
-
|
|
|
|
37 - ADJUSTING SLIDE
BSD-3601320001.A13
3601320001
|
-
|
|
|
|
38 - RUBBER BAND
BSD-1601006006.A35
1601006006
|
-
|
|
|
|
39 - PROTECTIVE COVER
BSD-1605510142.A35
1605510142
|
-
|
|
|
|
41 - AIR-DEFLECTOR RING
BSD-3600290011.A4
3600290011
|
-
|
|
|
|
42 - SPIRAL SPRING
BSD-2604652008.A132
2604652008
|
-
|
|
|
|
43 - COMPRESSION SPRING
BSD-1604619017.A107
1604619017
|
£2.16
|
£2.59
|
|
|
44 - PROTECTIVE COVER
BSD-1605510139.A33
1605510139
|
-
|
|
|
|
45 - COMPRESSION SPRING
BSD-1604651007.A24
1604651007
|
-
|
|
|
|
46 - ADJUSTING SLIDE
BSD-3608000002.A4
3608000002
|
-
|
|
|
|
47 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A221
2603490017
|
£2.16
|
£2.59
|
|
|
48 - TAB WASHER
BSD-1600190016.A51
1600190016
|
-
|
|
|
|
49 - HANDLE COVER
BSD-3605500023.A4
3605500023
|
-
|
|
|
|
50 - SHIM
BSD-2600100033.A15
2600100033
|
-
|
|
|
|
51 - TAB WASHER
BSD-2600190008.A13
2600190008
|
-
|
|
|
|
52 - SHIM 0.5 MM
BSD-2600100588.A109
2600100588
|
£1.75
|
£2.10
|
|
|
54 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A78
1907950004
|
£5.58
|
£6.70
|
|
|
55 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A282
2600905052
|
£7.36
|
£8.83
|
|
|
56 - SHIM 0.5 MM
BSD-3600100005.A13
3600100005
|
-
|
|
|
|
57 - CONNECTING CABLE L=238 MM
BSD-3604431005.A4
3604431005
|
-
|
|
|
|
58 - CONNECTING CABLE L=383 MM
BSD-3604431006.A20
3604431006
|
-
|
|
|
|
60 - DISC SPRING DIN 2093-A12.5-GR-1
BSD-2916160003.A8
2916160003
|
-
|
|
|
|
61 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A141
2915011007
|
-
|
|
|
|
62 - TAPPING SCREW DIN 7981-B 3.9x9.5
BSD-2910611017.A21
2910611017
|
-
|
|
|
|
63 - ADJUSTING NUT
BSD-3603342003.A4
3603342003
|
£1.75
|
£2.10
|
|
|
64 - HEX SCREW
BSD-3603450005.A34
3603450005
|
-
|
|
|
|
70 - PLANER HEAD
BSD-2603204900.A7
2603204900
|
-
|
|
|
|
71 - LEAF SPRING
BSD-1601234002.A16
1601234002
|
-
|
|
|
|
72 - PRESSURE BAR
BSD-2608040025.A7
2608040025
|
£37.32
|
£44.79
|
|
|
73 - SUPPORT CLAMP
BSD-1601330010.A6
1601330010
|
-
|
|
|
|
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A702
2910021125
|
£1.75
|
£2.10
|
|
|
76 - SET SCREW M 6x12 DIN 915-45H
BSD-2912081193.A17
2912081193
|
-
|
|
|
|
85 - SLOTTED SPRING PIN
BSD-1600410003.A23
1600410003
|
-
|
|
|
|
704 - CHIPS BAG
BSD-1605411022.A26
1605411022
|
£17.49
|
£20.99
|
|
|
704/10 - FITTING
BSD-1605190030.A14
1605190030
|
-
|
|
|
|
704/20 - CLAMPING PIECE
BSD-1605703073.A14
1605703073
|
-
|
|
|
|
704/30 - RETAINING BRACKET
BSD-2608045003.A27
2608045003
|
-
|
|
|
|
704/50 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A220
2603490017
|
£2.16
|
£2.59
|
|
|
705 - CONNECTING PIPE dia 35 MM
BSD-1607000154.A4
1607000154
|
-
|
|
|
|
706 - DEPTH-GAUGE
BSD-1608132006.A13
1608132006
|
£3.49
|
£4.19
|
|
|
706/10 - STOP BRACKET
BSD-1601331039.A20
1601331039
|
-
|
|
|
|
706/20 - WING SCREW M 6x16 MM
BSD-2603480003.A60
2603480003
|
£2.61
|
£3.13
|
|
|
706/30 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A362
2916011014
|
£1.75
|
£2.10
|
|
|
706/40 - O-RING 4.0x1.5 MM
BSD-1610210043.A55
1610210043
|
£1.75
|
£2.10
|
|
|
707 - WIDTH STOP
BSD-1608132007.A10
1608132007
|
-
|
|
|
|
707/10 - O-RING 4.0x1.5 MM
BSD-1610210043.A54
1610210043
|
£1.75
|
£2.10
|
|
|
707/20 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A363
2916011014
|
£1.75
|
£2.10
|
|
|
707/30 - WING SCREW M 6x16 MM
BSD-2603480003.A59
2603480003
|
£2.61
|
£3.13
|
|
|
707/40 - STOP BRACKET
BSD-1601332018.A16
1601332018
|
£3.72
|
£4.47
|
|
|
707/50 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A200
2910281203
|
£2.61
|
£3.13
|
|
|
707/60 - WING NUT M6
BSD-1603339006.A324
1603339006
|
£2.52
|
£3.02
|
|
|
707/70 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A9
2910281196
|
-
|
|
|
|
707/80 - STOP PLATE
BSD-1608000092.A34
1608000092
|
-
|
|
|
|
707/90 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A187
2916011010
|
£1.75
|
£2.10
|
|
|
707/100 - TUBULAR RIVET B 4x0.5x15 DIN 734
BSD-2917190492.A40
2917190492
|
-
|
|
|
|
707/110 - STOP BRACKET
BSD-1608000093.A15
1608000093
|
-
|
|
|
|
774 - PLANING KNIFE
BSD-2607000096.A20
2607000096
|
£7.57
|
£9.08
|
|
|
774 - CORRUGATED BLADE
BSD-1607000152.A0
1607000152
|
-
|
|
|
|
774 - CORRUGATED BLADE
BSD-1607000179.A0
1607000179
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014129.A105
1607014129
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3473
160111A3H3
|
£2.61
|
£3.13
|
|
