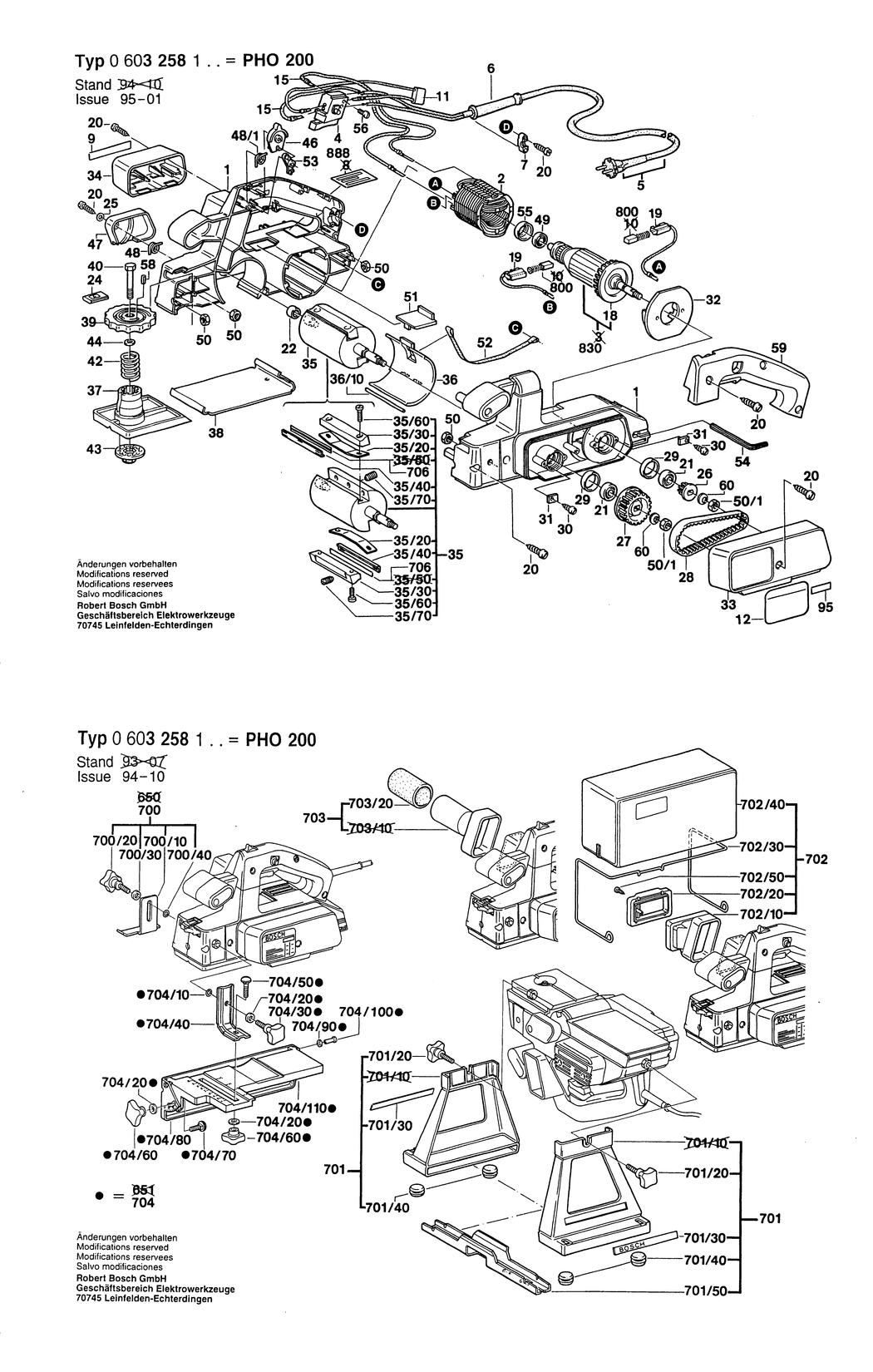

1 - HOUSING SECTION
BSD-2605104214.A6
2605104214
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220447.A37
2604220447
|
£25.05
|
£30.06
|
|
|
4 - ON-OFF SWITCH
BSD-2607200109.A8
2607200109
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A579
1607000386
|
£22.60
|
£27.12
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A185
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2775
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A477
1601110481
|
£2.27
|
£2.72
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328028.A128
1607328028
|
£5.57
|
£6.68
|
|
|
12 - STICKER
BSD-2601110714.A4
2601110714
|
-
|
|
|
|
15 - CONNECTING CABLE L = 288 MM
BSD-2604448062.A32
2604448062
|
£1.38
|
£1.66
|
|
|
18 - FAN
BSD-2606610049.A146
2606610049
|
£2.27
|
£2.72
|
|
|
19 - BRUSH HOLDER
BSD-2604449027.A73
2604449027
|
£1.84
|
£2.21
|
|
|
20 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A379
2910211019
|
£1.84
|
£2.21
|
|
|
21 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A248
2600905052
|
£7.72
|
£9.27
|
|
|
22 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A108
2600910001
|
£4.48
|
£5.37
|
|
|
24 - SCALE WINDOW
BSD-1601099010.A31
1601099010
|
-
|
|
|
|
25 - SHIM 0.5 MM
BSD-2600100588.A133
2600100588
|
£1.84
|
£2.21
|
|
|
26 - TOOTHED BELT WHEEL Z=19
BSD-1606625026.A24
1606625026
|
-
|
|
|
|
27 - TOOTHED BELT WHEEL Z=43
BSD-1606625025.A24
1606625025
|
-
|
|
|
|
28 - TOOTHED BELT 14 MM
BSD-1604736004.A12
1604736004
|
-
|
|
|
|
29 - RUBBER RING
BSD-1600206025.A260
1600206025
|
£2.16
|
£2.59
|
|
|
30 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A314
2910211005
|
£1.84
|
£2.21
|
|
|
31 - TAB WASHER
BSD-1600190016.A68
1600190016
|
-
|
|
|
|
32 - AIR-DEFLECTOR RING
BSD-1600591006.A15
1600591006
|
-
|
|
|
|
33 - GEAR COVER
BSD-1605510140.A22
1605510140
|
-
|
|
|
|
34 - COVERING HOOD
BSD-1605510141.A0
1605510141
|
-
|
|
|
|
35 - PLANER HEAD
BSD-2603204900.A17
2603204900
|
-
|
|
|
|
35/20 - LEAF SPRING
BSD-1601234002.A22
1601234002
|
-
|
|
|
|
35/30 - PRESSURE BAR
BSD-2608040027.A12
2608040027
|
-
|
|
|
|
35/40 - SUPPORT CLAMP
BSD-2601334006.A12
2601334006
|
-
|
|
|
|
35/60 - OVAL-HEAD SCREW
BSD-2603410041.A10
2603410041
|
-
|
|
|
|
35/70 - SET SCREW M 6x12 DIN 915-45H
BSD-2912081193.A31
2912081193
|
-
|
|
|
|
36 - PROTECTIVE COVER
BSD-1605510142.A29
1605510142
|
-
|
|
|
|
36/10 - SLOTTED SPRING PIN
BSD-1600410003.A40
1600410003
|
-
|
|
|
|
37 - ADJUSTING SLIDE
BSD-1605190031.A9
1605190031
|
-
|
|
|
|
38 - BASE PLATE
BSD-1608000091.A7
1608000091
|
-
|
|
|
|
39 - GRADUATED DIAL
BSD-2606621001.A19
2606621001
|
-
|
|
|
|
40 - HEX SCREW
BSD-3603450005.A9
3603450005
|
-
|
|
|
|
42 - COMPRESSION SPRING
BSD-1604619017.A55
1604619017
|
£2.16
|
£2.59
|
|
|
43 - ADJUSTING NUT
BSD-3603342003.A29
3603342003
|
£1.75
|
£2.10
|
|
|
44 - SHIM 0.5 MM
BSD-3600100005.A27
3600100005
|
-
|
|
|
|
46 - ROTARY KNOB
BSD-1602026055.A1
1602026055
|
£2.05
|
£2.46
|
|
|
47 - PROTECTIVE COVER
BSD-1605510139.A0
1605510139
|
-
|
|
|
|
48 - COMPRESSION SPRING
BSD-1604651007.A46
1604651007
|
-
|
|
|
|
48/1 - COMPRESSION SPRING
BSD-1604651007.A47
1604651007
|
-
|
|
|
|
49 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A623
1610905025
|
£6.85
|
£8.22
|
|
|
50 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A192
2915011007
|
-
|
|
|
|
50/1 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A193
2915011007
|
-
|
|
|
|
51 - ADJUSTING SLIDE
BSD-1601099011.A8
1601099011
|
-
|
|
|
|
52 - RUBBER BAND
BSD-1601006006.A7
1601006006
|
-
|
|
|
|
53 - LOCKING LEVER
BSD-1602051001.A0
1602051001
|
-
|
|
|
|
54 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A64
1907950004
|
£5.87
|
£7.04
|
|
|
55 - INTERMEDIATE RING
BSD-1600502011.A407
1600502011
|
£2.74
|
£3.29
|
|
|
56 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2149
2603410001
|
£1.84
|
£2.21
|
|
|
58 - SLOTTED SPRING PIN 3x5 DIN 1481
BSD-2917760073.A21
2917760073
|
-
|
|
|
|
59 - HANDLE COVER
BSD-1605500124.A10
1605500124
|
-
|
|
|
|
60 - DISC SPRING DIN 2093-A12.5-GR-1
BSD-2916160003.A17
2916160003
|
-
|
|
|
|
95 - STICKER
BSD-1601110265.A288
1601110265
|
-
|
|
|
|
700 - DEPTH-GAUGE
BSD-1608132006.A23
1608132006
|
£3.49
|
£4.19
|
|
|
700/10 - STOP BRACKET
BSD-1601331039.A17
1601331039
|
-
|
|
|
|
700/20 - WING SCREW M 6x16 MM
BSD-2603480003.A4
2603480003
|
£2.74
|
£3.29
|
|
|
700/30 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A347
2916011014
|
£1.84
|
£2.21
|
|
|
700/40 - O-RING 4.0x1.5 MM
BSD-1610210043.A27
1610210043
|
£1.84
|
£2.21
|
|
|
701 - BASE
BSD-0603095002.A9
0603095002
|
-
|
|
|
|
701/20 - WING SCREW M 6x16 MM
BSD-2603480003.A5
2603480003
|
£2.74
|
£3.29
|
|
|
701/30 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A96
1601110005
|
-
|
|
|
|
701/40 - RUBBER RING
BSD-1602380012.A16
1602380012
|
£1.32
|
£1.58
|
|
|
701/50 - GUIDE RAIL
BSD-1608000104.A11
1608000104
|
-
|
|
|
|
702 - CHIPS BAG
BSD-1605411022.A1
1605411022
|
£17.49
|
£20.99
|
|
|
702/10 - FITTING
BSD-1605190030.A19
1605190030
|
-
|
|
|
|
702/20 - CLAMPING PIECE
BSD-1605703073.A19
1605703073
|
-
|
|
|
|
702/30 - RETAINING BRACKET
BSD-2608045003.A0
2608045003
|
-
|
|
|
|
702/40 - CHIPS BAG
BSD-1605411022.A0
1605411022
|
£17.49
|
£20.99
|
|
|
702/50 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A252
2603490017
|
£2.27
|
£2.72
|
|
|
703 - CONNECTING PIPE dia 35 MM
BSD-1607000154.A27
1607000154
|
-
|
|
|
|
704 - WIDTH STOP 45°
BSD-2607001078.A11
2607001078
|
-
|
|
|
|
704/10 - O-RING 4.0x1.5 MM
BSD-1610210043.A28
1610210043
|
£1.84
|
£2.21
|
|
|
704/20 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A346
2916011014
|
£1.84
|
£2.21
|
|
|
704/30 - WING SCREW M 6x16 MM
BSD-2603480003.A18
2603480003
|
£2.74
|
£3.29
|
|
|
704/40 - STOP BRACKET
BSD-1601332018.A26
1601332018
|
£3.91
|
£4.69
|
|
|
704/50 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A181
2910281203
|
£2.74
|
£3.29
|
|
|
704/60 - WING NUT M6
BSD-1603339006.A339
1603339006
|
£2.64
|
£3.17
|
|
|
704/70 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A28
2910281196
|
-
|
|
|
|
704/80 - STOP PLATE
BSD-1608000092.A39
1608000092
|
-
|
|
|
|
704/90 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A192
2916011010
|
£1.84
|
£2.21
|
|
|
704/100 - TUBULAR RIVET B 4x0.5x15 DIN 734
BSD-2917190492.A29
2917190492
|
-
|
|
|
|
704/110 - STOP BRACKET
BSD-1608000093.A10
1608000093
|
-
|
|
|
|
706 - PLANING KNIFE
BSD-2607000096.A41
2607000096
|
£7.94
|
£9.53
|
|
|
800 - CARBON-BRUSH SET
BSD-2604321905.A227
2604321905
|
£11.87
|
£14.24
|
|
|
830 - ARMATURE 220V
BSD-1604010236.A5
1604010236
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3441
160111A3H3
|
£2.74
|
£3.29
|
|
