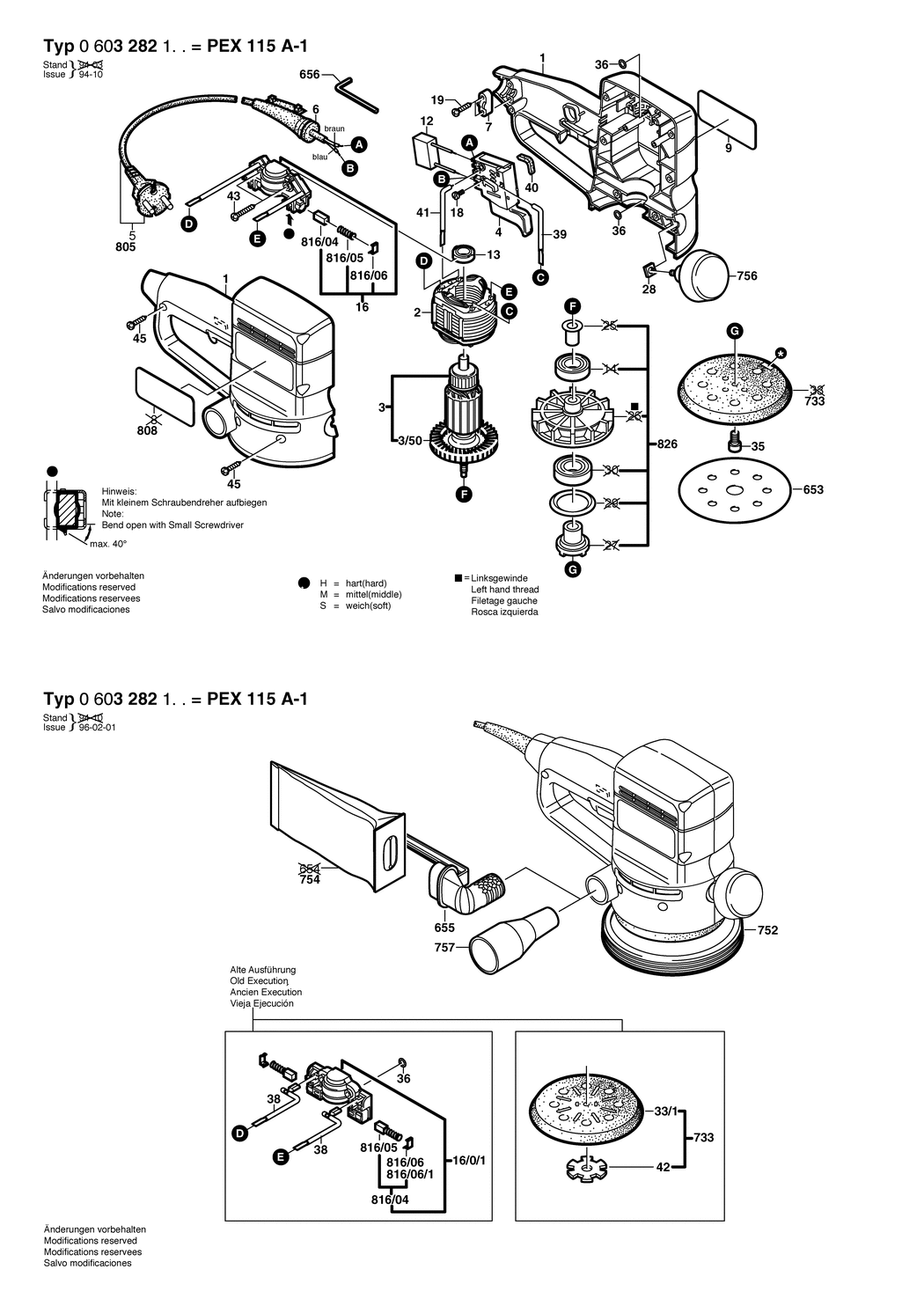

1 - HOUSING SECTION
BSD-2605104287.A5
2605104287
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220535.A10
2604220535
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-2604011014.A14
2604011014
|
-
|
|
|
|
3/50 - FAN
BSD-2606610055.A62
2606610055
|
£4.26
|
£5.11
|
|
|
4 - SWITCH
BSD-2607200260.A325
2607200260
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F
BSD-2604460125.A61
2604460125
|
£8.49
|
£10.19
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703031.A7
2600703031
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035004.A206
2601035004
|
£2.27
|
£2.72
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118405.A3
2601118405
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A357
1607328028
|
£5.57
|
£6.68
|
|
|
13 - CARTRIDGE BEARING
BSD-2605805005.A4
2605805005
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A77
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1738
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A182
2603490021
|
£1.84
|
£2.21
|
|
|
28 - SQUARE NUT DIN 562-M6-04
BSD-2915121006.A7
2915121006
|
£2.74
|
£3.29
|
|
|
35 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x16-10.9
BSD-2910975197.A13
2910975197
|
-
|
|
|
|
36 - O-RING 5.0x1.75 MM
BSD-2600210036.A61
2600210036
|
-
|
|
|
|
38 - CONNECTING CABLE L=115 MM
BSD-2604448109.A77
2604448109
|
£1.84
|
£2.21
|
|
|
39 - CABLE L=103MM
BSD-2604448140.A13
2604448140
|
£1.32
|
£1.58
|
|
|
40 - DAMPING PLATE
BSD-2601022000.A228
2601022000
|
£1.75
|
£2.10
|
|
|
41 - CABLE L=233 MM
BSD-1614431010.A41
1614431010
|
£3.72
|
£4.47
|
|
|
42 - PLAIN WASHER
BSD-2600190150.A13
2600190150
|
-
|
|
|
|
43 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A670
2603490023
|
£1.84
|
£2.21
|
|
|
45 - SCREW 4x16
BSD-2603490022.A1786
2603490022
|
£1.84
|
£2.21
|
|
|
655 - FITTING
BSD-2605702029.A15
2605702029
|
-
|
|
|
|
656 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A269
2607950004
|
£1.84
|
£2.21
|
|
|
733 - BACKING PAD dia 115 MM
BSD-2608601065.A10
2608601065
|
£10.10
|
£12.12
|
|
|
733 - BACKING PAD dia 115 MM
BSD-2608601066.A8
2608601066
|
£8.74
|
£10.49
|
|
|
733 - BACKING PAD dia 115 MM
BSD-2608601064.A7
2608601064
|
£11.37
|
£13.64
|
|
|
752 - SUCTION HOOD dia 115 MM
BSD-2600282002.A7
2600282002
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411009.A28
2605411009
|
£12.24
|
£14.69
|
|
|
754 - DUST BAG
BSD-2605411025.A21
2605411025
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411026.A6
2605411026
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411027.A2
2605411027
|
-
|
|
|
|
756 - HANDLE M6x15 MM
BSD-2602026046.A24
2602026046
|
-
|
|
|
|
757 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A28
1609200976
|
£3.79
|
£4.55
|
|
|
808 - NAMEPLATE
BSD-2601119223.A0
2601119223
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321917.A48
2604321917
|
-
|
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A18
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A30
2601329051
|
£2.33
|
£2.80
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A457
2601322013
|
£1.84
|
£2.21
|
|
|
826 - FAN
BSD-2606610900.A14
2606610900
|
-
|
|
|
