Bosch PBH 380 / 0611227999 / EU 230 Volt Spare Parts

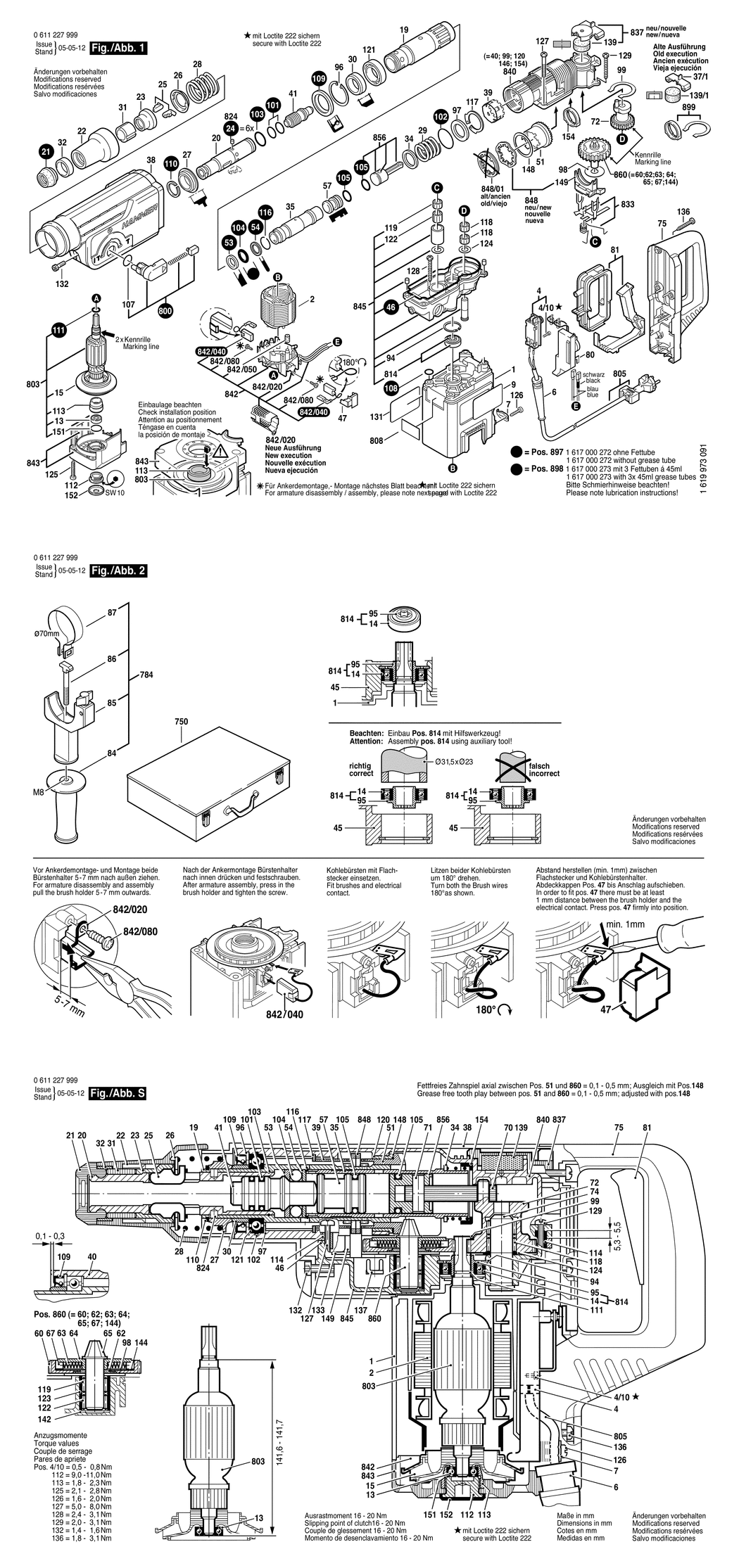

An exploded drawing and listing for the Bosch PBH 380 / 0611227999 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102142.A35 1615102142	£22.60	£27.12
2 - FIELD 220-230V BSD-1604220343.A40 1604220343	£33.74	£40.49
4 - SWITCH BSD-1617200048.A44 1617200048	£19.91	£23.89
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A88 2910011088	£1.84	£2.21
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A129 1610703053	£2.74	£3.29
7 - FASTENING CLAMP BSD-1601302018.A633 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110672.A5 1611110672	-
13 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A126 1610900025	£16.41	£19.69
15 - FAN BSD-1616610071.A31 1616610071	£9.49	£11.39
19 - GUIDE TUBE BSD-1615806121.A5 1615806121	-
20 - TOOLHOLDER BSD-1618597071.A14 1618597071	-
21 - PROTECTIVE CAP BSD-1610508017.A26 1610508017	£3.91	£4.69
22 - PROTECTION SLEEVE BSD-1610591009.A26 1610591009	-
23 - STOP SLEEVE BSD-1610520001.A94 1610520001	£12.64	£15.17
25 - STOPPING DEVICE BSD-1612300027.A110 1612300027	£11.87	£14.24
26 - INDEXING DISK BSD-1610290025.A44 1610290025	£6.85	£8.22
27 - RETAINING SNAP RING BSD-1610222008.A23 1610222008	-
28 - COMPRESSION SPRING BSD-1614621000.A13 1614621000	£2.94	£3.53
29 - COMPRESSION SPRING BSD-1614616008.A22 1614616008	£2.74	£3.29
30 - BALL RACE BSD-1610250007.A23 1610250007	-
31 - SPACER TUBE BSD-1610390015.A63 1610390015	-
32 - CYLINDER SLEEVE BSD-1610202016.A10 1610202016	-
34 - SUPPORTING DISC 1.5 MM BSD-1610102622.A14 1610102622	£1.95	£2.34
35 - HAMMER PIPE BSD-1615806089.A27 1615806089	-
38 - COVERING HOOD BSD-1615190064.A10 1615190064	-
39 - CLUTCH RING BSD-1610290024.A23 1610290024	-
41 - STRIKER PIN BSD-1613124036.A31 1613124036	-
46 - SEALING FRAME BSD-1611015036.A20 1611015036	-
47 - COVER BSD-1610591012.A16 1610591012	£1.84	£2.21
51 - CROWN GEAR Z=37 BSD-1616333023.A16 1616333023	-
53 - STOP DISC BSD-1610190023.A24 1610190023	£5.30	£6.36
54 - STOP DISC BSD-1610101014.A44 1610101014	-
57 - STRIKER BSD-1618710053.A16 1618710053	-
72 - ECCENTRIC COG WHEEL Z=35 BSD-1616337004.A2 1616337004	-
75 - HANDLE BSD-1615132059.A1 1615132059	-
80 - SPEED GOVERNOR 230-240V BSD-1617233024.A1 1617233024	-
81 - SWITCH-PAWL BSD-1612026055.A8 1612026055	£8.67	£10.41
84 - AUXILIARY HANDLE BSD-160202507H.A239 160202507H	£11.87	£14.24
85 - SUPPORT CLAMP dia 70 MM BSD-1618040056.A4 1618040056	-
86 - T-HEAD BOLT M8x80 MM BSD-1613490001.A27 1613490001	£9.11	£10.93
87 - CLAMPING BAND dia70 MM BSD-1611316008.A5 1611316008	-
94 - SPRING RETAINING RING BSD-1610119007.A24 1610119007	-
96 - SPRING RETAINING RING 55x2MM. DIN 472 BSD-2916660024.A52 2916660024	£5.57	£6.68
97 - SHIM RING DIN 988-45x55 BSD-2916190284.A37 2916190284	-
98 - FRICTION WASHER 0.5 MM BSD-1610101622.A22 1610101622	-
99 - HOLDING PLATE BSD-1610190030.A13 1610190030	£3.91	£4.69
101 - O-RING 20.0x3.0 MM BSD-1610210094.A27 1610210094	£2.80	£3.36
102 - O-RING 55.0x2.0 MM BSD-1610210095.A10 1610210095	£2.74	£3.29
103 - O-RING 27.0x1.5 MM BSD-1610210100.A31 1610210100	£3.91	£4.69
104 - O-RING 17.0x8.0 MM BSD-1610210093.A42 1610210093	£1.75	£2.10
105 - O-RING 21.0x3.5 MM BSD-1610210096.A36 1610210096	£2.94	£3.53
107 - O-RING 14.0x2.0 MM BSD-1610210116.A40 1610210116	£2.80	£3.36
108 - O-RING 8.0x1.5 MM BSD-1900210103.A68 1900210103	£2.94	£3.53
109 - ROTARY SHAFT LIP SEAL DIN 3760-BS. dia40x55x7 MM BSD-1610283028.A13 1610283028	£5.58	£6.70
110 - SPRING RETAINING RING BSD-1610116003.A24 1610116003	-
111 - O-RING 10.0x1.0 MM BSD-1610210081.A17 1610210081	£3.72	£4.47
112 - THREADED RING M24x1.5MM. SW10 BSD-1613461001.A19 1613461001	-
113 - BUSHING BSD-1610501036.A14 1610501036	£9.11	£10.93
116 - SPRING RETAINING RING BSD-1610116004.A21 1610116004	£1.75	£2.10
117 - SPRING RETAINING RING BSD-1610119008.A23 1610119008	£2.45	£2.94
118 - NEEDLE-ROLLER ASSEMBLY BSD-1610913009.A13 1610913009	-
119 - NEEDLE-ROLLER ASSEMBLY dia10 MM BSD-1610913011.A18 1610913011	£6.52	£7.83
121 - GROOVE BALL BEARING BSD-1610905014.A37 1610905014	-
122 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A101 1610913029	£4.48	£5.37
124 - THRUST BEARING DISC 1.0 MM BSD-1610101008.A60 1610101008	-
125 - TAPPING SCREW DIN7981-ST4.8x25-C-Z BSD-2912401036.A13 2912401036	£1.32	£1.58
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A520 2910211019	£1.84	£2.21
127 - OVAL-HEAD SCREW DIN 7985-M5x30-8.8 BSD-2912311166.A24 2912311166	£1.84	£2.21
128 - TAPPING SCREW DIN 7971-BZ4.8x32 BSD-2910211037.A83 2910211037	£1.84	£2.21
129 - TAPPING SCREW DIN 7981-ST4.8x32C-Z BSD-2912401037.A24 2912401037	£1.84	£2.21
131 - MANUFACTURER'S NAMEPLATE BSD-1611110673.A10 1611110673	£2.80	£3.36
132 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A76 2914551117	£1.84	£2.21
136 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A82 2910211236	£1.75	£2.10
139 - FELT DISC dia39x15 MM BSD-1610005002.A27 1610005002	-
148 - SHIM 0.3 MM BSD-1610102633.A13 1610102633	-
148 - SHIM 0.2 MM BSD-1610102627.A23 1610102627	-
149 - ADAPTING PIECE BSD-1612388021.A23 1612388021	-
151 - O-RING 21.0x2.0 MM BSD-2600210028.A16 2600210028	£1.38	£1.66
152 - COVER BSD-1610508030.A35 1610508030	-
154 - RETAINING SNAP RING BSD-1610222010.A20 1610222010	£9.49	£11.39
750 - CARRYING CASE BSD-2605438314.A0 2605438314	-
784 - AUXILIARY HANDLE dia 70 MM. M8 BSD-2602025062.A0 2602025062	£44.12	£52.94
800 - CLAMP HANDLE BSD-1617000945.A17 1617000945	-
803 - ARMATURE 220-240V BSD-1614010186.A4 1614010186	£108.30	£129.96
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A588 1607000227	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3H3.A3199 160111A3H3	£2.74	£3.29
814 - GROOVE BALL BEARING BSD-1617000822.A5 1617000822	-
824 - CYLINDRICAL ROLLER BSD-1617000271.A26 1617000271	£4.48	£5.37
833 - CONTROL FORK BSD-1617000949.A13 1617000949	-
837 - RETAINING BRACKET BSD-1617000291.A73 1617000291	-
840 - IMPACT MECHANISM HOUSING BSD-1617000811.A36 1617000811	-
842 - BRUSH HOLDER BSD-1614336009.A13 1614336009	-
842/020 - BRUSH GUIDE BSD-1614336043.A27 1614336043	-
842/040 - CARBON-BRUSH SET BSD-1617014122.A37 1617014122	£19.91	£23.89
842/050 - RUBBER BUFFER BSD-1613212004.A30 1613212004	£3.72	£4.47
842/080 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A220 2912401005	£1.84	£2.21
843 - BEARING COVER BSD-1615808078.A5 1615808078	-
845 - GEAR HOUSING BSD-1617000962.A36 1617000962	-
848 - CLUTCH SLEEVE BSD-1617000415.A13 1617000415	-
856 - HAMMER PISTON BSD-1617000999.A14 1617000999	-
860 - SPUR WHEEL CLUTCH BSD-1617000817.A0 1617000817	-
897 - WEAR AND TEAR PART SET BSD-1617000272.A10 1617000272	-
898 - WEAR AND TEAR PART SET BSD-1617000273.A10 1617000273	-
899 - HOLDING PLATE BSD-1617000293.A0 1617000293	-
