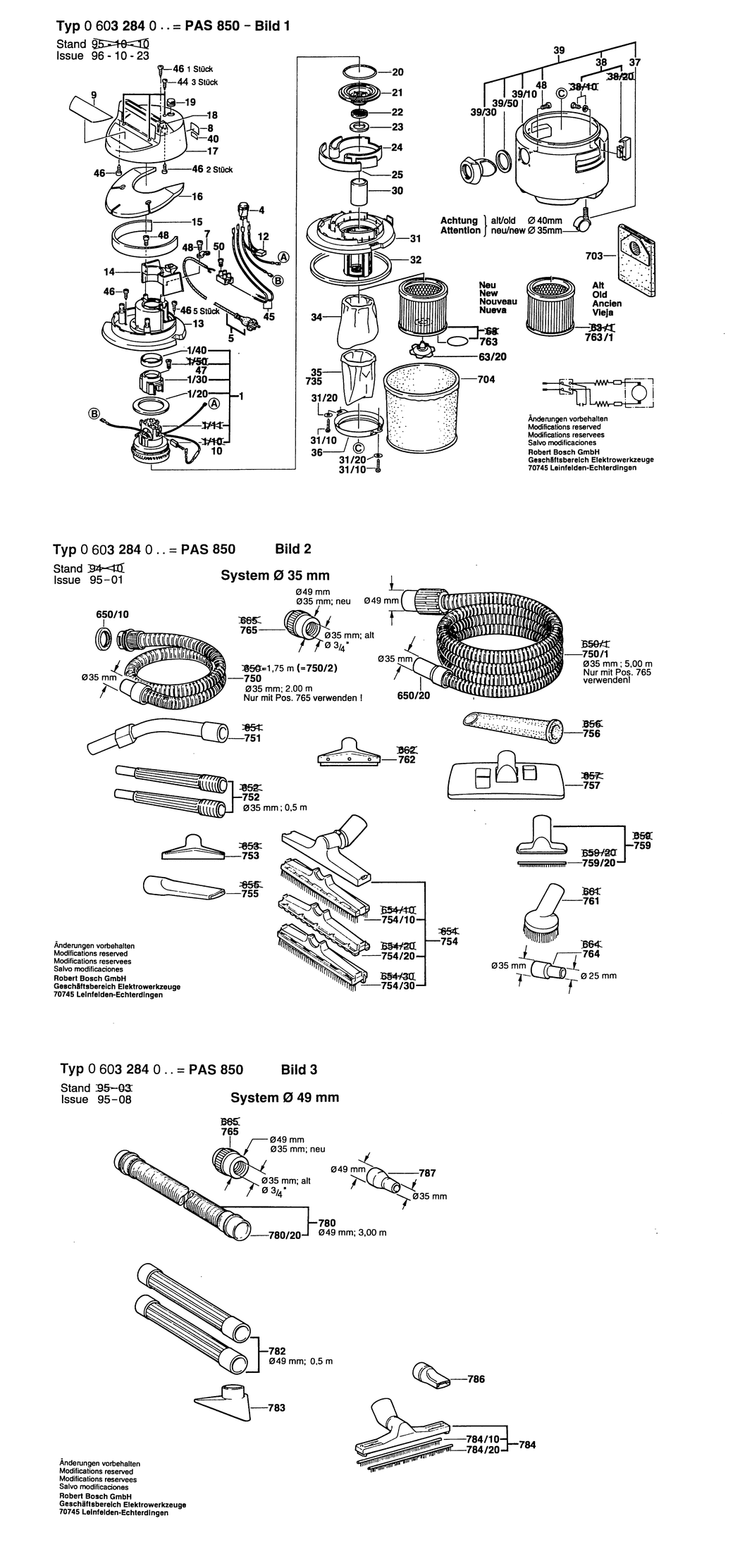

1 - SUCTION BLOWER 240V
BSD-1609390534.A0
1609390534
|
-
|
|
|
|
1/20 - RUBBER RING
BSD-1609390483.A2
1609390483
|
-
|
|
|
|
1/30 - PROTECTIVE CAP
BSD-1609390484.A6
1609390484
|
-
|
|
|
|
1/40 - SEAL RING
BSD-1609390487.A3
1609390487
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609390485.A2
1609390485
|
-
|
|
|
|
5 - CABLE
BSD-1609390525.A0
1609390525
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1609390488.A5
1609390488
|
-
|
|
|
|
8 - NAMEPLATE
BSD-1601110630.A0
1601110630
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110634.A1
1601110634
|
-
|
|
|
|
10 - CARBON-BRUSH SET
BSD-1609390489.A3
1609390489
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1609390490.A2
1609390490
|
-
|
|
|
|
13 - BLOWER COVER
BSD-1609390507.A5
1609390507
|
-
|
|
|
|
14 - COVER
BSD-1609390508.A3
1609390508
|
-
|
|
|
|
15 - DAMPING RING
BSD-1609390509.A5
1609390509
|
£2.05
|
£2.46
|
|
|
16 - DAMPING DISC
BSD-1609390510.A3
1609390510
|
-
|
|
|
|
17 - SEALING CAP
BSD-1609390511.A5
1609390511
|
-
|
|
|
|
18 - CARRYING HANDLE
BSD-1609390512.A3
1609390512
|
-
|
|
|
|
19 - PROTECTIVE FLAP
BSD-1609390513.A5
1609390513
|
-
|
|
|
|
20 - SEAL RING
BSD-1609390514.A3
1609390514
|
-
|
|
|
|
21 - SEAL
BSD-1609390515.A5
1609390515
|
-
|
|
|
|
22 - FILTER DISC
BSD-1609390516.A3
1609390516
|
-
|
|
|
|
23 - SEAL RING
BSD-1609390517.A5
1609390517
|
-
|
|
|
|
24 - INSULATING STRIP
BSD-1609390518.A3
1609390518
|
-
|
|
|
|
25 - INSULATING STRIP
BSD-1609390519.A5
1609390519
|
-
|
|
|
|
30 - FLOAT
BSD-1609390521.A3
1609390521
|
-
|
|
|
|
31 - FLOAT CHAMBER
BSD-1609390557.A5
1609390557
|
-
|
|
|
|
31/10 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A406
2910611006
|
£1.75
|
£2.10
|
|
|
31/20 - PLAIN WASHER DIN 9021-B 4.3-ST
BSD-2916011892.A19
2916011892
|
£1.84
|
£2.21
|
|
|
32 - SEAL RING
BSD-1609390523.A5
1609390523
|
-
|
|
|
|
34 - AIR FILTER
BSD-1609390524.A2
1609390524
|
£3.99
|
£4.79
|
|
|
36 - FRAME
BSD-1609390556.A0
1609390556
|
-
|
|
|
|
37 - IMPELLER dia 35 MM
BSD-1609390593.A6
1609390593
|
-
|
|
|
|
37 - IMPELLER dia 40 MM
BSD-1609390527.A3
1609390527
|
£9.49
|
£11.39
|
|
|
38 - BENT-LEVER CLOSURE
BSD-1609390528.A5
1609390528
|
-
|
|
|
|
39 - DUST CONTAINER dia 35 MM
BSD-1609390594.A2
1609390594
|
-
|
|
|
|
39/30 - FITTING
BSD-1609390558.A3
1609390558
|
-
|
|
|
|
39/50 - SEALING DISK
BSD-1609390553.A3
1609390553
|
-
|
|
|
|
44 - TAPPING SCREW 4.2x25 MM
BSD-1609390560.A4
1609390560
|
-
|
|
|
|
45 - CONNECTING CABLE
BSD-1609390530.A5
1609390530
|
-
|
|
|
|
46 - TAPPING SCREW DIN 7981 ST4.8x22-C-H
BSD-2910611035.A5
2910611035
|
-
|
|
|
|
47 - TAPPING SCREW DIN 7976-ST2.9x6.5-C-H
BSD-2910601304.A1
2910601304
|
-
|
|
|
|
48 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A407
2910611006
|
£1.75
|
£2.10
|
|
|
50 - CONNECTING TERMINAL
BSD-1609390591.A3
1609390591
|
-
|
|
|
|
650/10 - RUBBER RING
BSD-1609390555.A4
1609390555
|
£3.34
|
£4.01
|
|
|
650/20 - FITTING
BSD-1609203V36.A39
1609203V36
|
£25.05
|
£30.06
|
|
|
703 - DUST BAG
BSD-1609390472.A3
1609390472
|
-
|
|
|
|
704 - DUST SEPARATOR
BSD-2607001129.A1
2607001129
|
-
|
|
|
|
735 - PAPER BAG
BSD-1609390471.A1
1609390471
|
-
|
|
|
|
750 - AIR HOSE dia 35 MM. 2 M.1
BSD-2607000163.A61
2607000163
|
-
|
|
|
|
750/1 - AIR HOSE dia 35 MM. L=5 M
BSD-1609202230.A105
1609202230
|
£85.74
|
£102.89
|
|
|
750/2 - AIR HOSE dia 35 MM. 1.75 MM
BSD-1609390491.A2
1609390491
|
-
|
|
|
|
751 - SETTING TUBE dia 35 MM
BSD-2607000164.A20
2607000164
|
£23.68
|
£28.42
|
|
|
752 - SUCTION PIPE dia 35 MM. 0.5 MM
BSD-1609390492.A6
1609390492
|
-
|
|
|
|
753 - SUCTION NOZZLE dia 35 MM
BSD-2607000170.A20
2607000170
|
£13.78
|
£16.53
|
|
|
754 - SUCTION NOZZLE dia 35 MM
BSD-1609390478.A3
1609390478
|
£34.99
|
£41.99
|
|
|
754/10 - FLAT BRUSH
BSD-1609390493.A2
1609390493
|
£21.68
|
£26.01
|
|
|
754/20 - FLAT BRUSH
BSD-1609390494.A99
1609390494
|
-
|
|
|
|
754/30 - STRIP BRUSH
BSD-1609390495.A2
1609390495
|
£16.41
|
£19.69
|
|
|
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM
BSD-2607000165.A108
2607000165
|
£5.24
|
£6.29
|
|
|
756 - SUCTION NOZZLE dia 35 MM
BSD-1609201229.A64
1609201229
|
£18.37
|
£22.04
|
|
|
757 - SUCTION NOZZLE dia 35 MM
BSD-1609201230.A74
1609201230
|
£41.99
|
£50.39
|
|
|
759 - SUCTION NOZZLE dia 35 MM
BSD-2607000166.A20
2607000166
|
£9.18
|
£11.01
|
|
|
759/20 - BRUSH INSERT
BSD-1609202534.A53
1609202534
|
£2.80
|
£3.36
|
|
|
761 - SUCTION BRUSH dia 35 MM
BSD-1609390481.A72
1609390481
|
£8.74
|
£10.49
|
|
|
762 - SUCTION NOZZLE dia 35 MM
BSD-2607000168.A20
2607000168
|
-
|
|
|
|
763 - AIR FILTER dia147/dia185 MM
BSD-2609390304.A8
2609390304
|
-
|
|
|
|
763/1 - AIR FILTER dia147/dia185 MM
BSD-2609390304.A9
2609390304
|
-
|
|
|
|
764 - FITTING dia 25x35 MM
BSD-1600499005.A7
1600499005
|
£6.66
|
£7.99
|
|
|
765 - ADAPTER dia49/dia35 MM+dia3/4
BSD-1609390474.A5
1609390474
|
£6.62
|
£7.95
|
|
|
780 - AIR HOSE dia 49 MM. 3 M.1
BSD-2607000167.A83
2607000167
|
£67.98
|
£81.57
|
|
|
780/20 - FITTING dia 49 MM
BSD-1609390577.A3
1609390577
|
£5.58
|
£6.70
|
|
|
782 - SUCTION PIPE dia 49 MM. L=0.5 M
BSD-1609200968.A41
1609200968
|
£12.24
|
£14.69
|
|
|
783 - SUCTION NOZZLE dia 49 MM
BSD-2607000169.A40
2607000169
|
-
|
|
|
|
784 - SUCTION NOZZLE dia 49 MM. 350 MM
BSD-1609200970.A41
1609200970
|
£27.55
|
£33.06
|
|
|
784/10 - FLAT BRUSH
BSD-1609201109.A59
1609201109
|
-
|
|
|
|
784/20 - FLAT BRUSH
BSD-1609201110.A68
1609201110
|
-
|
|
|
|
786 - CREVICE NOZZLE dia 49 MM
BSD-1609200971.A81
1609200971
|
£7.87
|
£9.44
|
|
|
787 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A58
1609200976
|
£3.79
|
£4.55
|
|
