Bosch PAS 850 / 0603284032 / CH 220 Volt Spare Parts

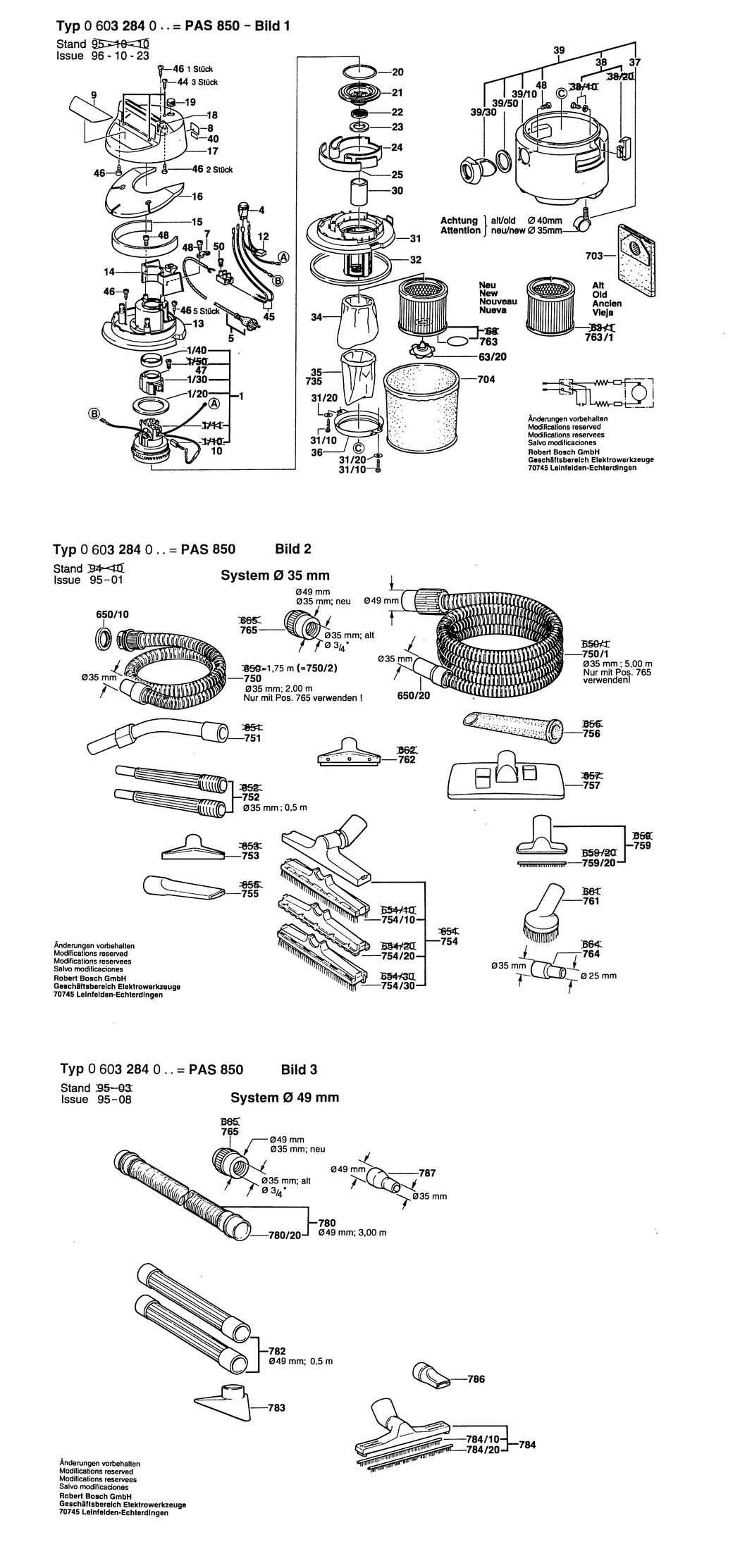

An exploded drawing and listing for the Bosch PAS 850 / 0603284032 / CH 220 Volt

	Ex VAT	Inc VAT
1 - SUCTION BLOWER 220V BSD-1609390575.A6 1609390575	-
1/20 - RUBBER RING BSD-1609390483.A4 1609390483	-
1/30 - PROTECTIVE CAP BSD-1609390484.A4 1609390484	-
1/40 - SEAL RING BSD-1609390487.A5 1609390487	-
4 - ON-OFF SWITCH BSD-1609390485.A4 1609390485	-
5 - POWER SUPPLY CORD BSD-1609390531.A0 1609390531	-
7 - FASTENING CLAMP BSD-1609390488.A3 1609390488	-
8 - NAMEPLATE BSD-1601110626.A0 1601110626	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601110634.A3 1601110634	-
10 - CARBON-BRUSH SET BSD-1609390489.A5 1609390489	-
12 - SUPPRESSION FILTER BSD-1609390490.A0 1609390490	-
13 - BLOWER COVER BSD-1609390507.A3 1609390507	-
14 - COVER BSD-1609390508.A5 1609390508	-
15 - DAMPING RING BSD-1609390509.A3 1609390509	£1.95	£2.34
16 - DAMPING DISC BSD-1609390510.A5 1609390510	-
17 - SEALING CAP BSD-1609390511.A3 1609390511	-
18 - CARRYING HANDLE BSD-1609390512.A5 1609390512	-
19 - PROTECTIVE FLAP BSD-1609390513.A3 1609390513	-
20 - SEAL RING BSD-1609390514.A5 1609390514	-
21 - SEAL BSD-1609390515.A3 1609390515	-
22 - FILTER DISC BSD-1609390516.A5 1609390516	-
23 - SEAL RING BSD-1609390517.A3 1609390517	-
24 - INSULATING STRIP BSD-1609390518.A5 1609390518	-
25 - INSULATING STRIP BSD-1609390519.A3 1609390519	-
30 - FLOAT BSD-1609390521.A5 1609390521	-
31 - FLOAT CHAMBER BSD-1609390557.A1 1609390557	-
31/10 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A410 2910611006	£1.75	£2.10
31/20 - PLAIN WASHER DIN 9021-B 4.3-ST BSD-2916011892.A17 2916011892	£1.75	£2.10
32 - SEAL RING BSD-1609390523.A3 1609390523	-
34 - AIR FILTER BSD-1609390524.A4 1609390524	£3.80	£4.56
36 - FRAME BSD-1609390556.A3 1609390556	-
37 - IMPELLER dia 35 MM BSD-1609390593.A3 1609390593	-
37 - IMPELLER dia 40 MM BSD-1609390527.A7 1609390527	£9.49	£11.39
38 - BENT-LEVER CLOSURE BSD-1609390528.A1 1609390528	-
39 - DUST CONTAINER dia 35 MM BSD-1609390594.A5 1609390594	-
39/30 - FITTING BSD-1609390558.A7 1609390558	-
39/50 - SEALING DISK BSD-1609390553.A4 1609390553	-
44 - TAPPING SCREW 4.2x25 MM BSD-1609390560.A5 1609390560	-
45 - CONNECTING CABLE BSD-1609390530.A3 1609390530	-
46 - TAPPING SCREW DIN 7981 ST4.8x22-C-H BSD-2910611035.A6 2910611035	-
47 - TAPPING SCREW DIN 7976-ST2.9x6.5-C-H BSD-2910601304.A2 2910601304	-
48 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A405 2910611006	£1.75	£2.10
50 - CONNECTING TERMINAL BSD-1609390591.A2 1609390591	-
650/10 - RUBBER RING BSD-1609390555.A5 1609390555	£3.34	£4.01
650/20 - FITTING BSD-1609203V36.A38 1609203V36	£23.86	£28.63
703 - DUST BAG BSD-1609390472.A2 1609390472	-
704 - DUST SEPARATOR BSD-2607001129.A2 2607001129	-
735 - PAPER BAG BSD-1609390471.A2 1609390471	-
750 - AIR HOSE dia 35 MM. 2 M.1 BSD-2607000163.A62 2607000163	-
750/1 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A104 1609202230	£85.74	£102.89
750/2 - AIR HOSE dia 35 MM. 1.75 MM BSD-1609390491.A3 1609390491	-
751 - SETTING TUBE dia 35 MM BSD-2607000164.A19 2607000164	£22.56	£27.07
752 - SUCTION PIPE dia 35 MM. 0.5 MM BSD-1609390492.A5 1609390492	-
753 - SUCTION NOZZLE dia 35 MM BSD-2607000170.A19 2607000170	£13.12	£15.74
754 - SUCTION NOZZLE dia 35 MM BSD-1609390478.A2 1609390478	£34.99	£41.99
754/10 - FLAT BRUSH BSD-1609390493.A3 1609390493	£21.68	£26.01
754/20 - FLAT BRUSH BSD-1609390494.A98 1609390494	-
754/30 - STRIP BRUSH BSD-1609390495.A3 1609390495	£16.41	£19.69
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM BSD-2607000165.A109 2607000165	£5.24	£6.29
756 - SUCTION NOZZLE dia 35 MM BSD-1609201229.A63 1609201229	£17.49	£20.99
757 - SUCTION NOZZLE dia 35 MM BSD-1609201230.A75 1609201230	£41.99	£50.39
759 - SUCTION NOZZLE dia 35 MM BSD-2607000166.A19 2607000166	£8.74	£10.49
759/20 - BRUSH INSERT BSD-1609202534.A54 1609202534	£2.80	£3.36
761 - SUCTION BRUSH dia 35 MM BSD-1609390481.A73 1609390481	£8.74	£10.49
762 - SUCTION NOZZLE dia 35 MM BSD-2607000168.A19 2607000168	-
763 - AIR FILTER dia147/dia185 MM BSD-2609390304.A6 2609390304	-
763/1 - AIR FILTER dia147/dia185 MM BSD-2609390304.A7 2609390304	-
764 - FITTING dia 25x35 MM BSD-1600499005.A6 1600499005	£3.49	£4.19
765 - ADAPTER dia49/dia35 MM+dia3/4 BSD-1609390474.A6 1609390474	£6.31	£7.57
780 - AIR HOSE dia 49 MM. 3 M.1 BSD-2607000167.A84 2607000167	£64.74	£77.69
780/20 - FITTING dia 49 MM BSD-1609390577.A4 1609390577	£5.58	£6.70
782 - SUCTION PIPE dia 49 MM. L=0.5 M BSD-1609200968.A40 1609200968	£12.24	£14.69
783 - SUCTION NOZZLE dia 49 MM BSD-2607000169.A41 2607000169	-
784 - SUCTION NOZZLE dia 49 MM. 350 MM BSD-1609200970.A42 1609200970	£26.24	£31.49
784/10 - FLAT BRUSH BSD-1609201109.A58 1609201109	-
784/20 - FLAT BRUSH BSD-1609201110.A69 1609201110	-
786 - CREVICE NOZZLE dia 49 MM BSD-1609200971.A80 1609200971	£7.87	£9.44
787 - SUCTION PIPE dia 49/35 MM BSD-1609200976.A59 1609200976	£3.61	£4.33
