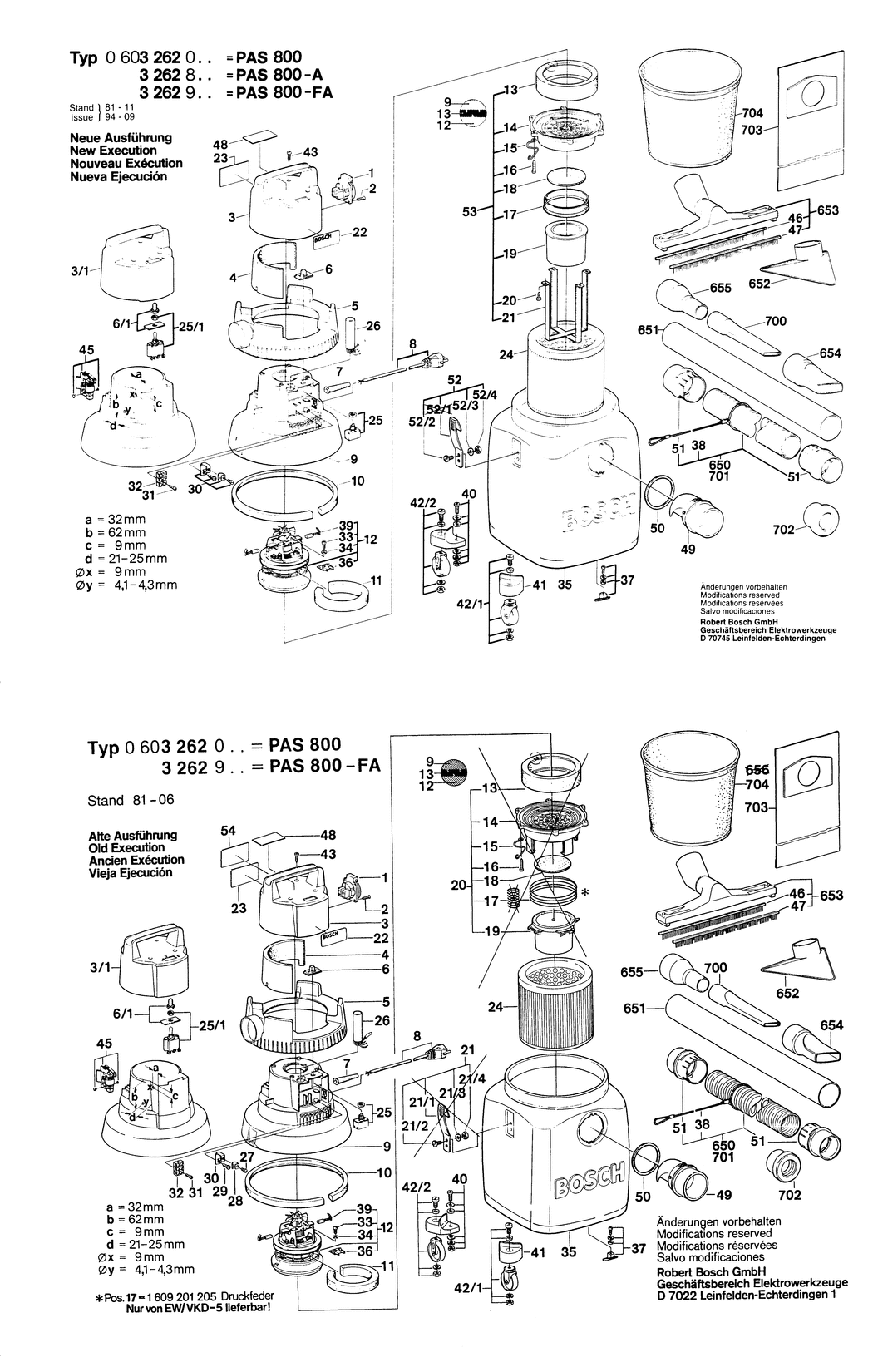

1 - SOCKET
BSD-1609200948.A3
1609200948
|
£21.52
|
£25.83
|
|
|
2 - TAPPING SCREW DIN 7982-ST3.5x16-F-H
BSD-2910601412.A46
2910601412
|
£2.74
|
£3.29
|
|
|
3 - COVERING HOOD
BSD-1609201111.A5
1609201111
|
-
|
|
|
|
4 - DAMPING PLATE
BSD-1609201096.A4
1609201096
|
-
|
|
|
|
5 - FAN COVER
BSD-1609200947.A14
1609200947
|
-
|
|
|
|
6 - COVER
BSD-1609200950.A7
1609200950
|
-
|
|
|
|
7 - GROMMET
BSD-1609201097.A15
1609201097
|
-
|
|
|
|
8 - CABLE
BSD-1609200972.A0
1609200972
|
-
|
|
|
|
9 - MOTOR HOUSING
BSD-1609200957.A15
1609200957
|
-
|
|
|
|
10 - SEAL RING
BSD-1609200958.A4
1609200958
|
-
|
|
|
|
11 - AIR FILTER
BSD-1609201098.A5
1609201098
|
-
|
|
|
|
12 - SUCTION BLOWER 220V
BSD-1609200961.A13
1609200961
|
-
|
|
|
|
13 - SOFT RUBBER
BSD-1609201099.A14
1609201099
|
-
|
|
|
|
14 - FASTENING FLANGE
BSD-1609200962.A2
1609200962
|
-
|
|
|
|
15 - HOLDING SPRING
BSD-1609201100.A5
1609201100
|
-
|
|
|
|
16 - LENS HEAD SCREW 4x32
BSD-2603490026.A94
2603490026
|
£1.84
|
£2.21
|
|
|
17 - SEAL RING
BSD-1609200963.A13
1609200963
|
-
|
|
|
|
17/1 - COMPRESSION SPRING
BSD-1609201205.A10
1609201205
|
-
|
|
|
|
18 - AIR FILTER
BSD-1609201101.A14
1609201101
|
-
|
|
|
|
19 - FLOAT
BSD-1609200952.A3
1609200952
|
-
|
|
|
|
20 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A123
2910611018
|
-
|
|
|
|
21 - RETAINING BRACKET
BSD-1609201102.A5
1609201102
|
-
|
|
|
|
22 - NAMEPLATE
BSD-1601110147.A0
1601110147
|
-
|
|
|
|
23 - REFERENCE PLATE
BSD-1601110142.A3
1601110142
|
-
|
|
|
|
24 - AIR FILTER dia 145 x dia 185 MM
BSD-1609200953.A16
1609200953
|
-
|
|
|
|
25 - ON-OFF SWITCH
BSD-1609200955.A4
1609200955
|
-
|
|
|
|
26 - SUPPRESSION CAPACITOR
BSD-1609200956.A4
1609200956
|
-
|
|
|
|
30 - CLAMP
BSD-1609201237.A7
1609201237
|
-
|
|
|
|
31 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A166
2910211007
|
£1.75
|
£2.10
|
|
|
32 - SLEEVE TERMINAL
BSD-1609201105.A14
1609201105
|
-
|
|
|
|
33 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A168
2910211017
|
-
|
|
|
|
34 - SPRING LOCK WASHER B 4 DIN 127
BSD-2916681005.A75
2916681005
|
£1.75
|
£2.10
|
|
|
35 - DUST CONTAINER
BSD-1609201200.A14
1609201200
|
-
|
|
|
|
36 - CONNECTION PLATE
BSD-1609200959.A15
1609200959
|
-
|
|
|
|
37 - MOUNTING PIECE
BSD-1609200965.A2
1609200965
|
-
|
|
|
|
38 - CORD
BSD-1609201106.A5
1609201106
|
-
|
|
|
|
40 - PARTS SET
BSD-1609201107.A14
1609201107
|
-
|
|
|
|
41 - FIXING PLATE
BSD-1609201108.A5
1609201108
|
-
|
|
|
|
42 - IMPELLER
BSD-1609200966.A17
1609200966
|
-
|
|
|
|
42 - IMPELLER
BSD-1609200974.A5
1609200974
|
-
|
|
|
|
43 - SCREW 4x16
BSD-2603490022.A1748
2603490022
|
£1.84
|
£2.21
|
|
|
45 - AUTOMATIC SWITCHING UNIT
BSD-1609201112.A4
1609201112
|
-
|
|
|
|
46 - FLAT BRUSH
BSD-1609201109.A14
1609201109
|
-
|
|
|
|
47 - FLAT BRUSH
BSD-1609201110.A113
1609201110
|
-
|
|
|
|
49 - FITTING
BSD-1609201201.A5
1609201201
|
-
|
|
|
|
50 - SEAL
BSD-1609201202.A14
1609201202
|
-
|
|
|
|
51 - CONNECTING PIECE
BSD-1609201203.A5
1609201203
|
-
|
|
|
|
52 - RETAINING BRACKET
BSD-1609201208.A14
1609201208
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM6x15-8.8
BSD-2910021196.A73
2910021196
|
-
|
|
|
|
52 - PLAIN WASHER DIN 9021-A6.4-ST
BSD-2916011884.A38
2916011884
|
-
|
|
|
|
52 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A465
2915011007
|
-
|
|
|
|
53 - FLOAT
BSD-1609201207.A5
1609201207
|
-
|
|
|
|
54 - REFERENCE PLATE
BSD-1601110228.A7
1601110228
|
-
|
|
|
|
650 - AIR HOSE dia 49 MM. 3 M.1
BSD-2607000167.A141
2607000167
|
£67.98
|
£81.57
|
|
|
651 - SUCTION PIPE dia 49 MM. L=0.5 M
BSD-1609200968.A2
1609200968
|
£12.24
|
£14.69
|
|
|
652 - SUCTION NOZZLE dia 49 MM
BSD-1609200969.A64
1609200969
|
-
|
|
|
|
653 - SUCTION NOZZLE dia 49 MM. 350 MM
BSD-1609200970.A2
1609200970
|
£27.55
|
£33.06
|
|
|
654 - CREVICE NOZZLE dia 49 MM
BSD-1609200971.A120
1609200971
|
£7.87
|
£9.44
|
|
|
655 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A13
1609200976
|
£3.79
|
£4.55
|
|
|
700 - CREVICE NOZZLE dia 35 MM. L= 250 MM
BSD-2607000165.A136
2607000165
|
£5.24
|
£6.29
|
|
|
701 - AIR HOSE dia 49 MM. 3 M.1
BSD-2607000167.A140
2607000167
|
£67.98
|
£81.57
|
|
|
702 - REDUCTION SLEEVE dia 49/35 MM+3/4
BSD-1609200933.A23
1609200933
|
£7.57
|
£9.08
|
|
|
703 - PAPER BAG
BSD-1609200934.A7
1609200934
|
-
|
|
|
|
704 - DUST SEPARATOR
BSD-2607432010.A19
2607432010
|
-
|
|
|
|
705 - CHASSIS
BSD-1609200931.A7
1609200931
|
-
|
|
|
|
706 - NOZZLE SET
BSD-1609201236.A21
1609201236
|
-
|
|
|
|
706 - AIR HOSE dia 35 MM. L=5 M
BSD-1609202230.A187
1609202230
|
£85.74
|
£102.89
|
|
|
706 - SUCTION BRUSH
BSD-1609201271.A8
1609201271
|
-
|
|
|
|
706 - SUCTION BRUSH
BSD-1609201272.A20
1609201272
|
-
|
|
|
|
706 - SUCTION BRUSH
BSD-1609201273.A8
1609201273
|
-
|
|
|
|
706 - REDUCTION SLEEVE dia 49/35 MM+3/4
BSD-1609200933.A24
1609200933
|
£7.57
|
£9.08
|
|
|
707 - AIR HOSE dia 35 MM. 2 M.1
BSD-2607000163.A102
2607000163
|
-
|
|
|
|
708 - SUCTION NOZZLE dia 35 MM
BSD-1609201229.A7
1609201229
|
£18.37
|
£22.04
|
|
|
709 - SUCTION NOZZLE dia 35 MM
BSD-1609201230.A131
1609201230
|
£41.99
|
£50.39
|
|
|
710 - FLAT SUCTION NOZZLE dia 35 MM-200 MM
BSD-1609201231.A7
1609201231
|
-
|
|
|
|
711 - SUCTION PIPE dia 35 MM. L=0.5 M
BSD-1609201232.A59
1609201232
|
-
|
|
|
|
712 - UPHOLSTERY NOZZLE dia 35 MM
BSD-1609201233.A7
1609201233
|
-
|
|
|
|
713 - SUCTION BRUSH
BSD-1609201234.A59
1609201234
|
-
|
|
|
|
714 - SUCTION NOZZLE dia 49 MM
BSD-1609201235.A7
1609201235
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1609200960.A4
1609200960
|
-
|
|
|
