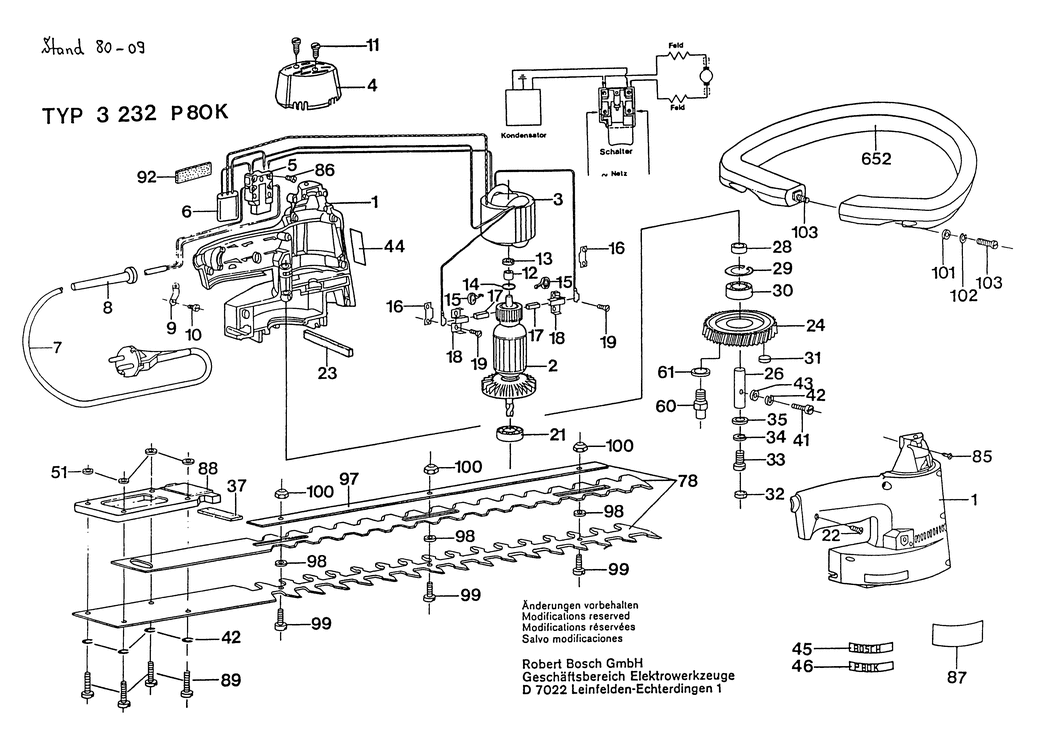

1 - HOUSING SECTION
BSD-2605104927.A17
2605104927
|
-
|
|
|
|
3 - POLE SHOE 220V
BSD-2604220434.A0
2604220434
|
-
|
|
|
|
4 - SEALING CAP
BSD-1605500066.A70
1605500066
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-1607200060.A36
1607200060
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-2607200142.A0
2607200142
|
-
|
|
|
|
6 - SUPPRESSION CAPACITOR
BSD-2607329106.A1
2607329106
|
-
|
|
|
|
7 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F
BSD-2604460255.A28
2604460255
|
£8.67
|
£10.41
|
|
|
8 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A61
1600703016
|
£1.75
|
£2.10
|
|
|
8 - GROMMET dia9.5 MM
BSD-2600703006.A164
2600703006
|
-
|
|
|
|
8 - GROMMET dia8.2 MM
BSD-2600703008.A79
2600703008
|
£1.84
|
£2.21
|
|
|
9 - FASTENING CLAMP
BSD-1601302014.A208
1601302014
|
£2.74
|
£3.29
|
|
|
10 - TAPPING SCREW DIN 7971-BZ3.9x6.5
BSD-2910211016.A61
2910211016
|
-
|
|
|
|
11 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A55
2910211017
|
-
|
|
|
|
12 - SINTERED-METAL BUSHING
BSD-1600301900.A83
1600301900
|
-
|
|
|
|
13 - FELT WASHER
BSD-1600205023.A120
1600205023
|
£1.38
|
£1.66
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A19
1610210014
|
-
|
|
|
|
15 - SPIRAL SPRING
BSD-1604652004.A123
1604652004
|
£2.74
|
£3.29
|
|
|
16 - BRUSH PLATE
BSD-1601034025.A39
1601034025
|
-
|
|
|
|
18 - BRUSH HOLDER
BSD-1601323007.A76
1601323007
|
-
|
|
|
|
19 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A31
2910601004
|
-
|
|
|
|
21 - BALL BEARING 8x22x7
BSD-1900905029.A134
1900905029
|
£22.60
|
£27.12
|
|
|
22 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A599
2910611019
|
£2.94
|
£3.53
|
|
|
23 - FELT STRIP
BSD-1601005003.A21
1601005003
|
-
|
|
|
|
24 - CYLINDRICAL GEAR Z=61
BSD-2606320020.A35
2606320020
|
-
|
|
|
|
26 - BEARING BOLT
BSD-2603103009.A13
2603103009
|
-
|
|
|
|
28 - SHIM WASHER
BSD-2600200003.A15
2600200003
|
-
|
|
|
|
29 - SPRING RETAINING RING 30x1.2MM. DIN 472
BSD-2916660012.A49
2916660012
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING
BSD-2600900003.A12
2600900003
|
-
|
|
|
|
31 - FELT DISC
BSD-2600005003.A10
2600005003
|
-
|
|
|
|
32 - FELT DISC
BSD-2600005001.A17
2600005001
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A180
2910021154
|
£1.75
|
£2.10
|
|
|
34 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A77
2916690004
|
£1.75
|
£2.10
|
|
|
35 - PLAIN WASHER 5-ST
BSD-2916021011.A12
2916021011
|
-
|
|
|
|
37 - FELT STRIP
BSD-2601005003.A5
2601005003
|
-
|
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A669
2910021125
|
£1.75
|
£2.10
|
|
|
42 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A795
2916690003
|
£1.75
|
£2.10
|
|
|
43 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A145
2916011010
|
£1.84
|
£2.21
|
|
|
44 - NAMEPLATE
BSD-2601105051.A12
2601105051
|
-
|
|
|
|
45 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A171
1601110013
|
-
|
|
|
|
46 - REFERENCE PLATE
BSD-2601110024.A1
2601110024
|
-
|
|
|
|
51 - LOCKING WASHER
BSD-2600113008.A21
2600113008
|
-
|
|
|
|
53 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A293
2915011007
|
-
|
|
|
|
60 - STUD BOLT
BSD-2603527007.A10
2603527007
|
-
|
|
|
|
61 - SHIM 0.2 MM
BSD-2600101651.A21
2600101651
|
-
|
|
|
|
61 - SHIM 0.3 MM
BSD-2600101654.A0
2600101654
|
£2.33
|
£2.80
|
|
|
78 - SET OF KNIVES
BSD-2608635074.A5
2608635074
|
-
|
|
|
|
85 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A284
2603490017
|
£2.27
|
£2.72
|
|
|
86 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2238
2603410001
|
£1.84
|
£2.21
|
|
|
87 - STICKER
BSD-2601110022.A20
2601110022
|
-
|
|
|
|
88 - COVER PLATE
BSD-2601010023.A13
2601010023
|
-
|
|
|
|
89 - PAN HEAD SCREW M 4x20 MM
BSD-2603410016.A13
2603410016
|
-
|
|
|
|
92 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A147
1602381001
|
-
|
|
|
|
97 - GUIDE
BSD-2601000033.A9
2601000033
|
-
|
|
|
|
98 - SUPPORTING DISC
BSD-2600100027.A1
2600100027
|
-
|
|
|
|
99 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A668
2910021125
|
£1.75
|
£2.10
|
|
|
100 - HEX NUT DIN 985-M4-8
BSD-2915061002.A44
2915061002
|
£1.84
|
£2.21
|
|
|
101 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A332
2916011014
|
£1.84
|
£2.21
|
|
|
102 - SPRING LOCK WASHER M6
BSD-2916690005.A112
2916690005
|
-
|
|
|
|
103 - SOCKET HEAD CAP SCREW DIN 84-AM6x20-5.8
BSD-2910011201.A5
2910011201
|
-
|
|
|
|
200 - CABLE
BSD-2604410022.A0
2604410022
|
-
|
|
|
|
201 - CABLE
BSD-2604448047.A2
2604448047
|
-
|
|
|
|
202 - CABLE
BSD-2604448048.A0
2604448048
|
-
|
|
|
|
652 - STRAP-SHAPED HANDLE
BSD-2602025004.A8
2602025004
|
-
|
|
|
|
700 - DUST BAG
BSD-1605411023.A11
1605411023
|
-
|
|
|
|
800 - .
BSD-0603299003.A0
0603299003
|
-
|
|
|
|
800 - REPAIR SET
BSD-0603299002.A21
0603299002
|
-
|
|
|
|
801 - PARTS SET
BSD-0603907203.A10
0603907203
|
-
|
|
|
|
817 - CARBON BRUSH
BSD-1604321900.A61
1604321900
|
-
|
|
|
