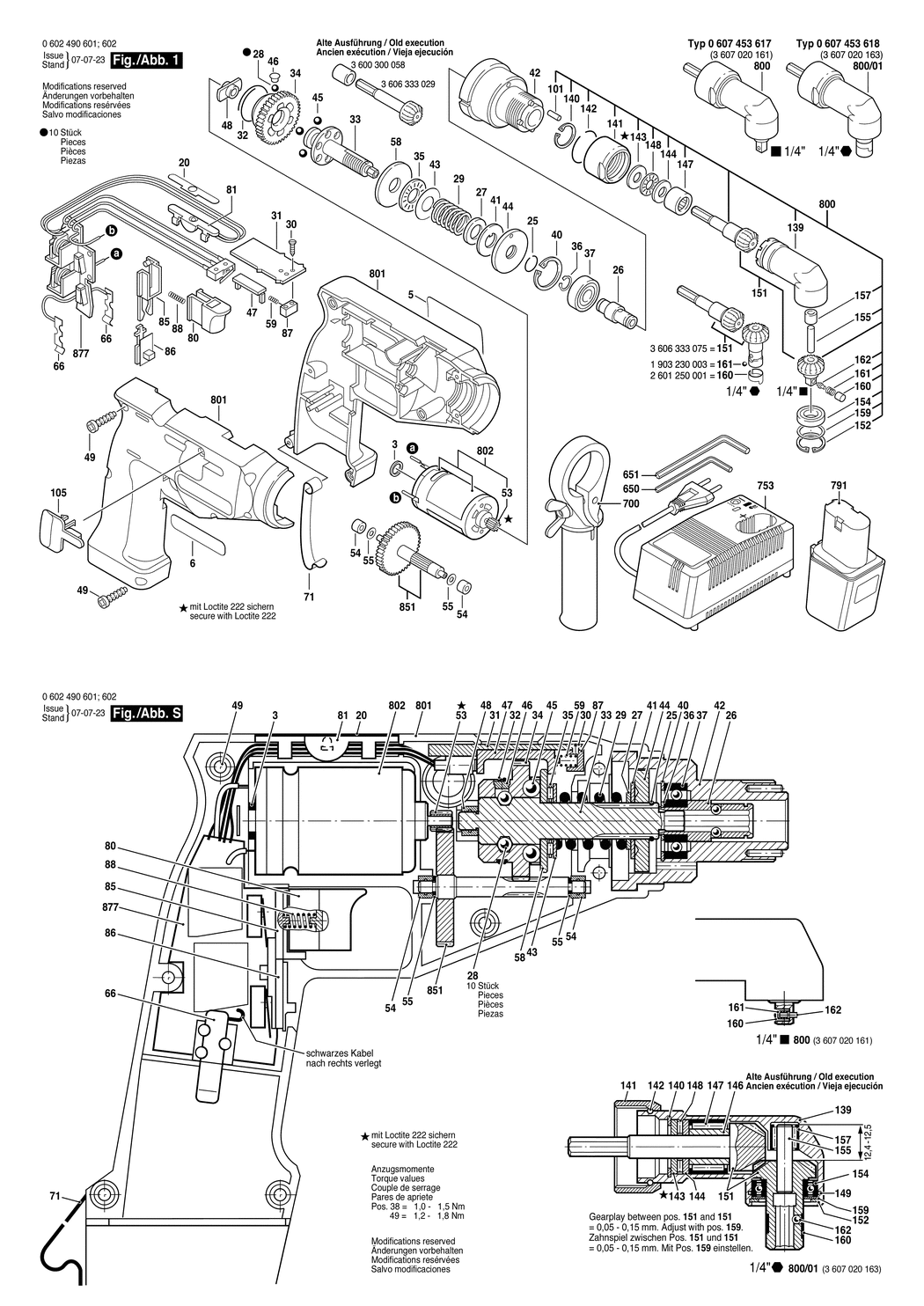

3 - LOCATING RING
BSD-3600200043.A22
3600200043
|
£5.30
|
£6.36
|
|
|
5 - STICKER
BSD-3601110252.A0
3601110252
|
-
|
|
|
|
6 - STICKER
BSD-2601110606.A60
2601110606
|
£1.75
|
£2.10
|
|
|
20 - STICKER
BSD-3601110256.A3
3601110256
|
£4.75
|
£5.70
|
|
|
25 - RETAINING RING 10 DIN 9045
BSD-2916600006.A94
2916600006
|
£1.84
|
£2.21
|
|
|
26 - TOOL HOLDING FIXTURE
BSD-3607218009.A7
3607218009
|
-
|
|
|
|
28 - BALL DIN 5401-5 G28
BSD-1903230009.A407
1903230009
|
£1.84
|
£2.21
|
|
|
29 - COMPRESSION SPRING
BSD-3604611020.A3
3604611020
|
-
|
|
|
|
30 - TAPPING SCREW DIN 7972-ST 2.2x6.5-C
BSD-2910601101.A1
2910601101
|
-
|
|
|
|
31 - BEARING PLATE
BSD-3601023007.A7
3601023007
|
-
|
|
|
|
32 - RETAINING RING
BSD-3604601001.A15
3604601001
|
£2.16
|
£2.59
|
|
|
33 - COUPLING HALF
BSD-3606455036.A10
3606455036
|
-
|
|
|
|
34 - COUPLING WHEEL
BSD-3606455037.A2
3606455037
|
-
|
|
|
|
35 - ROLLER THRUST BEARING
BSD-3600929008.A6
3600929008
|
£10.61
|
£12.73
|
|
|
36 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A291
2916650001
|
£2.74
|
£3.29
|
|
|
37 - GROOVE BALL BEARING
BSD-1600900042.A27
1600900042
|
£5.58
|
£6.70
|
|
|
40 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A28
2916660010
|
£1.75
|
£2.10
|
|
|
41 - CATCH DISK
BSD-3600106002.A8
3600106002
|
-
|
|
|
|
42 - ANGLE FLANGE
BSD-3605700119.A5
3605700119
|
-
|
|
|
|
43 - SUPPORT DISC
BSD-3600106003.A5
3600106003
|
-
|
|
|
|
44 - ROUND NUT
BSD-3603400003.A0
3603400003
|
-
|
|
|
|
45 - BALL DIN 5401-6 G28
BSD-1903230011.A296
1903230011
|
£2.74
|
£3.29
|
|
|
46 - SEALING PLATE
BSD-3601023008.A6
3601023008
|
-
|
|
|
|
47 - ACTUATING ELEMENT
BSD-3601923007.A7
3601923007
|
-
|
|
|
|
48 - PLAIN BEARING
BSD-3600917038.A7
3600917038
|
-
|
|
|
|
49 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A609
2910611019
|
£2.94
|
£3.53
|
|
|
53 - PINION Z=11
BSD-2606316112.A130
2606316112
|
£4.48
|
£5.37
|
|
|
54 - PLAIN BEARING
BSD-3600917037.A6
3600917037
|
-
|
|
|
|
55 - SHIM 0.3 MM
BSD-2600100636.A3
2600100636
|
-
|
|
|
|
58 - COUPLING PLATE
BSD-3606455038.A9
3606455038
|
-
|
|
|
|
59 - COMPRESSION SPRING
BSD-3604611021.A5
3604611021
|
-
|
|
|
|
66 - CONTACT SPRING
BSD-2601324012.A197
2601324012
|
£1.84
|
£2.21
|
|
|
71 - HOLDING SPRING dia8.7 MM
BSD-2601251003.A138
2601251003
|
-
|
|
|
|
80 - SWITCH SLIDE
BSD-3608750036.A1
3608750036
|
-
|
|
|
|
81 - LED-HOLDER
BSD-3608750037.A12
3608750037
|
-
|
|
|
|
85 - GUIDE PIECE
BSD-3602329026.A6
3602329026
|
-
|
|
|
|
86 - SWITCH
BSD-3607200063.A2
3607200063
|
-
|
|
|
|
87 - SPRING HOLDER
BSD-3602329027.A7
3602329027
|
-
|
|
|
|
88 - COMPRESSION SPRING
BSD-3604611022.A46
3604611022
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A767
3601119236
|
£3.91
|
£4.69
|
|
|
101 - STRAIGHT PIN DIN 6325-5M2.5x12
BSD-2917530057.A7
2917530057
|
£1.75
|
£2.10
|
|
|
105 - FILLER PIECE
BSD-2605510027.A45
2605510027
|
-
|
|
|
|
139 - SPINDLE HOUSING
BSD-3605106071.A30
3605106071
|
£135.25
|
£162.30
|
|
|
140 - SPRING RETAINING RING 18x1MM. DIN 472
BSD-2916660004.A31
2916660004
|
£1.75
|
£2.10
|
|
|
141 - UNION NUT
BSD-3603342002.A47
3603342002
|
£16.41
|
£19.69
|
|
|
142 - RETAINING RING DIN 9045-24
BSD-1614601009.A33
1614601009
|
£2.05
|
£2.46
|
|
|
143 - SUPPORT DISC
BSD-3600100094.A1
3600100094
|
£18.96
|
£22.75
|
|
|
144 - SUPPORT DISC
BSD-3600100095.A36
3600100095
|
£18.96
|
£22.75
|
|
|
147 - NEEDLE BEARING
BSD-3600917019.A12
3600917019
|
£11.87
|
£14.24
|
|
|
148 - ROLLER THRUST BEARING
BSD-3600929003.A5
3600929003
|
£21.52
|
£25.83
|
|
|
151 - BEVEL GEAR SET
BSD-3606333591.A8
3606333591
|
-
|
|
|
|
152 - SPRING RETAINING RING DIN 472-21x1MM
BSD-2916660045.A44
2916660045
|
£1.75
|
£2.10
|
|
|
154 - GROOVE BALL BEARING
BSD-3600900018.A44
3600900018
|
£23.86
|
£28.63
|
|
|
155 - NEEDLE ROLLER
BSD-3603201031.A50
3603201031
|
£2.61
|
£3.13
|
|
|
157 - NEEDLE BEARING
BSD-9001140359.A6
9001140359
|
£6.85
|
£8.22
|
|
|
159 - SHIM 0.05 MM
BSD-1600101650.A55
1600101650
|
£2.61
|
£3.13
|
|
|
159 - SHIM 0.1 MM
BSD-1600101648.A52
1600101648
|
£1.84
|
£2.21
|
|
|
160 - LEAF SPRING
BSD-2601250001.A92
2601250001
|
£3.72
|
£4.47
|
|
|
160 - GUIDE SLEEVE
BSD-3600400014.A6
3600400014
|
£10.10
|
£12.12
|
|
|
161 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A304
1903230003
|
£2.74
|
£3.29
|
|
|
161 - COMPRESSION SPRING
BSD-2604613003.A20
2604613003
|
£2.16
|
£2.59
|
|
|
162 - DETENT PIN
BSD-3603124015.A4
3603124015
|
£8.67
|
£10.41
|
|
|
650 - SCREWDRIVER
BSD-3607950014.A8
3607950014
|
-
|
|
|
|
651 - HEXAGON-SOCKET KEY
BSD-3607950001.A4
3607950001
|
£2.80
|
£3.36
|
|
|
700 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A61
2602025032
|
-
|
|
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A253
2607224701
|
£92.47
|
£110.96
|
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A167
2607224425
|
£88.07
|
£105.68
|
|
|
791 - ACCUMULATOR BATTERY 9.6V.1.4Ah.NiCd
BSD-2607335023.A1
2607335023
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 9.6V.1.4Ah. NiCd
BSD-2607335203.A22
2607335203
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 12V. 1.4Ah. NiCd
BSD-2607335021.A37
2607335021
|
-
|
|
|
|
800 - ANGLE SCREWDRIVER HEAD 1/4
BSD-3607020161.A5
3607020161
|
£1057.04
|
£1268.45
|
|
|
800/01 - ANGLE SCREWDRIVER HEAD 1/4
BSD-3607020163.A13
3607020163
|
£905.44
|
£1086.53
|
|
|
801 - HOUSING SECTION
BSD-3605105014.A12
3605105014
|
-
|
|
|
|
802 - DC MOTOR 9.6-12V
BSD-3607030294.A3
3607030294
|
£41.62
|
£49.95
|
|
|
851 - SPINDLE WITH GEAR
BSD-3607031548.A6
3607031548
|
-
|
|
|
|
877 - PRINTED-BOARD ASSEMBLY
BSD-3608300178.A2
3608300178
|
-
|
|
|
