Bosch H26-MLS / 3611BA4W00 / EU 230 Volt Spare Parts

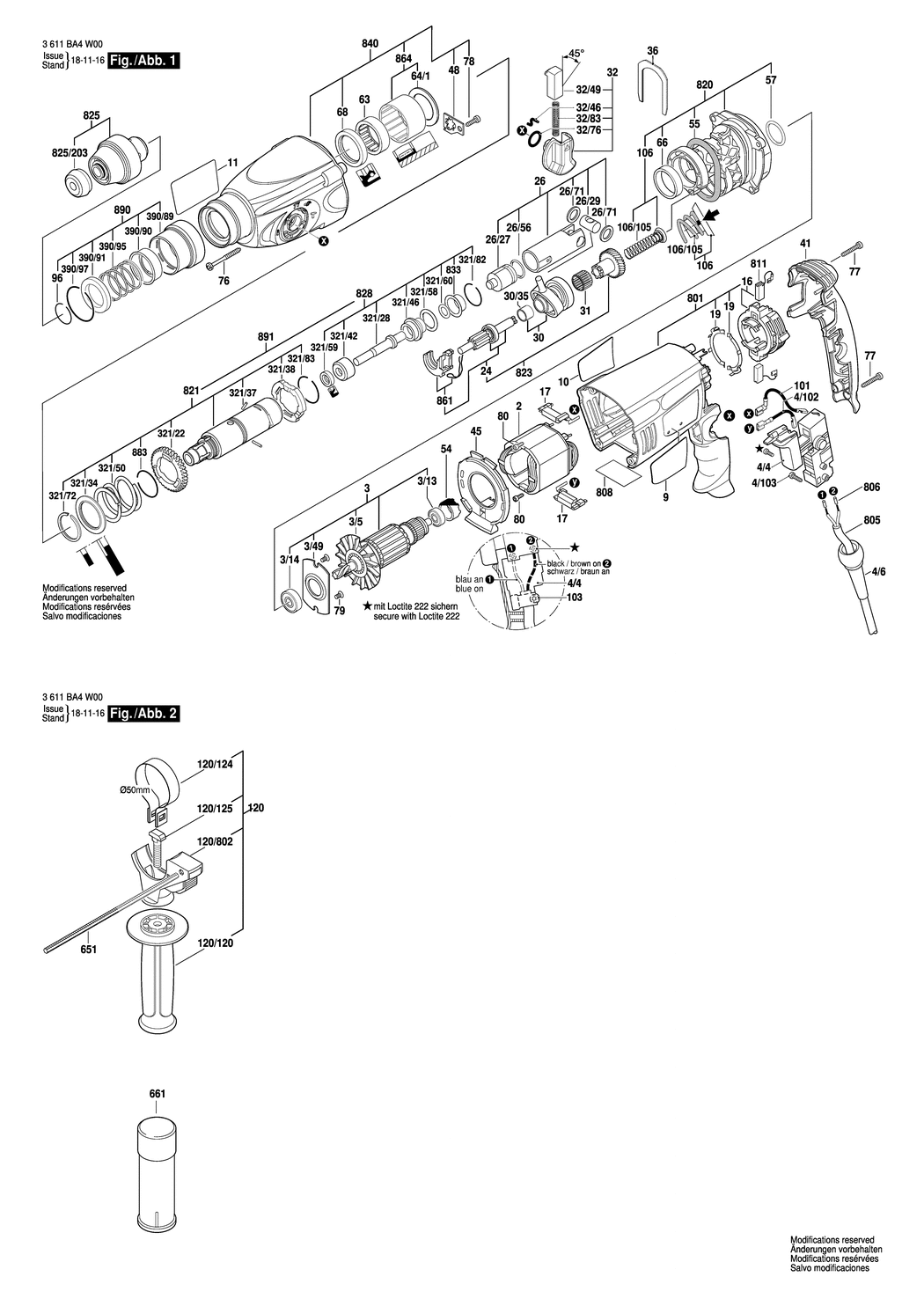

An exploded drawing and listing for the Bosch H26-MLS / 3611BA4W00 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220117.A40 1614220117	£16.41	£19.69
3 - ARMATURE 230V BSD-1614010709.A52 1614010709	£46.82	£56.18
3/5 - FAN BSD-1616610094.A30 1616610094	£2.16	£2.59
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A361 1610905025	£6.52	£7.83
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A139 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A184 1615700044	£2.16	£2.59
4/102 - CONNECTING CABLE BSD-1614449015.A88 1614449015	£1.75	£2.10
4/1/102 - CONNECTING CABLE BSD-1614449021.A6 1614449021	£1.75	£2.10
4/4 - SWITCH BSD-1617200545.A4 1617200545	£23.86	£28.63
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A157 1600703034	£2.61	£3.13
4/103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A393 1613435034	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0EX.A0 160111C0EX	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE BSD-160111C2RR.A0 160111C2RR	-
11 - REFERENCE PLATE BSD-1611110X17.A34 1611110X17	£3.72	£4.47
16 - BRUSH PLATE BSD-1614336061.A24 1614336061	£18.96	£22.75
17 - SUPPRESSION FILTER BSD-1614465011.A153 1614465011	£6.52	£7.83
19 - SWITCH CONTACT BSD-1611329024.A151 1611329024	£1.75	£2.10
24 - TOOTHED SHAFT BSD-1617000556.A73 1617000556	£40.80	£48.96
26 - HAMMER PISTON BSD-1617000557.A3 1617000557	£36.63	£43.96
26/27 - STRIKER BSD-1610311018.A74 1610311018	£18.96	£22.75
26/29 - PISTON PIN BSD-1613105012.A30 1613105012	£3.72	£4.47
26/56 - O-RING BSD-1610210187.A58 1610210187	£2.16	£2.59
26/71 - SHIM WASHER 1.2 MM BSD-1610101011.A420 1610101011	£1.75	£2.10
30 - DRIVE BEARING BSD-1615819028.A73 1615819028	£33.45	£40.14
30/35 - PLAIN BEARING BSD-1610202024.A75 1610202024	£5.30	£6.36
31 - NEEDLE-ROLLER ASSEMBLY BSD-1610913016.A59 1610913016	£3.72	£4.47
32 - CLAMP HANDLE BSD-1612026118.A8 1612026118	£11.30	£13.56
32/46 - DRIVER PIN BSD-1614690002.A263 1614690002	£1.75	£2.10
32/49 - SWITCH BUTTON BSD-1612026035.A196 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A409 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A159 1614611006	£3.72	£4.47
36 - HOLDING PLATE BSD-1611016003.A46 1611016003	£2.16	£2.59
41 - HOUSING COVER BSD-1615500369.A0 1615500369	£8.67	£10.41
45 - AIR-DEFLECTOR RING BSD-1610522013.A8 1610522013	£2.16	£2.59
48 - TAB WASHER BSD-1611098008.A46 1611098008	£2.16	£2.59
54 - RUBBER BUSHING BSD-1610502016.A7 1610502016	£1.75	£2.10
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A104 1610290226	£3.72	£4.47
57 - O-RING 24.0x2.5 MM BSD-1610210068.A399 1610210068	£1.75	£2.10
63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A245 1610910063	£5.58	£6.70
64/1 - SUPPORTING DISC BSD-1610190060.A1 1610190060	£2.16	£2.59
66 - PLAIN BEARING BSD-1610202021.A73 1610202021	£2.61	£3.13
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A73 1610283036	£7.36	£8.83
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A137 160343000A	£1.75	£2.10
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A194 2603490024	£1.75	£2.10
78 - SCREW 4x16 BSD-2603490022.A465 2603490022	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A133 1613435023	£1.75	£2.10
80 - SCREW BSD-1613435043.A57 1613435043	£1.75	£2.10
96 - RETAINING RING BSD-1614601046.A16 1614601046	£1.75	£2.10
101 - CONNECTING CABLE BSD-1614449014.A55 1614449014	£2.16	£2.59
106 - PLAIN BEARING BSD-1614611022.A64 1614611022	£2.61	£3.13
106/105 - COMPRESSION SPRING BSD-1614611021.A29 1614611021	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-160202507F.A3 160202507F	£18.96	£22.75
120/120 - AUXILIARY HANDLE BSD-1612025083.A1 1612025083	£8.67	£10.41
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A1 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A16 1613490002	£4.26	£5.11
120/802 - SUPPORT CLAMP BSD-16170006DF.A2 16170006DF	£7.36	£8.83
321/22 - CYLINDRICAL GEAR BSD-1616312004.A85 1616312004	£12.04	£14.45
321/28 - STRIKER PIN BSD-1613124082.A15 1613124082	£18.96	£22.75
321/34 - SUPPORTING DISC BSD-1610190067.A32 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A215 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A85 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610290099.A11 1610290099	£5.30	£6.36
321/46 - GUIDE BUSHING BSD-1610390066.A10 1610390066	£12.04	£14.45
321/50 - COMPRESSION SPRING BSD-1614611020.A64 1614611020	£2.80	£3.36
321/58 - O-RING BSD-1610210178.A91 1610210178	£1.75	£2.10
321/59 - SHAFT SEAL BSD-1600A009VC.A118 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.0x3.5 MM BSD-1610210176.A89 1610210176	£1.75	£2.10
321/72 - RETAINING RING BSD-1604601027.A150 1604601027	£1.75	£2.10
321/82 - RETAINING RING BSD-1614601034.A44 1614601034	£2.16	£2.59
321/83 - RETAINING RING A22 DIN 7993 BSD-1604601028.A116 1604601028	£1.75	£2.10
390/89 - GUIDE SLEEVE BSD-1610499059.A0 1610499059	£4.26	£5.11
390/90 - COLLAR SLEEVE BSD-1610590016.A49 1610590016	£4.26	£5.11
390/91 - BACKUP RING BSD-1610200033.A5 1610200033	£2.80	£3.36
390/95 - COMPRESSION SPRING BSD-1614643016.A71 1614643016	£2.16	£2.59
390/97 - RETAINING RING BSD-1614601047.A66 1614601047	£1.75	£2.10
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A484 1613001009	£3.72	£4.47
661 - OIL SPRAY TIN BSD-1615439012.A35 1615439012	£11.30	£13.56
801 - MOTOR HOUSING BSD-1617000V68.A6 1617000V68	£33.74	£40.49
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A163 1607000392	£21.52	£25.83
806 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A505 1900452012	£1.75	£2.10
808 - NAMEPLATE BSD-160111A3HD.A137 160111A3HD	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A244 1617000525	£11.30	£13.56
820 - INTERMEDIATE FLANGE BSD-16170006DX.A52 16170006DX	£30.28	£36.33
821 - PIPE BSD-1617000V42.A21 1617000V42	£63.50	£76.20
823 - TOOTHED SHAFT BSD-1617000579.A65 1617000579	£37.72	£45.27
825 - TOOL HOLDING FIXTURE BSD-1617000895.A61 1617000895	£46.82	£56.18
825/203 - PROTECTIVE CAP BSD-1610508047.A218 1610508047	£2.29	£2.75
828 - STRIKER PIN BSD-1617000V43.A11 1617000V43	£40.80	£48.96
833 - HOLDING JACKET BSD-1610590018.A23 1610590018	£4.75	£5.70
840 - ARMATURE 120V BSD-1607000V65.A0 1607000V65	£81.81	£98.17
861 - SWITCHING ELEMENT BSD-1615820097.A151 1615820097	£5.30	£6.36
864 - SUPPORTING DISC BSD-1617000A07.A8 1617000A07	£11.30	£13.56
883 - RETAINING RING A22 DIN 7993 BSD-1604601028.A117 1604601028	£1.75	£2.10
890 - GUIDE SLEEVE BSD-1617000V41.A59 1617000V41	£11.30	£13.56
891 - HAMMER PIPE BSD-1617000876.A23 1617000876	£80.61	£96.73
