Bosch H 28_MLS POWER / 3611B67W02 / EU 230 Volt Spare Parts

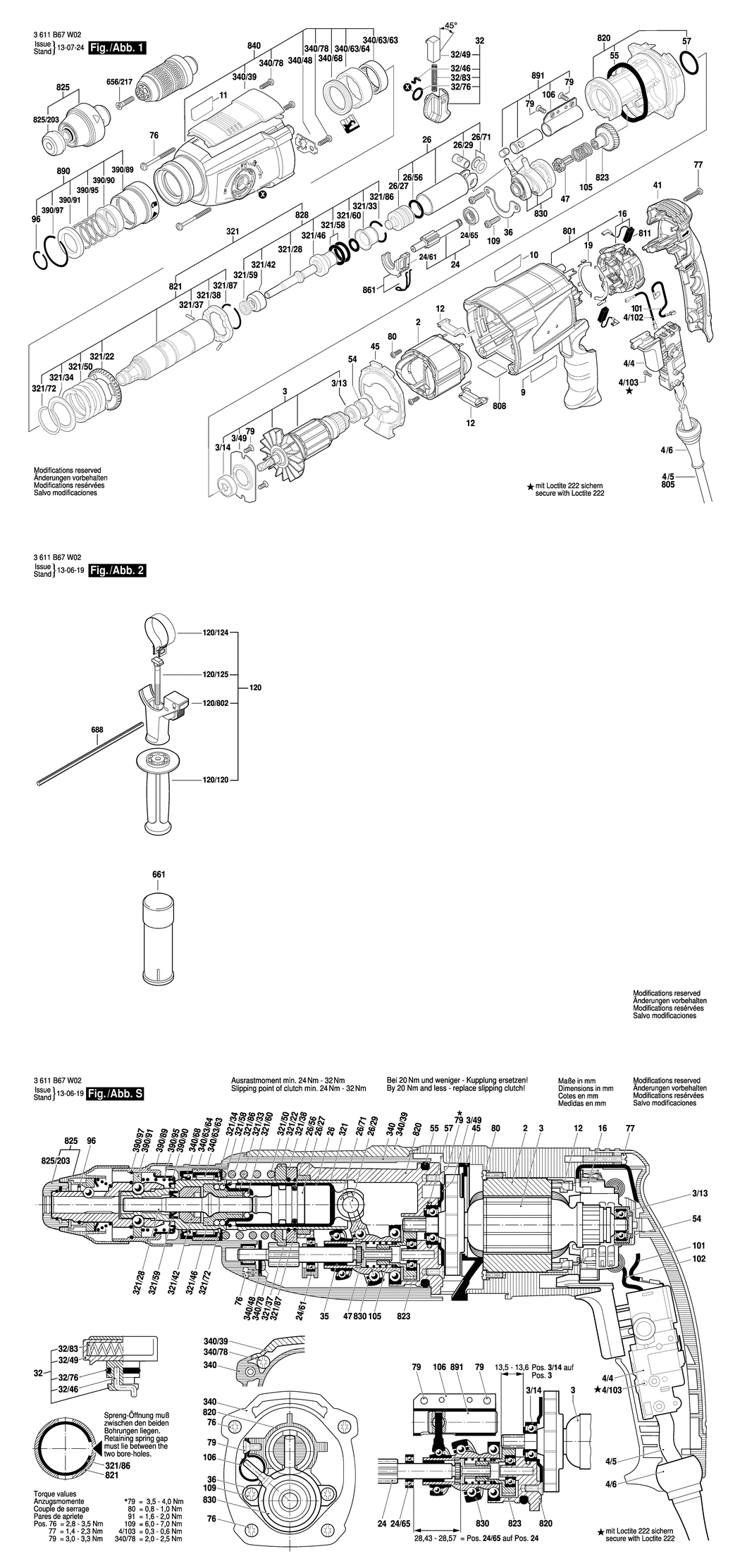

An exploded drawing and listing for the Bosch H 28_MLS POWER / 3611B67W02 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220208.A3 1614220208	£16.41	£19.69
3 - ARMATURE 230V BSD-1614010262.A10 1614010262	£54.42	£65.30
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A86 1610905032	£5.30	£6.36
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A1 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A75 1615700044	£2.16	£2.59
4/4 - SWITCH BSD-1617200545.A2 1617200545	£23.86	£28.63
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A94 1600703034	£2.61	£3.13
4/102 - CONNECTING CABLE BSD-1614449015.A27 1614449015	£1.75	£2.10
4/103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A281 1613435034	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE WÃ¼rth BSD-161111C010.A1 161111C010	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE H 28-MLS POWER BSD-161111C011.A1 161111C011	£2.61	£3.13
11 - REFERENCE PLATE BSD-161111C012.A0 161111C012	£2.80	£3.36
12 - SUPPRESSION FILTER BSD-1614465011.A87 1614465011	£6.52	£7.83
16 - BRUSH PLATE BSD-1614336093.A9 1614336093	£18.96	£22.75
19 - SWITCH CONTACT BSD-1611329024.A97 1611329024	£1.75	£2.10
24 - TOOTHED SHAFT BSD-16170006EJ.A9 16170006EJ	£36.62	£43.95
24/61 - SWITCHING ELEMENT BSD-1615820097.A122 1615820097	£5.30	£6.36
24/65 - GROOVE BALL BEARING BSD-1610905016.A145 1610905016	£10.10	£12.12
26 - HAMMER PISTON BSD-16170006A5.A58 16170006A5	£41.62	£49.95
26/27 - STRIKER BSD-1610311019.A60 1610311019	£21.52	£25.83
26/29 - PISTON PIN BSD-1613105020.A59 1613105020	£5.30	£6.36
26/56 - O-RING 17.0x3.0 MM BSD-1610210121.A144 1610210121	£2.61	£3.13
26/71 - GUIDE DISC BSD-1610100016.A15 1610100016	£1.75	£2.10
32 - CLAMP HANDLE BSD-161202616B.A2 161202616B	£12.04	£14.45
32/46 - DRIVER PIN BSD-1614690002.A194 1614690002	£1.75	£2.10
32/49 - SWITCH BUTTON BSD-1612026035.A284 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A308 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A30 1614611006	£3.72	£4.47
36 - BEARING HOLDER BSD-1615808106.A3 1615808106	£1.75	£2.10
41 - HOUSING COVER BSD-161550044A.A1 161550044A	£11.30	£13.56
45 - AIR-DEFLECTOR RING BSD-1610522015.A35 1610522015	£2.16	£2.59
47 - CONTROL ELEMENT BSD-1616312010.A35 1616312010	£5.58	£6.70
54 - RUBBER BUSHING BSD-1610502016.A61 1610502016	£1.75	£2.10
55 - O-RING 59.5x5.0 MM BSD-1610290104.A3 1610290104	£3.72	£4.47
57 - O-RING 24.0x2.0 MM BSD-1610210208.A53 1610210208	£1.75	£2.10
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A106 160343000A	£1.75	£2.10
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A329 2603490024	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435042.A37 1613435042	£1.75	£2.10
80 - SCREW BSD-1613435043.A0 1613435043	£1.75	£2.10
96 - RETAINING RING BSD-1614601046.A52 1614601046	£1.75	£2.10
101 - CONNECTING CABLE BSD-1614449014.A123 1614449014	£2.16	£2.59
105 - COMPRESSION SPRING BSD-1614643027.A15 1614643027	£1.75	£2.10
106 - PROTECTIVE SLEEVE BSD-1610590024.A35 1610590024	£2.16	£2.59
109 - THREAD-FORMING TAP. SCREW BSD-160343508E.A26 160343508E	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-160202507F.A2 160202507F	£18.96	£22.75
120/120 - AUXILIARY HANDLE BSD-1612025083.A7 1612025083	£8.67	£10.41
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A80 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A125 1613490002	£4.26	£5.11
120/802 - SUPPORT CLAMP BSD-16170006DF.A4 16170006DF	£7.36	£8.83
321 - TOOLHOLDER BSD-16170006BV.A46 16170006BV	£88.07	£105.68
321/22 - CYLINDRICAL GEAR BSD-1616312004.A49 1616312004	£12.04	£14.45
321/28 - STRIKER PIN BSD-1613124097.A13 1613124097	£21.68	£26.01
321/33 - HOLDING JACKET BSD-1610590020.A10 1610590020	£6.52	£7.83
321/34 - SUPPORTING DISC BSD-1610190067.A115 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A192 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A38 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102084.A47 1610102084	£8.67	£10.41
321/46 - GUIDE BUSHING BSD-1610390068.A73 1610390068	£16.41	£19.69
321/50 - COMPRESSION SPRING BSD-1614615008.A21 1614615008	£5.58	£6.70
321/58 - O-RING 18.0x3.5 MM BSD-1610210105.A125 1610210105	£4.26	£5.11
321/59 - SHAFT SEAL BSD-1600A009VC.A5 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.5x3.5 MM BSD-1610210209.A33 1610210209	£1.75	£2.10
321/72 - RETAINING RING BSD-1604601027.A99 1604601027	£1.75	£2.10
321/86 - RETAINING RING BSD-1614601034.A147 1614601034	£2.16	£2.59
321/87 - RETAINING RING A22 DIN 7993 BSD-1604601028.A198 1604601028	£1.75	£2.10
340/39 - COVER BSD-161550044B.A0 161550044B	£14.91	£17.89
340/48 - TAB WASHER BSD-1611098008.A1 1611098008	£2.16	£2.59
340/63/63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A232 1610910063	£5.58	£6.70
340/63/64 - BUSHING BSD-1610390069.A11 1610390069	£2.16	£2.59
340/68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A144 1610283036	£7.36	£8.83
340/78 - SCREW 4x16 BSD-2603490022.A885 2603490022	£1.75	£2.10
390/89 - GUIDE SLEEVE BSD-1600A00NC8.A21 1600A00NC8	£2.61	£3.13
390/90 - COLLAR SLEEVE BSD-1610590016.A33 1610590016	£4.26	£5.11
390/91 - BACKUP RING BSD-1610200033.A43 1610200033	£2.80	£3.36
390/95 - COMPRESSION SPRING BSD-1614643016.A26 1614643016	£2.16	£2.59
390/97 - RETAINING RING BSD-1614601047.A30 1614601047	£1.75	£2.10
661 - OIL SPRAY TIN BSD-1615439012.A28 1615439012	£11.30	£13.56
656/217 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A45 2603421229	£1.75	£2.10
688 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A641 1613001009	£3.72	£4.47
801 - MOTOR HOUSING BSD-1617000A4F.A1 1617000A4F	£37.27	£44.72
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A126 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3H5.A430 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A206 1617000525	£11.30	£13.56
811 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A71 1607000485	£72.18	£86.62
820 - INTERMEDIATE FLANGE BSD-16170006BT.A34 16170006BT	£46.37	£55.64
821 - TOOL HOLDING FIXTURE BSD-16170006BU.A3 16170006BU	£63.50	£76.20
823 - GEAR SLEEVE BSD-16170006BW.A3 16170006BW	£24.45	£29.34
825 - TOOL HOLDING FIXTURE BSD-1617000895.A25 1617000895	£46.82	£56.18
825/203 - PROTECTIVE CAP BSD-1610508047.A102 1610508047	£2.29	£2.75
828 - STRIKER PIN BSD-16170006A7.A12 16170006A7	£48.38	£58.06
830 - DRIVE BEARING BSD-16170006BX.A32 16170006BX	£37.72	£45.27
840 - GEAR HOUSING BSD-1617000A57.A2 1617000A57	£48.38	£58.06
861 - SWITCHING ELEMENT BSD-1615820097.A119 1615820097	£5.30	£6.36
890 - GUIDE SLEEVE BSD-1617000V41.A22 1617000V41	£11.30	£13.56
891 - WEIGHT BSD-16170006BZ.A35 16170006BZ	£6.52	£7.83
