Bosch H 24 MLS / 0611238781 / GB 230 Volt Spare Parts

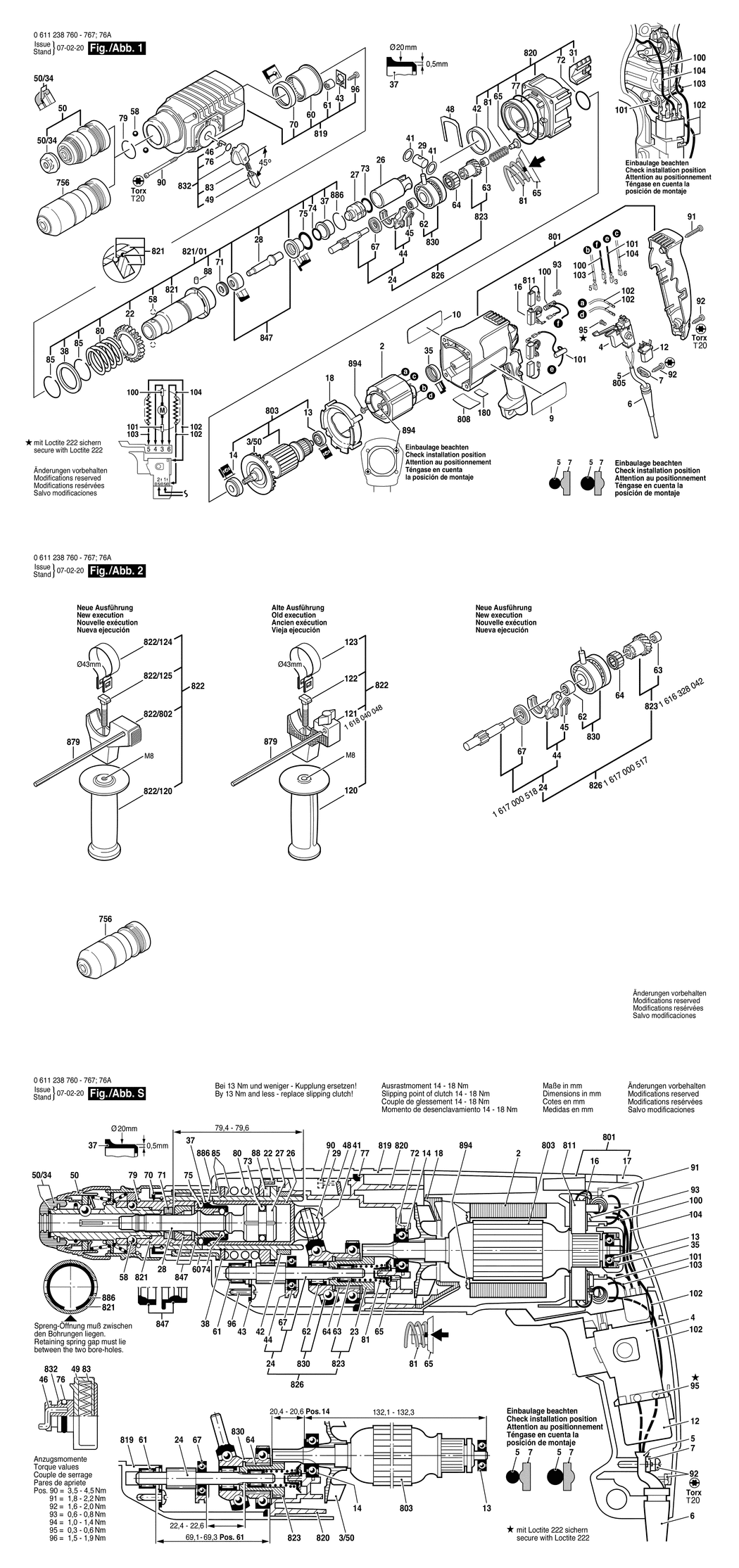

An exploded drawing and listing for the Bosch H 24 MLS / 0611238781 / GB 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 240V BSD-1614220171.A0 1614220171	£27.23	£32.68
3/50 - FAN BSD-1616610095.A2 1616610095	£2.16	£2.59
4 - SWITCH BSD-1617200077.A10 1617200077	£33.74	£40.49
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-3604460084.A29 3604460084	£21.68	£26.01
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A219 2600703018	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A91 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110D22.A0 1611110D22	-
10 - REFERENCE PLATE BSD-1611110F25.A2 1611110F25	£3.80	£4.56
12 - SUPPRESSION FILTER BSD-1617328026.A34 1617328026	£7.36	£8.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A70 1610905025	£6.52	£7.83
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A203 1610905048	£8.67	£10.41
16 - BRUSH HOLDER BSD-1617000343.A48 1617000343	£11.30	£13.56
17 - HOUSING COVER BSD-1615132098.A3 1615132098	£5.30	£6.36
18 - AIR-DEFLECTOR RING BSD-1610522009.A23 1610522009	£1.32	£1.58
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A134 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A8 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A22 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A104 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124052.A5 1613124052	£10.10	£12.12
29 - PISTON PIN BSD-1613105012.A375 1613105012	£3.72	£4.47
31 - PROTECTIVE GRILLE BSD-1615510003.A86 1615510003	£2.61	£3.13
35 - RUBBER RING BSD-1610206021.A120 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390017.A89 1610390017	£5.30	£6.36
38 - SUPPORTING DISC BSD-1610102026.A14 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A281 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A38 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A97 1611098005	£2.80	£3.36
44 - SWITCHING ELEMENT BSD-1615820092.A111 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A6 1614651014	£1.75	£2.10
46 - DRIVER PIN BSD-1614690002.A150 1614690002	£1.75	£2.10
48 - HOLDING PLATE BSD-1611016003.A127 1611016003	£2.16	£2.59
49 - SWITCH BUTTON BSD-1612026035.A115 1612026035	£1.75	£2.10
50 - QUICK-CHANGE COLLET CHUCK BSD-1617000327.A10 1617000327	£63.50	£76.20
50/34 - PROTECTIVE CAP BSD-1610508047.A5 1610508047	£2.29	£2.75
58 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A295 1903230010	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A133 1610910073	£11.30	£13.56
61 - NEEDLE BEARING BSD-1610910098.A41 1610910098	£3.72	£4.47
62 - NEEDLE BEARING BSD-1610910074.A10 1610910074	£3.72	£4.47
63 - NEEDLE BEARING BSD-1610910064.A58 1610910064	£2.52	£3.02
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A7 1610913010	£4.26	£5.11
65 - PLAIN BEARING BSD-1610591016.A103 1610591016	£2.80	£3.36
67 - GROOVE BALL BEARING BSD-1610905016.A100 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A21 1610283019	£7.36	£8.83
71 - SCRAPER BSD-1610290029.A41 1610290029	£3.72	£4.47
72 - O-RING 24.0x2.5 MM BSD-1610210068.A295 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A142 1610210187	£2.16	£2.59
74 - O-RING 11.0x3.5 MM BSD-1610210104.A47 1610210104	£2.61	£3.13
75 - O-RING 18.0x3.5 MM BSD-1610210105.A88 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A108 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A43 1610210106	£2.61	£3.13
79 - RETAINING RING BSD-1614601026.A9 1614601026	£1.75	£2.10
80 - COMPRESSION SPRING BSD-1614634005.A108 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A103 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A282 1614611006	£3.72	£4.47
85 - RETAINING RING BSD-1614601011.A44 1614601011	£1.75	£2.10
88 - ROLLER BSD-1613200007.A10 1613200007	£1.75	£2.10
90 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A90 1603435036	£1.75	£2.10
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A135 2603490026	£1.75	£2.10
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A156 2603490023	£1.75	£2.10
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A605 2910211005	£1.75	£2.10
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2858 2603410001	£1.75	£2.10
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A2 2912401018	£1.75	£2.10
100 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A165 2604465086	£5.58	£6.70
101 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A79 2604465097	£5.58	£6.70
102 - CABLE L=130 MM BSD-2604448005.A160 2604448005	£1.75	£2.10
103 - CONNECTING CABLE L=55 MM BSD-1614448017.A41 1614448017	£2.16	£2.59
104 - CONNECTING CABLE L=78 MM BSD-2604448137.A91 2604448137	-
657 - OIL SPRAY TIN BSD-1615439012.A4 1615439012	£11.30	£13.56
756 - KEYLESS CHUCK BSD-1617000332.A0 1617000332	£93.88	£112.65
801 - MOTOR HOUSING BSD-1617000333.A1 1617000333	-
803 - ARMATURE WITH FAN 240V BSD-1614010230.A7 1614010230	£81.81	£98.17
808 - NAMEPLATE BSD-160111A3HD.A60 160111A3HD	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617014134.A66 1617014134	£8.67	£10.41
819 - GEAR HOUSING BSD-1615806093.A49 1615806093	£48.38	£58.06
820 - INTERMEDIATE FLANGE BSD-1617000981.A86 1617000981	£27.23	£32.68
821 - TOOL HOLDING FIXTURE BSD-1617000325.A5 1617000325	£40.80	£48.96
821/01 - TOOL HOLDING FIXTURE BSD-1617000326.A8 1617000326	£63.50	£76.20
822 - AUXILIARY HANDLE BSD-2602025131.A22 2602025131	£14.72	£17.67
822/120 - AUXILIARY HANDLE M8 BSD-1612025019.A309 1612025019	£6.52	£7.83
822/124 - CLAMPING BAND dia43 MM BSD-1611316006.A31 1611316006	£2.61	£3.13
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A283 1613490002	£4.26	£5.11
822/802 - SUPPORT CLAMP BSD-2608040207.A17 2608040207	£6.61	£7.93
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A99 1616328042	£40.80	£48.96
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A107 1617000517	£72.18	£86.62
830 - DRIVE BEARING BSD-1615819018.A105 1615819018	£51.22	£61.47
832 - CLAMP HANDLE BSD-1612026037.A110 1612026037	£10.82	£12.99
847 - GUIDE RING BSD-1617000348.A0 1617000348	£14.91	£17.89
879 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A23 1613001009	£3.72	£4.47
886 - RETAINING RING BSD-1614601024.A133 1614601024	£1.75	£2.10
894 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A442 2603435015	£2.16	£2.59
