Bosch H 22-SLE / 3611B50402 / EU 230 Volt Spare Parts

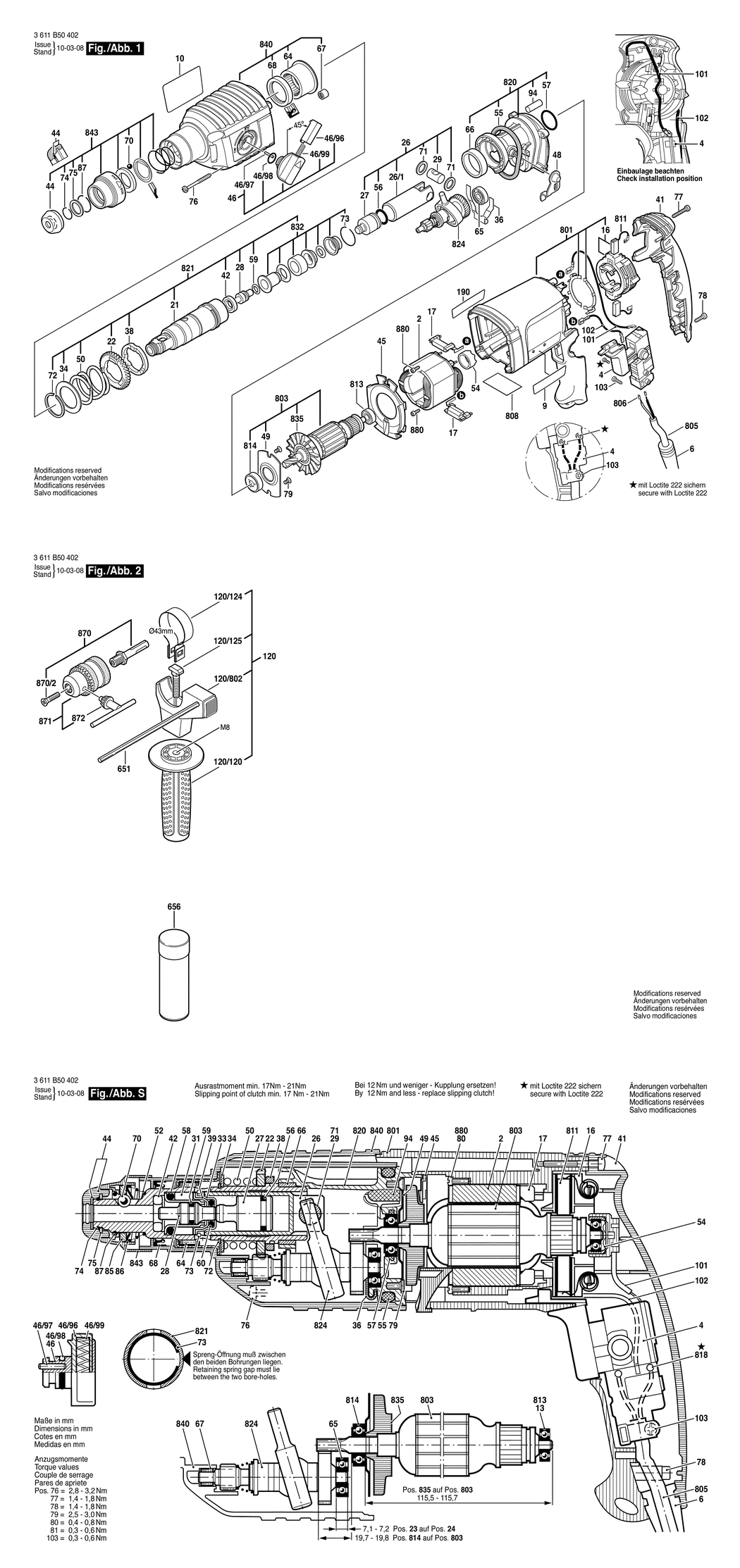

An exploded drawing and listing for the Bosch H 22-SLE / 3611B50402 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-230V BSD-2604220683.A7 2604220683	£23.86	£28.63
4 - SWITCH BSD-1617200545.A3 1617200545	£25.05	£30.06
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A90 2600703018	£2.74	£3.29
9 - MANUFACTURER'S NAMEPLATE BSD-1611110F53.A2 1611110F53	£3.72	£4.47
10 - REFERENCE PLATE BSD-1611110F54.A0 1611110F54	-
16 - BRUSH PLATE BSD-1614336061.A17 1614336061	£19.91	£23.89
17 - SUPPRESSION FILTER BSD-1614465011.A97 1614465011	£6.85	£8.22
21 - RATCHET SLEEVE BSD-2608670730.A21 2608670730	-
22 - CYLINDRICAL GEAR BSD-1616312003.A28 1616312003	£7.36	£8.83
26 - HAMMER PISTON BSD-1617000534.A2 1617000534	£21.68	£26.01
26/1 - HAMMER PISTON BSD-1618700075.A25 1618700075	£12.04	£14.45
27 - STRIKER BSD-1618710080.A28 1618710080	£7.36	£8.83
28 - STRIKER PIN dia7.5 MM BSD-1613124077.A17 1613124077	£7.36	£8.83
29 - PISTON PIN BSD-1613105012.A90 1613105012	£3.91	£4.69
34 - SUPPORTING DISC BSD-1610190067.A75 1610190067	£2.16	£2.59
36 - TENSIONING BRACKET BSD-1601329040.A2 1601329040	£1.75	£2.10
38 - CATCH DISK BSD-1610190045.A17 1610190045	£5.30	£6.36
41 - HOUSING COVER BSD-1615500365.A1 1615500365	£10.10	£12.12
42 - BACKUP RING BSD-1610422017.A5 1610422017	£4.26	£5.11
44 - PROTECTIVE CAP BSD-1610508047.A147 1610508047	£2.41	£2.89
45 - AIR-DEFLECTOR RING BSD-1610522012.A25 1610522012	£1.84	£2.21
46 - CLAMP HANDLE BSD-1612026097.A15 1612026097	£3.72	£4.47
46/96 - SWITCH BUTTON BSD-1612026035.A229 1612026035	£1.75	£2.10
46/97 - NEEDLE ROLLER BSD-1903201118.A9 1903201118	£1.75	£2.10
46/98 - O-RING 10.5x2.7 MM BSD-1610210046.A366 1610210046	£2.16	£2.59
46/99 - COMPRESSION SPRING BSD-1614611006.A92 1614611006	£3.91	£4.69
48 - SHIFT PLATE BSD-1601021005.A29 1601021005	£2.16	£2.59
49 - END SHIELD BSD-1615700044.A104 1615700044	£2.27	£2.72
50 - COMPRESSION SPRING BSD-1604611037.A14 1604611037	£2.80	£3.36
54 - RUBBER BUSHING BSD-1610502012.A31 1610502012	£1.84	£2.21
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A60 1610290226	£3.72	£4.47
56 - O-RING BSD-1610210187.A9 1610210187	£2.27	£2.72
57 - O-RING 24.0x2.5 MM BSD-1610210068.A422 1610210068	£1.75	£2.10
59 - O-RING 9.0x2.0 MM BSD-1610210177.A14 1610210177	£2.16	£2.59
64 - PLAIN BEARING BSD-1610202026.A14 1610202026	£5.57	£6.68
65 - GROOVE BALL BEARING BSD-1600900037.A16 1600900037	£7.72	£9.27
66 - PLAIN BEARING BSD-1610202020.A25 1610202020	£2.16	£2.59
67 - NEEDLE BEARING BSD-1610910098.A8 1610910098	£3.91	£4.69
68 - ROTARY SHAFT LIP SEAL BSD-1610283017.A7 1610283017	£7.36	£8.83
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A70 1903230013	£2.16	£2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A402 1610101011	£1.75	£2.10
72 - RETAINING RING BSD-1604601027.A34 1604601027	£1.75	£2.10
73 - RETAINING RING BSD-1614601057.A30 1614601057	£1.75	£2.10
74 - RETAINING RING BSD-1614601027.A28 1614601027	£1.84	£2.21
75 - RETAINING WASHER BSD-1610101629.A76 1610101629	£1.84	£2.21
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A76 160343000A	£1.84	£2.21
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A347 2603490024	£1.75	£2.10
78 - SCREW 4x16 BSD-2603490022.A942 2603490022	£1.84	£2.21
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A37 1613435023	£1.84	£2.21
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A59 2916540012	-
94 - FELT SEAL BSD-1610205010.A24 1610205010	£1.84	£2.21
101 - CONNECTING CABLE BSD-1614449014.A127 1614449014	£2.16	£2.59
102 - CONNECTING CABLE BSD-1614449015.A23 1614449015	£1.84	£2.21
103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A244 1613435034	£1.84	£2.21
120 - AUXILIARY HANDLE BSD-1612025076.A0 1612025076	-
120/120 - AUXILIARY HANDLE BSD-1612025069.A6 1612025069	£6.52	£7.83
120/124 - CLAMPING BAND dia43 MM BSD-1611316006.A397 1611316006	£2.61	£3.13
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A70 1613490002	£4.48	£5.37
120/802 - SUPPORT CLAMP BSD-2608040207.A0 2608040207	£6.61	£7.93
190 - MANUFACTURER'S NAMEPLATE BSD-1611110F53.A3 1611110F53	£3.72	£4.47
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A561 1613001009	£3.91	£4.69
656 - OIL SPRAY TIN BSD-1615439012.A31 1615439012	£11.87	£14.24
801 - MOTOR HOUSING BSD-1617000472.A0 1617000472	£37.27	£44.72
803 - ARMATURE WITH FAN 220-230V BSD-1617000524.A3 1617000524	£71.84	£86.21
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A109 1614460026	£18.96	£22.75
806 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A503 1900452012	£1.75	£2.10
808 - NAMEPLATE BSD-160111A3HD.A120 160111A3HD	£2.74	£3.29
811 - CARBON-BRUSH SET BSD-1617000525.A151 1617000525	£11.87	£14.24
813 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A333 1610905025	£6.52	£7.83
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A56 1610905048	£8.67	£10.41
820 - INTERMEDIATE FLANGE BSD-1617000526.A4 1617000526	£28.59	£34.31
821 - RATCHET SLEEVE BSD-1617000V81.A16 1617000V81	£72.18	£86.62
824 - TOOTHED SHAFT BSD-1617000892.A27 1617000892	£58.76	£70.51
832 - GUIDE SLEEVE BSD-1617000529.A26 1617000529	£12.64	£15.17
835 - FAN BSD-1616610093.A22 1616610093	£2.27	£2.72
840 - GEAR HOUSING BSD-1617000471.A1 1617000471	£45.67	£54.80
843 - PROTECTION SLEEVE BSD-1617000531.A29 1617000531	£11.30	£13.56
870 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A135 1617000154	£33.22	£39.87
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A62 2603421207	£1.84	£2.21
871 - CHUCK BSD-1608571088.A31 1608571088	£28.59	£34.31
872 - CHUCK WRENCH SG2 BSD-2607950007.A1706 2607950007	£6.85	£8.22
