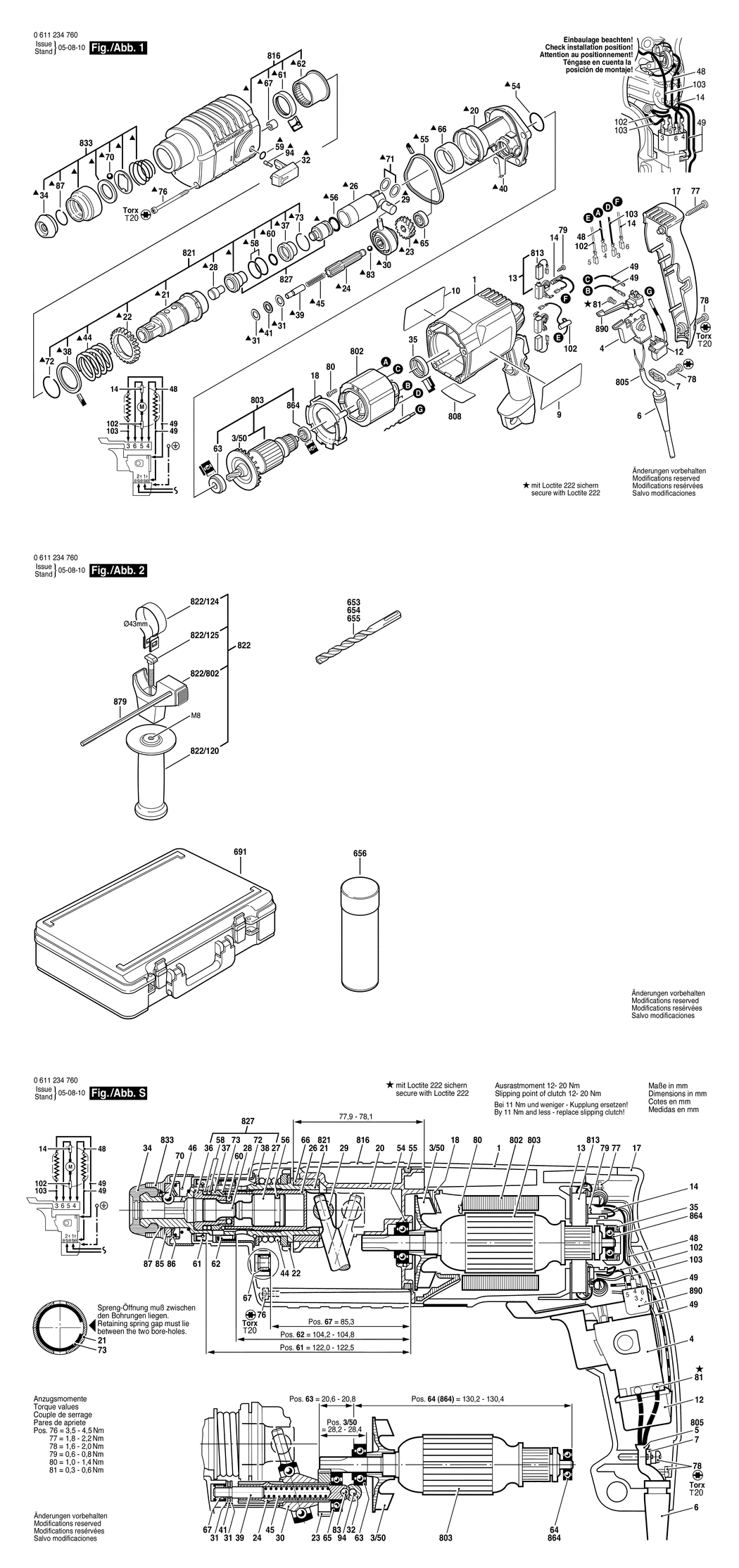

1 - MOTOR HOUSING
BSD-1615108088.A0
1615108088
|
-
|
|
|
|
3/50 - FAN
BSD-1616610072.A46
1616610072
|
£2.27
|
£2.72
|
|
|
4 - SWITCH
BSD-1617200083.A6
1617200083
|
-
|
|
|
|
6 - GROMMET dia7.3-dia8.6x76 MM
BSD-2600703018.A200
2600703018
|
£2.74
|
£3.29
|
|
|
7 - CABLE CLIP
BSD-1611035005.A83
1611035005
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110F20.A0
1611110F20
|
-
|
|
|
|
10 - REFERENCE PLATE
BSD-1611110F21.A0
1611110F21
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328040.A103
1607328040
|
£6.52
|
£7.83
|
|
|
13 - BRUSH HOLDER
BSD-1617000343.A10
1617000343
|
£11.87
|
£14.24
|
|
|
14 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A183
2604465086
|
£5.58
|
£6.70
|
|
|
17 - HOUSING COVER
BSD-1615132071.A1
1615132071
|
-
|
|
|
|
18 - AIR-DEFLECTOR RING
BSD-1610522008.A95
1610522008
|
£1.84
|
£2.21
|
|
|
20 - INTERMEDIATE FLANGE
BSD-1615700037.A15
1615700037
|
£40.80
|
£48.96
|
|
|
21 - RATCHET SLEEVE SDS-PLUS
BSD-1616490058.A6
1616490058
|
£218.41
|
£262.09
|
|
|
22 - CYLINDRICAL GEAR Z=46
BSD-1616320007.A11
1616320007
|
£7.36
|
£8.83
|
|
|
23 - CYLINDRICAL GEAR Z=6/21
BSD-1616320002.A26
1616320002
|
£24.45
|
£29.34
|
|
|
24 - TOOTHED SHAFT Z=6/10
BSD-1613060010.A133
1613060010
|
£54.42
|
£65.30
|
|
|
26 - HAMMER PISTON
BSD-1618700052.A122
1618700052
|
£13.78
|
£16.54
|
|
|
28 - STRIKER PIN
BSD-1613124026.A131
1613124026
|
£2.80
|
£3.36
|
|
|
29 - PISTON PIN
BSD-1613105012.A385
1613105012
|
£3.91
|
£4.69
|
|
|
30 - DRIVE BEARING
BSD-1615819005.A130
1615819005
|
£31.64
|
£37.97
|
|
|
31 - SUPPORT DISC 0.8 MM
BSD-1610100003.A17
1610100003
|
£1.84
|
£2.21
|
|
|
32 - CLAMP HANDLE
BSD-1612026023.A15
1612026023
|
£2.74
|
£3.29
|
|
|
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS
BSD-1610508008.A269
1610508008
|
£2.27
|
£2.72
|
|
|
35 - RUBBER RING
BSD-1610206021.A136
1610206021
|
£1.84
|
£2.21
|
|
|
37 - DAMPING BUSHING
BSD-1610390011.A116
1610390011
|
£3.72
|
£4.47
|
|
|
38 - SUPPORTING DISC
BSD-1610102022.A121
1610102022
|
£2.16
|
£2.59
|
|
|
39 - STRAIGHT PIN
BSD-1613100013.A53
1613100013
|
£2.16
|
£2.59
|
|
|
40 - HOLDING SPRING
BSD-1614690001.A19
1614690001
|
£1.84
|
£2.21
|
|
|
41 - ROLLER-CAGE ASSEMBLY
BSD-1610920003.A41
1610920003
|
£4.26
|
£5.11
|
|
|
44 - COMPRESSION SPRING
BSD-1614633001.A130
1614633001
|
£2.52
|
£3.02
|
|
|
45 - COMPRESSION SPRING
BSD-1614614001.A23
1614614001
|
£1.84
|
£2.21
|
|
|
48 - CONNECTING CABLE L=78 MM
BSD-2604448137.A71
2604448137
|
-
|
|
|
|
49 - CABLE L=130 MM
BSD-2604448005.A188
2604448005
|
£1.84
|
£2.21
|
|
|
54 - O-RING 24.0x2.5 MM
BSD-1610210068.A227
1610210068
|
£1.75
|
£2.10
|
|
|
55 - SEAL RING
BSD-1610206023.A48
1610206023
|
£2.94
|
£3.53
|
|
|
56 - O-RING 14.0x3.0 MM
BSD-1610210070.A120
1610210070
|
£2.61
|
£3.13
|
|
|
58 - O-RING 18.0x3.0 MM
BSD-1610210058.A147
1610210058
|
£2.61
|
£3.13
|
|
|
59 - O-RING 6.0x2.5 MM
BSD-1610210069.A42
1610210069
|
£1.84
|
£2.21
|
|
|
60 - O-RING 10.0x3.5 MM
BSD-1610210073.A17
1610210073
|
£2.16
|
£2.59
|
|
|
61 - ROTARY SHAFT LIP SEAL
BSD-1610283017.A176
1610283017
|
£7.36
|
£8.83
|
|
|
62 - PLAIN BEARING
BSD-1610202026.A69
1610202026
|
£5.57
|
£6.68
|
|
|
63 - GROOVE BALL BEARING 9x24x7
BSD-1610905048.A213
1610905048
|
£8.67
|
£10.41
|
|
|
64 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A56
1610905025
|
£6.52
|
£7.83
|
|
|
65 - GROOVE BALL BEARING 8x22x7
BSD-1900900228.A172
1900900228
|
£6.61
|
£7.93
|
|
|
66 - BUSHING dia30xdia37x15.7 MM
BSD-1610301000.A16
1610301000
|
£3.34
|
£4.01
|
|
|
67 - NEEDLE BEARING
BSD-1610910064.A119
1610910064
|
£2.64
|
£3.17
|
|
|
70 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A540
1903230013
|
£2.16
|
£2.59
|
|
|
71 - SHIM WASHER 1.2 MM
BSD-1610101011.A248
1610101011
|
£1.75
|
£2.10
|
|
|
72 - RETAINING RING DIN 7993-A32
BSD-2916540018.A115
2916540018
|
£3.72
|
£4.47
|
|
|
73 - RETAINING RING DIN 9045-24
BSD-1614601009.A60
1614601009
|
£2.05
|
£2.46
|
|
|
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20
BSD-1613435009.A8
1613435009
|
£1.75
|
£2.10
|
|
|
77 - TAPPING SCREW ST3.9x32
BSD-1603435051.A35
1603435051
|
£2.05
|
£2.46
|
|
|
78 - TAPPING SCREW ST3.9x19-TORX.T20
BSD-1603435050.A60
1603435050
|
£2.33
|
£2.80
|
|
|
79 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A581
2910211005
|
£1.75
|
£2.10
|
|
|
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A458
2603435015
|
£2.27
|
£2.72
|
|
|
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2876
2603410001
|
£1.84
|
£2.21
|
|
|
83 - BALL 5 MM V DIN 5401
BSD-1903230309.A152
1903230309
|
£1.84
|
£2.21
|
|
|
87 - RETAINING RING DIN 7993-A22
BSD-2916540012.A308
2916540012
|
-
|
|
|
|
94 - DETENT PIN
BSD-1613120017.A21
1613120017
|
£1.84
|
£2.21
|
|
|
102 - SUPPRESSION FILTER L=126 MM
BSD-2604465097.A63
2604465097
|
£5.58
|
£6.70
|
|
|
103 - CONNECTING CABLE L=55 MM
BSD-1614448017.A48
1614448017
|
£2.16
|
£2.59
|
|
|
656 - OIL SPRAY TIN
BSD-1615439008.A6
1615439008
|
-
|
|
|
|
691 - CARRYING CASE
BSD-1615438291.A0
1615438291
|
-
|
|
|
|
802 - FIELD 220-230V
BSD-2604220429.A45
2604220429
|
£23.86
|
£28.63
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1614010039.A25
1614010039
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1614460026.A45
1614460026
|
£18.96
|
£22.75
|
|
|
808 - NAMEPLATE
BSD-160111A3HD.A81
160111A3HD
|
£2.74
|
£3.29
|
|
|
813 - CARBON-BRUSH SET
BSD-1617014134.A39
1617014134
|
£9.11
|
£10.93
|
|
|
816 - GEAR HOUSING
BSD-1615806143.A3
1615806143
|
-
|
|
|
|
821 - RATCHET SLEEVE
BSD-1617000812.A18
1617000812
|
-
|
|
|
|
822 - AUXILIARY HANDLE
BSD-2602025131.A18
2602025131
|
£14.72
|
£17.67
|
|
|
822/120 - AUXILIARY HANDLE M8
BSD-1612025019.A324
1612025019
|
£6.85
|
£8.22
|
|
|
822/124 - CLAMPING BAND dia43 MM
BSD-1611316006.A69
1611316006
|
£2.61
|
£3.13
|
|
|
822/125 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A237
1613490002
|
£4.48
|
£5.37
|
|
|
822/802 - SUPPORT CLAMP
BSD-2608040207.A8
2608040207
|
£6.61
|
£7.93
|
|
|
827 - STRIKER
BSD-1617000338.A27
1617000338
|
£28.59
|
£34.31
|
|
|
833 - PROTECTION SLEEVE
BSD-1617000163.A205
1617000163
|
£7.72
|
£9.27
|
|
|
879 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A79
1613001009
|
£3.91
|
£4.69
|
|
|
890 - CHANGE-OVER SWITCH
BSD-2607200231.A168
2607200231
|
£17.22
|
£20.67
|
|
