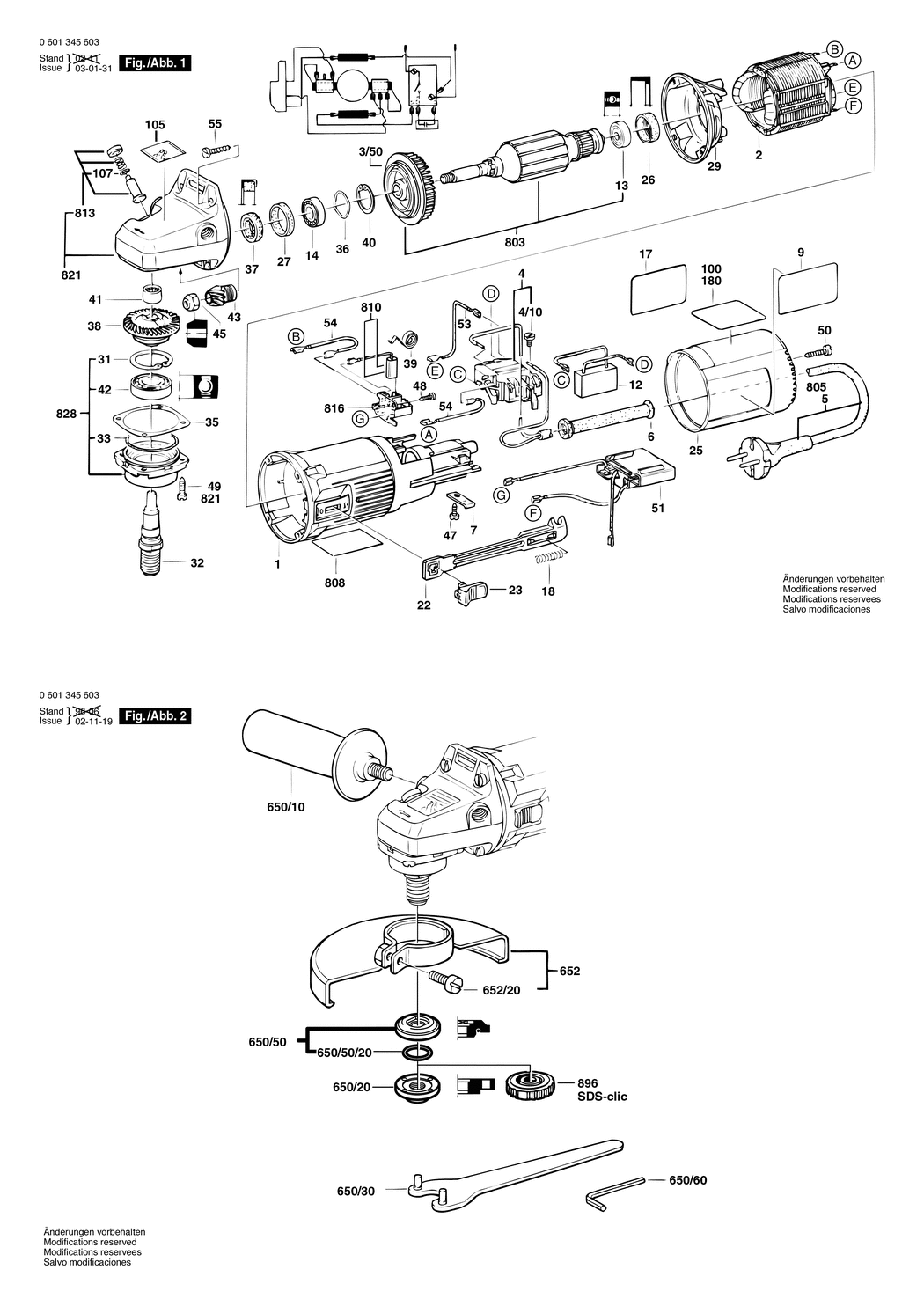

1 - MOTOR HOUSING
BSD-16051082CC.A55
16051082CC
|
£13.12
|
£15.75
|
|
|
2 - FIELD 220-230V
BSD-1604220220.A21
1604220220
|
£37.27
|
£44.72
|
|
|
3/50 - FAN
BSD-1606610121.A108
1606610121
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A318
1607200086
|
£11.30
|
£13.56
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A589
2910110048
|
£1.75
|
£2.10
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460148.A19
1604460148
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1681
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A873
1601302017
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110610.A4
1601110610
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328029.A96
1607328029
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A980
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A213
2600905052
|
£7.72
|
£9.27
|
|
|
17 - MANUFACTURER'S NAMEPLATE
BSD-1601110777.A0
1601110777
|
-
|
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A515
1604611026
|
£1.84
|
£2.21
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A50
1602319002
|
£2.61
|
£3.13
|
|
|
23 - SWITCH HANDLE
BSD-1602026057.A475
1602026057
|
£2.07
|
£2.48
|
|
|
25 - HOUSING COVER
BSD-1600508010.A60
1600508010
|
£7.36
|
£8.83
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A106
1600502020
|
£2.61
|
£3.13
|
|
|
27 - RUBBER RING
BSD-1600206025.A1062
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A218
1601328005
|
£2.61
|
£3.13
|
|
|
31 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A117
2916660013
|
£2.16
|
£2.59
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A465
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A417
3600210124
|
£2.80
|
£3.36
|
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A147
1600136010
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A182
1600136011
|
£2.16
|
£2.59
|
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A141
1600136012
|
£1.75
|
£2.10
|
|
|
36 - SPRING WASHER
BSD-1600150011.A169
1600150011
|
£1.75
|
£2.10
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A168
1600290016
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR Z=35
BSD-1606333235.A10
1606333235
|
£63.50
|
£76.20
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A842
1604652013
|
£1.84
|
£2.21
|
|
|
40 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A90
2916660009
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A433
1600910018
|
£5.30
|
£6.36
|
|
|
42 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A32
1600905006
|
£12.04
|
£14.45
|
|
|
43 - BEVEL GEAR Z=9
BSD-1606333234.A13
1606333234
|
£37.27
|
£44.72
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A486
1603300016
|
£1.84
|
£2.21
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A82
2910211018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A111
2910211005
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A130
1603435026
|
£2.27
|
£2.72
|
|
|
50 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A1030
2910211021
|
£1.75
|
£2.10
|
|
|
51 - SPEED GOVERNOR 220-230V
BSD-1607233008.A5
1607233008
|
£27.23
|
£32.68
|
|
|
53 - CONNECTING CABLE L=95 MM
BSD-1604448005.A53
1604448005
|
£2.80
|
£3.36
|
|
|
54 - CONNECTING CABLE L=40 MM
BSD-1604448006.A65
1604448006
|
£2.74
|
£3.29
|
|
|
55 - TAPPING SCREW DIN7981-ST3.9x22-C-Z
BSD-2912401021.A63
2912401021
|
£1.84
|
£2.21
|
|
|
100 - REFERENCE PLATE
BSD-1601110310.A59
1601110310
|
-
|
|
|
|
105 - REFERENCE PLATE
BSD-1601110470.A100
1601110470
|
£1.75
|
£2.10
|
|
|
107 - O-RING 4.5x1.0 MM
BSD-1600210044.A316
1600210044
|
£1.84
|
£2.21
|
|
|
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A586
160202509T
|
£3.91
|
£4.69
|
|
|
650/20 - ROUND NUT M14
BSD-1603345043.A1148
1603345043
|
£9.11
|
£10.93
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A304
1607950052
|
£3.91
|
£4.69
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A332
2605703014
|
£7.72
|
£9.27
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A798
1600210039
|
£2.16
|
£2.59
|
|
|
650/60 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A65
1907950006
|
£4.48
|
£5.37
|
|
|
652 - PROTECTIVE COVER dia 150 MM
BSD-2605510127.A5
2605510127
|
-
|
|
|
|
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A155
2910022197
|
-
|
|
|
|
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A240
2910141197
|
£1.75
|
£2.10
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1604010248.A51
1604010248
|
£40.80
|
£48.96
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1860
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014116.A181
1607014116
|
£11.30
|
£13.56
|
|
|
813 - PUSH-BUTTON
BSD-1607000253.A175
1607000253
|
£2.49
|
£2.99
|
|
|
816 - BRUSH HOLDER
BSD-1600A003G4.A455
1600A003G4
|
£3.72
|
£4.47
|
|
|
821 - GEAR HOUSING
BSD-1605806480.A131
1605806480
|
£48.38
|
£58.06
|
|
|
828 - BEARING FLANGE
BSD-1607000936.A57
1607000936
|
£27.23
|
£32.68
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A951
1603340027
|
£46.82
|
£56.18
|
|
