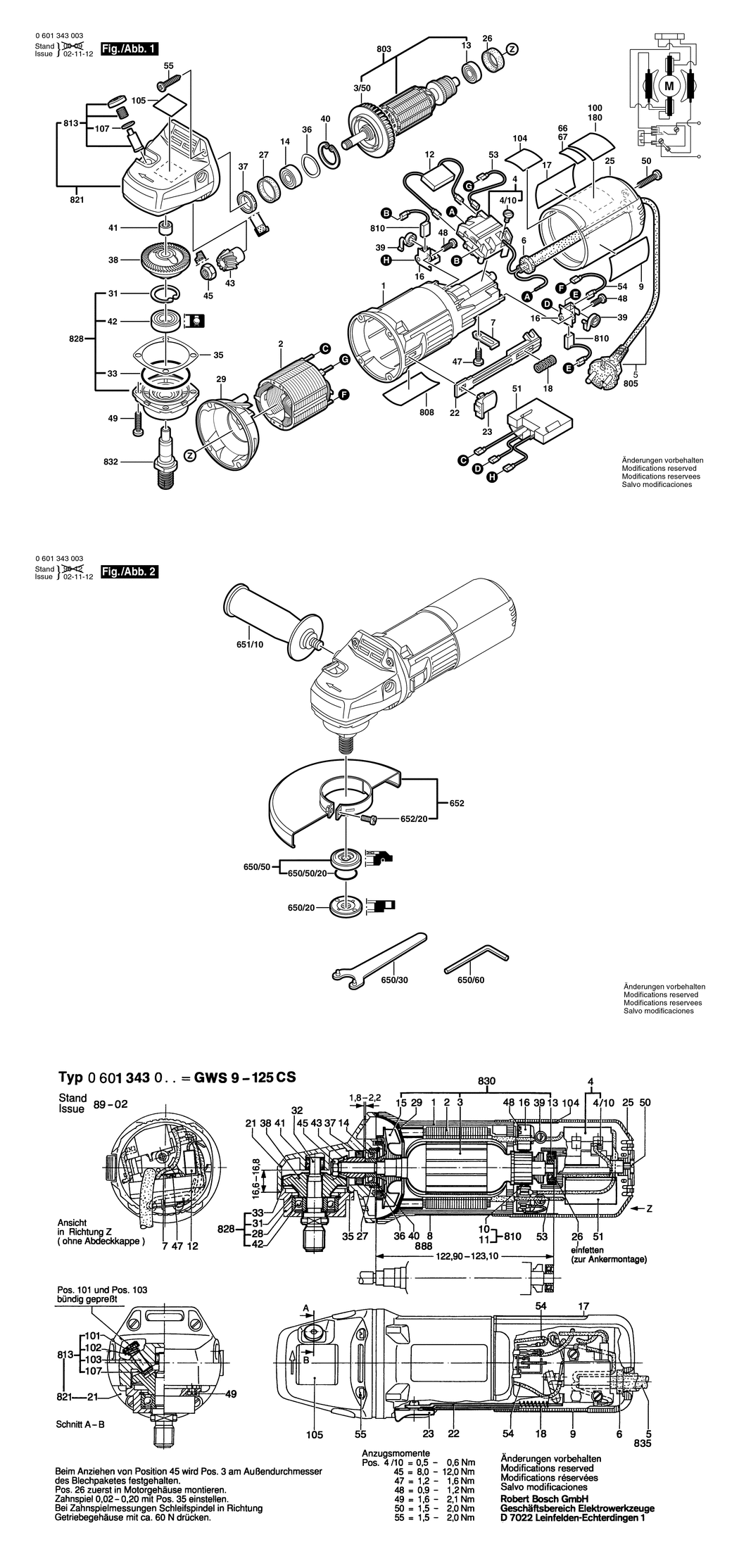

An exploded drawing and listing for the Bosch GWS 9-125 CS / 0601343003 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-16051082CC.A30 16051082CC £13.12 £15.75
2 - FIELD 220-230V BSD-1604220220.A14 1604220220 £37.27 £44.72
3/50 - FAN BSD-1606610121.A120 1606610121 £1.75 £2.10
4 - ON-OFF SWITCH BSD-1607200086.A297 1607200086 £11.30 £13.56
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A577 2910110048 £1.75 £2.10
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1688 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A863 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601110607.A9 1601110607 -
12 - SUPPRESSION FILTER BSD-1607328029.A107 1607328029 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A991 2600905032 £5.30 £6.36
14 - BALL BEARING 7x22x7 BSD-1900905018.A1305 1900905018 £18.96 £22.75
16 - BRUSH HOLDER BSD-1600A003G4.A480 1600A003G4 £3.72 £4.47
17 - MANUFACTURER'S NAMEPLATE BSD-1601110608.A0 1601110608 £1.75 £2.10
18 - COMPRESSION SPRING BSD-1604611026.A490 1604611026 £1.75 £2.10
22 - ADJUSTING SLIDE BSD-1602319002.A65 1602319002 £2.61 £3.13
23 - SWITCH HANDLE BSD-1602026057.A451 1602026057 £1.97 £2.36
25 - HOUSING COVER BSD-1600508006.A13 1600508006 -
26 - RUBBER BUSHING BSD-1600502020.A83 1600502020 £2.61 £3.13
27 - RUBBER RING BSD-1600206025.A1038 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1601328005.A228 1601328005 £2.61 £3.13
31 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A129 2916660013 £2.16 £2.59
33 - O-RING 46.0x1.1 MM BSD-3600210124.A405 3600210124 £2.80 £3.36
35 - SHIM 0.2 MM BSD-1600136010.A123 1600136010 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136011.A206 1600136011 £2.16 £2.59
35 - SHIM 0.1 MM BSD-1600136012.A117 1600136012 £1.75 £2.10
36 - SPRING WASHER BSD-1600150011.A156 1600150011 £1.75 £2.10
37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A154 1600290016 £2.61 £3.13
38 - CROWN GEAR Z=36 BSD-1606333601.A130 1606333601 £8.49 £10.19
39 - SPIRAL SPRING BSD-1604652013.A867 1604652013 £1.75 £2.10
40 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A77 2916660009 £2.16 £2.59
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A417 1600910018 £5.30 £6.36
42 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A7 1600905006 £12.04 £14.45
43 - BEVEL GEAR Z=11 BSD-1606333242.A105 1606333242 £48.38 £58.06
45 - HEX NUT M7. SW10 BSD-1603300016.A469 1603300016 £1.75 £2.10
47 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A59 2910211018 £1.75 £2.10
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A106 2910211005 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1603435026.A120 1603435026 £2.16 £2.59
50 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A1025 2910211021 £1.75 £2.10
51 - SPEED GOVERNOR 230V BSD-1607233013.A2 1607233013 -
53 - CONNECTING CABLE L=95 MM BSD-1604448005.A35 1604448005 £2.80 £3.36
54 - CONNECTING CABLE L=40 MM BSD-1604448006.A83 1604448006 £2.61 £3.13
55 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A41 2912401021 £1.75 £2.10
100 - STICKER BSD-1601110378.A4 1601110378 -
105 - REFERENCE PLATE BSD-1601110470.A120 1601110470 £1.75 £2.10
107 - O-RING 4.5x1.0 MM BSD-1600210044.A320 1600210044 £1.75 £2.10
650/20 - ROUND NUT M14 BSD-1603345043.A1131 1603345043 £8.67 £10.41
650/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A299 1607950052 £3.72 £4.47
650/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A355 2605703014 £7.36 £8.83
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A794 1600210039 £2.16 £2.59
651/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A597 160202509T £3.72 £4.47
651/10 - AUXILIARY HANDLE M10 BSD-1602025027.A5 1602025027 £6.52 £7.83
652 - PROTECTIVE COVER BSD-1600A0136N.A16 1600A0136N £23.86 £28.63
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A132 2910022197 -
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A245 2910141197 £1.75 £2.10
803 - ARMATURE WITH FAN 220-230V BSD-1604010248.A39 1604010248 £40.80 £48.96
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A273 1607000227 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A1834 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014116.A170 1607014116 £11.30 £13.56
813 - PUSH-BUTTON BSD-1607000253.A160 1607000253 £2.49 £2.99
821 - GEAR HOUSING BSD-1605806480.A121 1605806480 £48.38 £58.06
828 - BEARING FLANGE BSD-1607000936.A45 1607000936 £27.23 £32.68
832 - GRINDING SPINDLE BSD-1607000D6A.A478 1607000D6A £7.36 £8.83
