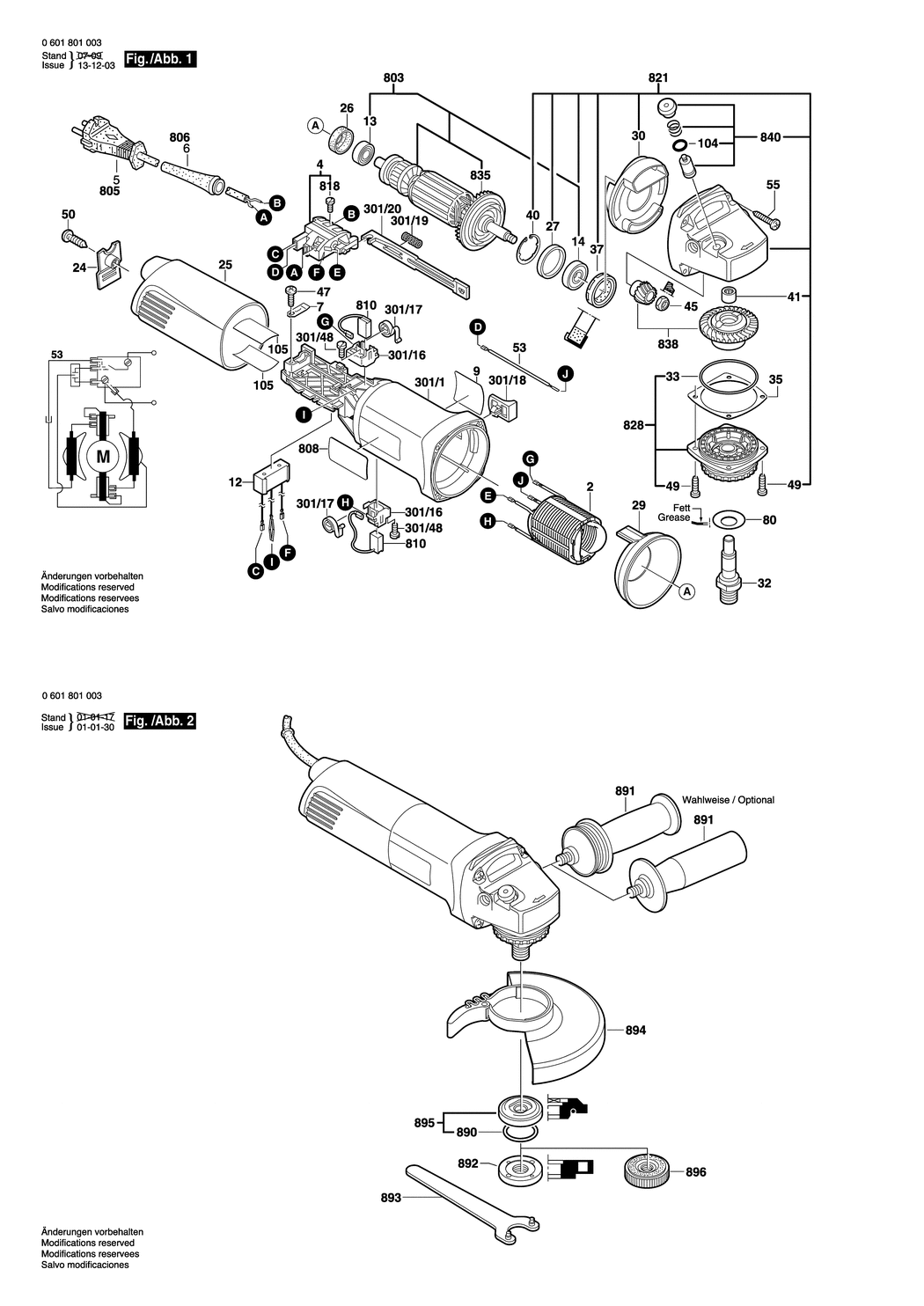

An exploded drawing and listing for the Bosch GWS 9-125 / 0601801015 / --- 220 Volt
Ex VAT Inc VAT
2 - FIELD 220-240V BSD-1604220283.A9 1604220283 £27.31 £32.77
4 - ON-OFF SWITCH BSD-1607200086.A239 1607200086 £11.30 £13.56
5 - POWER SUPPLY CORD AR 4.15m 2 x 1.0mm H05 RN-F BSD-1604460230.A0 1604460230 £18.96 £22.75
6 - GROMMET dia7.3-dia8.6x67 MM BSD-1600703031.A8 1600703031 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A1009 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118A72.A7 1601118A72 £3.34 £4.01
12 - SUPPRESSION FILTER BSD-1607328039.A35 1607328039 £11.30 £13.56
13 - BALL BEARING 7x19x6 BSD-2600905032.A1067 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A502 1600905032 £5.58 £6.70
24 - COVER BSD-1605500228.A58 1605500228 £2.80 £3.36
25 - HOUSING COVER BSD-1605500226.A14 1605500226 £8.13 £9.76
26 - RUBBER RING BSD-1600206036.A138 1600206036 £1.75 £2.10
27 - RUBBER RING BSD-1600206025.A899 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1600591025.A34 1600591025 £2.61 £3.13
30 - AIR-DEFLECTOR RING BSD-1600591014.A272 1600591014 £2.61 £3.13
32 - GRINDING SPINDLE BSD-1607000D6A.A340 1607000D6A £7.36 £8.83
33 - O-RING 46.0x1.1 MM BSD-1600210035.A22 1600210035 £1.75 £2.10
35 - SHIM 0.1 MM BSD-1600136013.A233 1600136013 £2.61 £3.13
35 - SHIM 0.15 MM BSD-1600136020.A274 1600136020 £3.72 £4.47
35 - SHIM 0.2 MM BSD-1600136014.A287 1600136014 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136015.A233 1600136015 £2.61 £3.13
37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A39 1600290016 £2.61 £3.13
40 - RETAINING CLIP BSD-1600119011.A526 1600119011 £2.16 £2.59
41 - PLAIN BEARING BSD-1600200029.A80 1600200029 £4.26 £5.11
45 - HEX NUT M7. SW10 BSD-1603300016.A411 1603300016 £1.75 £2.10
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A390 2912401018 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1603435026.A94 1603435026 £2.16 £2.59
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z BSD-2912401420.A102 2912401420 £1.75 £2.10
53 - CONNECTING CABLE L=90 MM BSD-1604448013.A52 1604448013 £2.16 £2.59
55 - OVAL-HEAD SCREW BSD-1603415005.A209 1603415005 £1.75 £2.10
80 - SEALING DISK BSD-3600150021.A274 3600150021 £3.80 £4.56
104 - O-RING 4.5x1.0 MM BSD-1600210044.A392 1600210044 £1.75 £2.10
105 - INSULATING PLATE BSD-1601008005.A61 1601008005 £4.26 £5.11
301/1 - MOTOR HOUSING BSD-1605108208.A21 1605108208 £11.30 £13.56
301/16 - BRUSH HOLDER BSD-1601323025.A231 1601323025 £3.72 £4.47
301/17 - SPIRAL SPRING BSD-1604652013.A1001 1604652013 £1.75 £2.10
301/18 - SWITCH HANDLE BSD-1602026057.A313 1602026057 £1.97 £2.36
301/19 - COMPRESSION SPRING BSD-1604611026.A600 1604611026 £1.75 £2.10
301/20 - ADJUSTING SLIDE BSD-1602319011.A1 1602319011 £1.75 £2.10
301/48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A57 2912401005 £1.75 £2.10
803 - ARMATURE WITH FAN 220-240V BSD-1604010660.A6 1604010660 £68.42 £82.10
808 - NAMEPLATE BSD-160111A3H3.A2755 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014176.A324 1607014176 £13.12 £15.75
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A551 2910110048 £1.75 £2.10
821 - GEAR HOUSING BSD-1605806451.A69 1605806451 £37.27 £44.72
828 - BEARING FLANGE dia 110-125 MM BSD-1607000347.A57 1607000347 £16.41 £19.69
835 - FAN BSD-1606610129.A230 1606610129 £2.16 £2.59
838 - GEAR UNIT BSD-1607000D4Y.A98 1607000D4Y £21.42 £25.71
840 - PUSH-BUTTON BSD-1607000253.A247 1607000253 £2.49 £2.99
890 - O-RING 20.35x1.78 MM BSD-1600210039.A895 1600210039 £2.16 £2.59
891 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A428 160202509T £3.72 £4.47
891 - AUXILIARY HANDLE M10. dia37x115 MM BSD-1602025031.A135 1602025031 £18.96 £22.75
892 - ROUND NUT M14 BSD-1603345043.A1302 1603345043 £8.67 £10.41
893 - PIN-TYPE FACE-WRENCH BSD-1607950052.A366 1607950052 £3.72 £4.47
894 - PROTECTIVE COVER dia 125 MM BSD-1605510313.A6 1605510313 -
895 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A434 2605703014 £7.36 £8.83
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A916 1603340027 £46.82 £56.18
