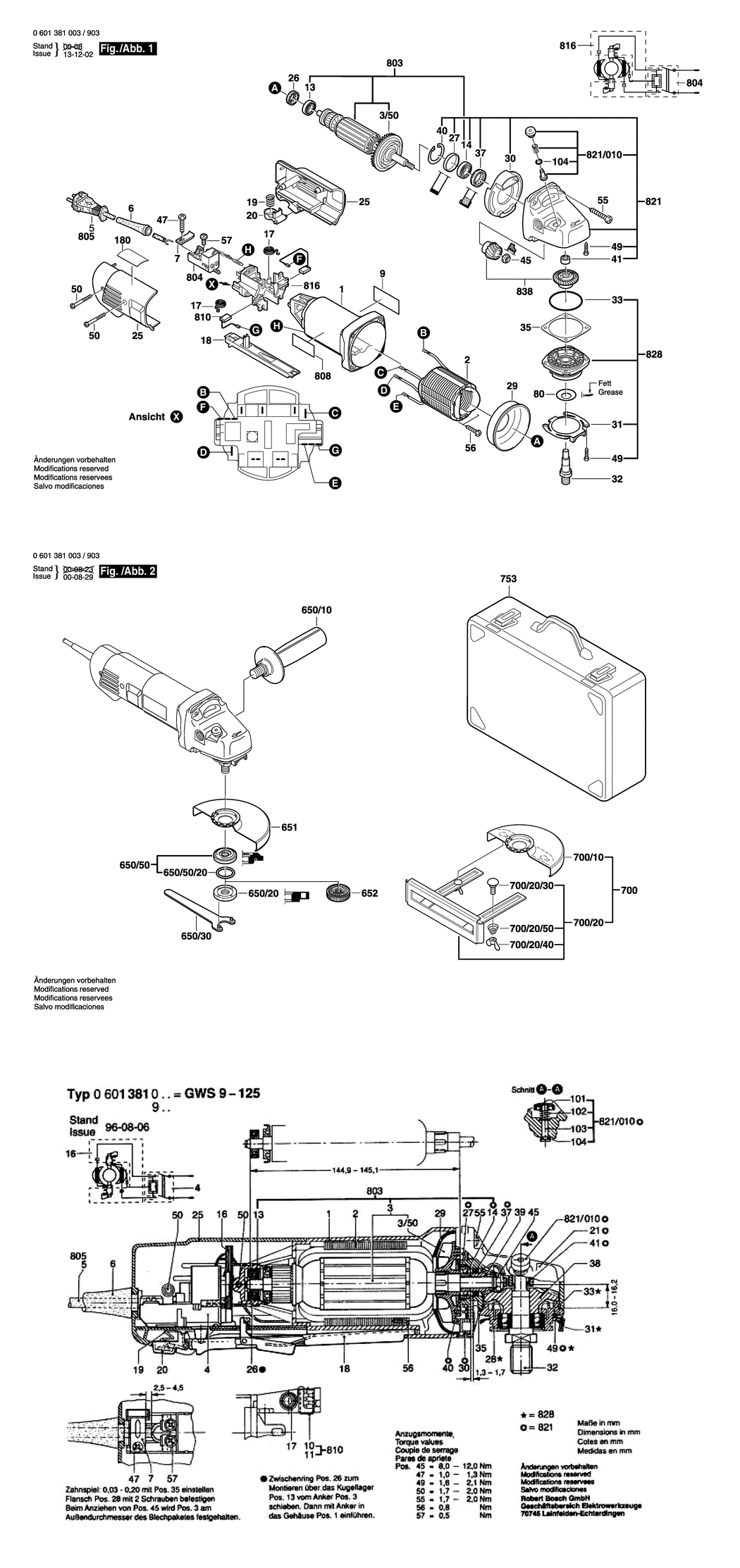

An exploded drawing and listing for the Bosch GWS 9-125 / 0601381932 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108162.A2 1605108162 £11.78 £14.13
2 - FIELD 220-240V BSD-1604220283.A1 1604220283 £27.31 £32.77
3/50 - FAN BSD-1606610129.A171 1606610129 £2.16 £2.59
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H05 RN-F BSD-1604460400.A19 1604460400 £16.41 £19.69
6 - GROMMET dia6.4-dia7.2x67 MM BSD-1600703030.A157 1600703030 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302017.A922 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601110918.A5 1601110918 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A915 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A69 1600905011 £5.58 £6.70
17 - SPIRAL SPRING BSD-1604652013.A887 1604652013 £1.75 £2.10
18 - SWITCH-PAWL BSD-1602319013.A106 1602319013 £8.49 £10.19
19 - COMPRESSION SPRING BSD-1604611024.A80 1604611024 £1.75 £2.10
20 - SHIFT-LEVER KNOB BSD-1602319007.A99 1602319007 £1.75 £2.10
21 - GEAR HOUSING BSD-1605806451.A38 1605806451 £37.27 £44.72
25 - HOUSING COVER BSD-1605500169.A9 1605500169 -
26 - RUBBER RING BSD-1600206036.A174 1600206036 £1.75 £2.10
27 - RUBBER RING BSD-1600206025.A993 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1600591013.A16 1600591013 -
30 - AIR-DEFLECTOR RING BSD-1600591014.A218 1600591014 £2.61 £3.13
31 - CLAMPING SPRING BSD-1601290007.A27 1601290007 £5.30 £6.36
32 - GRINDING SPINDLE BSD-1607000D6A.A413 1607000D6A £7.36 £8.83
33 - O-RING 46.0x1.1 MM BSD-3600210124.A384 3600210124 £2.80 £3.36
35 - SHIM 0.1 MM BSD-1600136013.A269 1600136013 £2.61 £3.13
35 - SHIM 0.15 MM BSD-1600136020.A247 1600136020 £3.72 £4.47
35 - SHIM 0.2 MM BSD-1600136014.A252 1600136014 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136015.A268 1600136015 £2.61 £3.13
37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A116 1600290016 £2.61 £3.13
40 - RETAINING CLIP BSD-1600119011.A481 1600119011 £2.16 £2.59
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A474 1600910018 £5.30 £6.36
45 - HEX NUT M7. SW10 BSD-1603300016.A513 1603300016 £1.75 £2.10
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A434 2912401018 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1603435026.A165 1603435026 £2.16 £2.59
50 - PLASTIC-CUTTING SCREW BSD-1603435037.A17 1603435037 £1.75 £2.10
55 - OVAL-HEAD SCREW BSD-1603415005.A155 1603415005 £1.75 £2.10
56 - PLASTIC-CUTTING SCREW BSD-1603435044.A108 1603435044 -
57 - SOCKET HEAD CAP SCREW M3.5x7 MM BSD-1603429002.A28 1603429002 £1.75 £2.10
80 - SEALING DISK BSD-3600150021.A311 3600150021 £3.80 £4.56
104 - O-RING 4.5x1.0 MM BSD-1600210044.A268 1600210044 £1.75 £2.10
700 - PARTS SET dia 125 MM BSD-2607001188.A76 2607001188 -
700/10 - PROTECTIVE COVER dia 125MM BSD-2605510101.A109 2605510101 £22.22 £26.67
700/20 - GUIDE BLOCK BSD-1608135004.A33 1608135004 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16 BSD-2910281158.A25 2910281158 -
700/20/40 - WING NUT M 5 DIN 315-G-5 BSD-2915191105.A51 2915191105 -
700/20/50 - COMPRESSION SPRING BSD-1604643004.A44 1604643004 -
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A570 160202509T £3.72 £4.47
750/20 - CLAMPING NUT M14 BSD-1603340040.A63 1603340040 £6.20 £7.44
750/30 - PIN-TYPE FACE-WRENCH BSD-1607950043.A181 1607950043 £4.02 £4.83
750/50 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A274 1605703099 £7.45 £8.94
750/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A750 1600210039 £2.16 £2.59
751 - PROTECTIVE COVER dia 125MM BSD-2605510104.A80 2605510104 -
752 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A1008 1603340027 £46.82 £56.18
753 - CARRYING CASE BSD-1605438089.A101 1605438089 -
767 - SUCTION HOOD dia115-125MM BSD-2605510107.A20 2605510107 -
767/703 - BRUSH BSD-2605730036.A101 2605730036 £21.53 £25.84
803 - ARMATURE 230-240V BSD-1604010444.A6 1604010444 -
804 - SWITCH BSD-1607200120.A3 1607200120 -
808 - NAMEPLATE BSD-160111A3H3.A1999 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014176.A371 1607014176 £13.12 £15.75
816 - BRUSH HOLDER BSD-1604336030.A30 1604336030 £16.74 £20.09
821 - GEAR HOUSING BSD-1605806451.A39 1605806451 £37.27 £44.72
821/010 - PUSH-BUTTON BSD-1607000253.A115 1607000253 £2.49 £2.99
828 - BEARING FLANGE BSD-1605805079.A132 1605805079 £18.96 £22.75
838 - GEAR UNIT BSD-1607000D4Y.A53 1607000D4Y £21.42 £25.71
